3500/4500 KG

AGGREGATE TRAILER MASS

1800 KG

TARE WEIGHT

140 KG

BALL WEIGHT

5 YR

STRUCTURAL WARRANTY

BUILDERS TRAILER

Custom Storage Options

4.5T Towing Capacities

Delivery Australia Wide

BUILDERS TRAILER

Heavy Duty Builders Trailer: Designed for Maximum Capacity and Versatility.

Delivery Australia Wide

The builders trailers from Ox Trailers are Australian made.
Ox Trailers is fully GRS certified as an Australian manufacturer. Your builders trailer will be built

3500/4500 KG

AGGREGATE TRAILER MASS

1800 KG

TARE WEIGHT

140 KG

BALL WEIGHT

3 YR

STRUCTURAL WARRANTY

THE

SPECS

The main design feature of the trailer frame is the 5mm, 350* grade steel, C-Section Channel that runs the full length of the trailer allowing the sub frame to flex and move as it negotiates rough off road terrain.

The chassis is made of Laser Cut, CNC folded, open chassis members allowing for easy wash down and cleaning, with no enclosed areas where mud, sand and salt can get trapped and cause corrosion.


*350 grade is higher tensile steel. Box Section is 300 grade and most C sections are 300.

TRAILER RUNNING GEAR

The Load Sharing Leaf Spring Suspension Set of a tandem axle trailer with a 3.5t ATM

Load Sharing Leaf Spring Suspension Set

The Load Sharing Leaf spring suspension set ensures a safe and stable trailer  on and off road.

The load-sharing systems distribute weight evenly between the two wheels ensuring the load remains level and the weight strain isn't put on one wheel.

The 12-inch electric drum brake visible through the wheel rim of an Ox Trailer tyre on a Service Trailer

12-Inch Electric Drum Brakes

Electric drum brakes provide a safe and reliable braking solution.

We provide a 12-inch drum brake as these are heavy duty and robust.

A close up of the tandem axles set-up under the trailer tray.

3000 kg 65mm Square Steel Axles

The 3000kg 65mm Square steel axles result in a stronger, yet lighter suspension set-up. The steel size of 65mm ensures the trailer can safely carry over 3000kg.

A close up of the Trail Parts Logo on the dust cap of the UNIHUB on an trailer tyre.

Dual Row Taper Roller Bearings

Each trailer has 4 Dual Row Taper Roller Bearings.

These are 3000kg each, with a triple lip marine seal with a secondary O-Ring seal incorporated into the dust cap.

These come with a 3-year manufacturer warranty.

The tandem tyres and wheels of the service trailer

16-inch wheels, 5 Stud Landcruiser Pattern and 5 - All Terrain 235RI6/75 New Tyres

Each trailer is fitted with All Terrain 235RI6 / 75 New Tyres.

These tyres are equipped with 16-inch wheels with a 5 Stud Landcruiser Pattern.


The 50mm Coupling and Ratchet Trailer Handbrake of the Service Trailer

Ratchet Trailer Handbrake and 50mm Coupling

The Builders Trailer is fitted with a ratchet trailer handbrake as standard.


All 3500 kg ATM trailers come standard with a 50 mm coupling, which can be swapped for a 70mm Coupling if the trailer is registered at 4500 kg ATM.

The Break-Away system installed on a Service Trailer

Break-Away System

The trailer Break-Away System is the ultimate emergency brake. It is designed to bring the trailer to a stop in the unlikely event it breaks away from the tow vehicle.

  • LOAD SHARING SUSPENSION

    The load sharing suspension on a builders trailer

    The Load Sharing Leaf spring suspension set ensures a safe and stable trailer on and off-road.


    The load-sharing system distributes weight evenly between the two wheels, ensuring the load remains level and the weight strain isn't put on one wheel.

  • DRUM BRAKES

    The 12-inch electric drumbrakes of an ox builders trailer.

    Electric drum brakes provide a safe and reliable braking solution.


    We provide a 12-inch drum brake as these are heavy-duty and robust.

  • STEEL AXLES

    the 65mm steel axles of the ox builders trailer

    The 3000kg 65mm Square steel axles result in a stronger, yet lighter suspension set-up.

    The steel size of 65mm ensures the trailer can safely carry over 3000kg.

  • BEARINGS

    The dual row taper bearings of the ox builders trailer

    Each trailer has 4 Dual Row Taper Roller Bearings.


    These are 3000kg each, with a triple lip marine seal with a secondary O-Ring seal incorporated into the dust cap.


    These come with a 3-year manufacturer warranty.

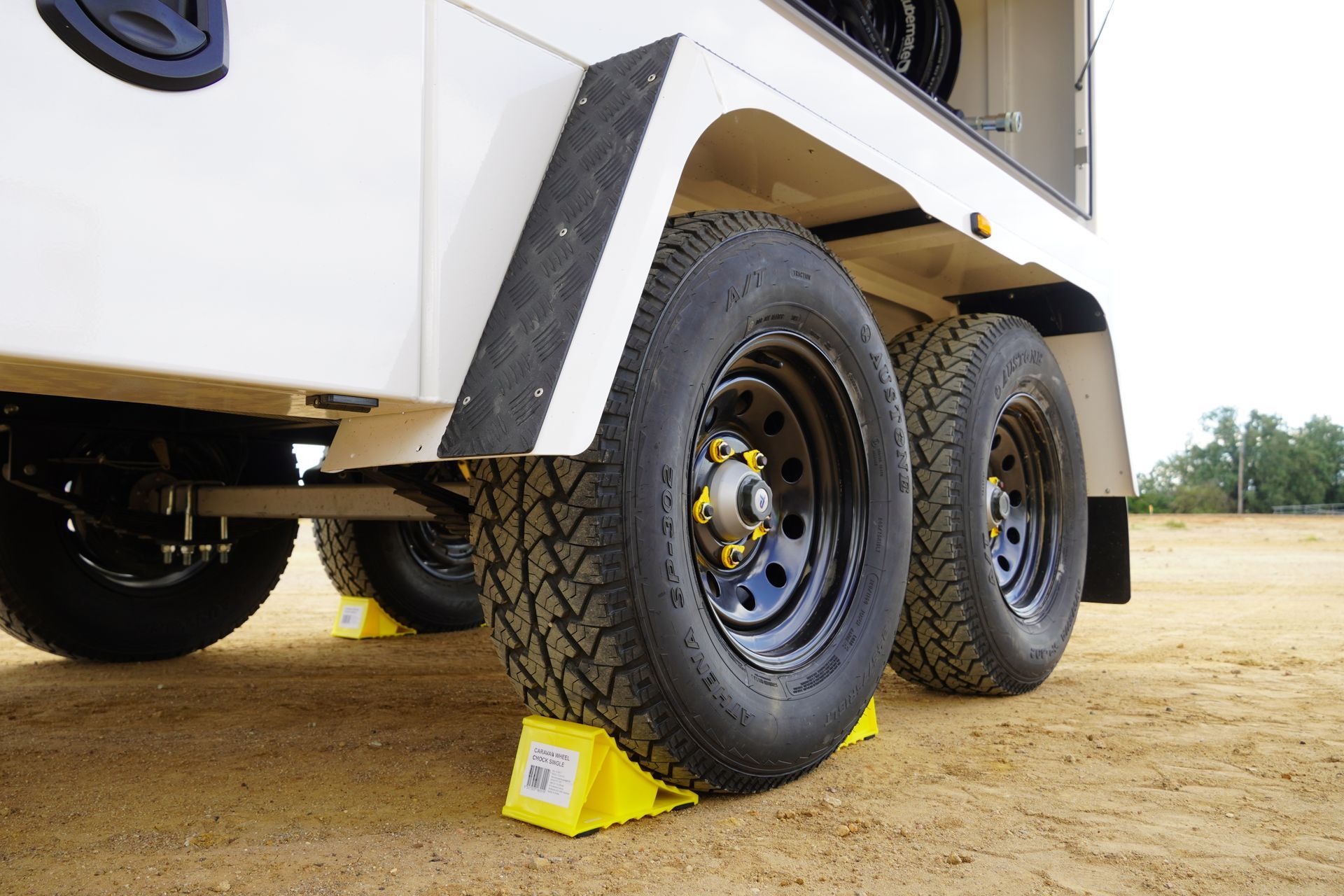

  • TYRES + WHEELS

    The All Terrain tyres of the ox builders trailer.

    Each trailer is fitted with All Terrain 235RI6 / 75 New Tyres.


    These tyres are fitted with 16-inch wheels with a 5 Stud Landcruiser Pattern.

  • HANDBRAKE + COUPLING

    The 50mm coupling and handbrake of the ox builders trailer.

    The Builders Trailer is fitted with a ratchet trailer handbrake as standard.


    All 3500 kg ATM trailers come standard with a 50 mm coupling, which can be swapped for a 70mm Coupling if the trailer is registered at 4500 kg ATM.

  • BREAK-AWAY SYSTEM

    The break-away system of an ox builders trailer.

    The trailer Break-Away System is the ultimate emergency brake.

    It is designed to bring the trailer to a stop in the unlikely event it breaks away from the tow vehicle.

CANOPY CONSTRUCTION

The Mounting system of a Builders Trailer.

Builders Trailer Spring Mounting System

Our unique mounting system reduces the shock/vibration distributed to the Aluminium canopy from the road conditions and is absorbed through this unique engineered mounting system. This reduces stress on the canopy, dramatically reducing cracking and fatigue over time.

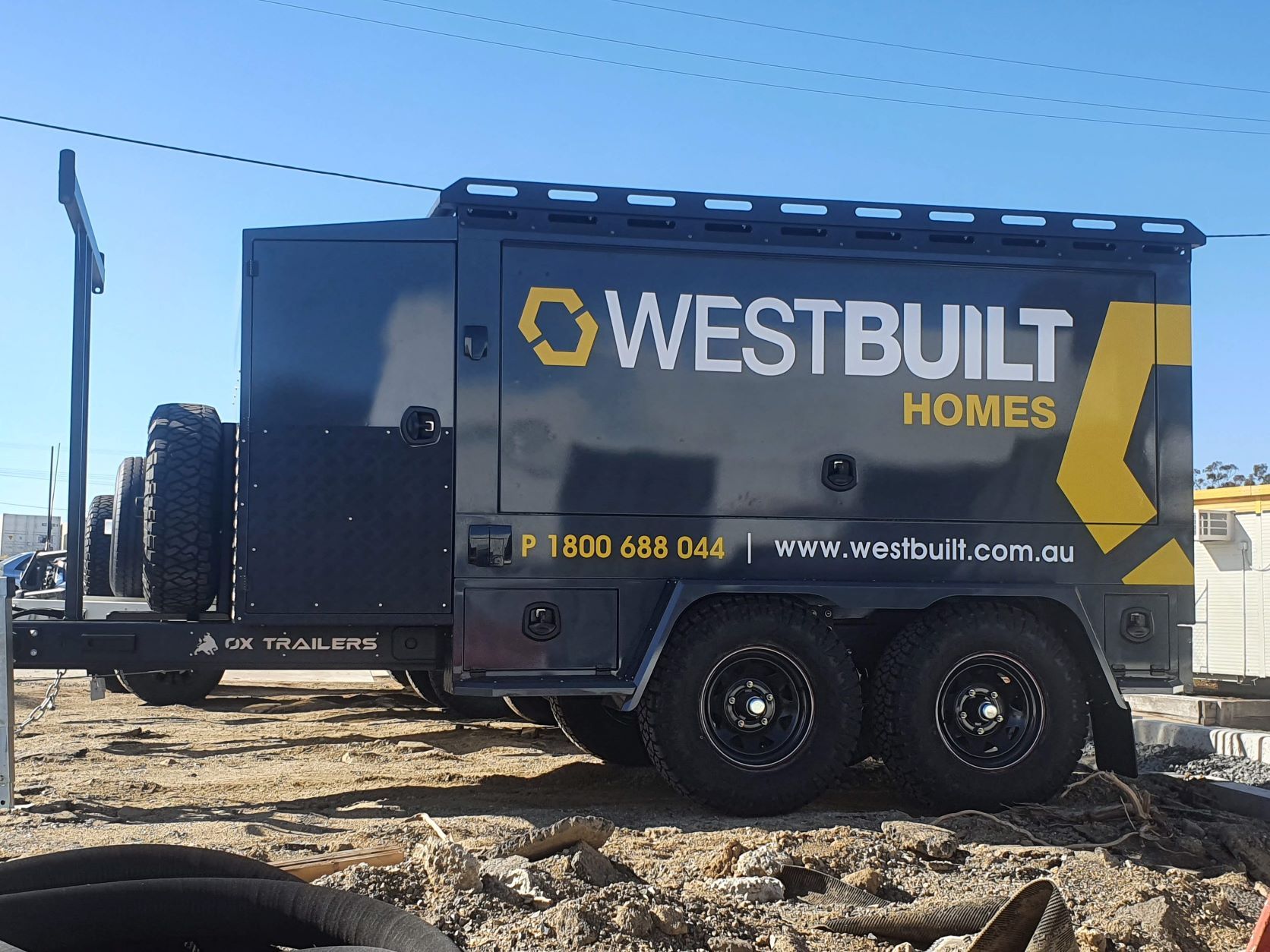

The finished builders trailer, complete with sign writing for westbuilt homes.

2.5mm Aluminium fully Welded Monocoque Design

The canopy is fully monocoque, forged with CNC Laser Cut and folded with 2.5mm aluminium plate.

Precision Laser cut and CNC Folded components

The entire canopy is designed to be laser cut and CNC folded to optimal accuracy.

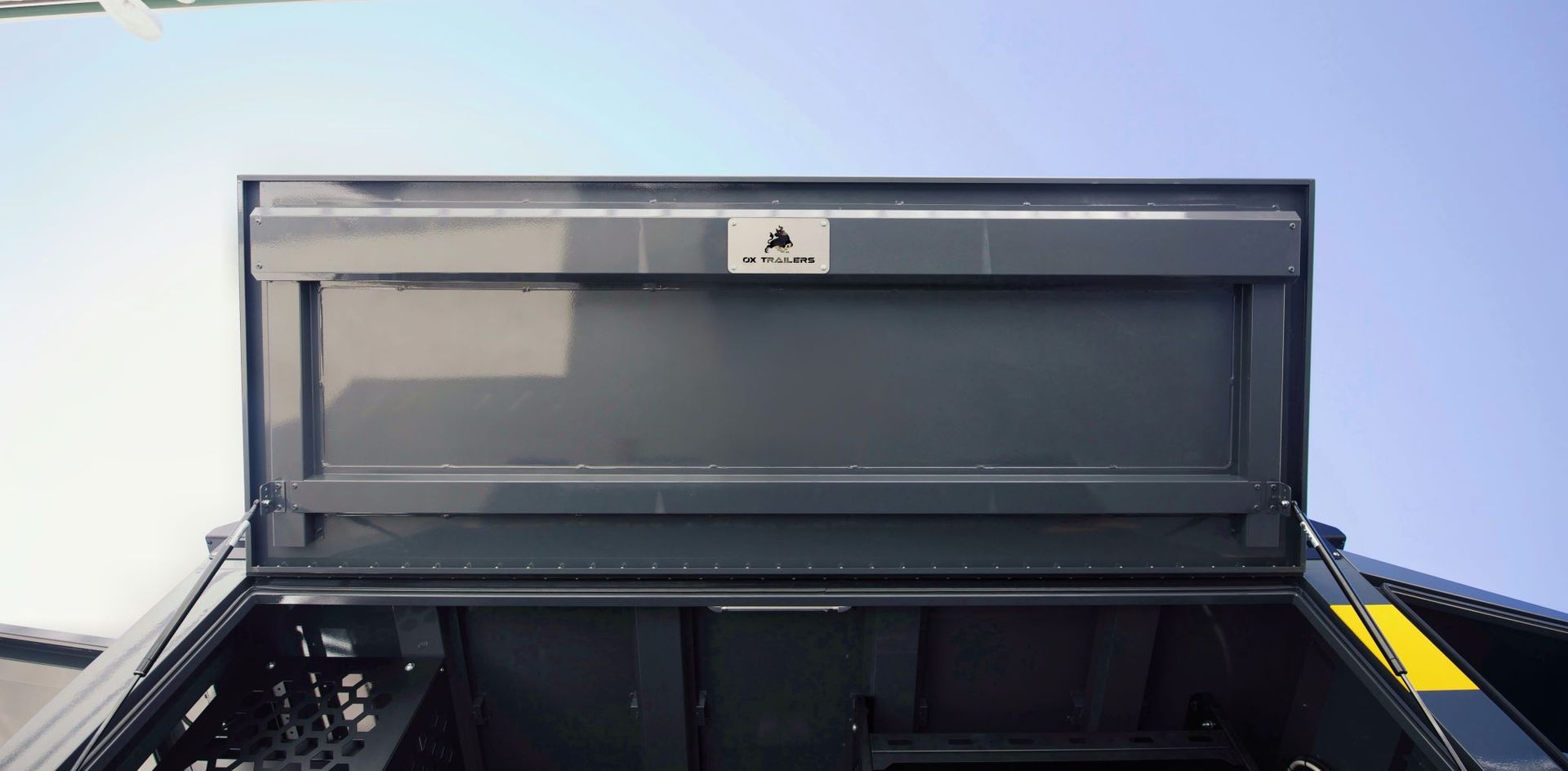

Internal sheet metal bracing for added rigidity around door openings

The internal sheet metal bracing gives added rigidity for the doors and the internal structure of the canopy. This allows the canopy to support more load on the outside of the trailer, and protect the inside.

Reinforced side-opening doors.

The reinforced, side-opening doors of the builder's trailer canopy have 2-point anti-theft locking for safe and secure equipment storage. These doors are fully sealed and are dust and watertight.

Pinchweld sealed door opening with a full-length hinge.

The canopy doors are fitted with a pinchweld seal around the full opening and are secured via a full length hinge on the topside.

High-tensile fasteners and structural grade rivets

Securing the doors and internal components of the service trailer are high-tensile fasteners and structural grade rivets.

  • MOUNTING SYSTEM

    The spring mounting system of the ox builders trailer.

    Our unique mounting system reduces the shock/vibration distributed to the Aluminium canopy from the road conditions and is absorbed through this unique engineered mounting system.

    This reduces stress on the canopy, dramatically reducing cracking and fatigue over time.

  • MONOCOQUE DESIGN

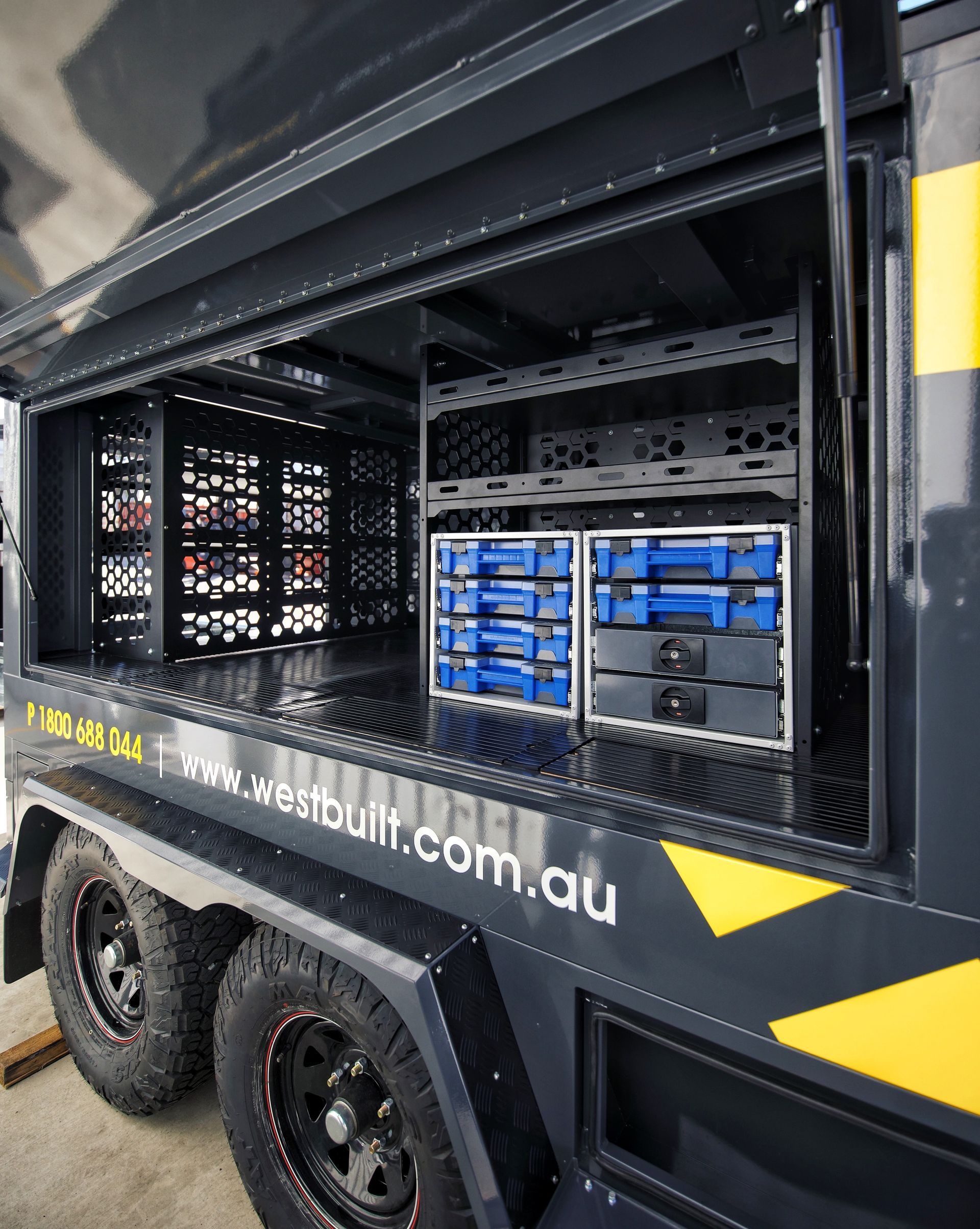

    the side of an ox builder trailer, showing the full internal design.

    The canopy is fully monocoque, forged with CNC Laser Cut and folded with 2.5mm aluminium plate.

  • LASER CUT + CNC FOLDED

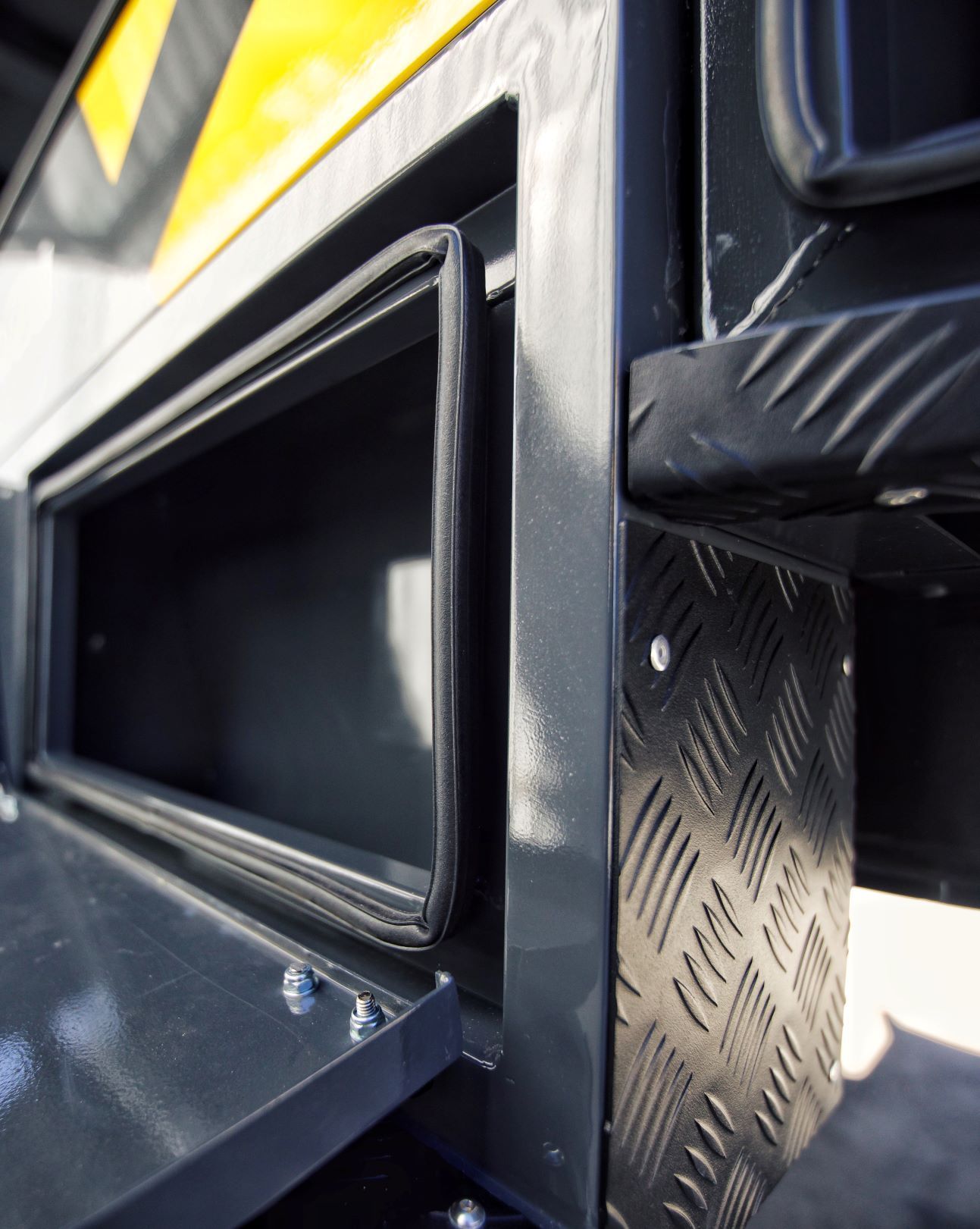

    A laser cut and cnc folded toolbox of an ox trailer.

    The entire canopy is designed to be laser cut and CNC folded to optimal accuracy.

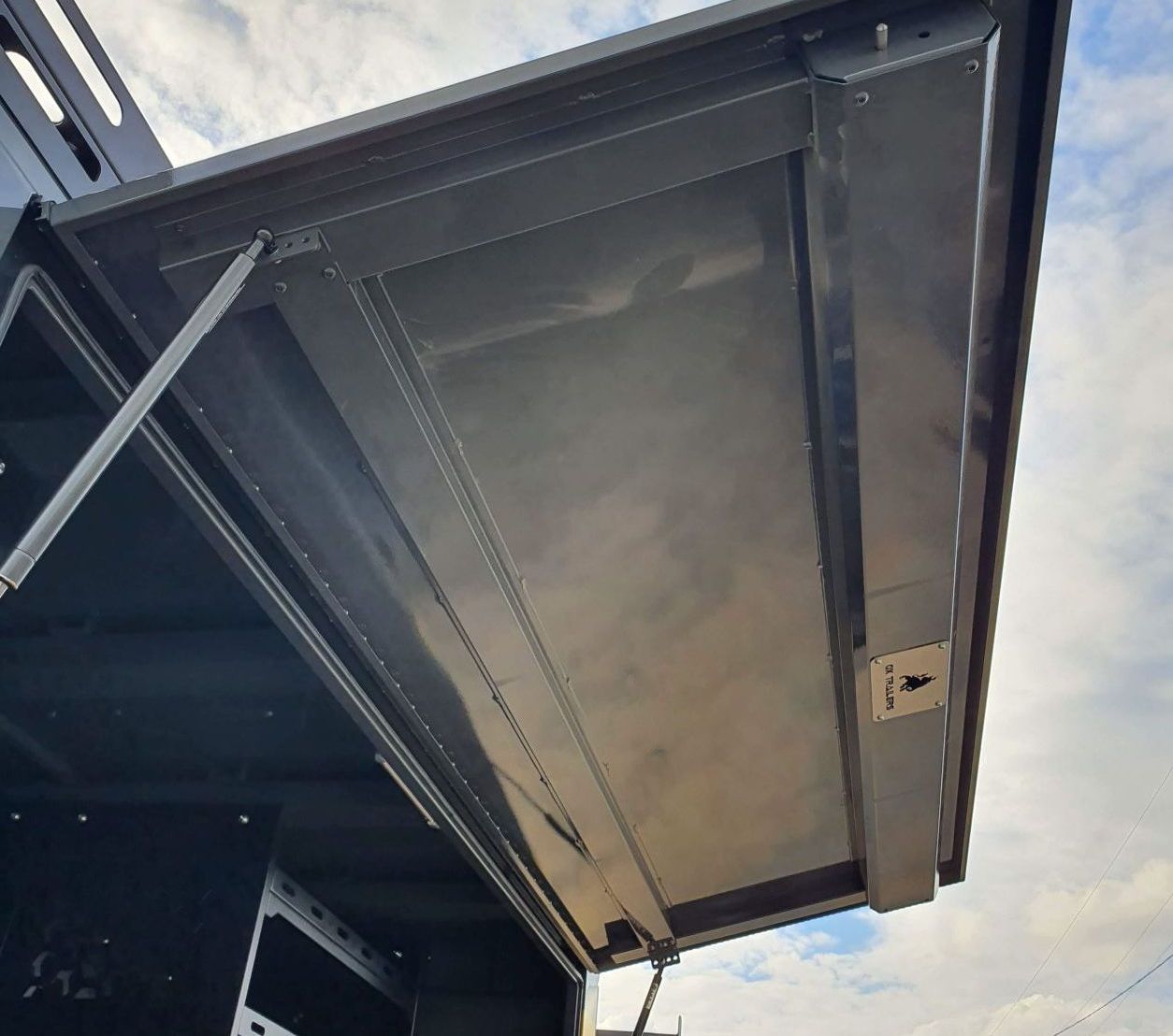

  • INTERNAL SHEET METAL BRACING

    The internal bracing of an ox builders trailer.

    The internal sheet metal bracing gives added rigidity to the doors and the internal structure of the canopy.

    This allows the canopy to support more load on the outside of the trailer, and protect the inside.

  • SIDE OPENING DOORS

    The reinforced, side-opening door of the builders trailer.

    The reinforced, side-opening doors of the Builders Trailer canopy have 2-point anti-theft locking for safe and secure equipment storage.

    These doors are fully sealed and are dust and watertight.

  • FULL LENGTH DOOR HINGE

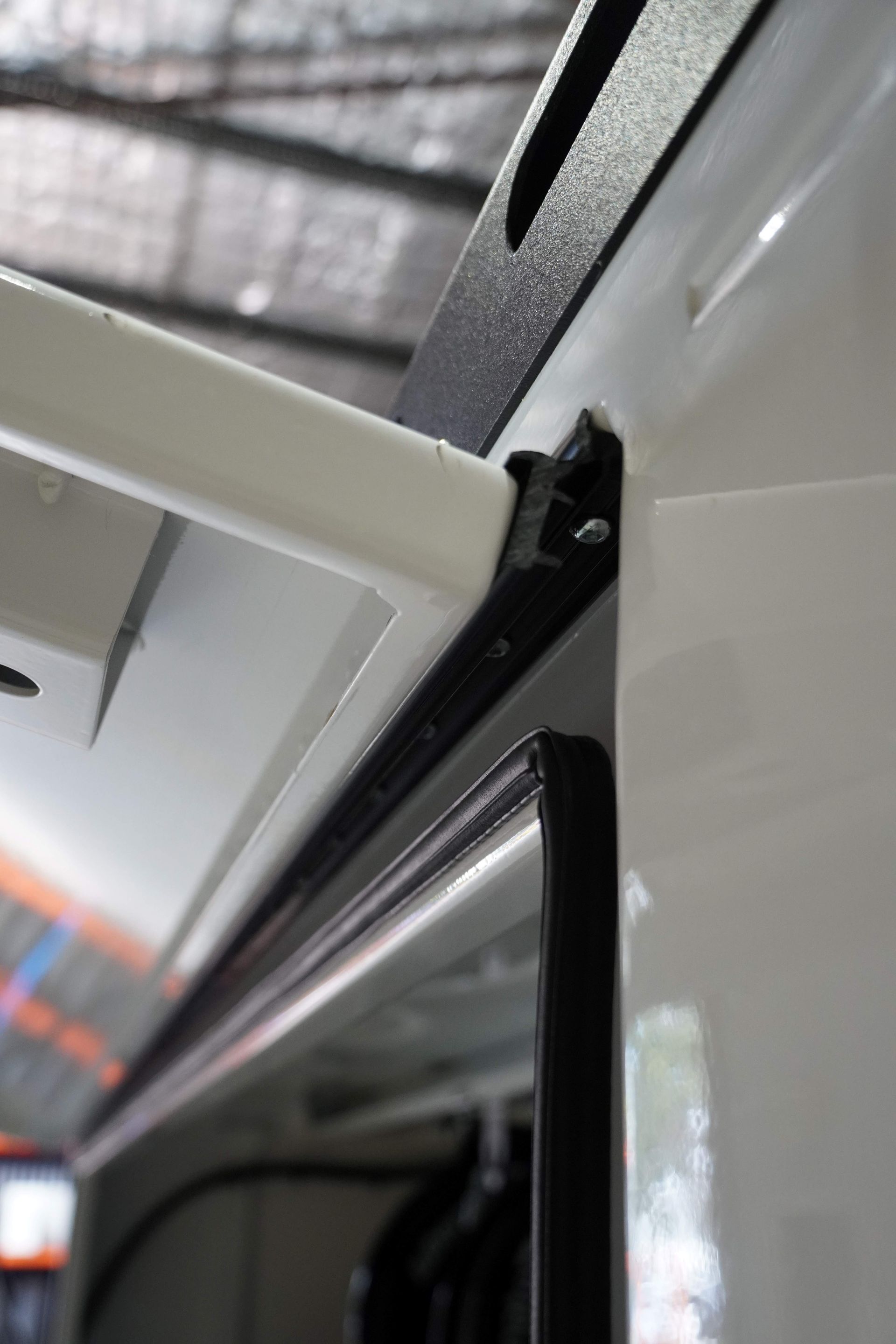

    The full length hinge of the ox builders trailer.

    The canopy doors are fitted with a pinch weld seal around the full opening and are secured via a full-length hinge on the topside.

  • FASTENERS + RIVETS

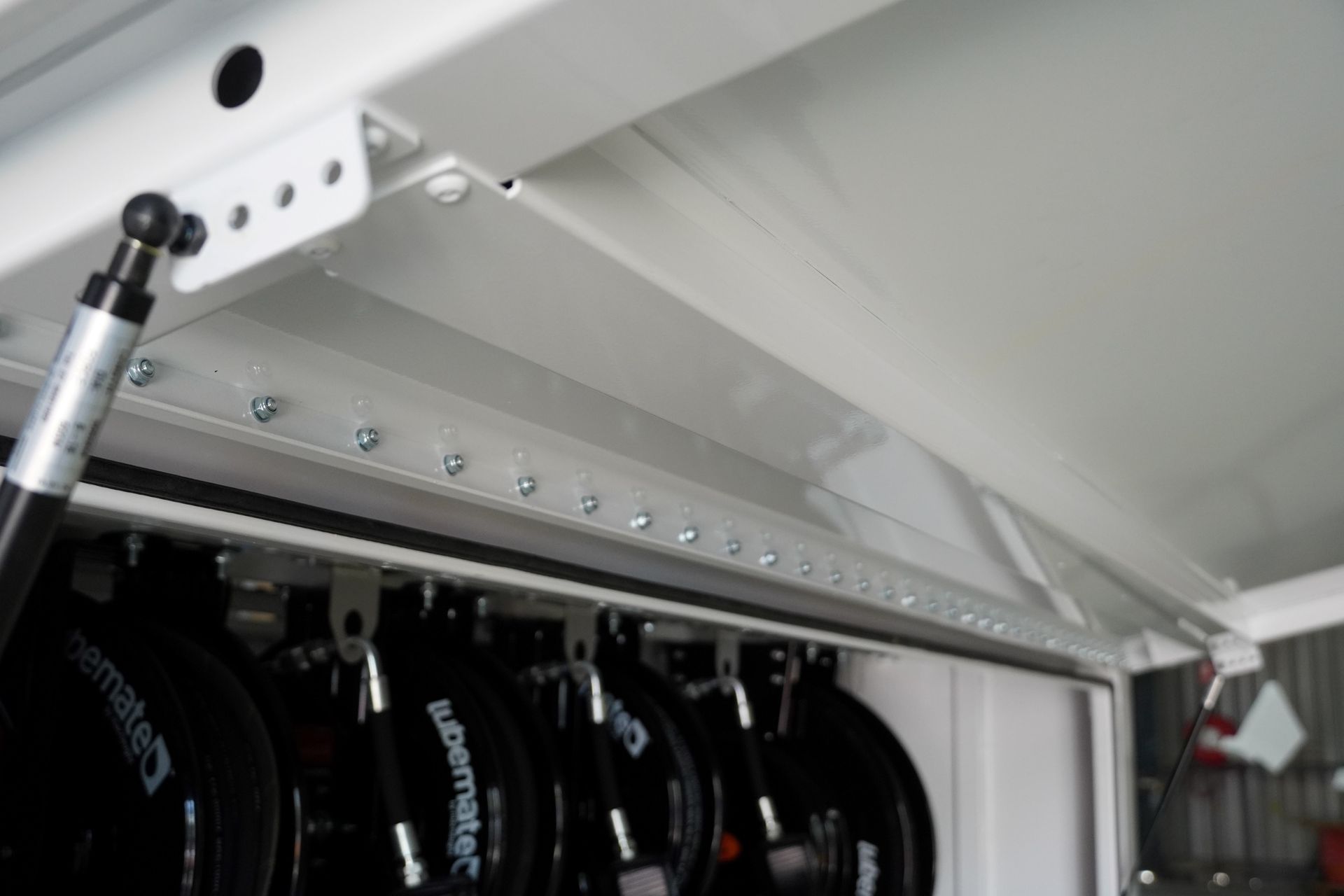

    The fasteners and rivets along the full length of the builder's trailer side door.

    Securing the doors and internal components of the service trailer are high-tensile fasteners and structural grade rivets.

TRAILER SIZE

The builder trailer on the Westbuilt homes construction site.

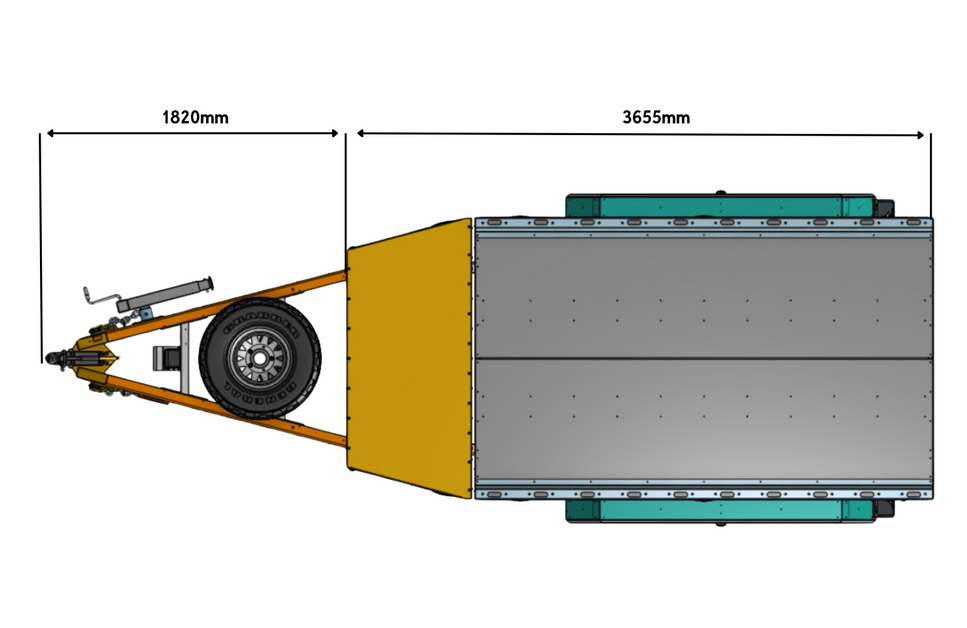

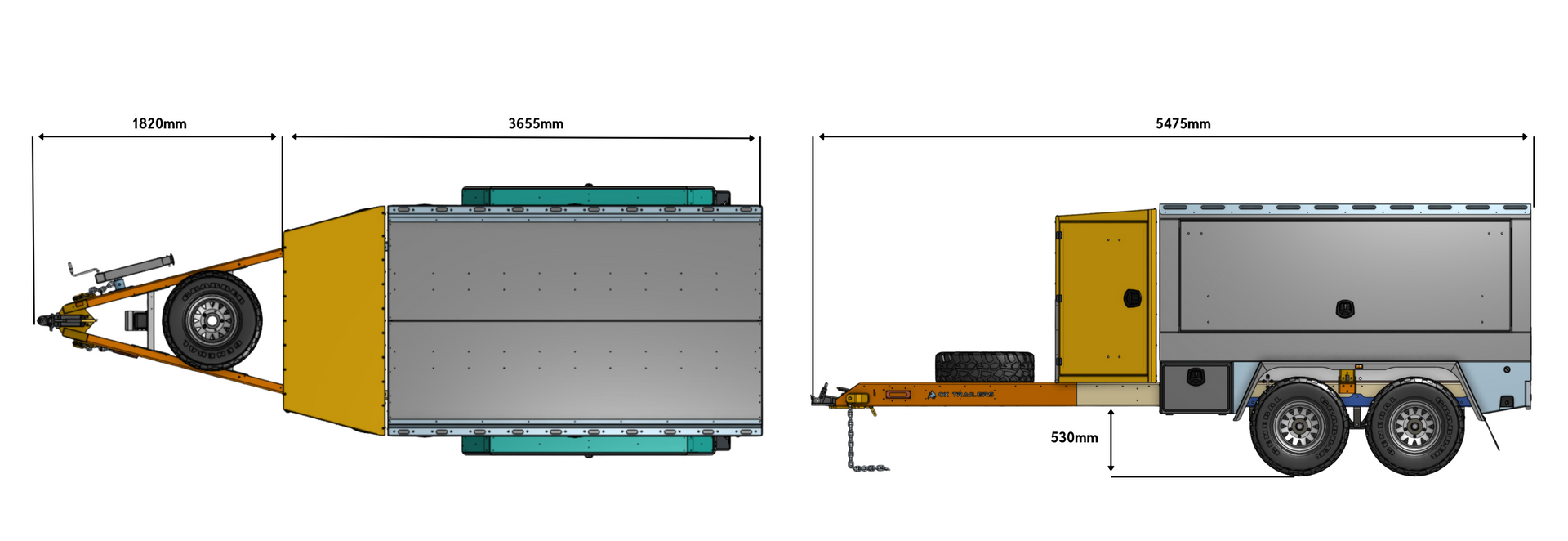

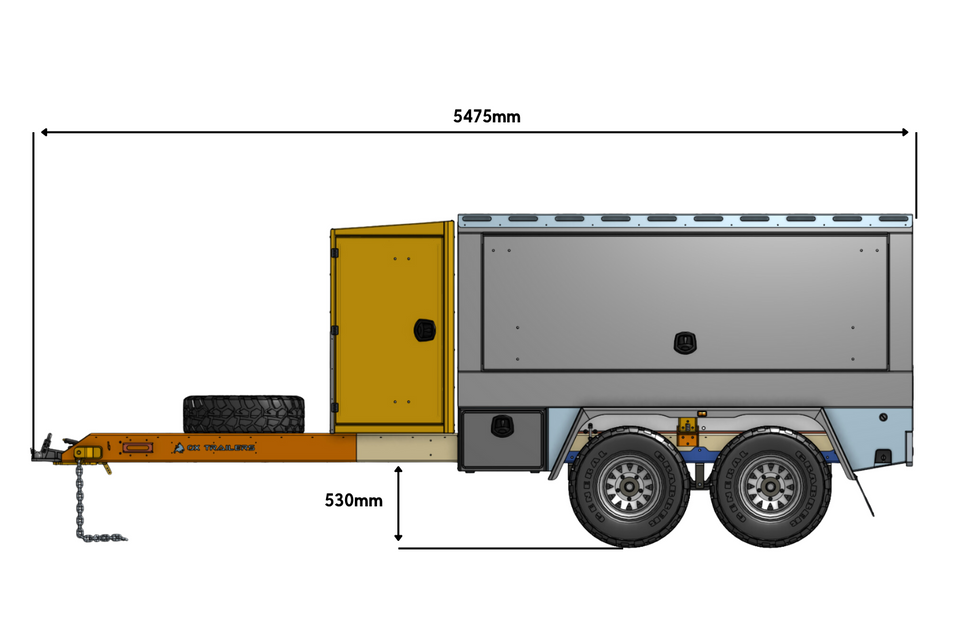

Builders Trailer Overall Size

The overall size of the Builders Trailer is 4920mm Long, by 2050mm Wide.

The open drawer system of the main canopy of the builders trailer.

Builders Trailer Canopy Size

The main canopy length is 2850mm

The main canopy width is 1750mm

The main canopy height is 2150mm


The drawbar canopy capacity is 1.5m3

The total canopy capacity is 7.2m3


The door opening of an Ox Builders trailer

Builders Trailer Internal Door Sizes

The internal measurement of the Main Canopy doors is 2250mm long by 750mm high


The internal measurement of the Drawbar Canopy is 1080mm long by 600mm high.

The builders trailer behind the RAM 1500

Builders Trailer Weights

The TARE weight of the builder's trailer is 1800kg

The builder's trailer ATM is 3500kg

The Ball Weight of a builder's trailer is 140kg.

  • OVERALL SIZE

    the builders trailer at a construction site.

    The overall size of the Builders Trailer is 4920mm Long, by 2050mm Wide.

  • CANOPY SIZE

    the rear of the ox builders trailer, showing the size.

    The main canopy length is 2850mm

    The main canopy width is 1750mm

    The main canopy height is 2150mm


    The drawbar canopy capacity is 1.5m3

    The total canopy capacity is 7.2m3

  • INTERNAL SIZES

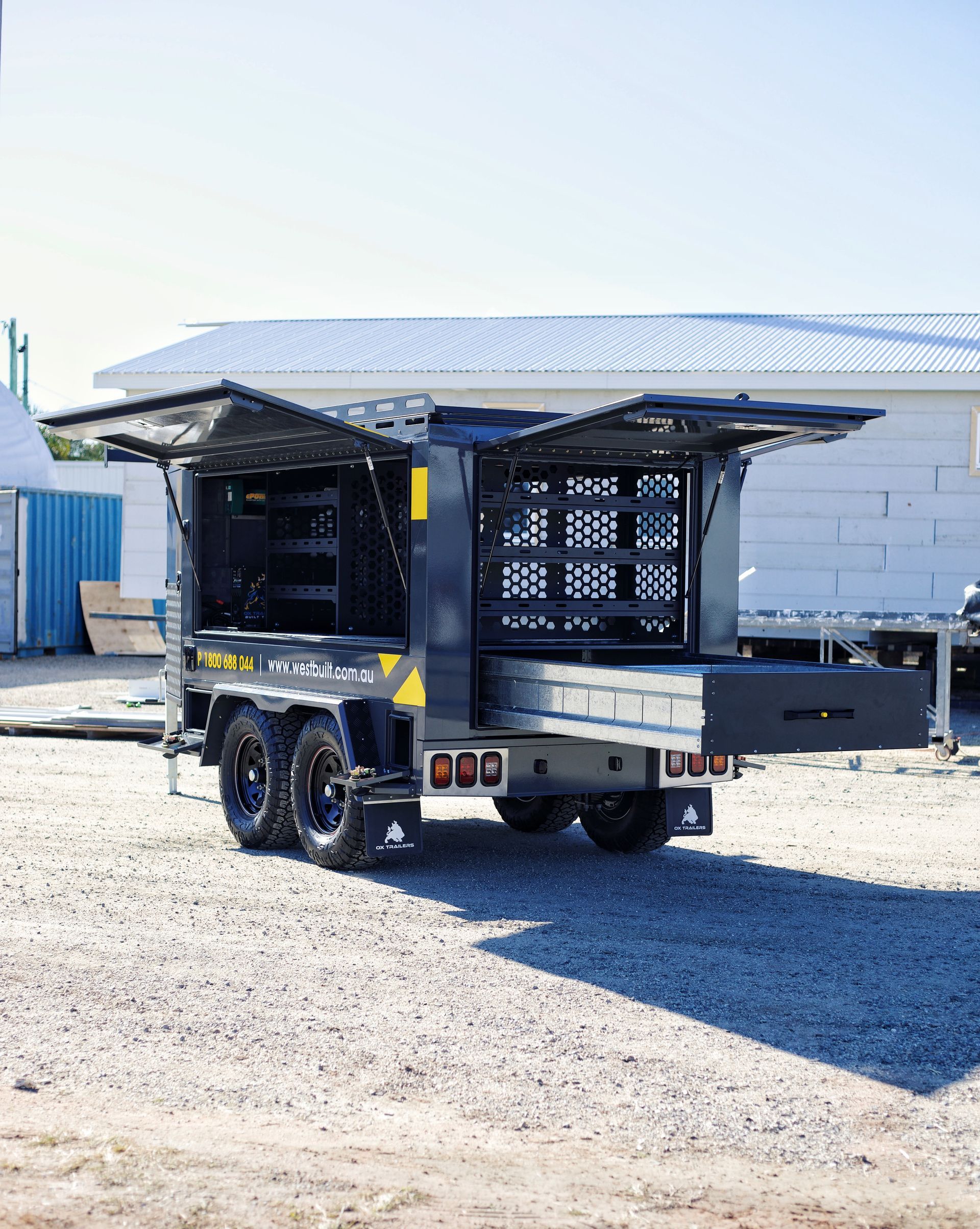

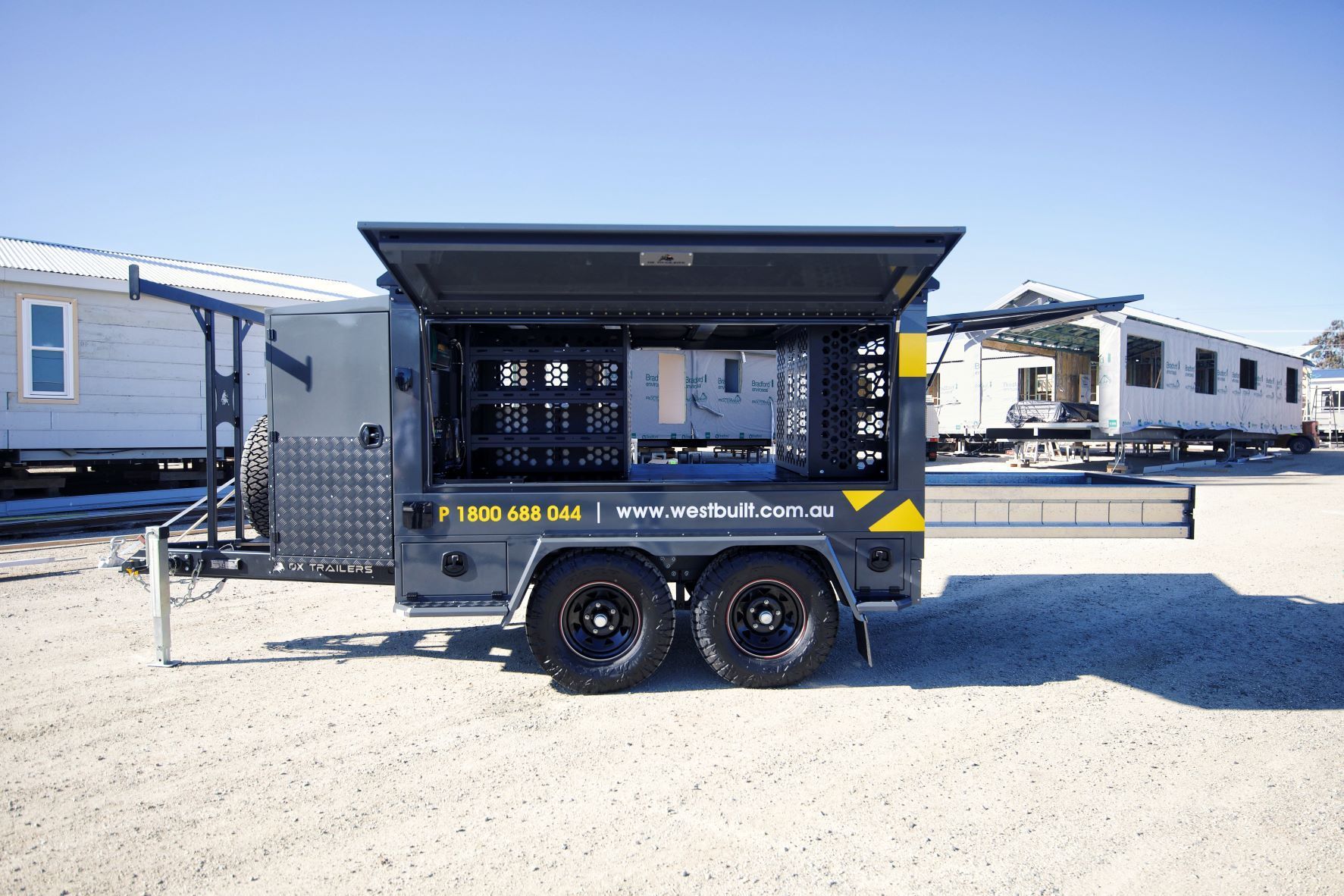

    The builders trailer with all doors open, showing opening sizes.

    The internal measurement of the Main Canopy doors is 2250mm long by 750mm high.


    The internal measurement of the Drawbar Canopy is 1080mm long by 600mm high.

  • TRAILER WEIGHT

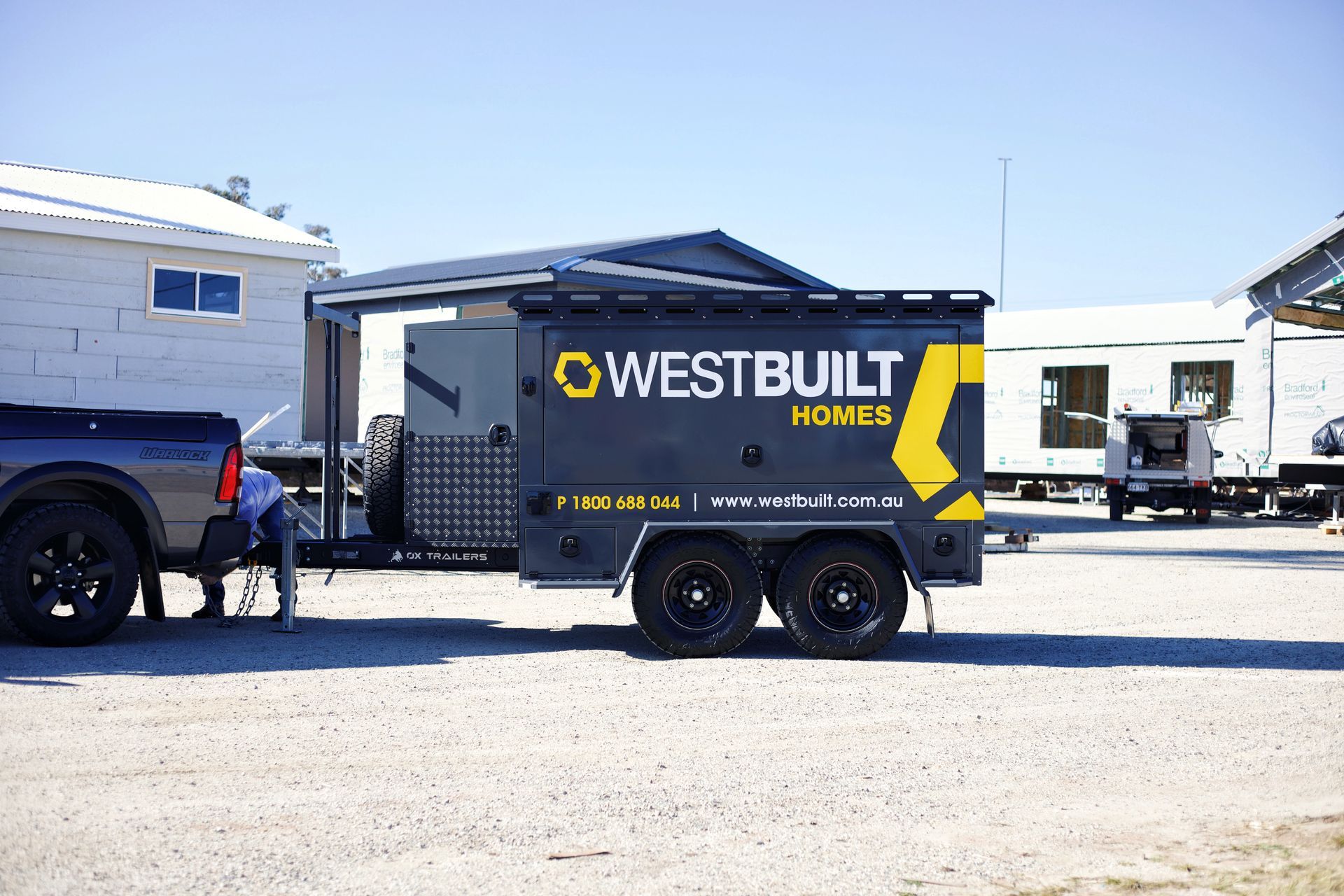

    the westbuilt builders trailer on a construction site.

    The TARE weight of the builder's trailer is 1800kg


    The builder's trailer ATM is 3500kg


    The Ball Weight of a builder's trailer is 140kg.

DOWNLOAD THE CATALOGUE

The Builders Trailer is built for 24/7 use in the construction industry.


See our catalogue or access our accessories page for a more detailed explanation of the options and accessories.

Builders Trailer Catalogue to Download
