3000 KG
AGGREGATE TRAILER MASS
580 KG
TARE WEIGHT
105 KG
BALL WEIGHT
3 YR
STRUCTURAL WARRANTY

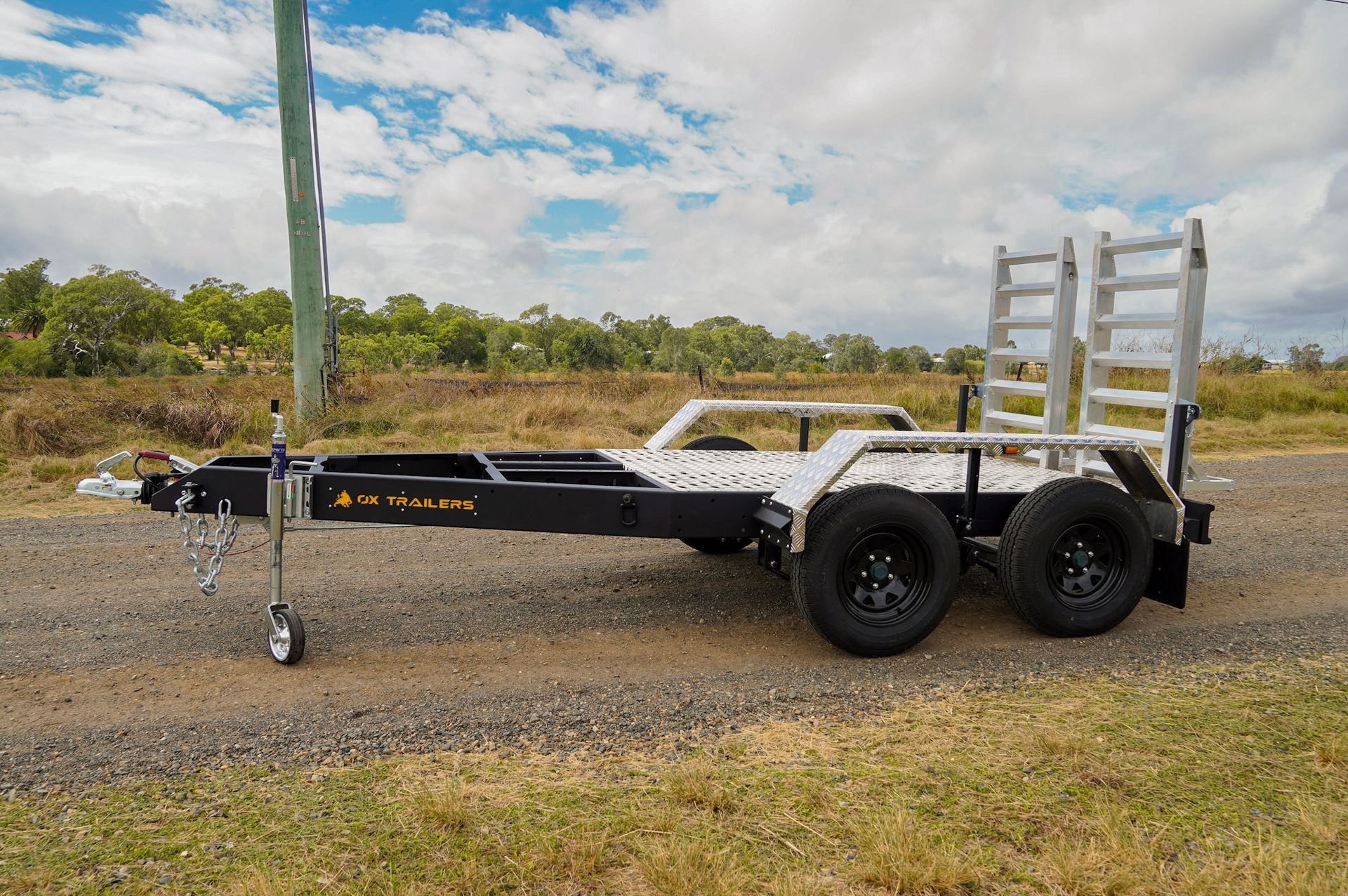

BASE SERIES PLANT TRAILER
Accessories + Storage
3.0T Towing Capacity
Delivery Australia Wide
3000KG
AGGREGATE TRAILER MASS
580KG
ESTIMATED TARE WEIGHT
65KG
BALL WEIGHT
3YR
STRUCTURAL WARRANTY
THE
SPECS

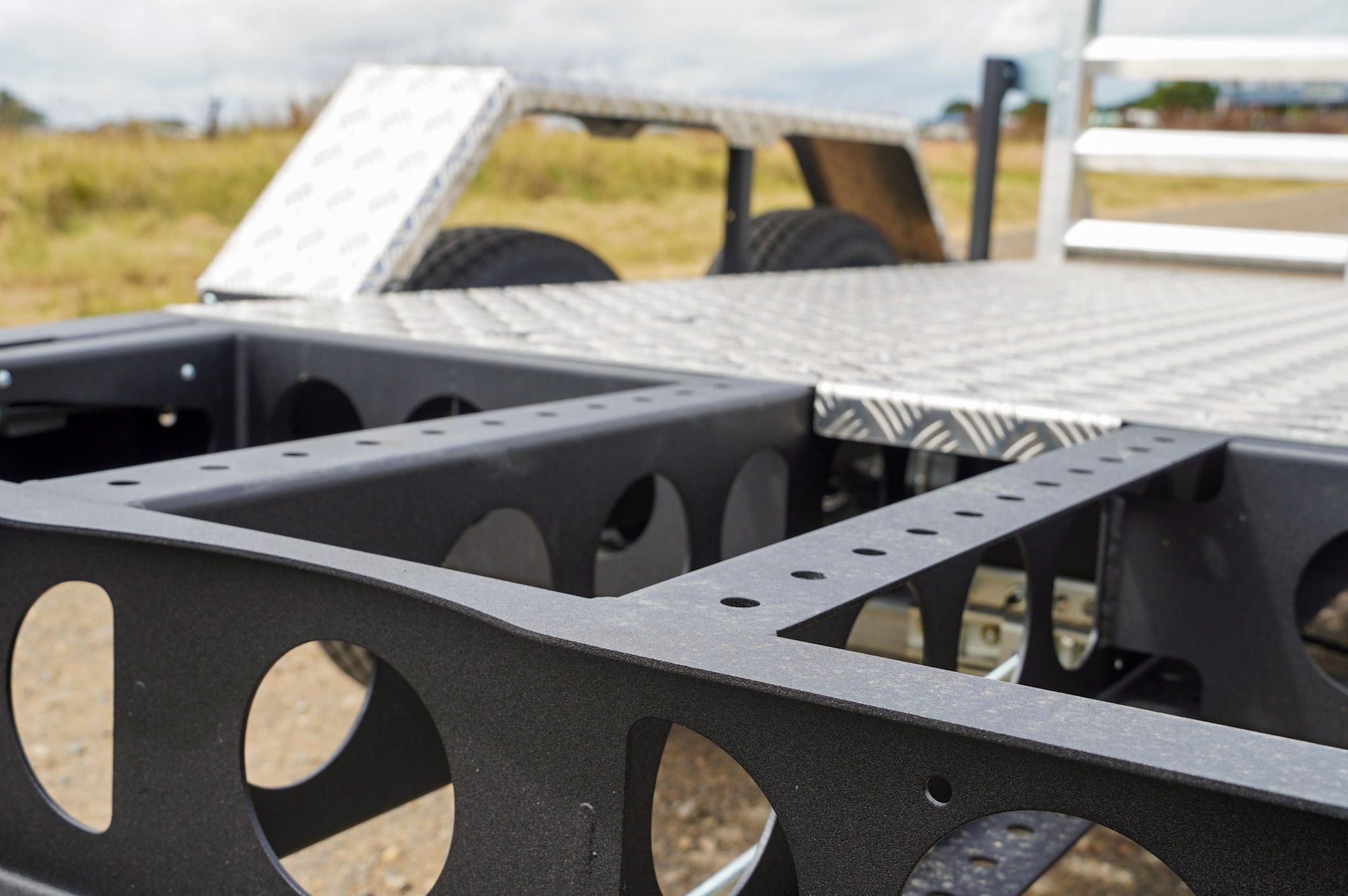

The main design feature of the Base Series Plant Trailer is the 350 Grade, C-Section Chassis that runs the full length of the Plant Trailer allowing the chassis to flex and move as it negotiates rough road terrain.
The C-Section fabricated chassis is made of laser cut, CNC folded, 350* grade, open chassis members allowing for easy wash down and cleaning, with no enclosed areas where mud, sand and salt can get trapped and cause corrosion.
Fitted with CNC folded Checker Plate Mudguards, secure Spare Tyre Storage, 65mm Square Steel Drop Axles, Tie Down Points, Chain Slot Provision, and Powder Coated with a durable finish; the Plant Trailer is ready to be your versatile hauling machine for all your plant and equipment.
*350 grade is higher tensile steel. Box section is 300 grade and most C-Sections are 300.
TRAILER RUNNING GEAR

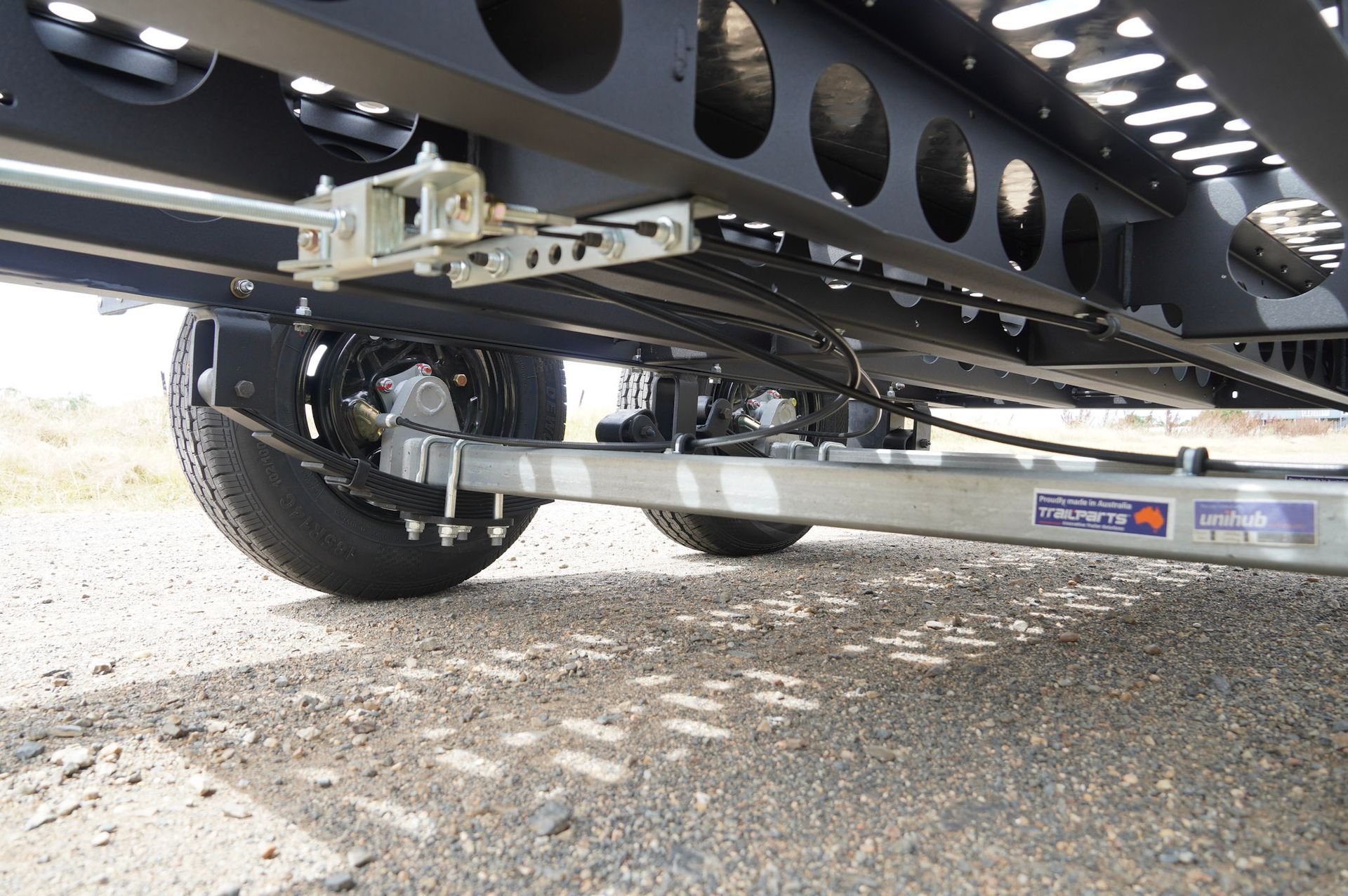

Load Sharing Leaf Spring Suspension Set with 95mm Square Steel Drop Axles
The Load Sharing Leaf Spring Suspension Set ensures a safe and stable trailer on and off the road.
The 95mm Square Steel Drop Axles enable the deck to be closer to the ground allowing easy loading and unloading
10-Inch Electric Drum Brakes
Electric Drum Brakes provide a safe and reliable braking solution.
We provide a 10-inch drum brake as these are heavy-duty and robust.
Dual Row Taper Roller Bearings
Each trailer has 4 Dual Row Taper Roller Bearings.

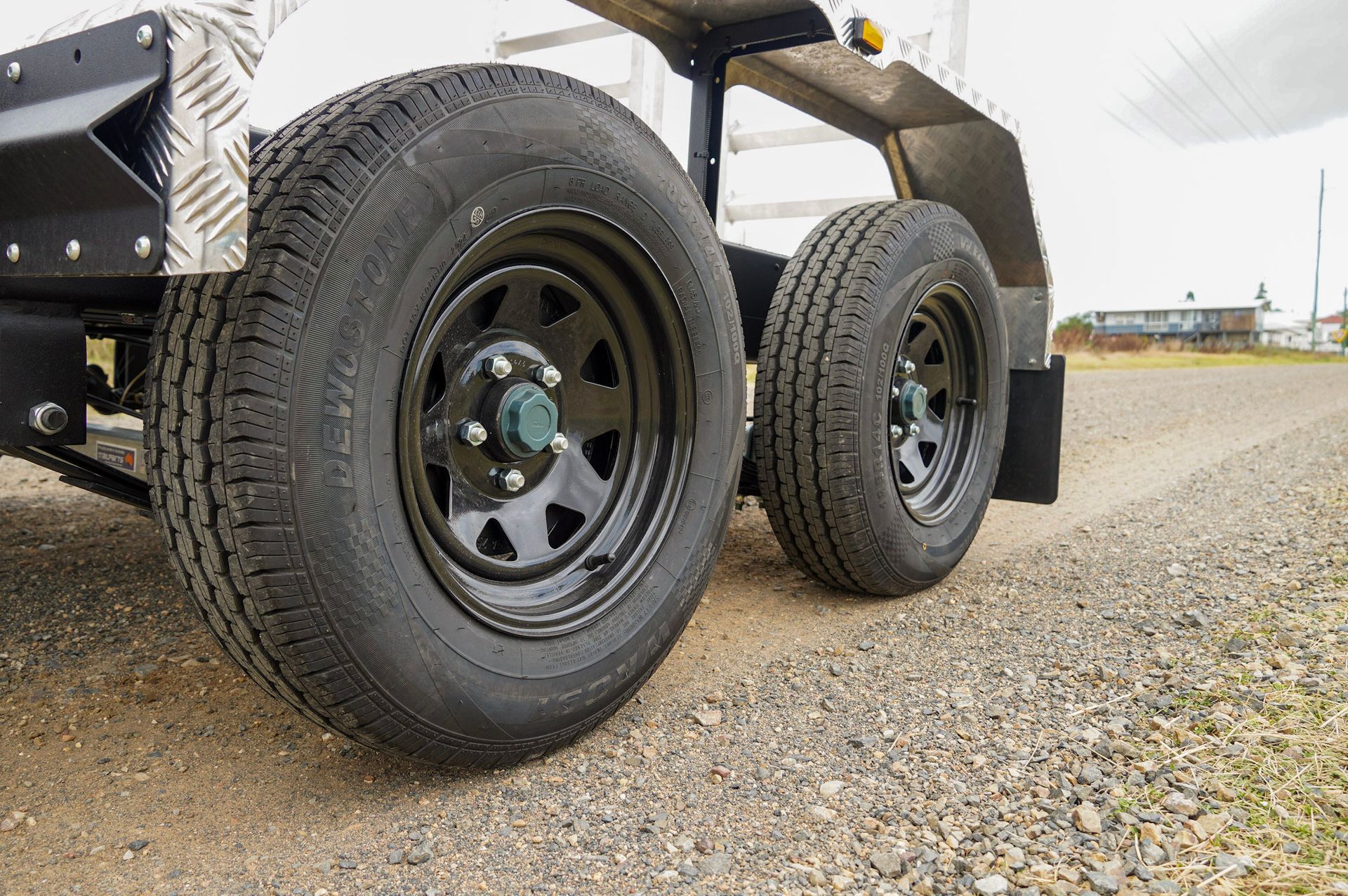

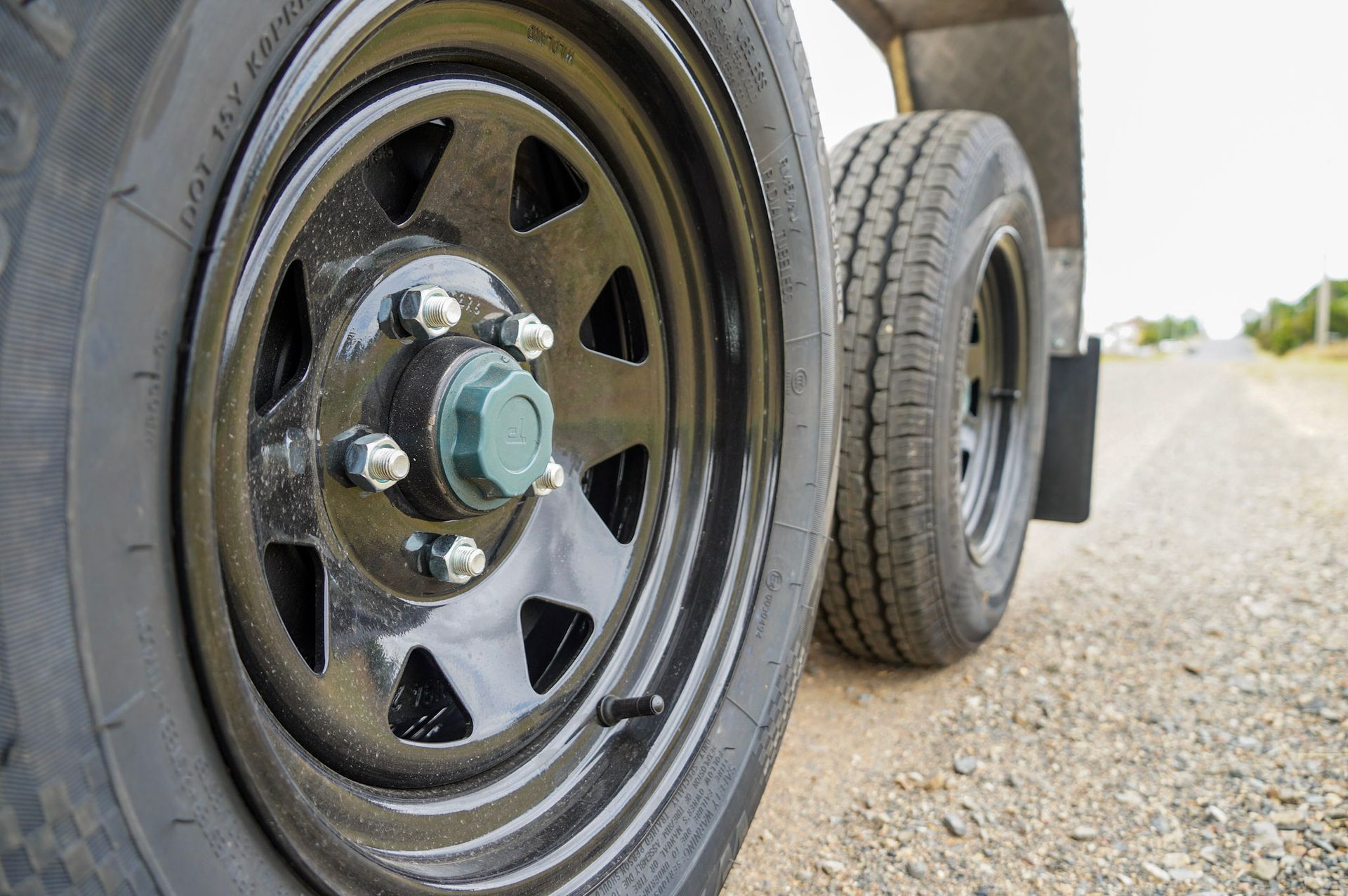

14 Inch Wheels 185/75 Ford Rims + LT Tyres
Each trailer is fitted with 4, 14-inch wheels with 185/75 Ford Rims and 4 Light Truck Tyres.
A spare tyre is available upon request.

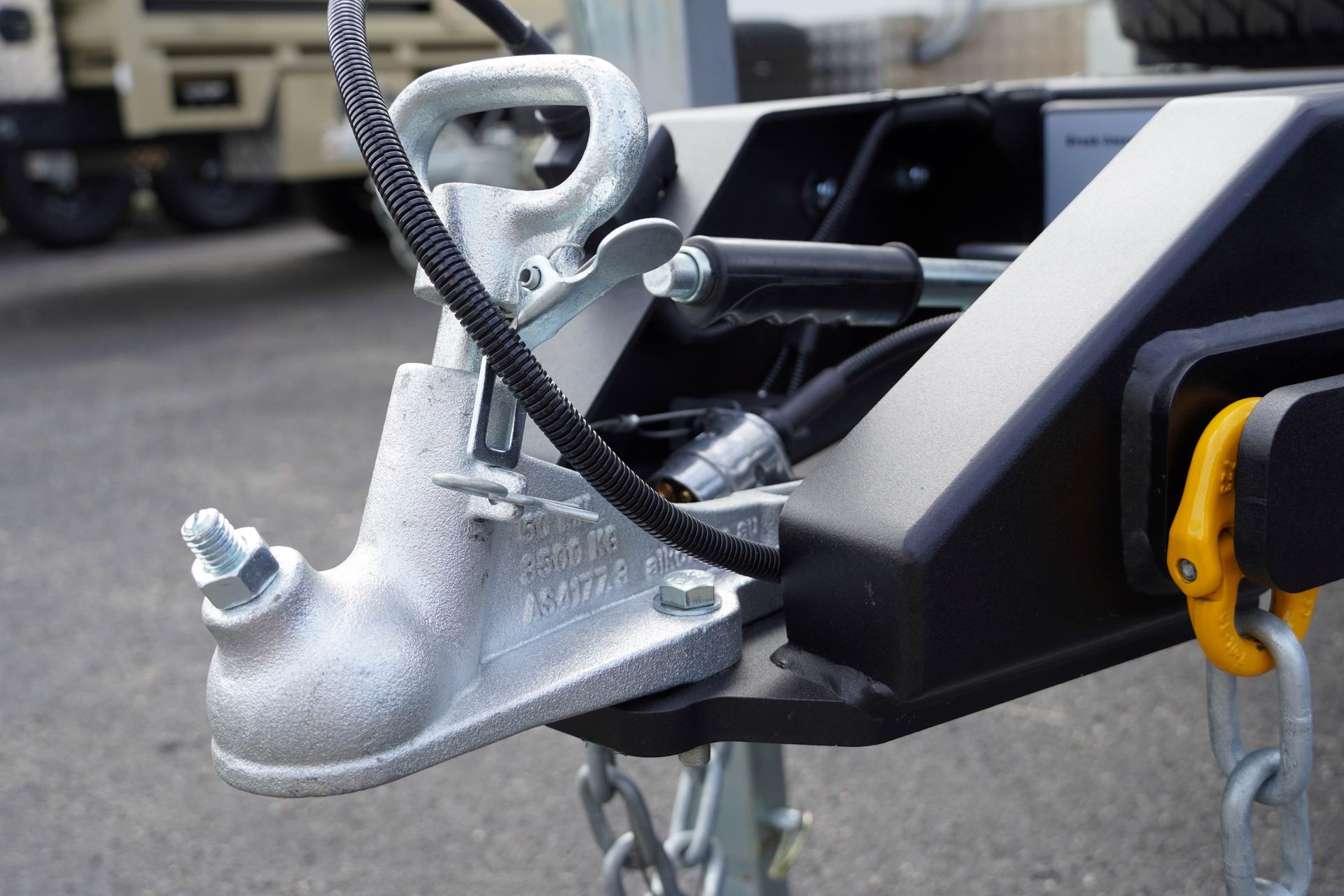

Ratchet Trailer Handbrake and 50mm Coupling
The Plant Trailer is fitted with a Trailer Handbrake as standard.
Also standard is a 50mm Coupling.

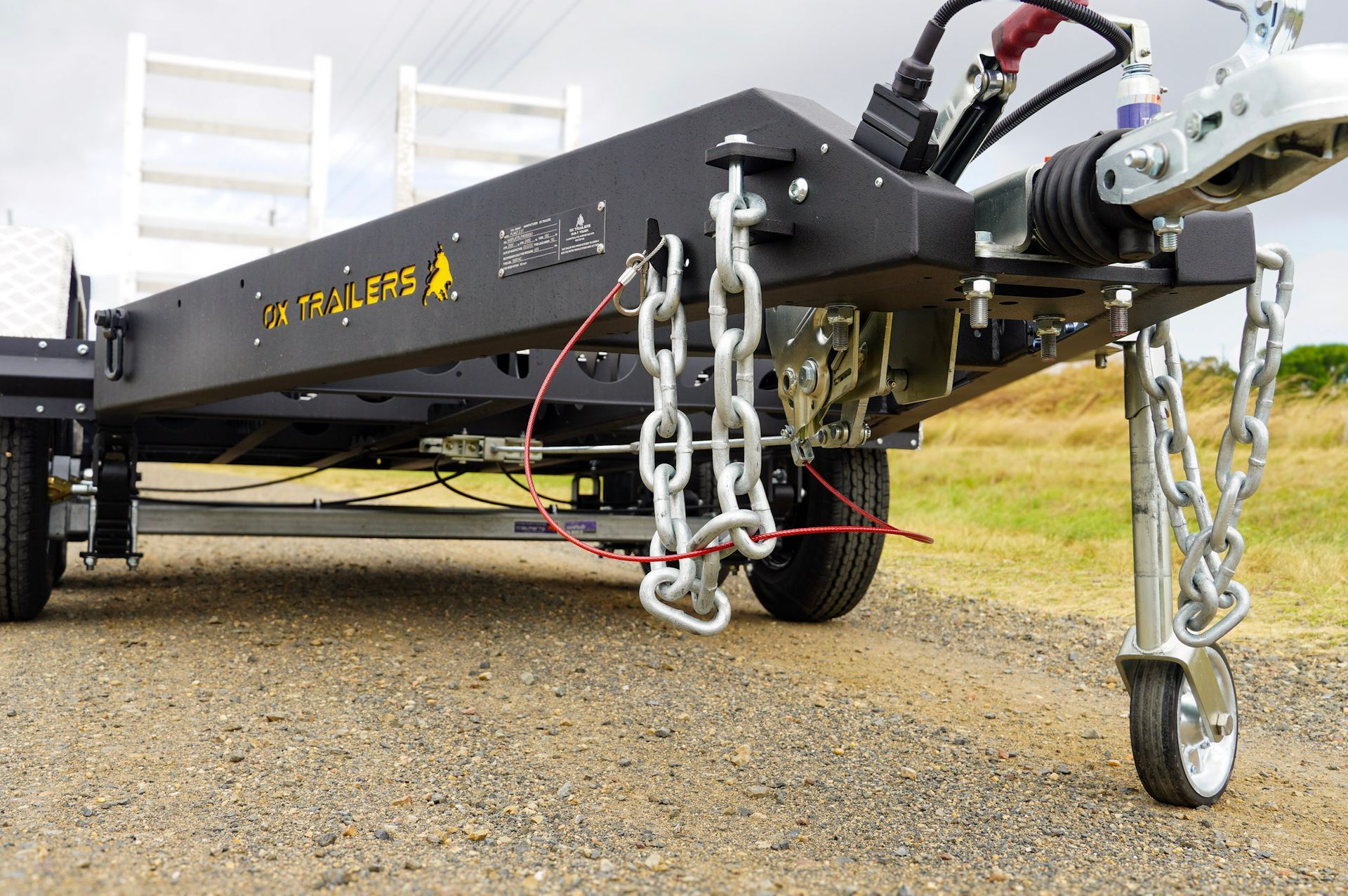

Break-Away System
The trailer Break-Away System is the ultimate emergency brake. It is designed to bring the trailer to a stop in the unlikely event it breaks away from the tow vehicle.
SUSPENSION + AXLES
The Load Sharing Leaf Spring Suspension Set ensures a safe and stable trailer on and off the road.
The 95mm Square Steel Drop Axles enable the deck to be closer to the ground allowing easy loading and unloading
DRUM BRAKES
Electric Drum Brakes provide a safe and reliable braking solution.
We provide a 10-inch drum brake as these are heavy-duty and robust.
BEARINGS
Each trailer has 4 Dual Row Taper Roller Bearings.

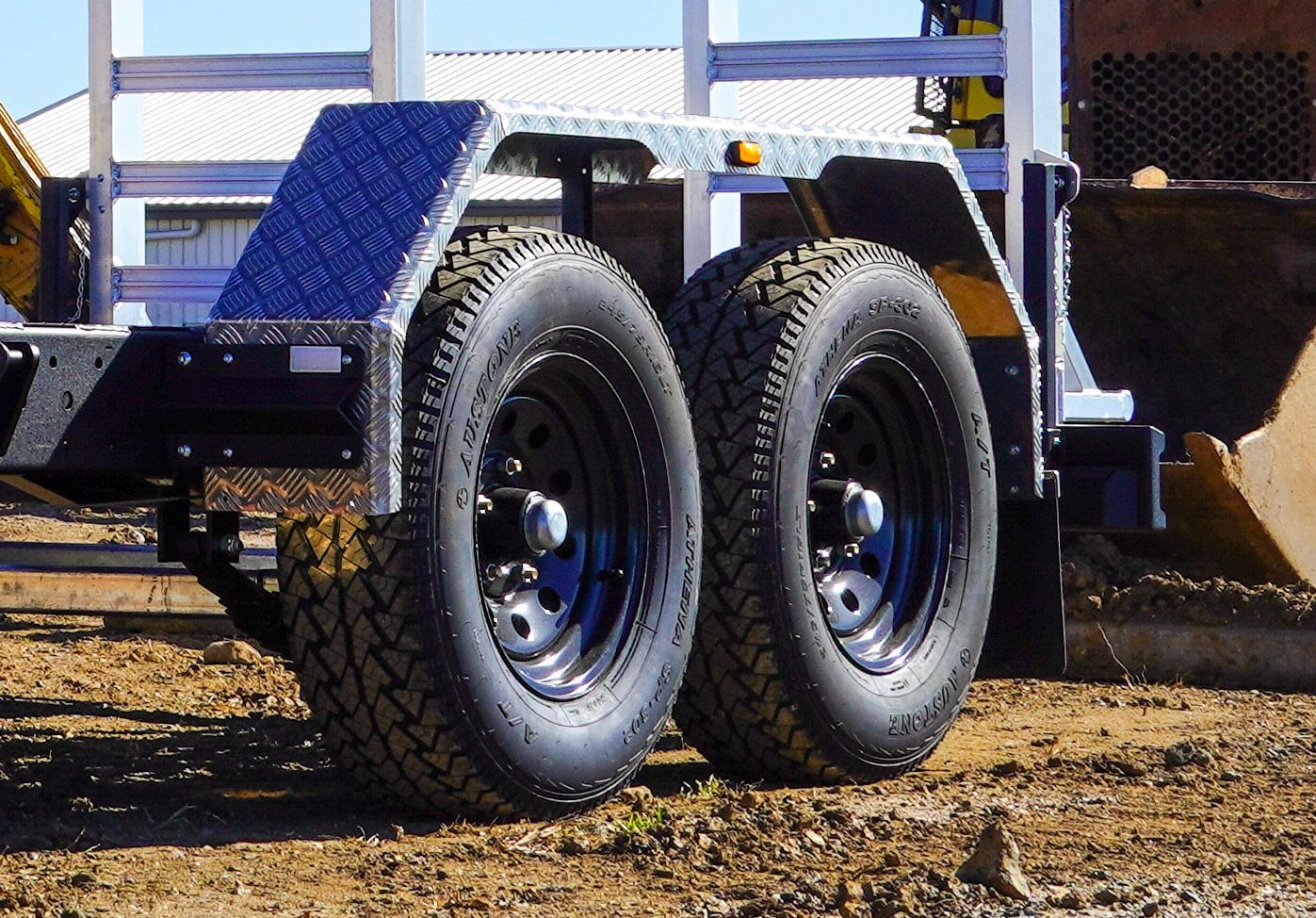

TYRES + WHEELS
Each trailer is fitted with 4, 14-inch wheels with 185/75 Ford Rims and 4 Light Truck Tyres.
A spare tyre is available upon request.
HANDBRAKE + COUPLING
The Plant Trailer is fitted with a Trailer Handbrake as standard.
Also standard is a 50mm Coupling.
BREAK-AWAY SYSTEM
The trailer Break-Away System is the ultimate emergency brake. It is designed to bring the trailer to a stop in the unlikely event it breaks away from the tow vehicle.

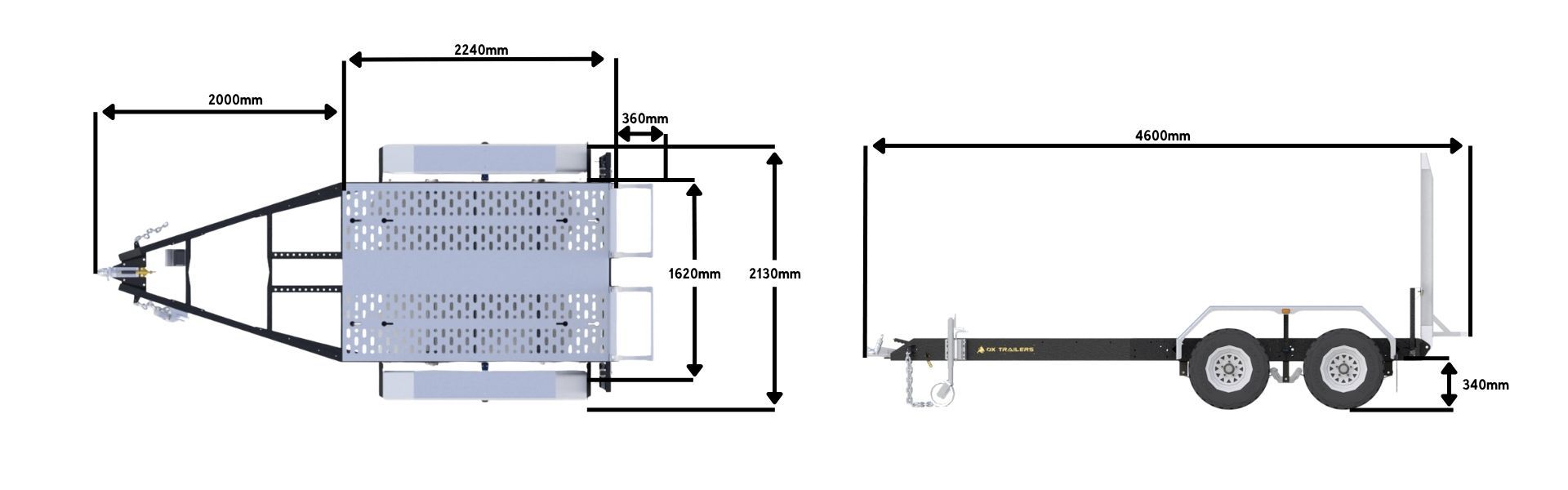

TRAILER SIZE

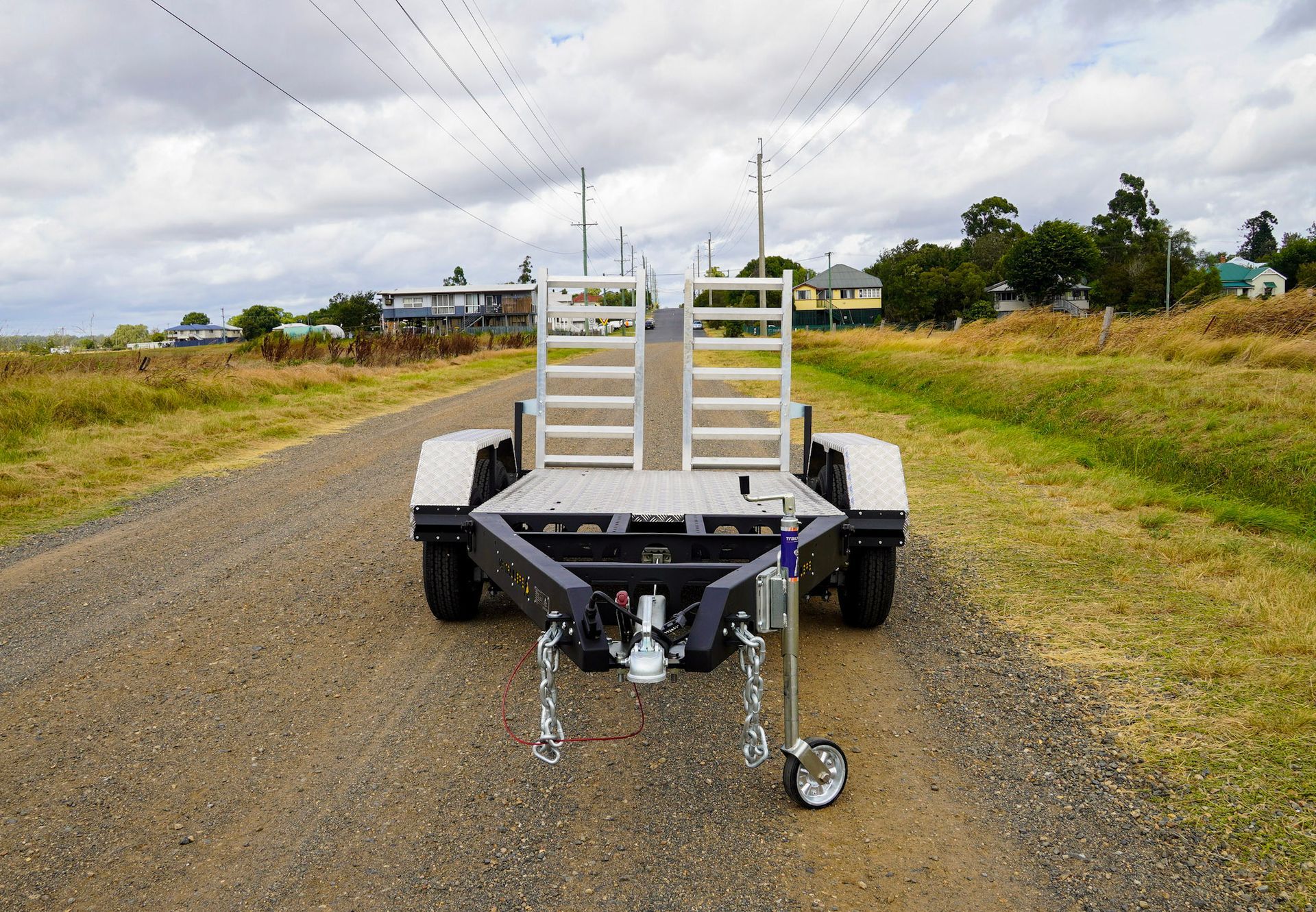

Drawbar Length
As standard, the drawbar length of an Ox Plant Trailer is 1.9m in length.

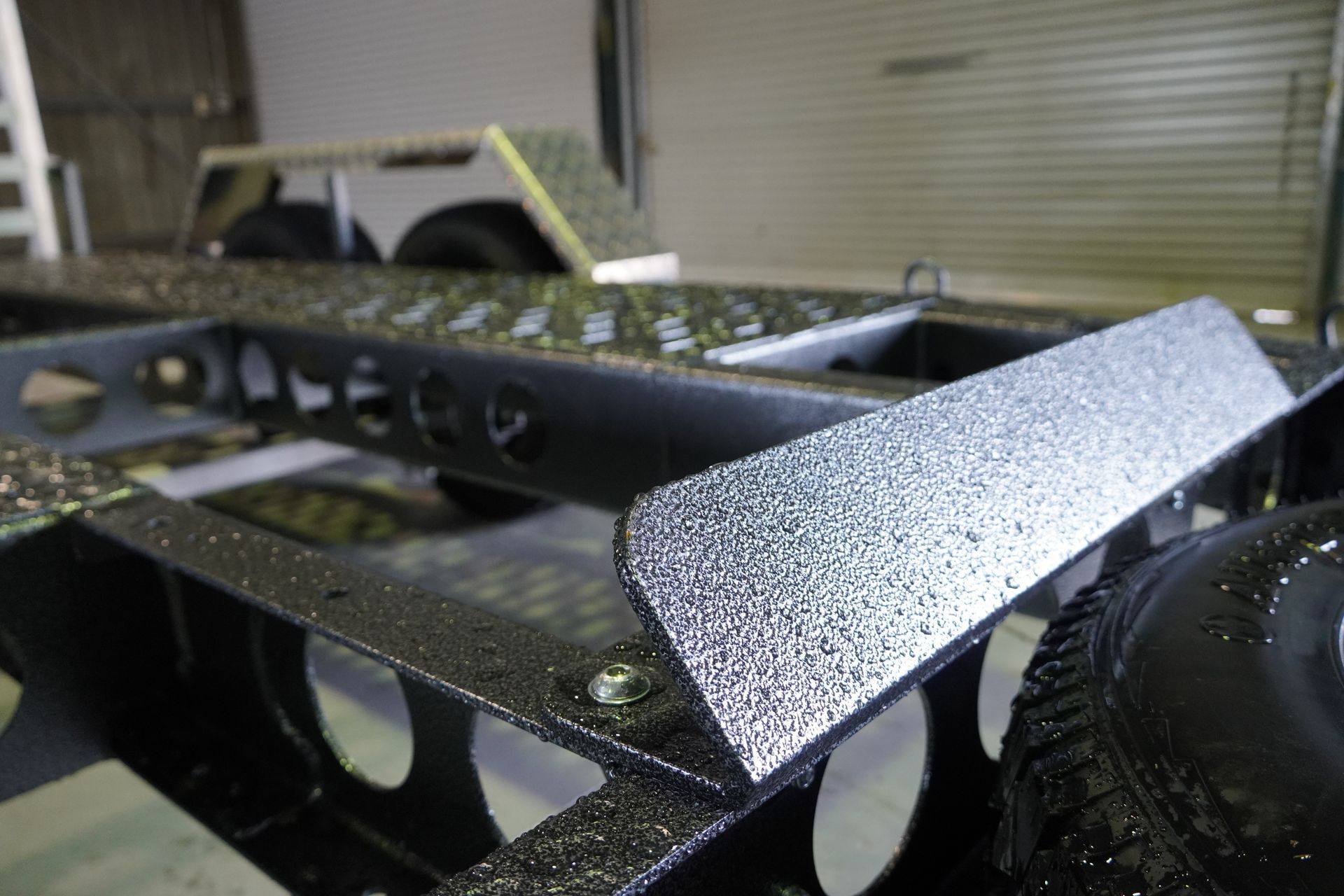

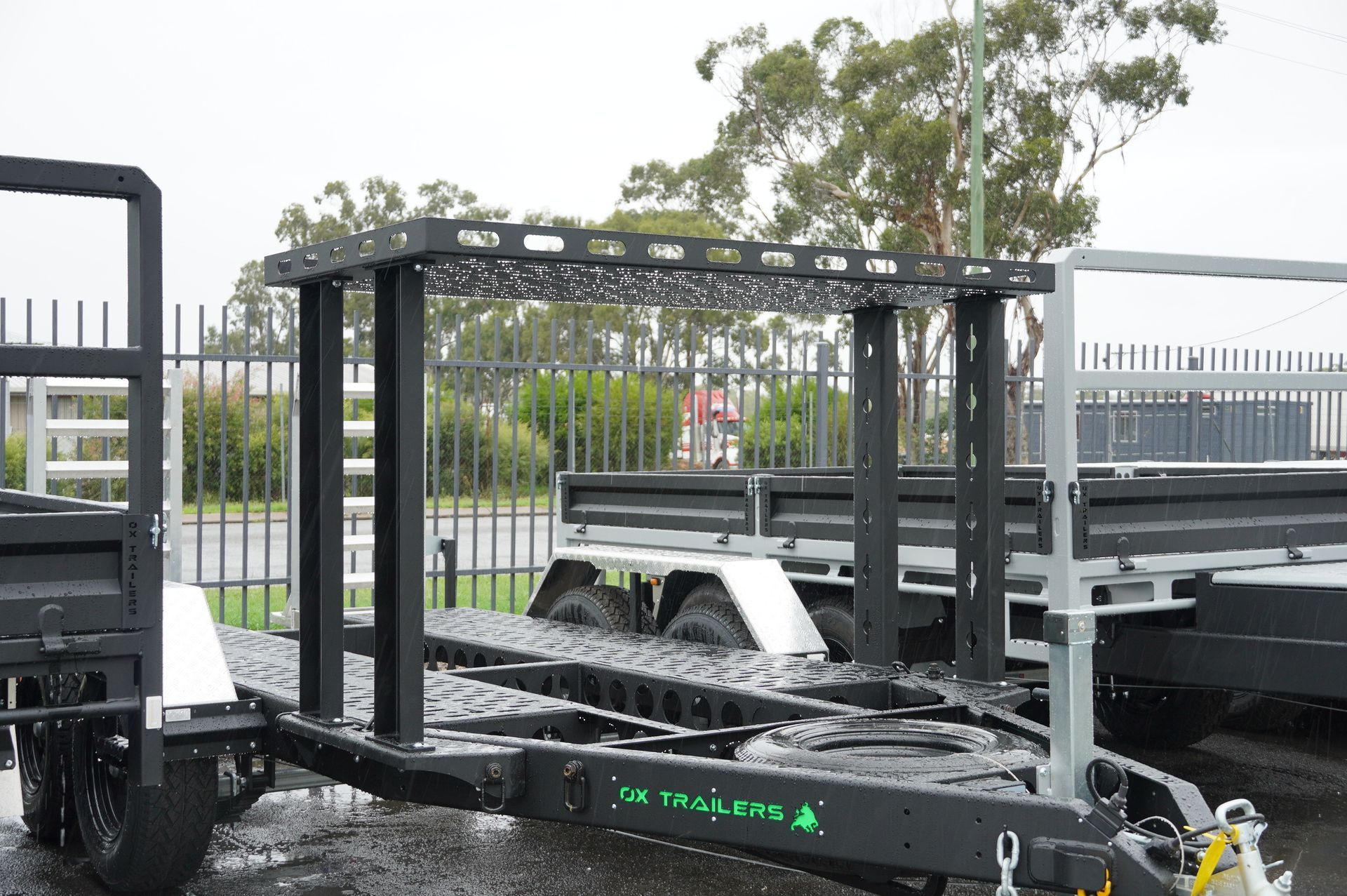

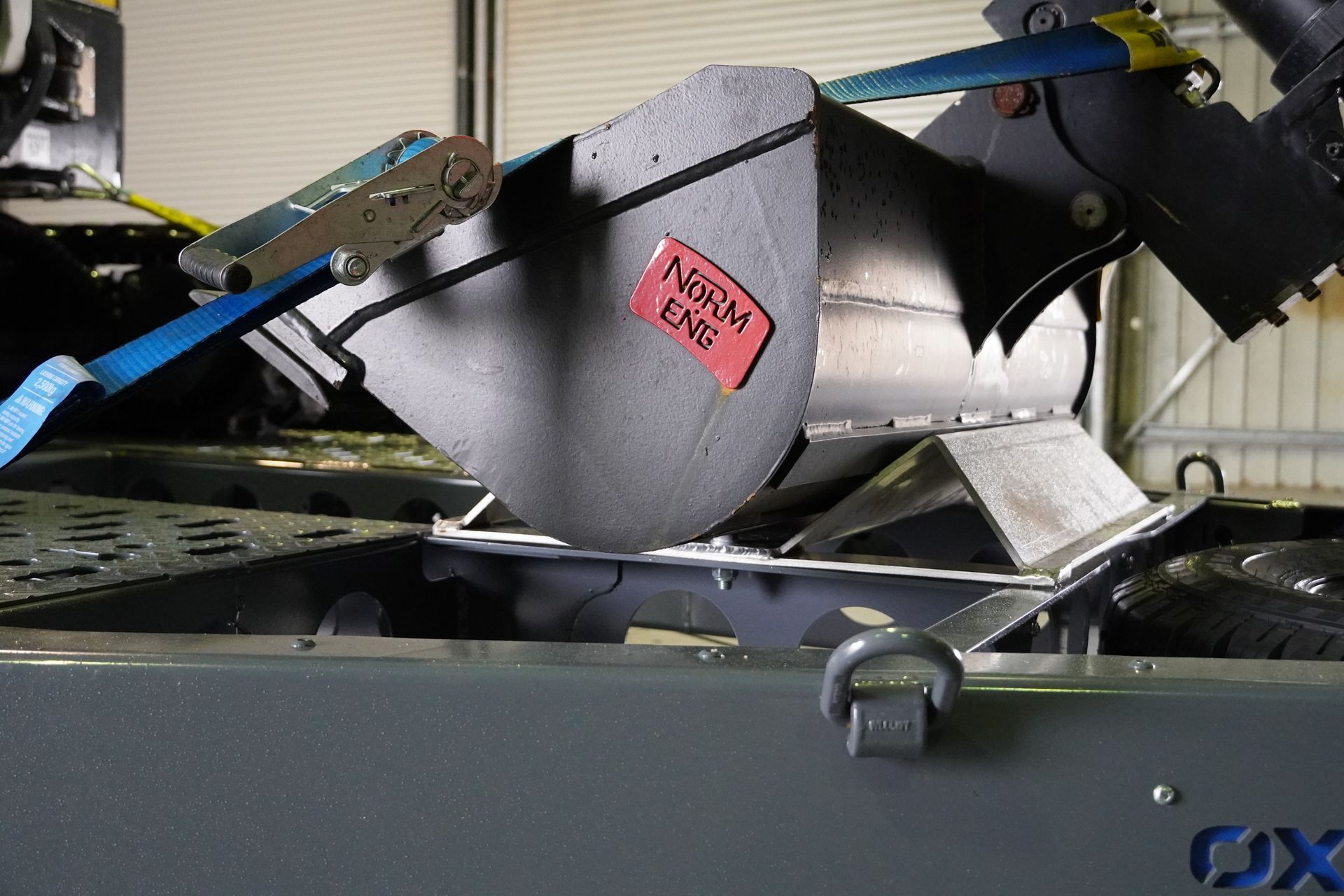

This allows room for a Bucket Rest or Attachment rest as accessories.

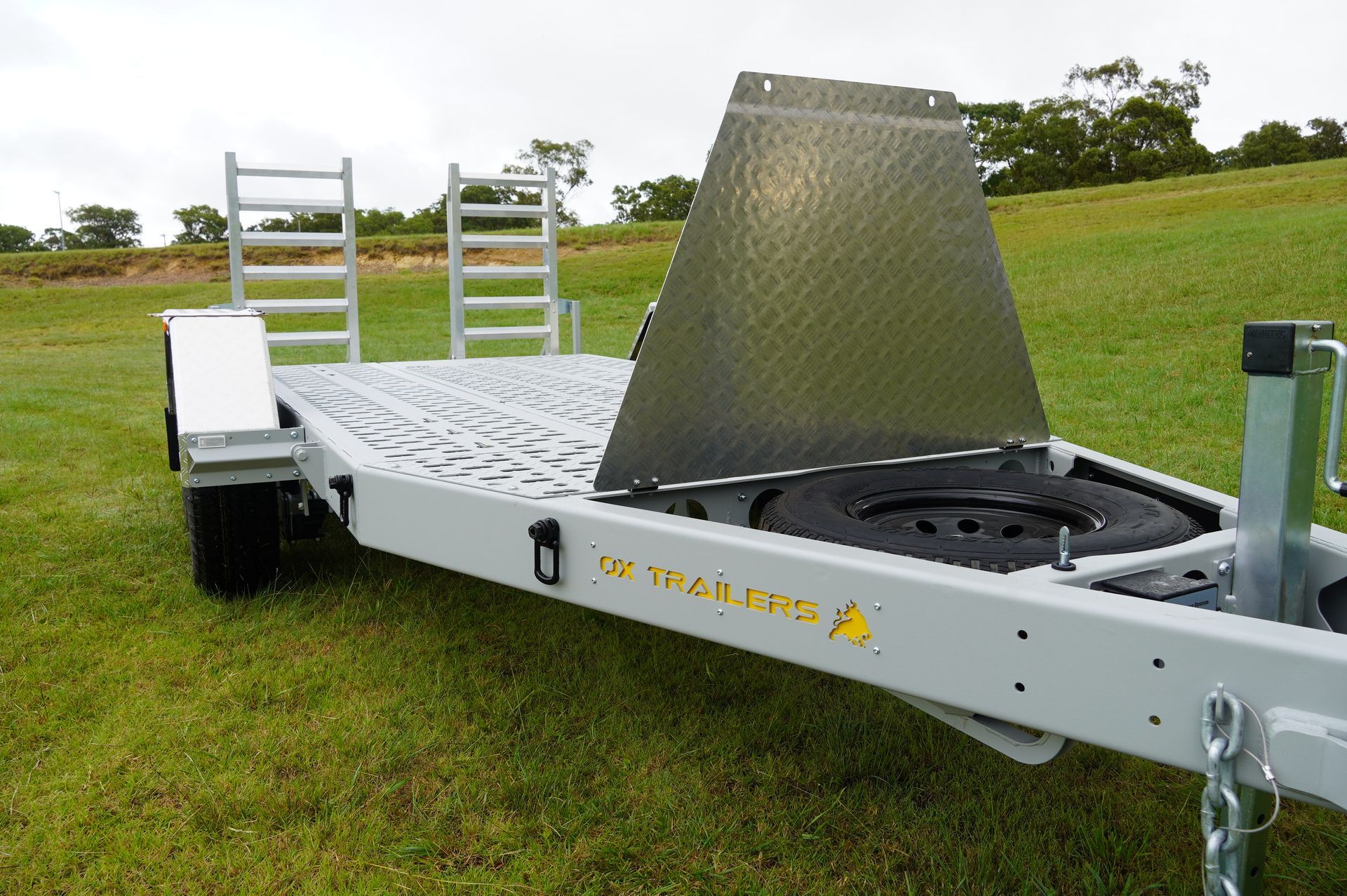

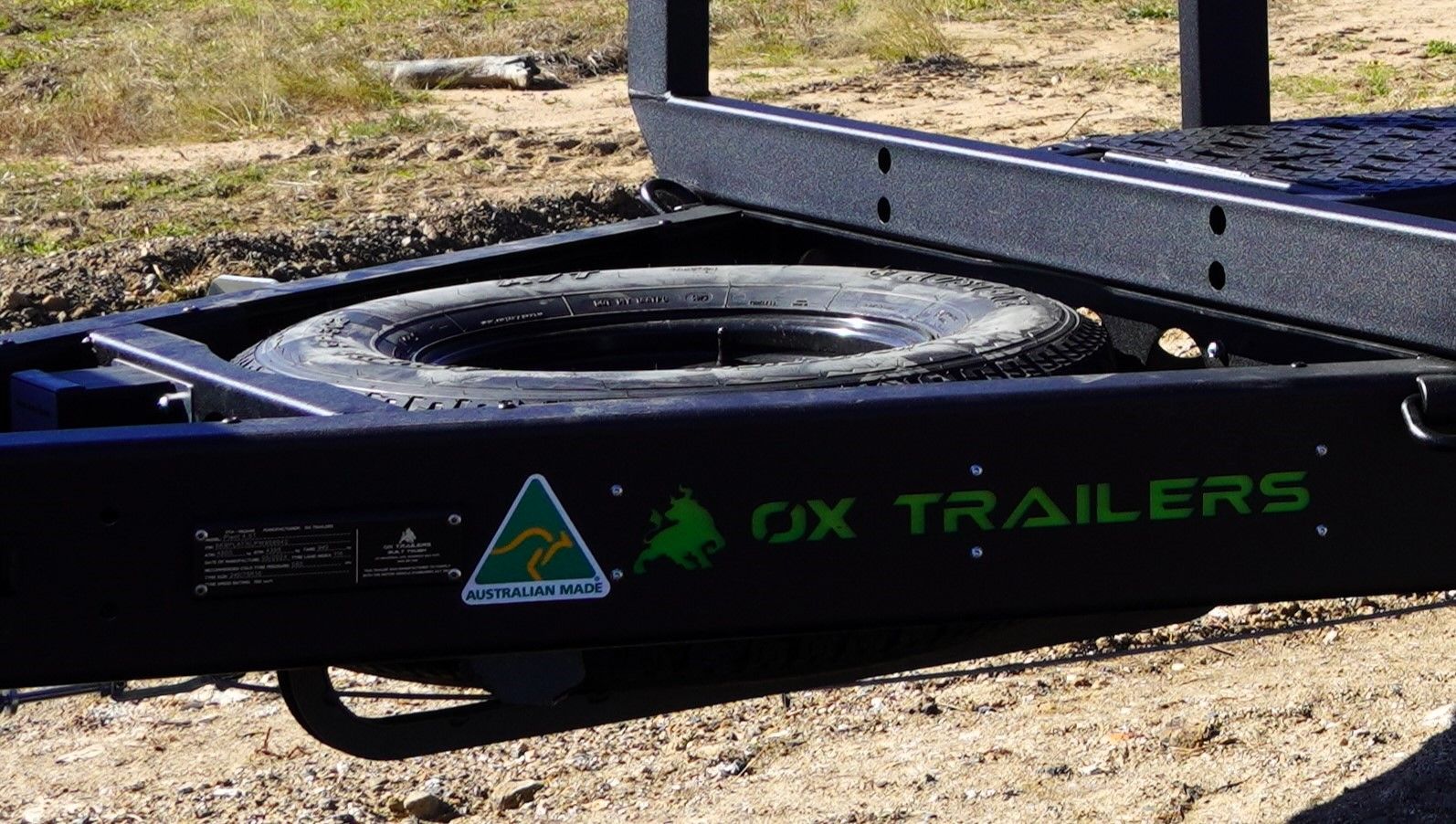

The drawbar is all part of the full-length chassis. It stores the spare tyre and has storage provision for the jack stand.

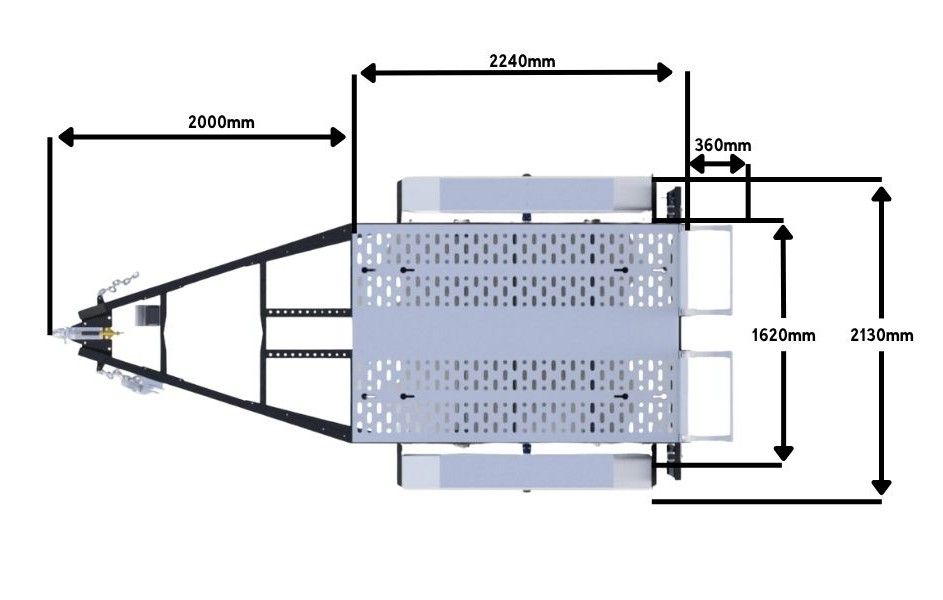

Widths + Lengths
The Internal Measurements are as follows
Max Internal Load Length: 2240mm
Max Internal Load Width: 1610mm

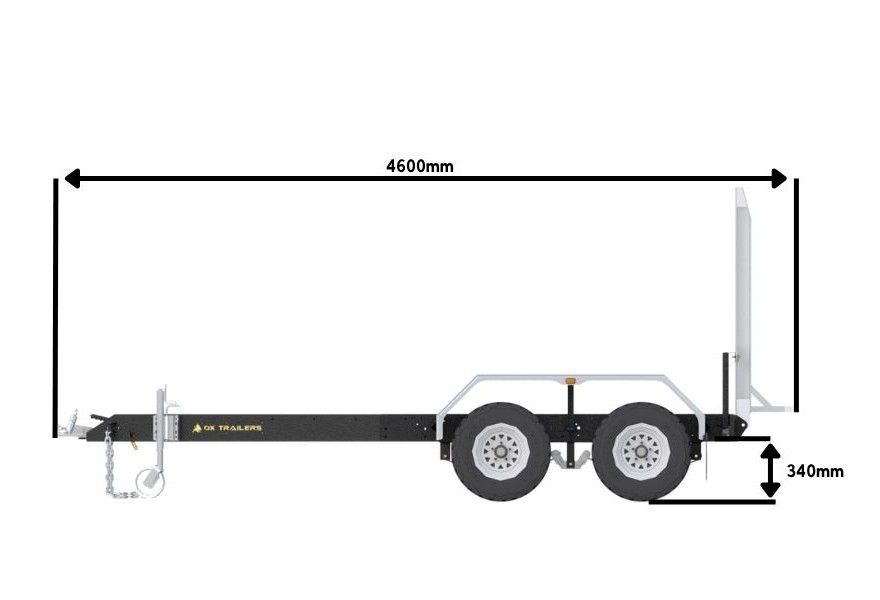

External Measurements
External Length: 4650mm
External Width: 2130mm

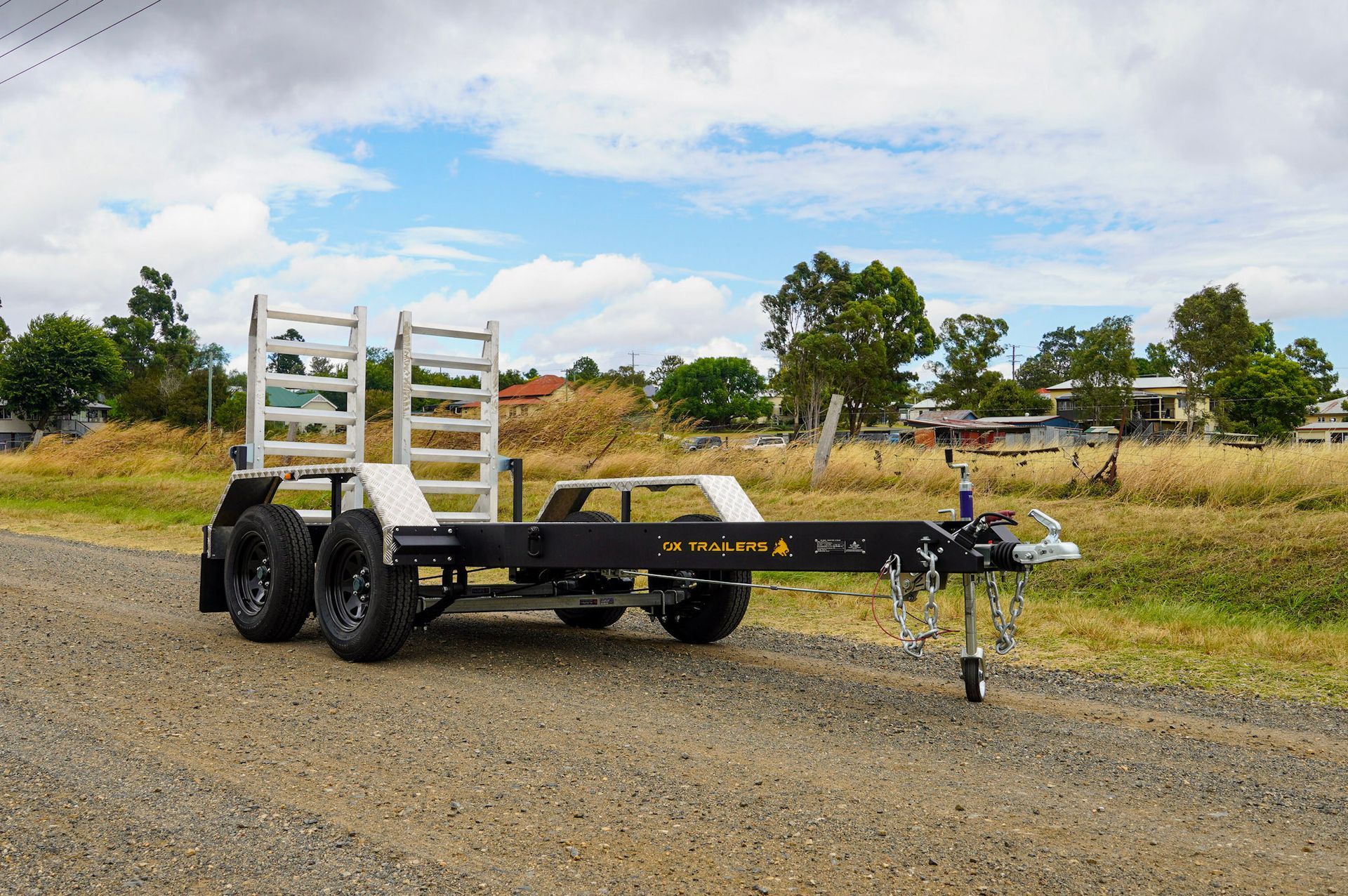

Deck Height
The height from the tray to the ground is 450mm
This low measurement is ideal for the loading and unloading of plant and equipment.
TARE Weight
The TARE weight of a standard Plant Trailer is 580kg.
DRAWBAR LENGTH
As standard, the drawbar length of an Ox Plant Trailer is 1.9m in length.
This allows room for a Bucket Rest or Attachment rest as accessories.
The drawbar is all part of the full-length chassis. It stores the jack stand and has storage provision for the spare tyre.
WIDTHS + LENGTHS
The Internal Measurements are as follows:
Max Internal Load Length: 2240mm
Max Internal Load Width: 1610mm
External Measurements:
External Length: 4650mm
External Width: 2130mm
DECK HEIGHT
The height from the tray to the ground is 450mm.
This low measurement is ideal for the loading and unloading of plant and equipment.
TARE WEIGHT
The TARE weight of a standard Plant Trailer is 580kg.
DECK FEATURES

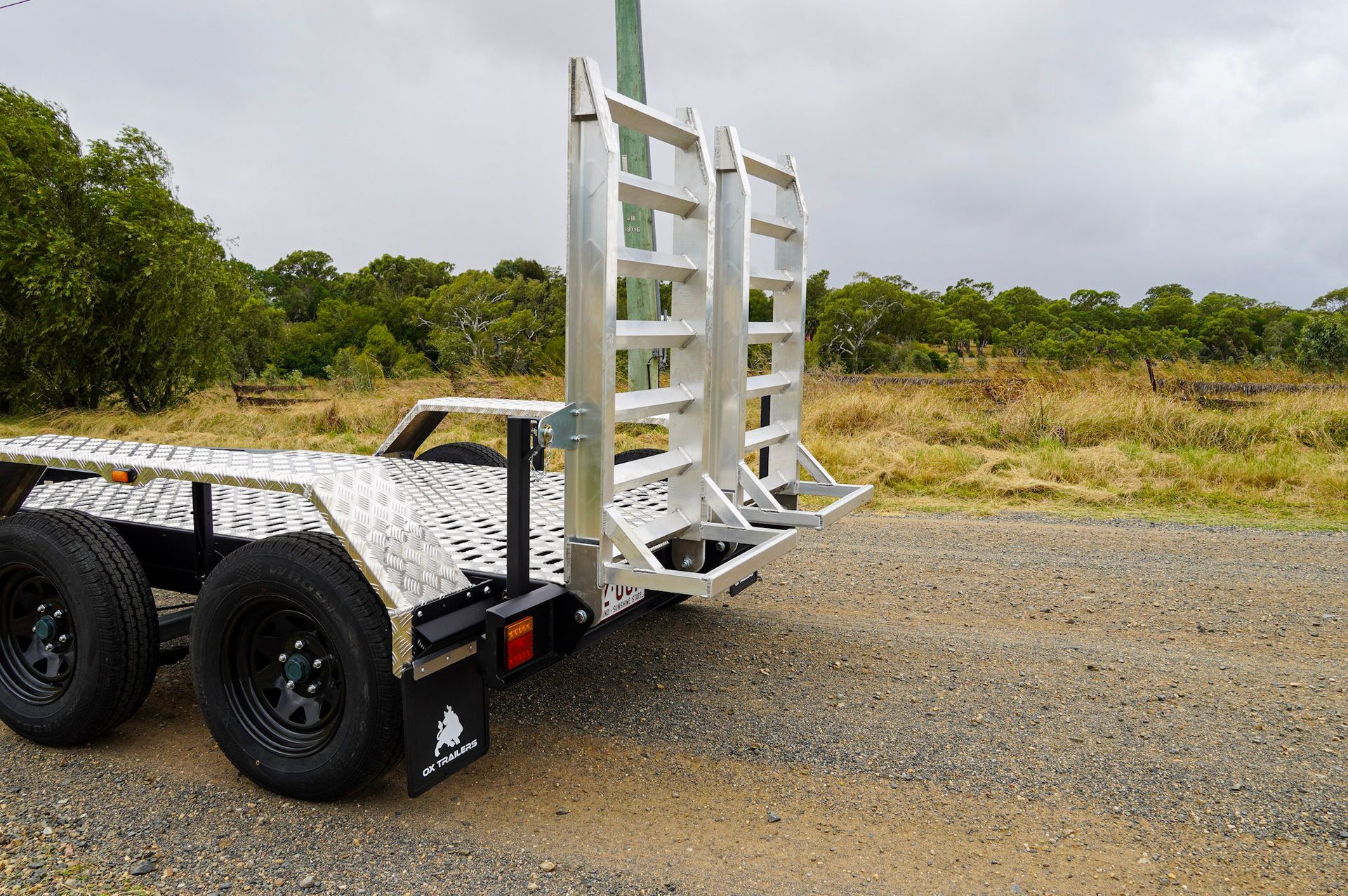

Aluminium Ramps
Aluminium Construction for ease-of-use
3500kgs Rated Set.

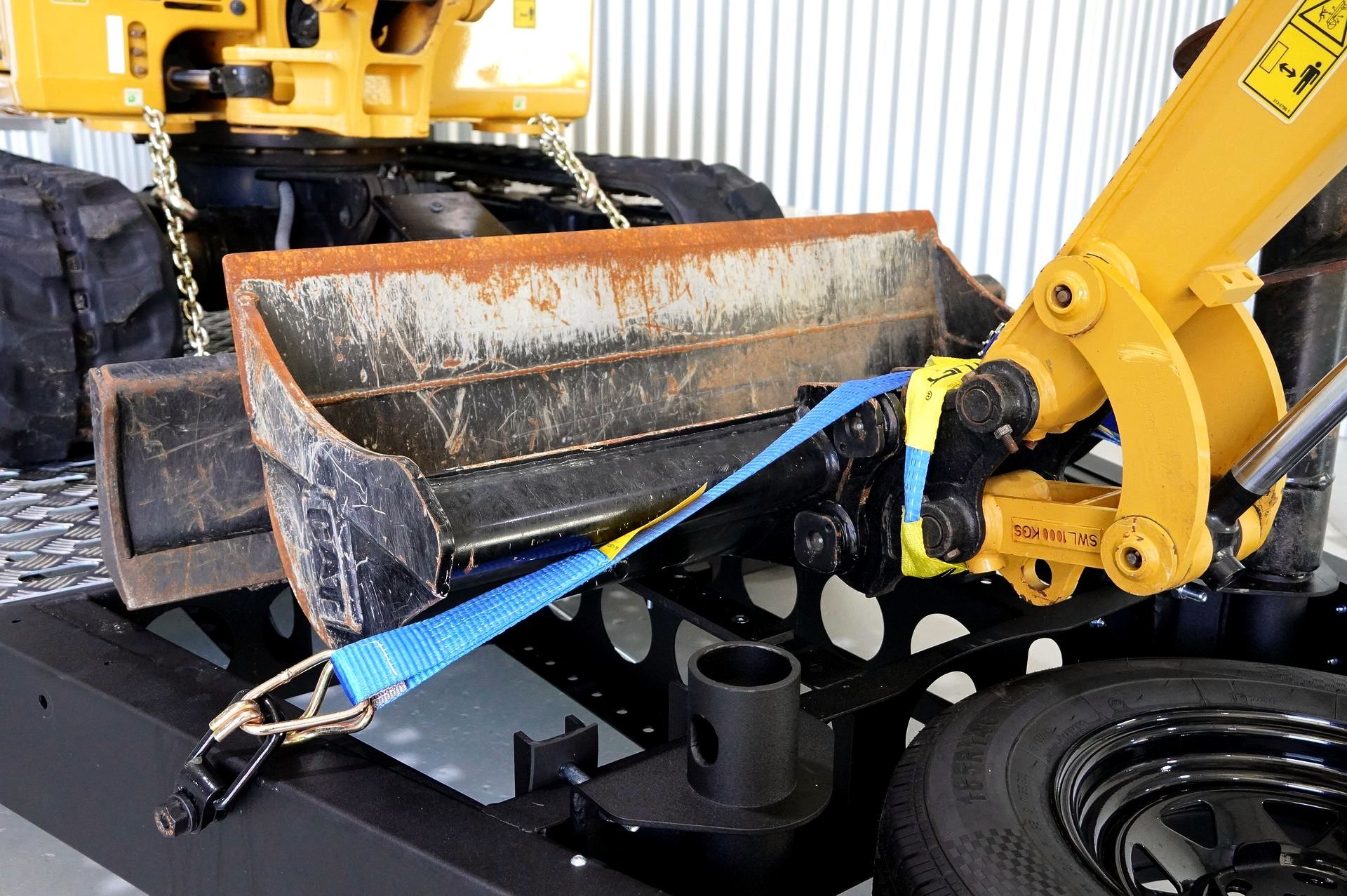

In-floor Chain Slots
The Base Series Plant Trailer has 8 x In-Floor Chain Slots, as standard.

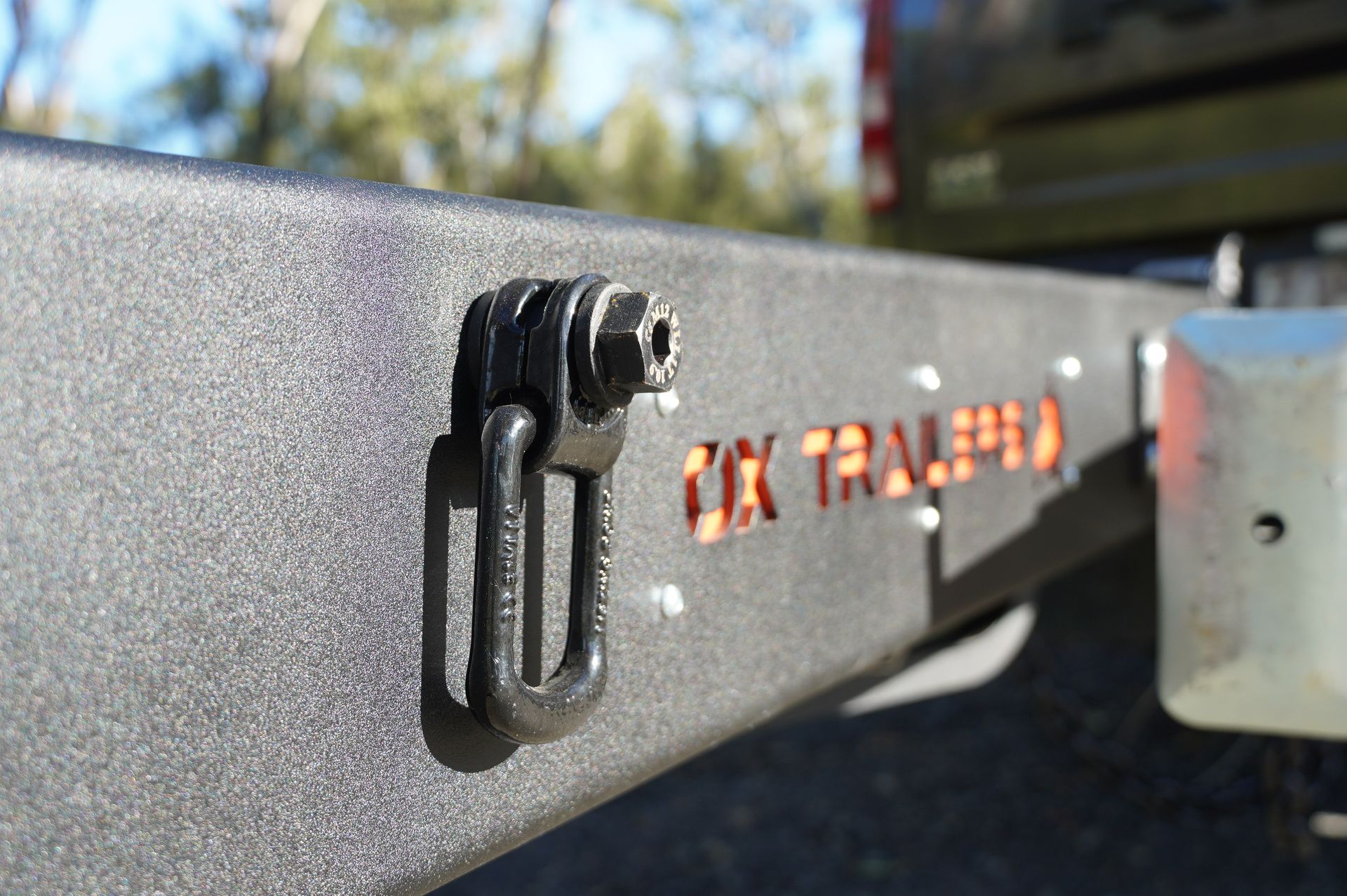

Bolt-on tie-down points are an optional add-on.

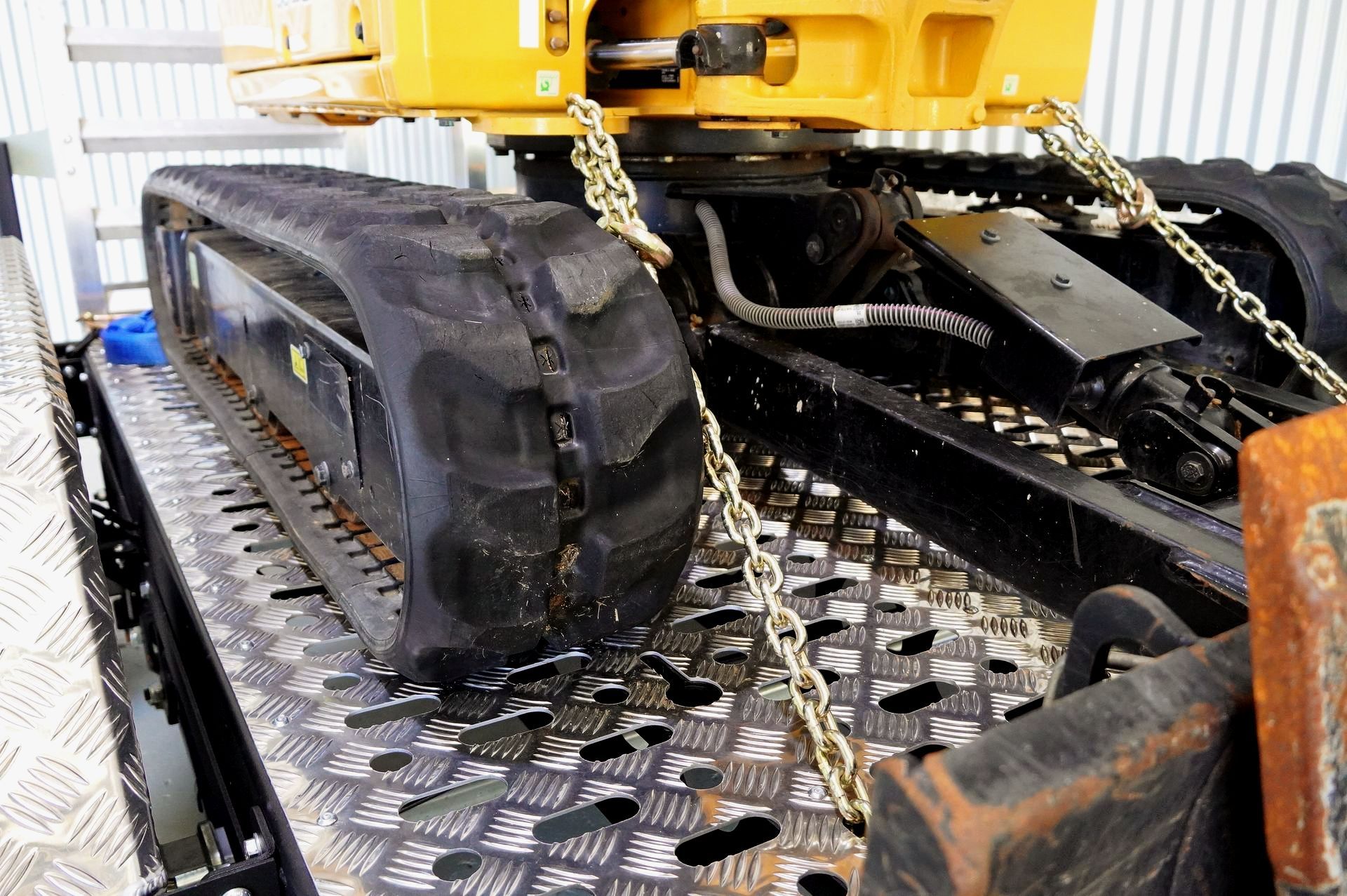

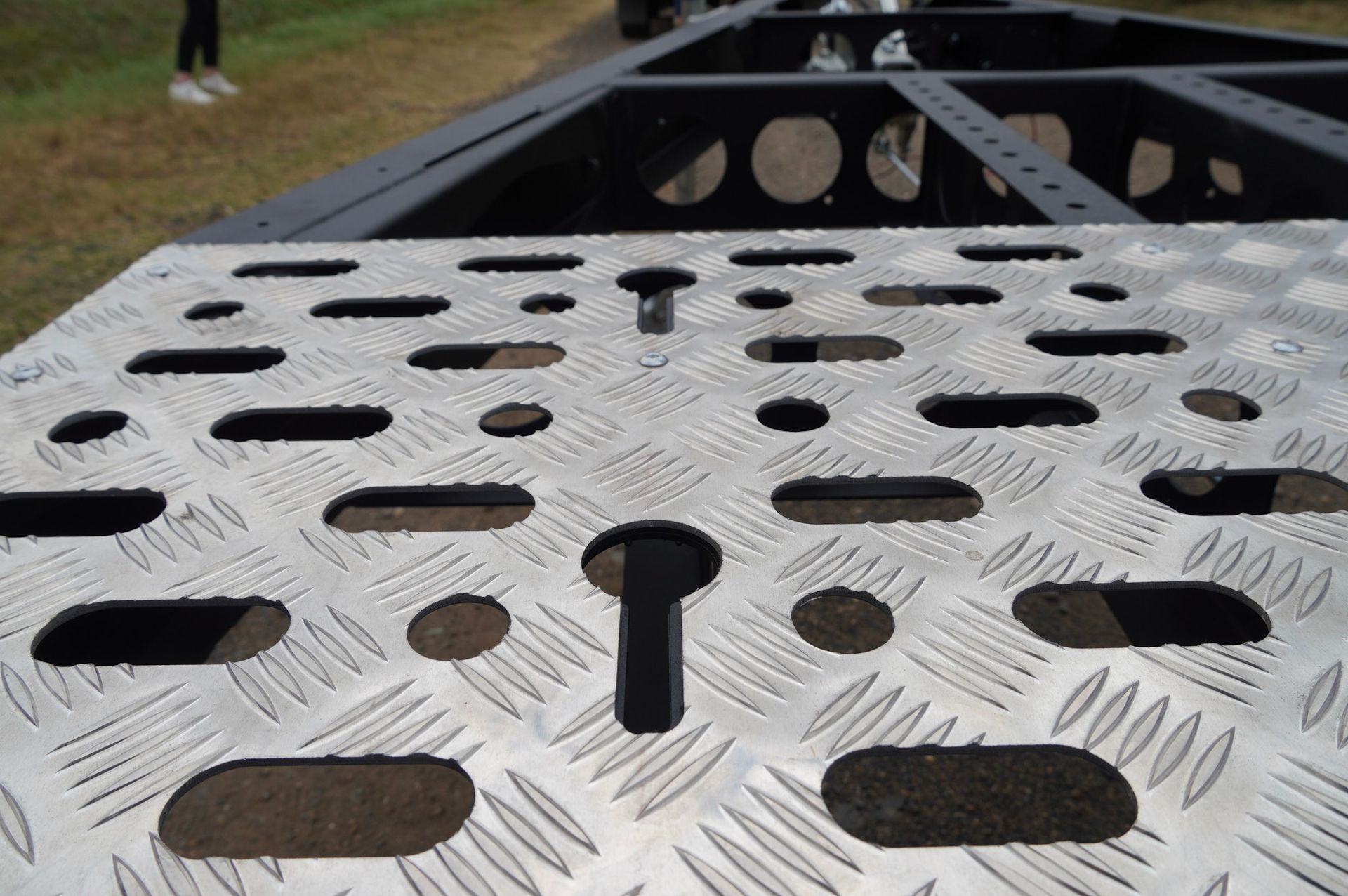

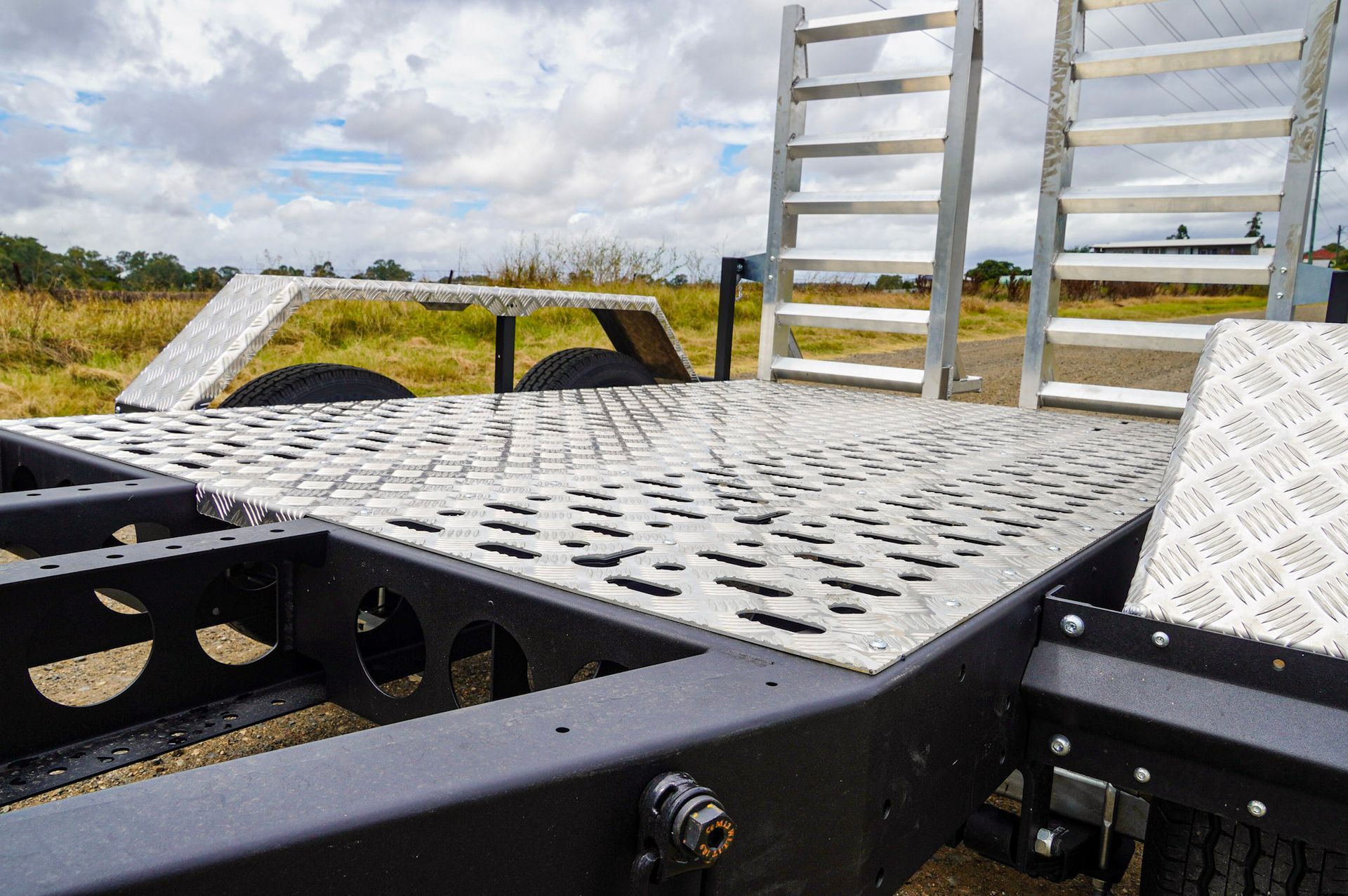

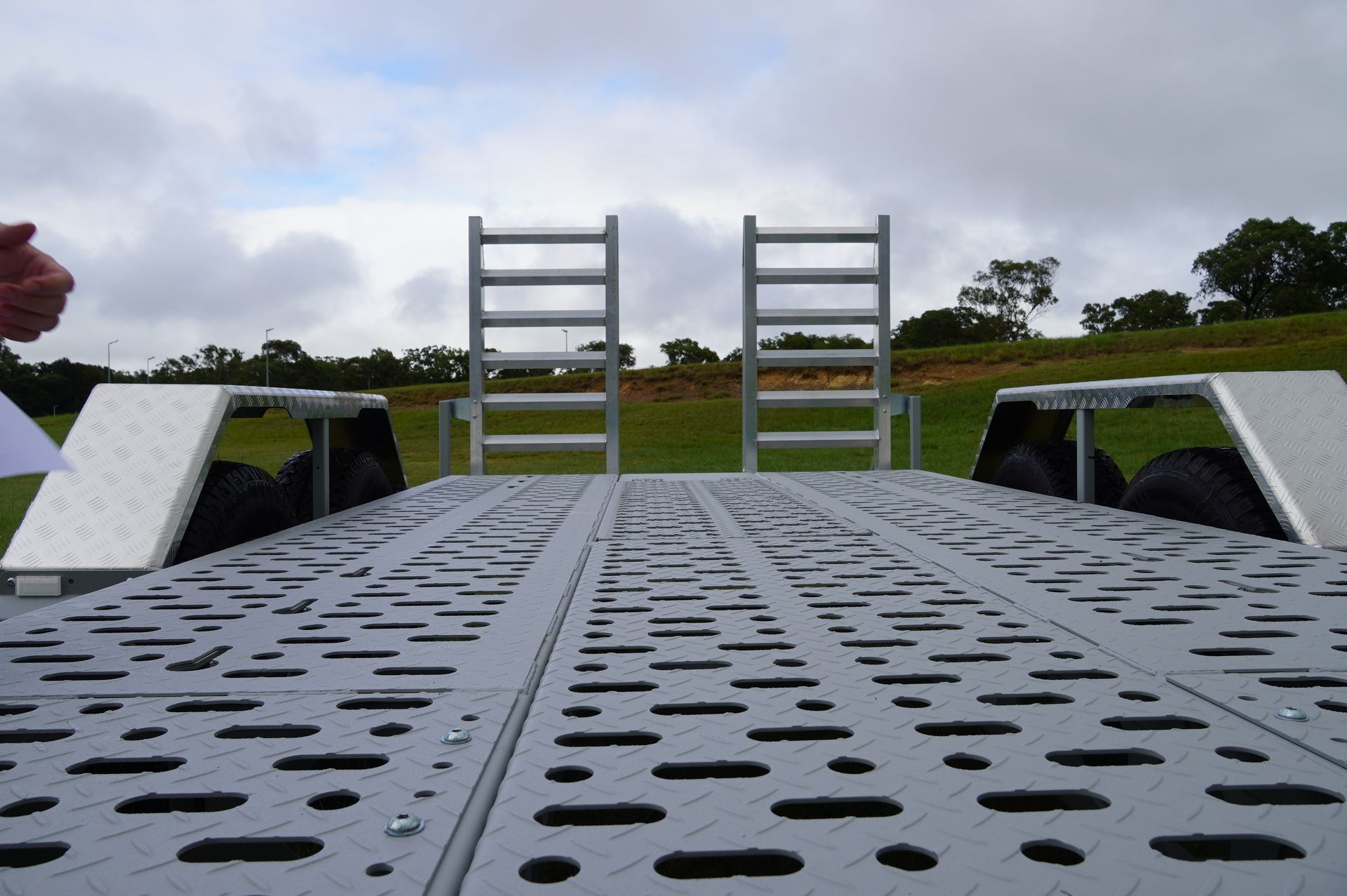

Decking Plate made from 3mm Aluminium Checker Plate
The decking plate of the Base Series Plant Trailers is made from Aluminium Checker Plate.
This decking is structurally riveted and glued. onto internal bracing that ensures it can withstand heavy loads.
Adaptable Design
Easy retrofit of accessories and adaptability as needed through the vast array of holes supplied.
RAMPS
Aluminium Construction for ease-of-use
3500kgs Rated Set.
CHAIN SLOTS
The Base Series Plant Trailer has 8 x In-Floor Chain Slots, as standard.
Bolt-on tie-down points are an optional add-on.
DECKING PLATE
The decking plate of the Base Series Plant Trailers is made from Aluminium Checker Plate.
This decking is structurally riveted and glued. onto internal bracing that ensures it can withstand heavy loads.
ADAPTABLE DESIGN
Easy retrofit of accessories and adaptability as needed through the vast array of holes supplied.

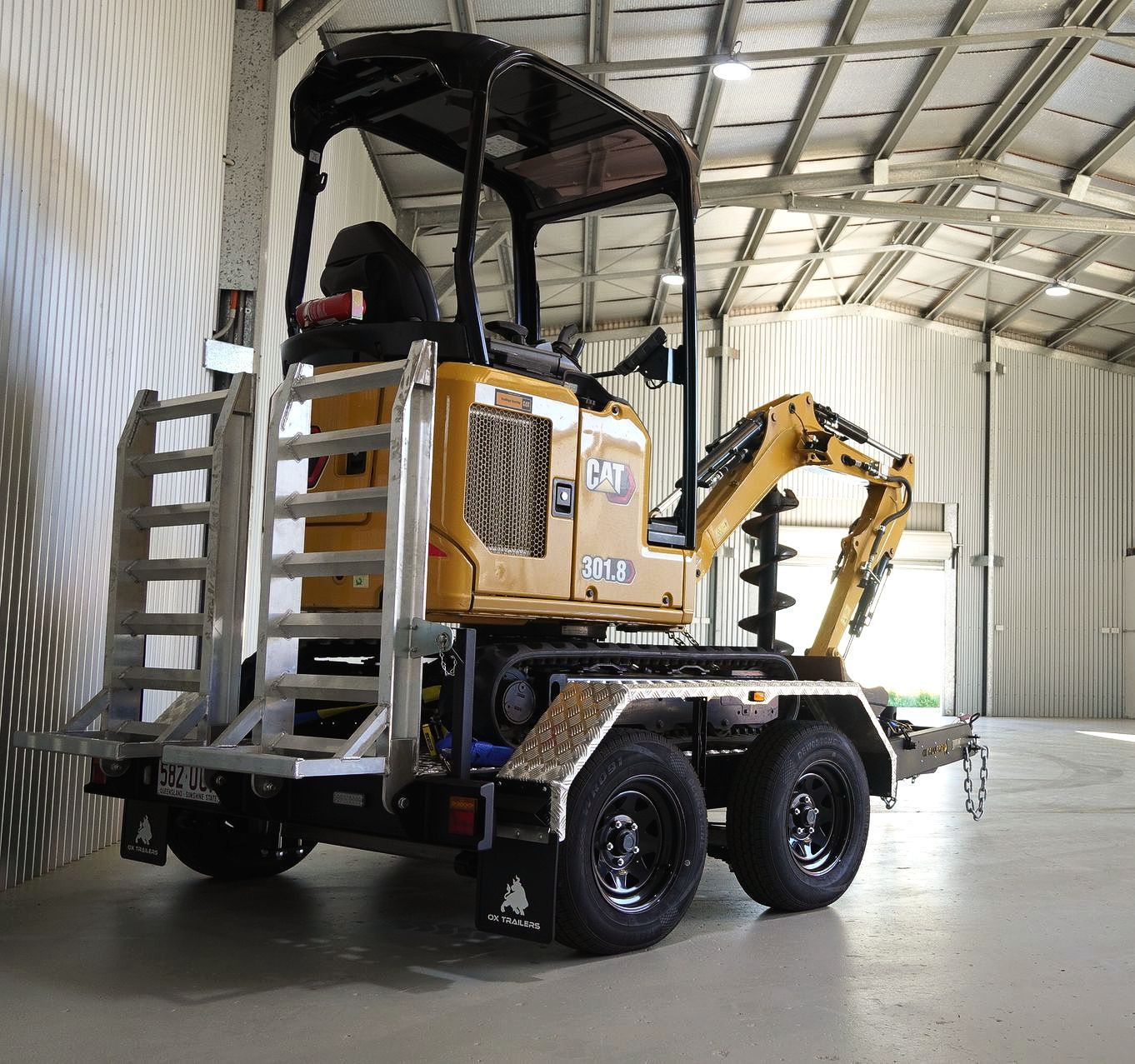

FLEXIBLE YET DURABLE
The Plant Trailer is designed to haul a large variety of equipment and attachments to your next maintenance, construction or industrial location.
With versatility at its core, this trailer is ready to become the transport solution your business needs.
View our brochure for more information.
