3500/4500 KG

AGGREGATE TRAILER MASS

880 KG

TARE WEIGHT

105 KG

BALL WEIGHT

5 YR

STRUCTURAL WARRANTY

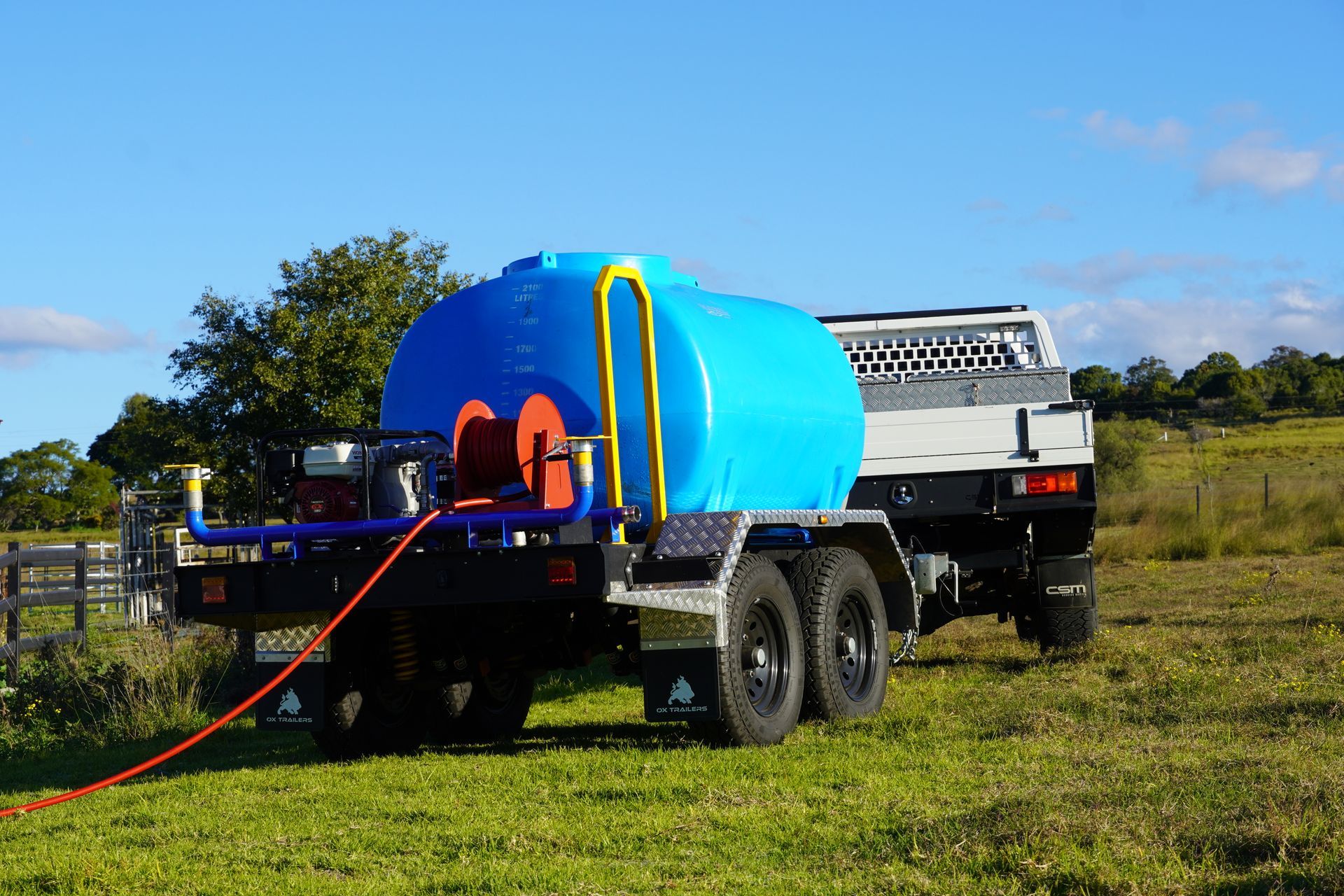

WATER TRAILER

Fire + Dust Suppression

4.5T Towing Capacities

Delivery Australia Wide

WATER TRAILER

Purpose Built for Fire + Dust Suppression

Delivery Australia Wide

Australian Made badge, showng that our trailers are made in house, from Australian materials.
The Water Trailers are fully GRS-certified for your peace of mind.

3500/4500 KG

AGGREGATE TRAILER MASS

880 KG

TARE WEIGHT

105 KG

BALL WEIGHT

3 YR

STRUCTURAL WARRANTY

THE

SPECS

The main design feature of the fabricated chassis is the 5mm C-Section Channel that runs the full length of the trailer allowing the chassis to flex and move as it negotiates rough road terrain.


The C-Section fabricated chassis is made of laser cut, CNC folded, 350 grade*, open chassis members allowing for easy wash down and cleaning, with no enclosed areas where mud, sand and salt can get trapped and cause corrosion.


*350 grade is higher tensile steel. Box Section is 300 grade and most C sections are 300.

TRAILER RUNNING GEAR

The left side of the 5000 kg Load Sharing Leaf Spring Suspension Set of a tandem axle trailer with a 3.5t ATM

1 - Load Sharing Leaf Spring Suspension Set

The Load Sharing Leaf Spring Suspension Set ensures a safe and stable trailer on and off-road.

The load-sharing system distributes weight evenly between the two wheels, ensuring the load remains level and the weight strain isn't put on one wheel.

The 12-inch electric drum brake visible through the wheel rim of a tyre on a Flat Top Trailer

4 - 12-Inch Electric Drum Brakes

Electric Drum Brakes provide a safe and reliable braking solution.

We provide a 12-inch drum brake as these are heavy-duty and robust.

A close up of the tandem axles set-up under the trailer tray.

2 - 3000 kg 65mm Square Steel Axles

The 3000kg 65mm Square Steel Axles result in a stronger, yet lighter suspension set-up. The steel size of 65mm ensures the trailer can safely carry over 3000kg.

A bearing of an ox water trailer

Dual Row Taper Roller Bearings

Each trailer has 4 Dual Row Taper Roller Bearings.

These are 3000kg each, with a triple lip marine seal with a secondary O-Ring seal incorporated into the dust cap.

These bearings come with a 3-year manufacturer's warranty.

The tandem tyres and wheels of the Flat Top Trailer

16 Inch Wheels, 5 Stud Landcruiser Pattern and All Terrain 235RI6/75 New Tyres

Each trailer is fitted with All Terrain 235RI6 / 75 New Tyres.

These tyres are equipped with 16-inch wheels with 5 Stud Landcruiser patterns.

The 50mm Coupler and Ratchet Trailer Handbrake of the Flat Top Trailer

Ratchet Trailer Handbrake and 50mm Coupling

The Water Trailer is fitted with a Ratchet Trailer Handbrake as standard.


The 50mm Coupler comes standard with all 3500 kgs ATM Trailers and can be swapped to a 70mm Coupler if registering the trailer at 4500 kgs ATM.

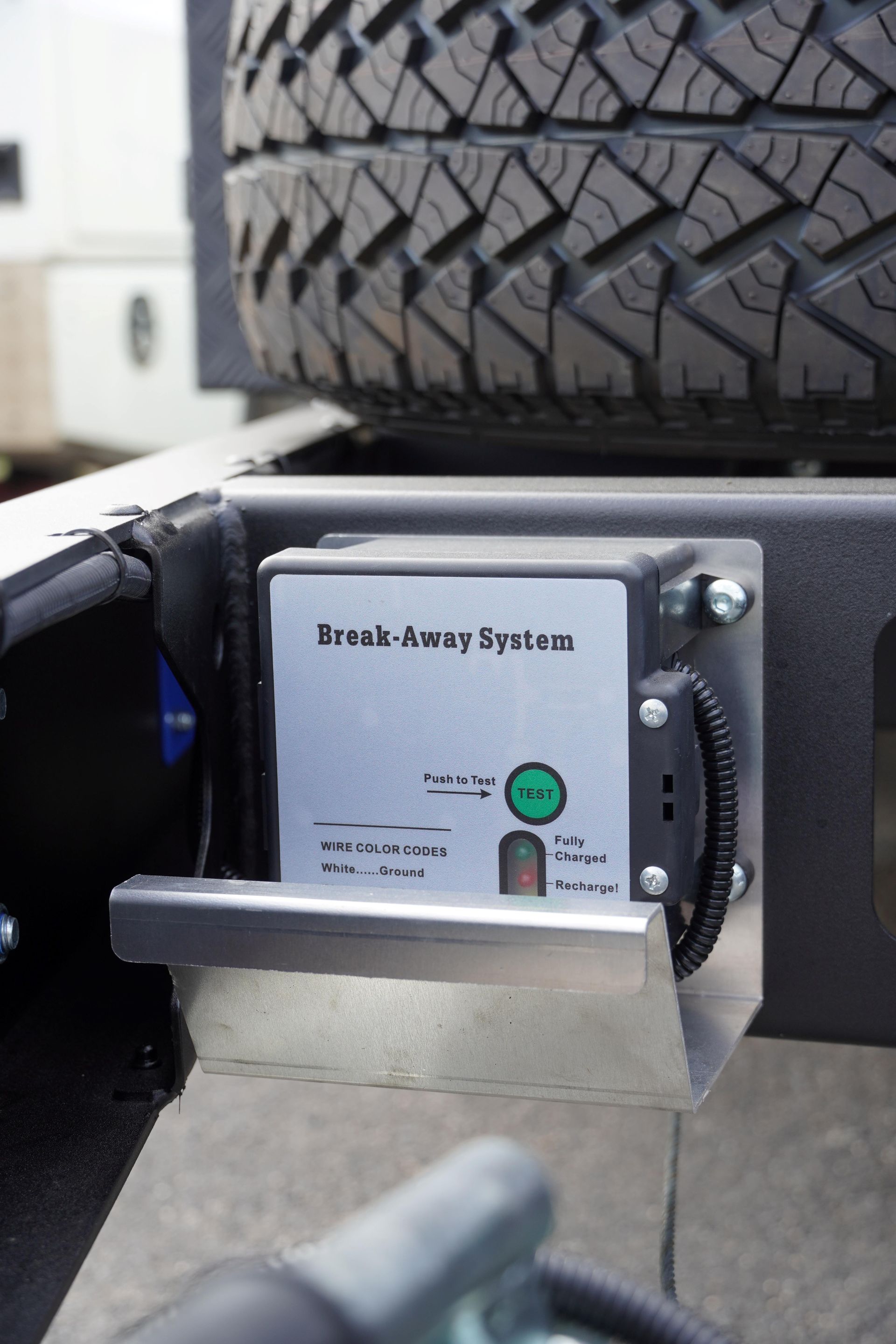

The break-away system installed on a water trailer.

Break-Away System

The trailer Break-Away System is the ultimate emergency brake. It is designed to bring the trailer to a stop in the unlikely event it breaks away from the tow vehicle.

  • LOAD SHARING SUSPENSION

    the load sharing suspension of the ox water trailer.

    The Load Sharing Leaf Spring Suspension Set ensures a safe and stable trailer on and off-road.


    The load-sharing system distributes weight evenly between the two wheels, ensuring the load remains level and the weight strain isn't put on one wheel.

  • DRUM BRAKES

    The 12-inch drum brakes of an ox water trailer

    Electric Drum Brakes provide a safe and reliable braking solution.


    We provide a 12-inch drum brake as these are heavy-duty and robust.

  • STEEL AXLES

    The 65mm square steel axles of the ox water trailer.

    The 3000kg 65mm Square Steel Axles result in a stronger, yet lighter suspension set-up. The steel size of 65mm ensures the trailer can safely carry over 3000kg.

  • BEARINGS

    The bearings of an ox water trailer.

    Each trailer has 4 Dual Row Taper Roller Bearings.


    These are 3000kg each, with a triple lip marine seal with a secondary O-Ring seal incorporated into the dust cap.


    These bearings come with a 3-year manufacturer's warranty.

  • WHEELS + TYRES

    Standard all terrain tyres of an ox water trailer.

    Each trailer is fitted with All Terrain 235RI6 / 75 New Tyres.


    These tyres are equipped with 16-inch wheels with 5 Stud Landcruiser patterns.

  • HANDBRAKE + COUPLING

    the 50mm coupling of an ox water trailer

    The Water Trailer is fitted with a Ratchet Trailer Handbrake as standard.


    The 50mm Coupler comes standard with all 3500 kgs ATM Trailers and can be swapped to a 70mm Coupler if registering the trailer at 4500 kgs ATM.

  • BREAK-AWAY SYSTEM

    The break-away system in the chassis of an ox water trailer.

    The trailer Break-Away System is the ultimate emergency brake.

    It is designed to bring the trailer to a stop in the unlikely event it breaks away from the tow vehicle.

BUILD CONFIGURATION

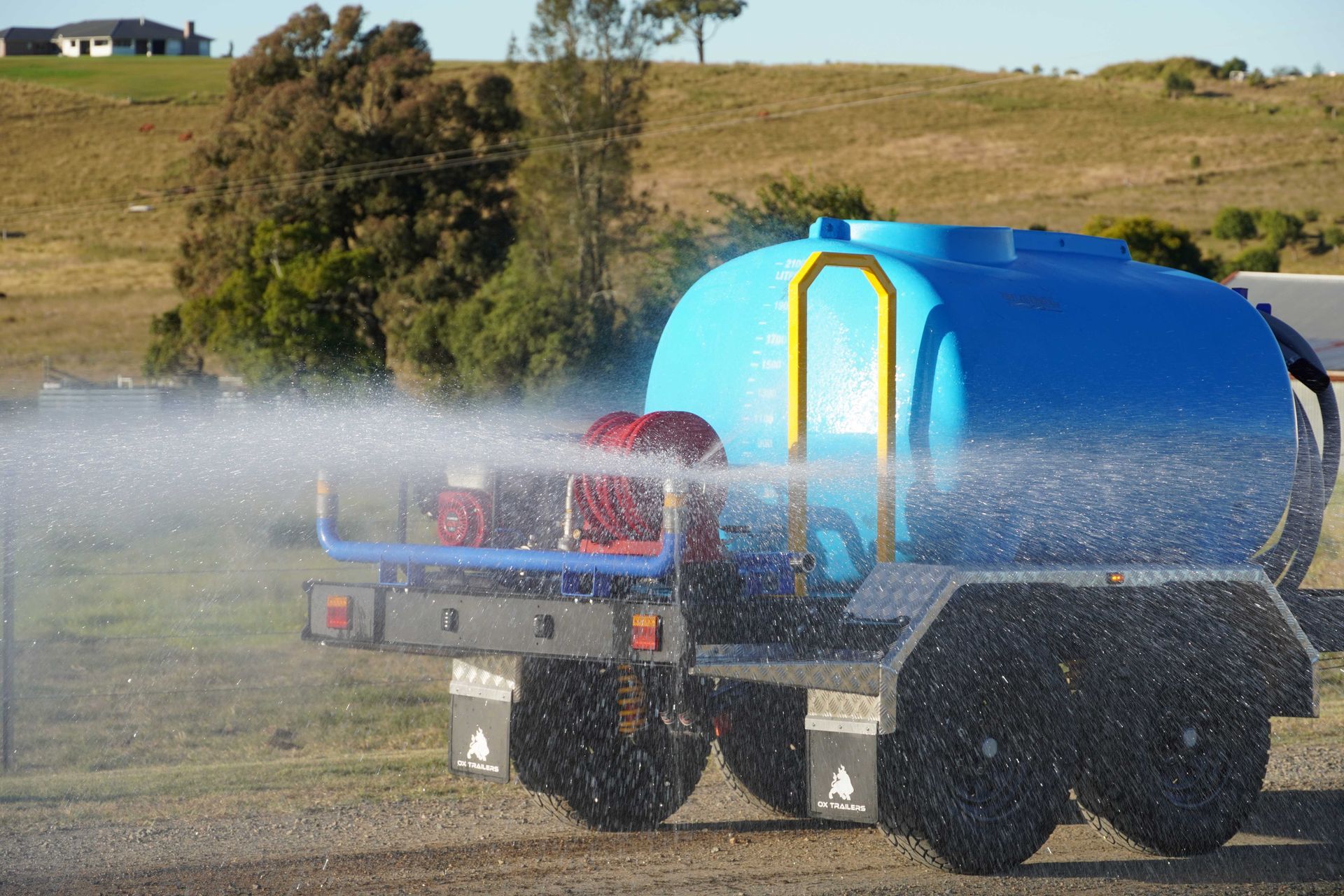

The 2000L poly water tank  of the water trailer in action while it is spraying water over a dirt road.

2000L Poly Water Tank

The 2000L Poly Water tank is situated on the chassis.

This size tank can be swapped for a 1000L, 1500L, or 3000L option.

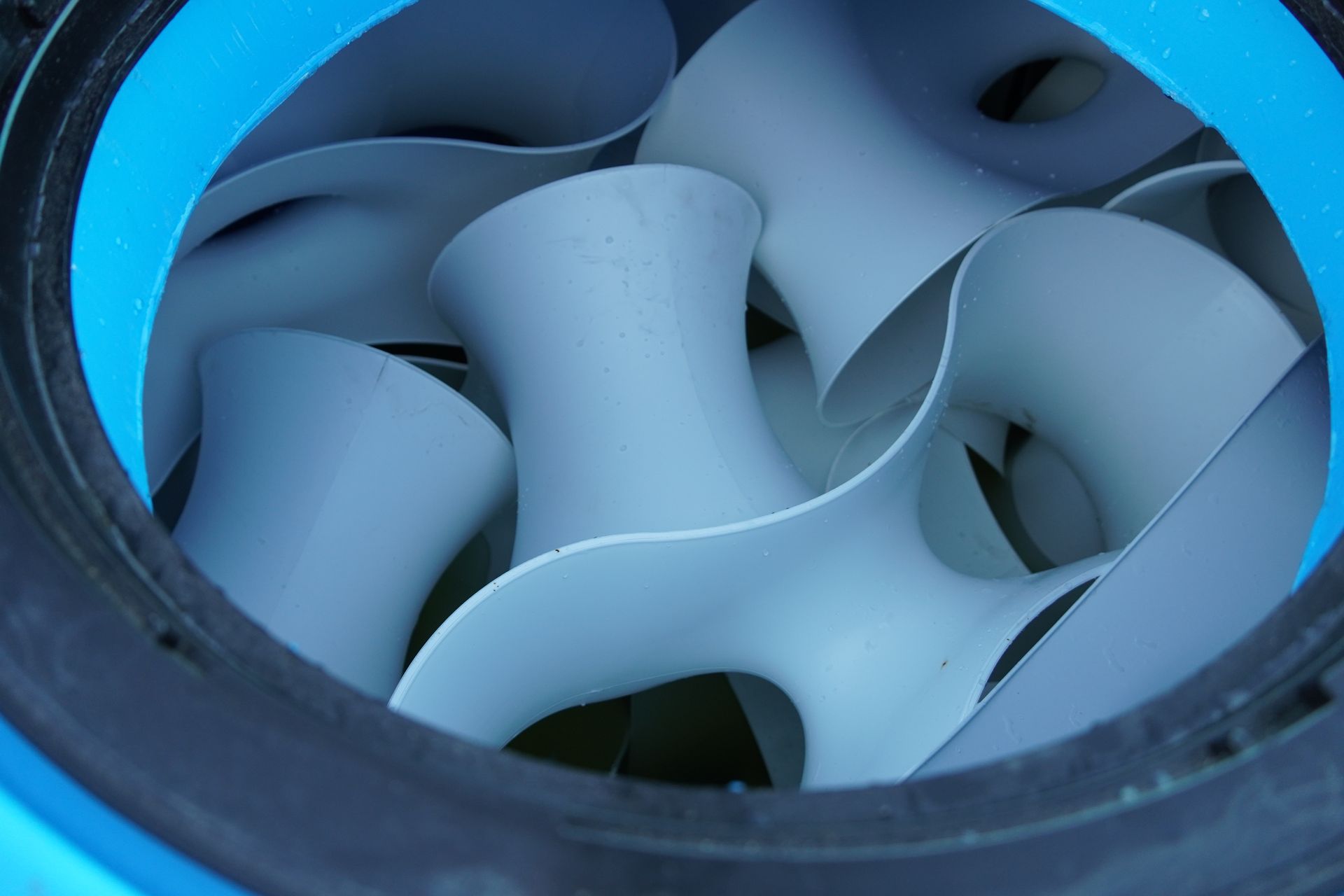

The tank is filled with bone baffling that works to minimises the surging of the water while in transit.

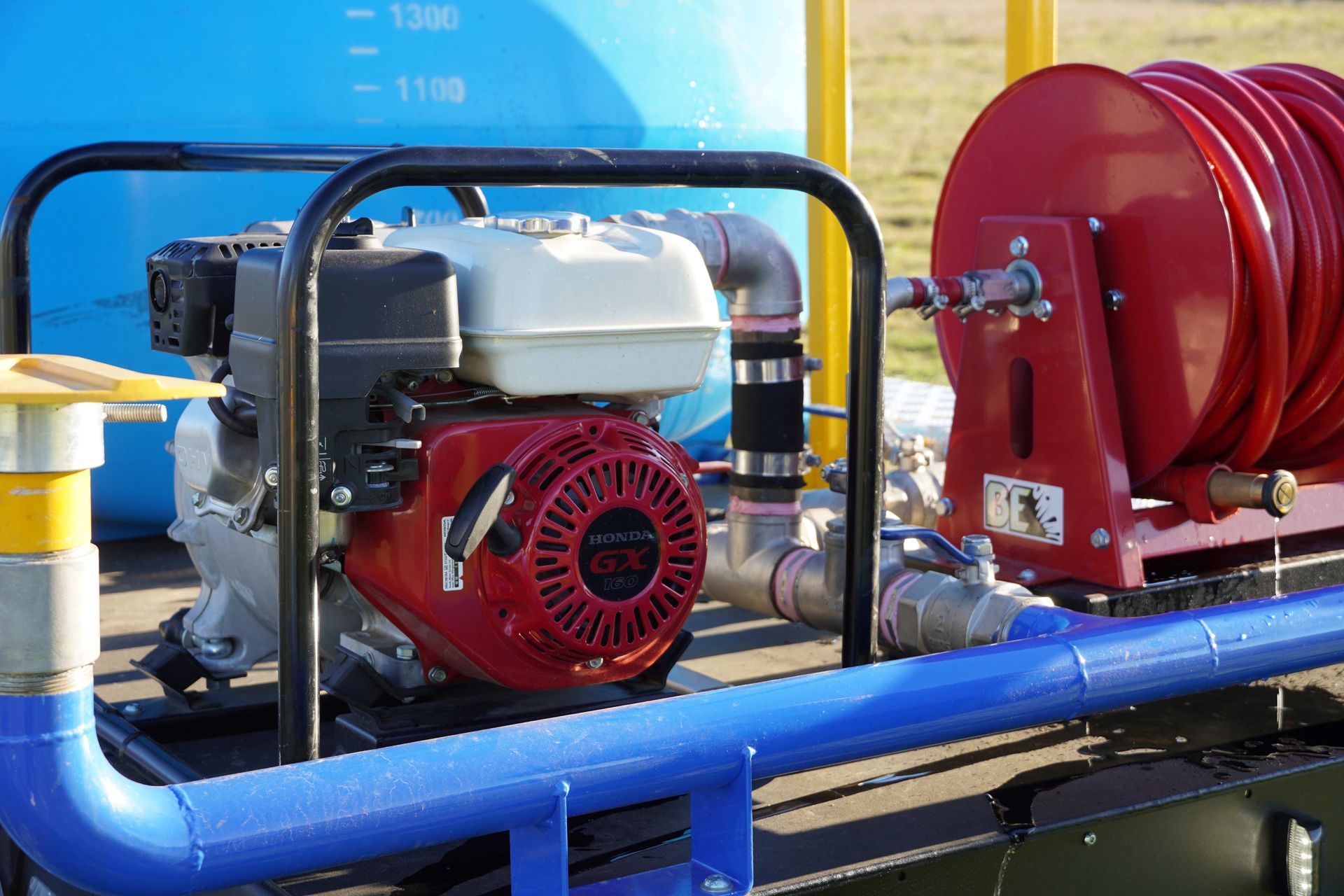

The High volume, low pressure pump situated on the rear of the water trailer.

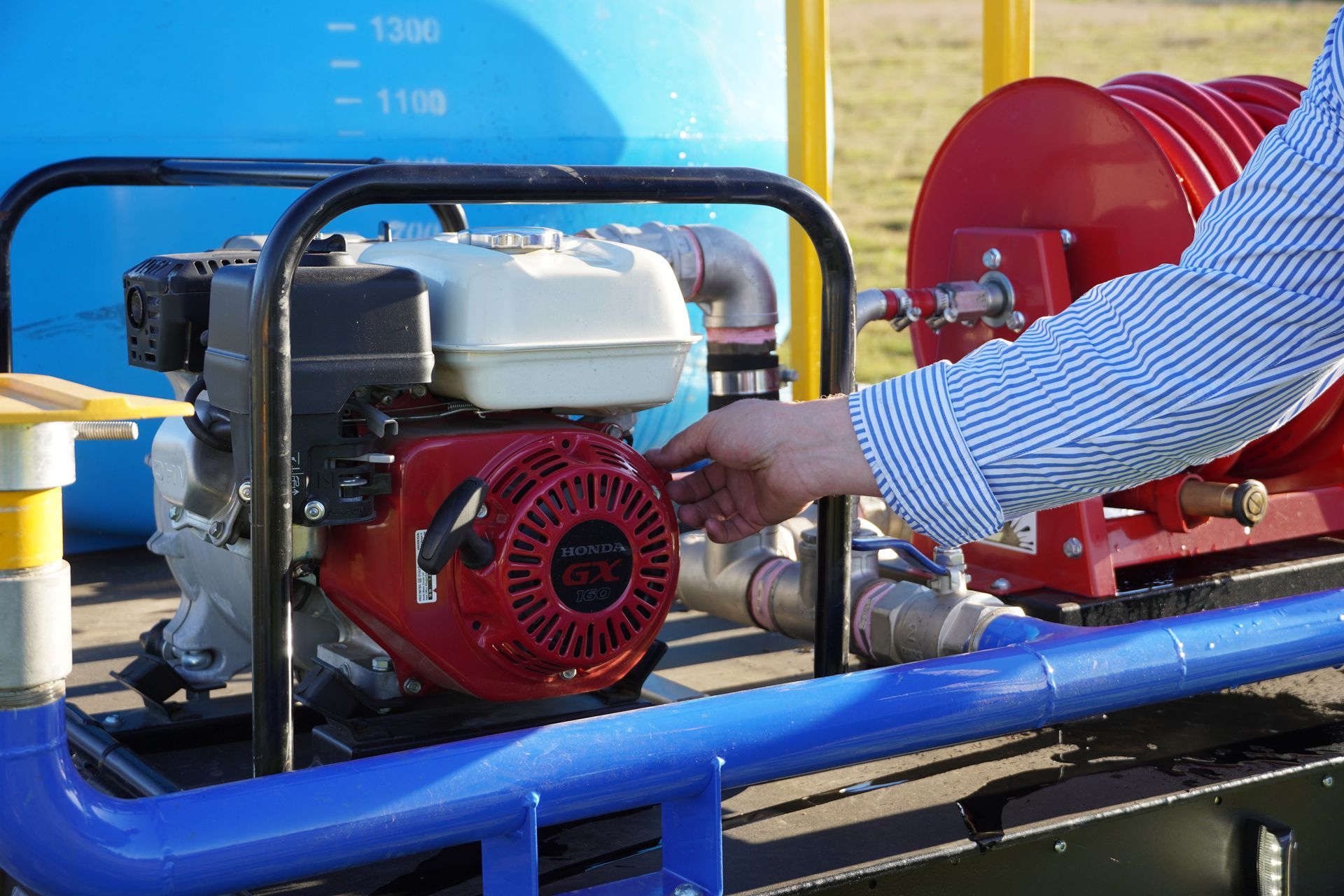

High-Volume, Low Pressure Pump

The Water Trailer is equipped with a High-Volume, Low Pressure Pump with a max flow of 710L per minute.


The maximum pressure is 30m head (40 psi).

The maximum suction is 8m head

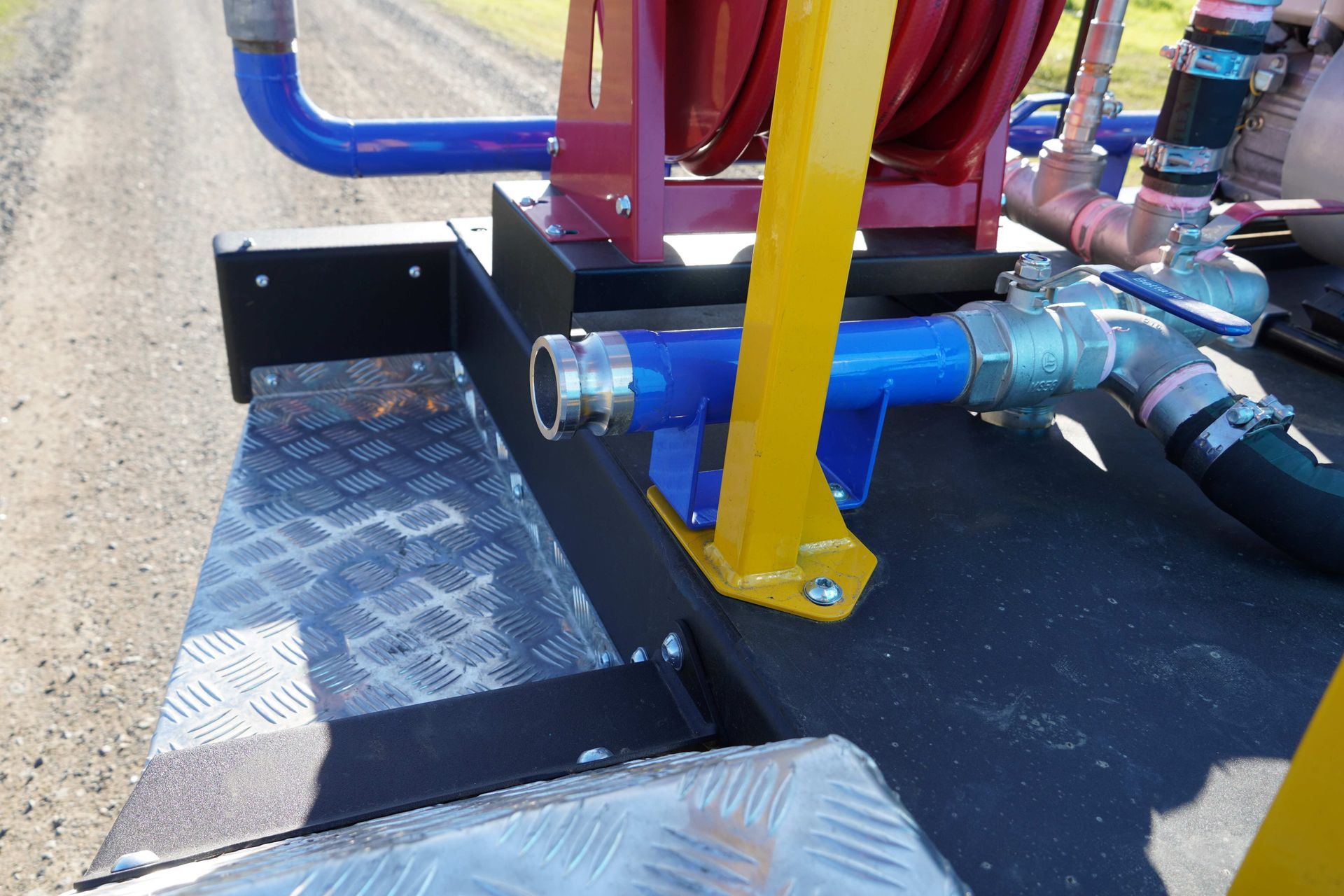

The 2-inch pump outlet situated at the side of the water trailer.

Pump with 2-Inch Outlet

The pump with a 2-inch outlet allows for the water tank to be refilled via suction.


You can use the hose provided to fill the tank from any available water source.

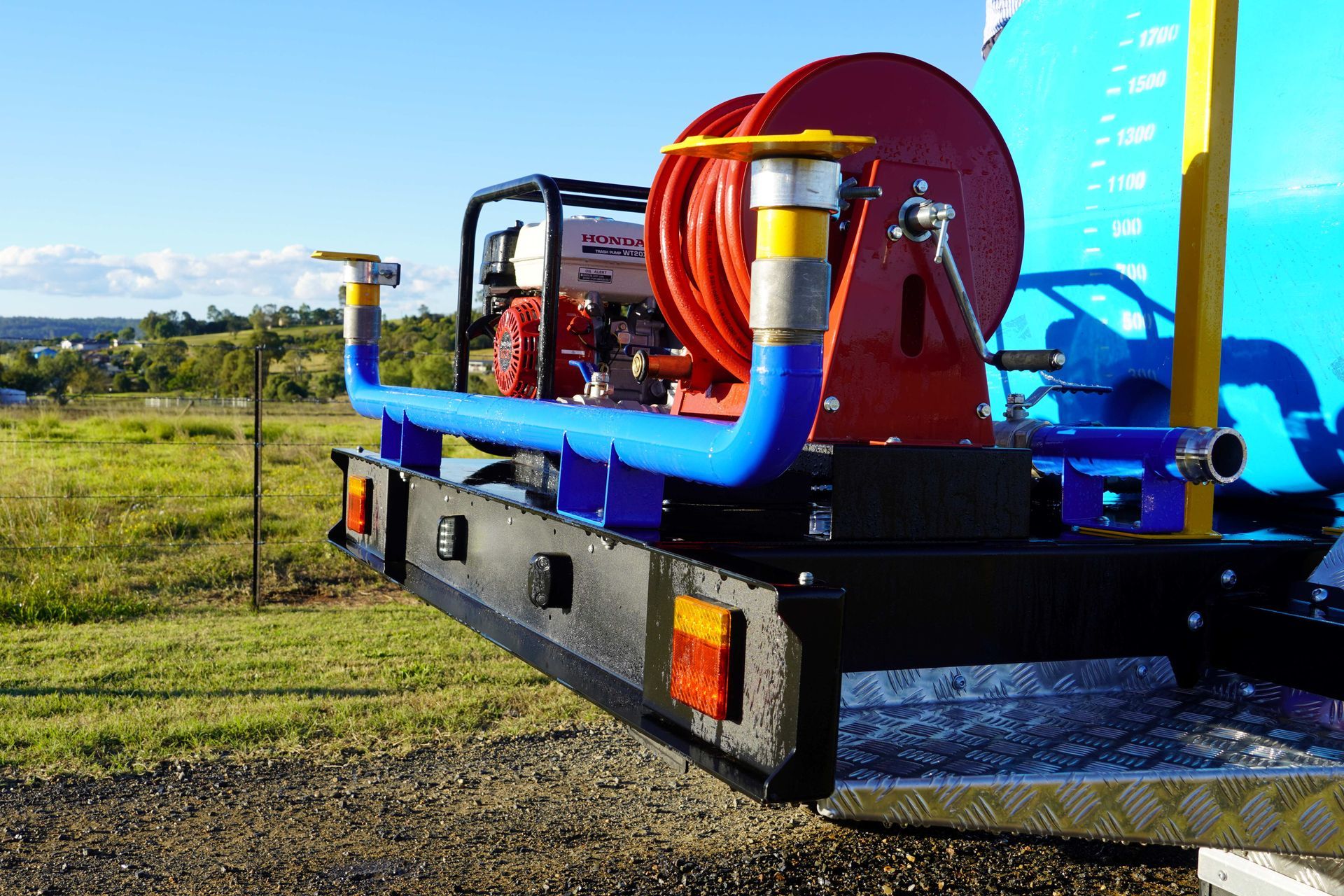

A side view of the water trailer as the deflector side sprayers are activated and in use on a dirt road.

Spray Bar

The Spray Bar is attached to the rear of the trailer and can be activated simultaneously for the suppression of dust on dirt roads or work sites.

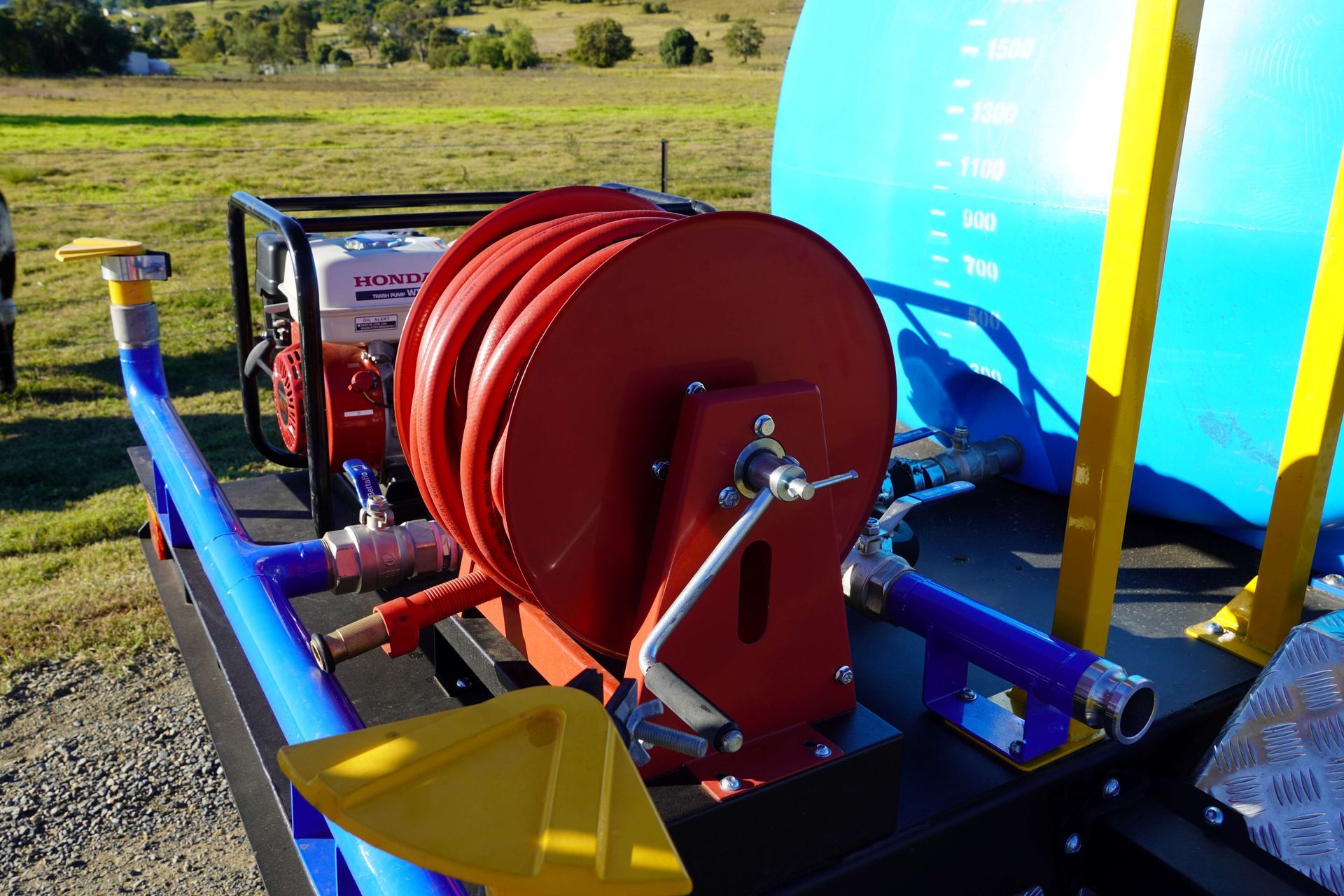

The 30m long, 19mm fire hose and holder as it sits on the rear of the trailer.

30m long, 19mm Fire Hose + Holder

The 19mm Fire Hose is 30m long and is stored in a reel at the rear of the water trailer.

This fire hose can be used for fire control, dust suppression, equipment hose down, and civil landscaping.

It comes with an adjustable nozzle that allows you to change the force of the water.

  • 2000L POLY WATER TANK

    the water trailer spraying water over a dirt road.

    The 2000L Poly Water tank is situated on the chassis.


    This size tank can be swapped for a 1000L, 1500L, or 3000L option.


    The tank is filled with bone baffling that works to minimise the surging of the water while in transit.

  • PUMP

    the pump of an ox water trailer

    The Water Trailer is equipped with a High-Volume, Low Pressure Pump with a max flow of 710L per minute.


    The maximum pressure is 30m head (40 psi).


    The maximum suction is 8m head

  • PUMP OUTLET

    the pump and 2-inch outlet on an ox water trailer

    The pump with a 2-inch outlet allows for the water tank to be refilled via suction.


    You can use the hose provided to fill the tank from any available water source.

  • SPRAY BAR

    the deflector side sprayer bar of an ox trailer.

    The Spray Bar is attached to the rear of the trailer and can be activated simultaneously for the suppression of dust on dirt roads or work sites.

  • FIRE HOSE + HOLDER

    The fire hose + holder for the ox water trailer.

    The 19mm Fire Hose is 30m long and is stored in a reel at the rear of the water trailer.


    This fire hose can be used for fire control, dust suppression, equipment hose down, and civil landscaping.


    It comes with an adjustable nozzle that allows you to change the force of the water.

DOWNLOAD THE CATALOGUE

Laser cut section chassis designed to allow the sub frame to flex and move as it negotiates rough road terrain. This refined technology helps you fluidly navigate rough off road terrain.


To view the build options for this trailer, download our catalogue.

View the water trailer flyer for details on the 3500kg Water Trailer with 2000L Poly Tank and Pump Kit.
