3500 KG

AGGREGATE TRAILER MASS

640 KG

TARE WEIGHT

85 KG

BALL WEIGHT

3 YR

STRUCTURAL WARRANTY

TRADE SERIES FLAT TOP TRAILERS

Custom Design Options

Designed for Rugged, Rural Conditions

Delivery Australia Wide

TRADE SERIES FLAT TOP TRAILERS

Trade Series, built to handle it all.

Delivery Australia Wide

Ox Trailers flat top trailers are fully GRS-certified for your peace of mind.
Ox Trailers Flat Top Trailers are completely designed and manufactured in house, in Australia.

3500 KG

AGGREGATE TRAILER MASS

640 KG

TARE WEIGHT
(3000 x 2100 x 3.5T)

85 KG

BALL WEIGHT

3 YR

STRUCTURAL WARRANTY

THE SPECS

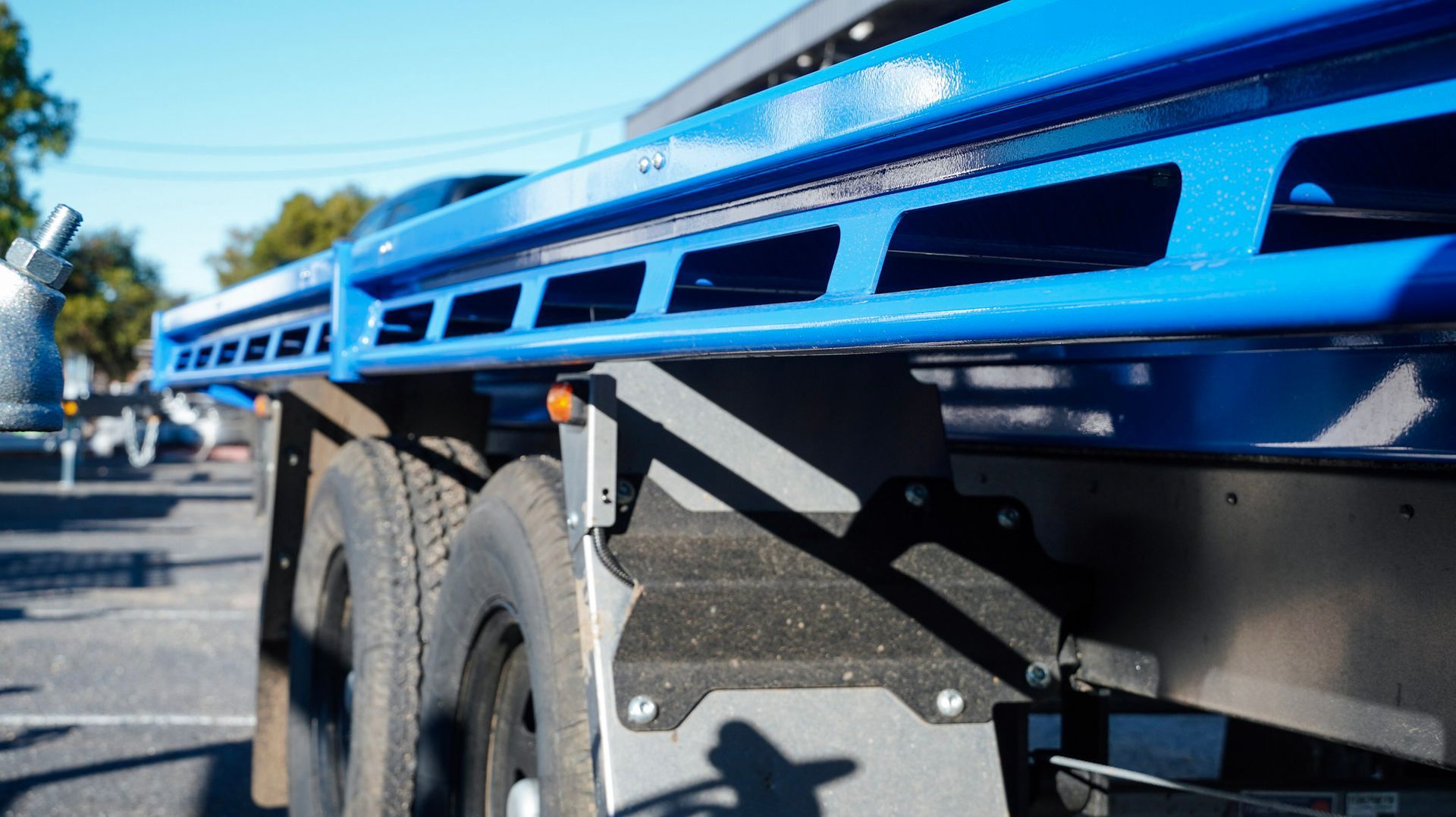

The main design feature of the Flat Top fabricated chassis is the 5mm 350* grade steel, C-Section Channel that runs the full length of the trailer allowing the chassis to flex and move as it negotiates rough road terrain.


The fabricated chassis is made of laser cut, CNC folded, 350 grade*, open chassis members allowing for easy wash down and cleaning, with no enclosed areas where mud, sand and salt can get trapped and cause corrosion.


*350 grade is higher tensile steel. Box Section is 300 grade and most C sections are 300.

TRAILER RUNNING GEAR

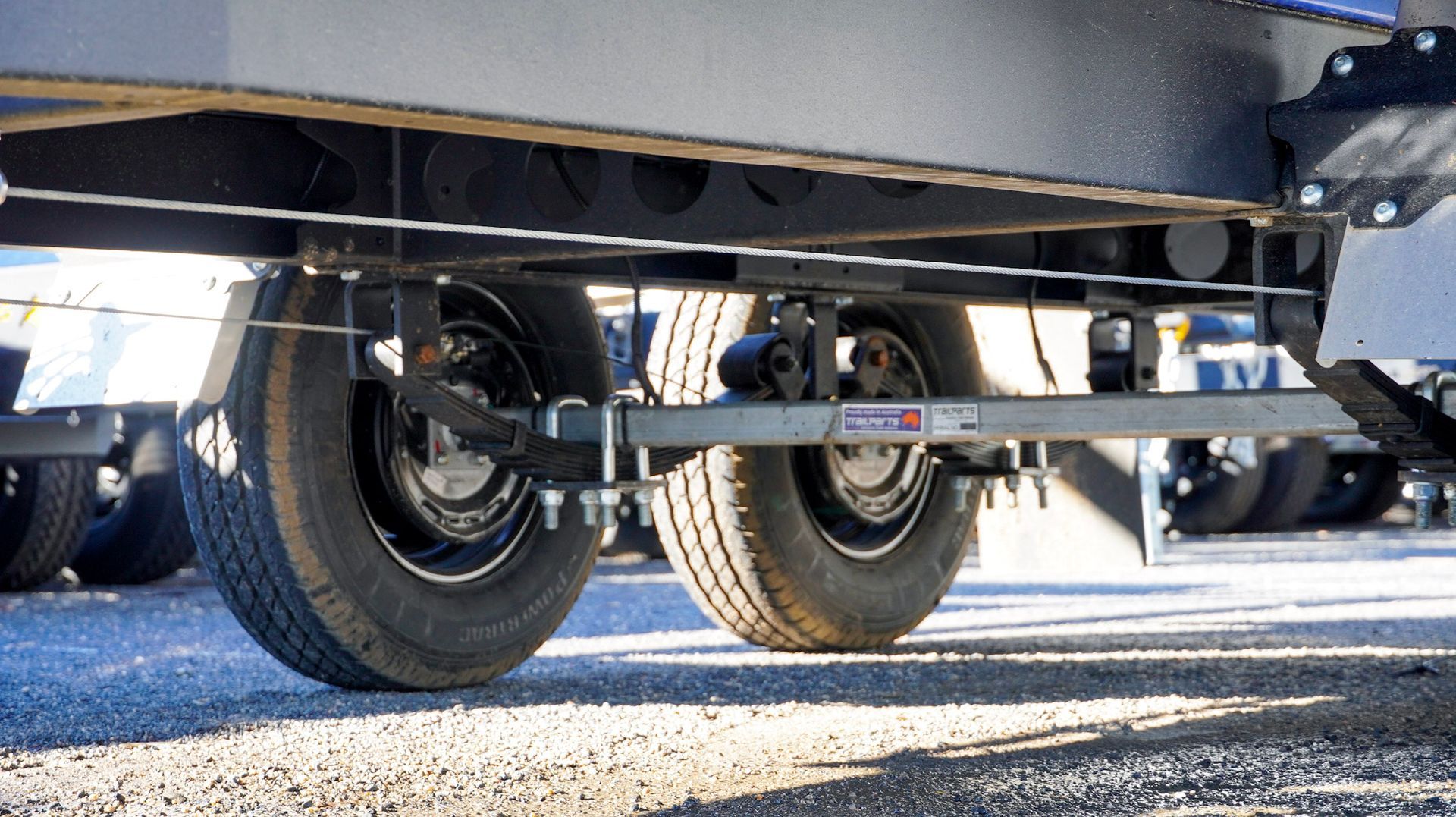

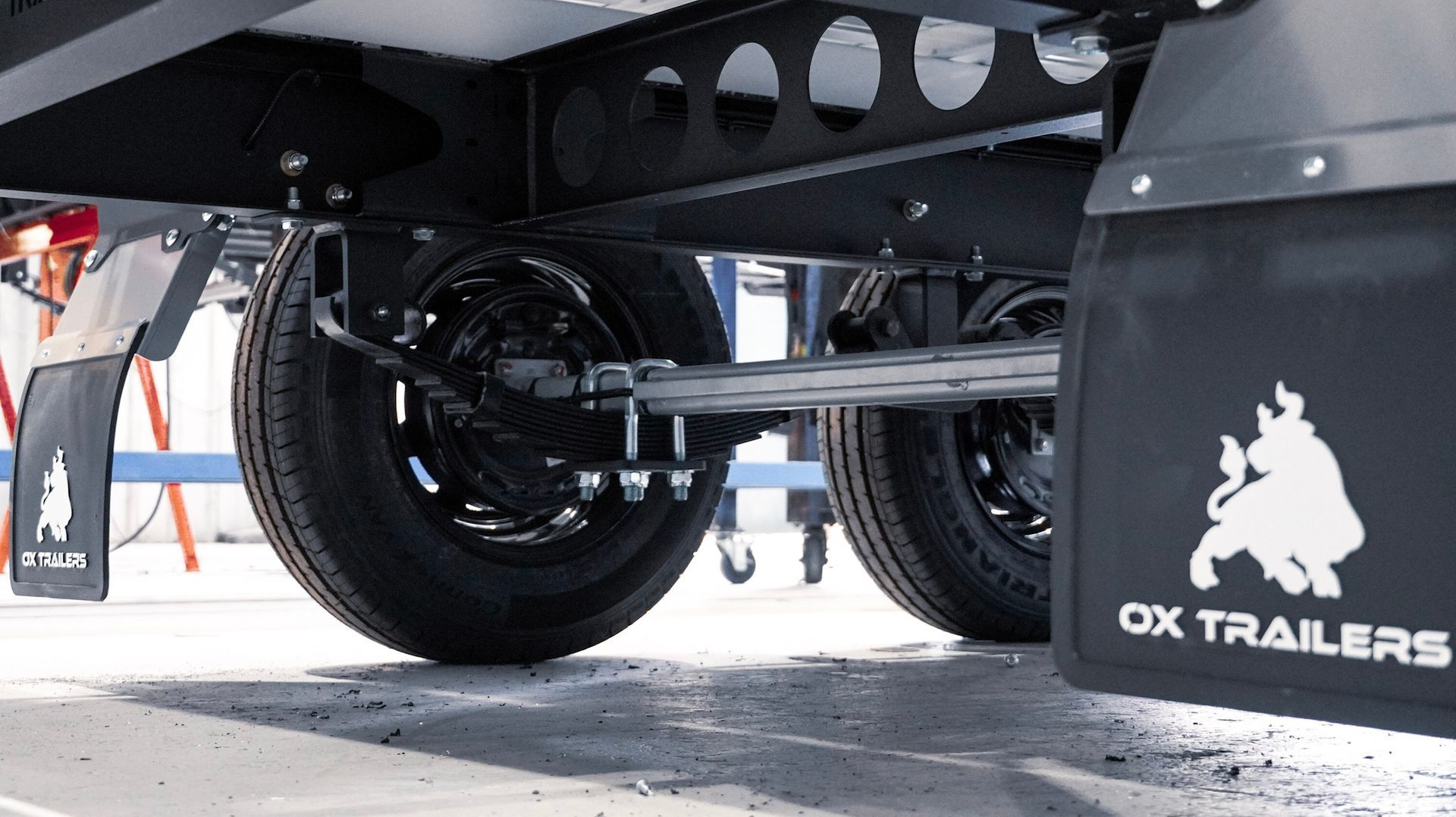

The left side of the Load Sharing Leaf Spring Suspension Set of a tandem axle trailer with a 3.5t ATM

Load Sharing Leaf Spring Suspension Set

The Load Sharing Leaf Spring Suspension Set ensures a safe and stable trailer on and off the road.

The load-sharing system distributes weight evenly between the two wheels, ensuring the load remains level and the weight strain isn't put on one wheel.

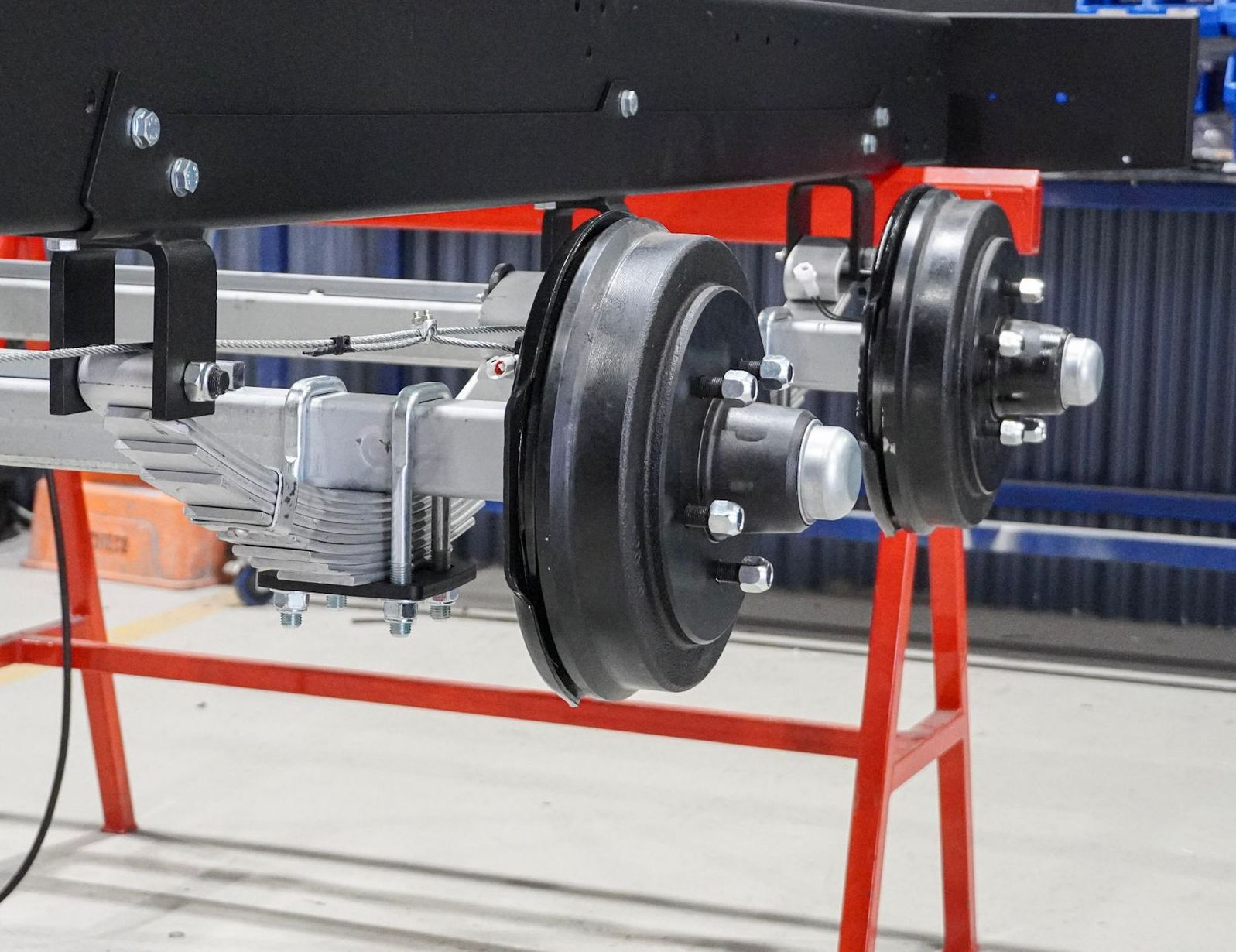

The 10-inch electric drum brake visible through the wheel rim of a tyre on a Flat Top Trailer

10-Inch Electric Drum Brakes

Electric Drum Brakes provide a safe and reliable braking solution.

The trade series is equipped with 10-inch drum brakes as these are heavy-duty and robust.

A close up of the tandem axles set-up under the trailer tray.

50mm Square Steel Axles

The 50mm Square Steel Axles result in a stronger, yet lighter suspension set-up. The steel size of 50mm ensures the trailer can safely carry over 3000kg.

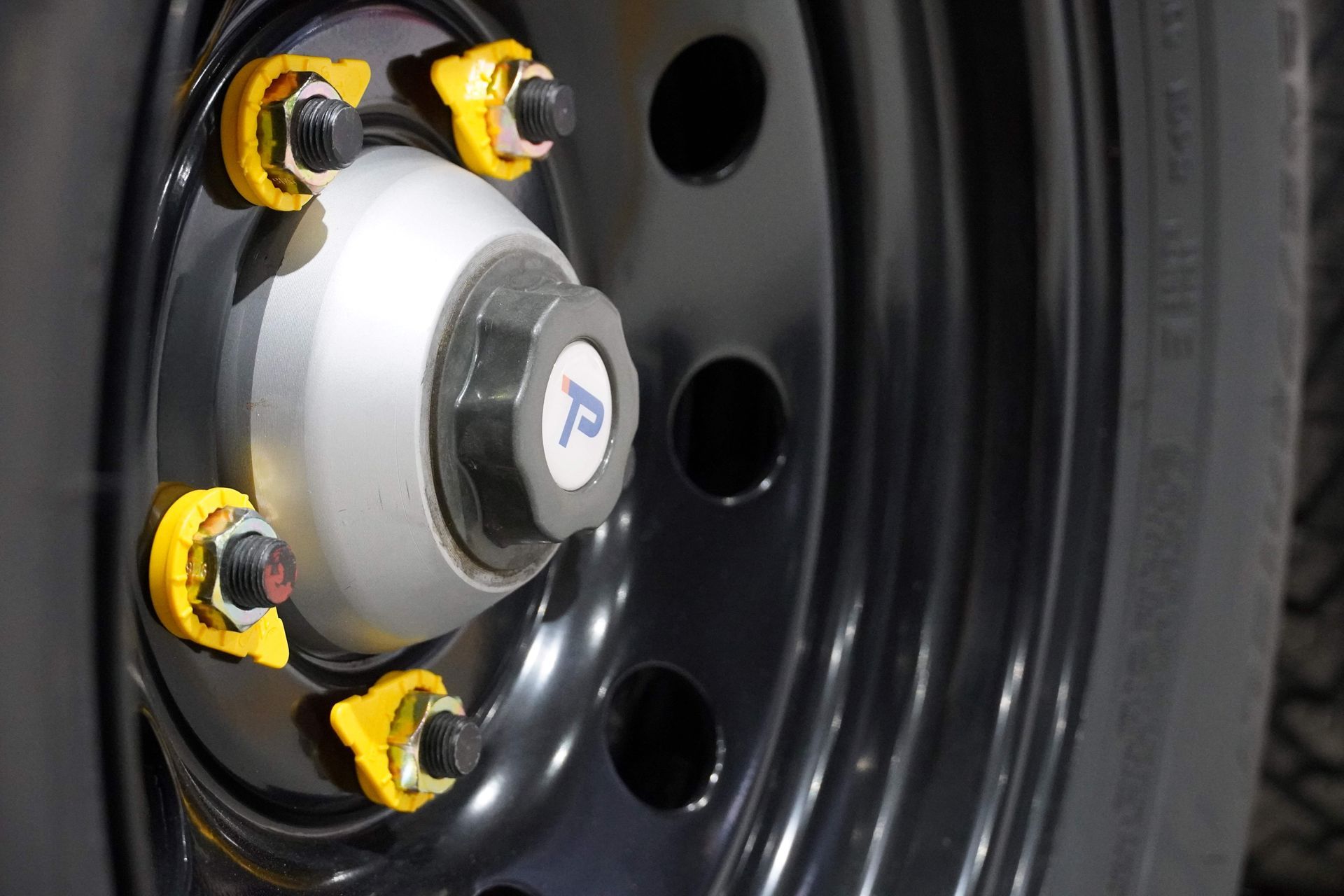

A close up of the Trail Parts Logo on the dust cap of the UNIHUB on an trailer tyre.

Dual Row Taper Roller Bearings

Each trailer has 4 Dual Row Taper Roller Bearings.

These are 3000kg each, with a triple lip marine seal with a secondary O-Ring seal incorporated into the dust cap.

They come with a 3-year manufacturer's warranty.

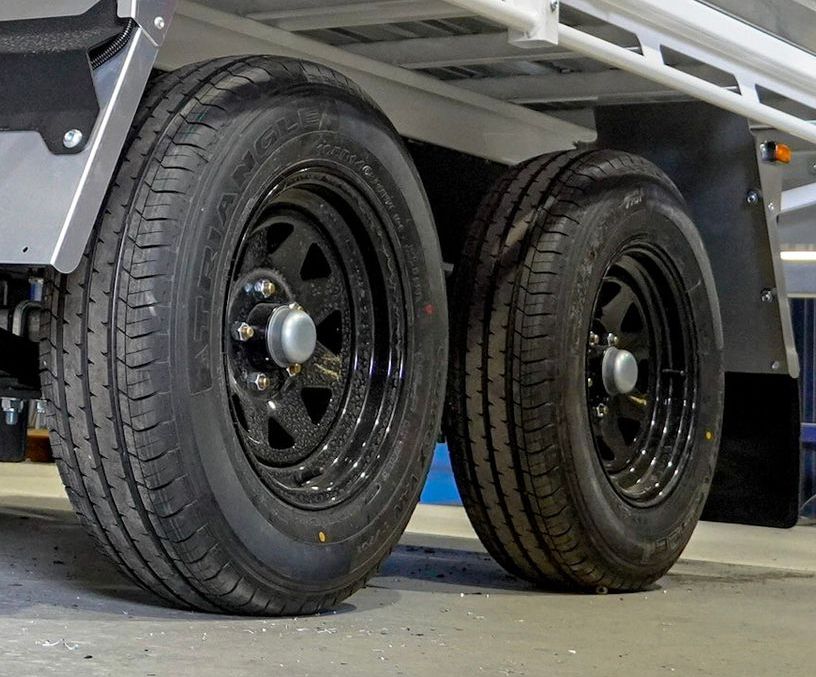

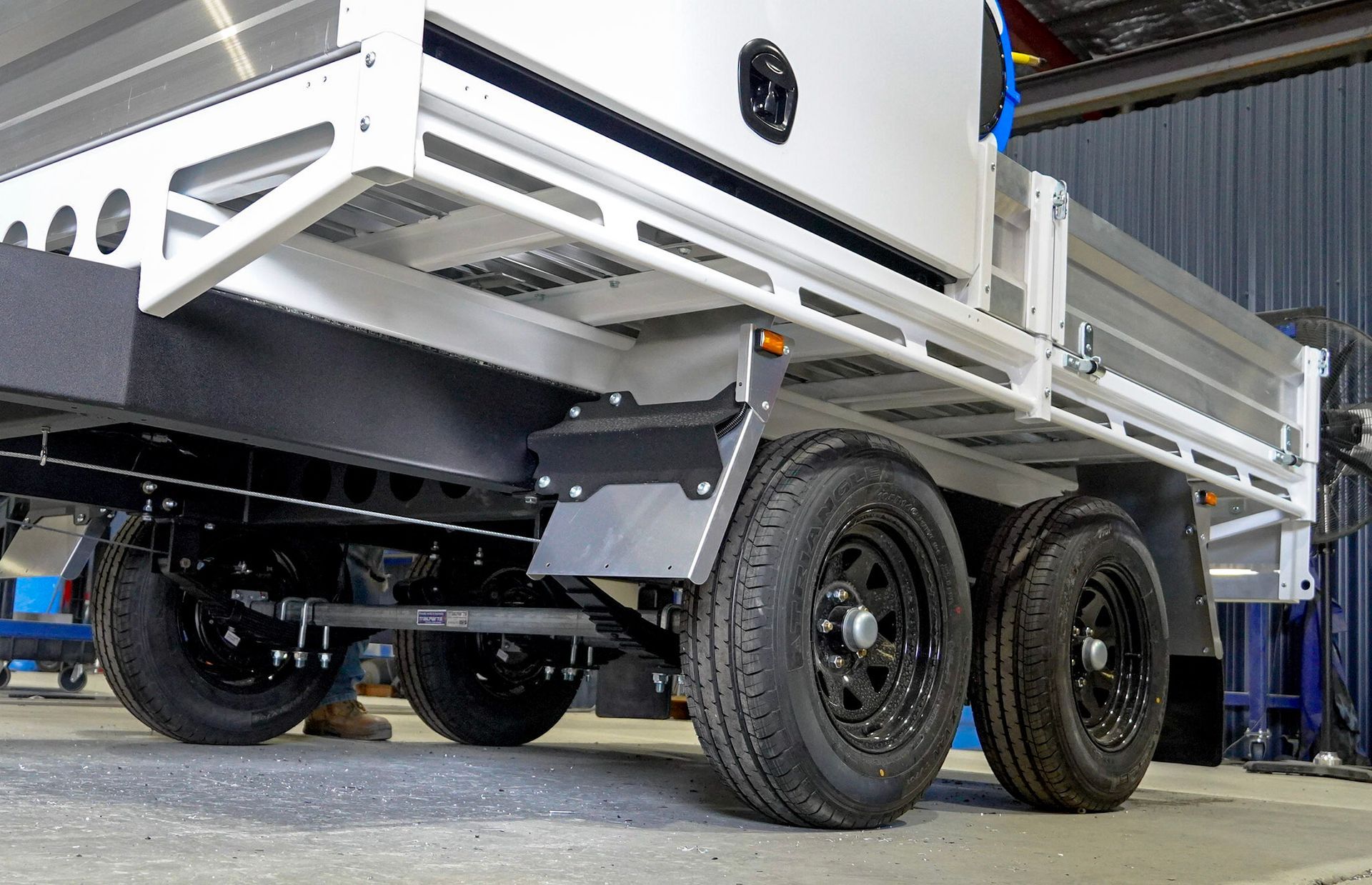

The tandem tyres and wheels of the Trade Series Flat Top Trailer

14-Inch Ford Rims, Light Truck Tyres

Each trailer has 4 x 14-inch 195/75 Ford Rims and 4 x Light Truck Tyres.


A spare wheel and undertray mount is an optional accessory.

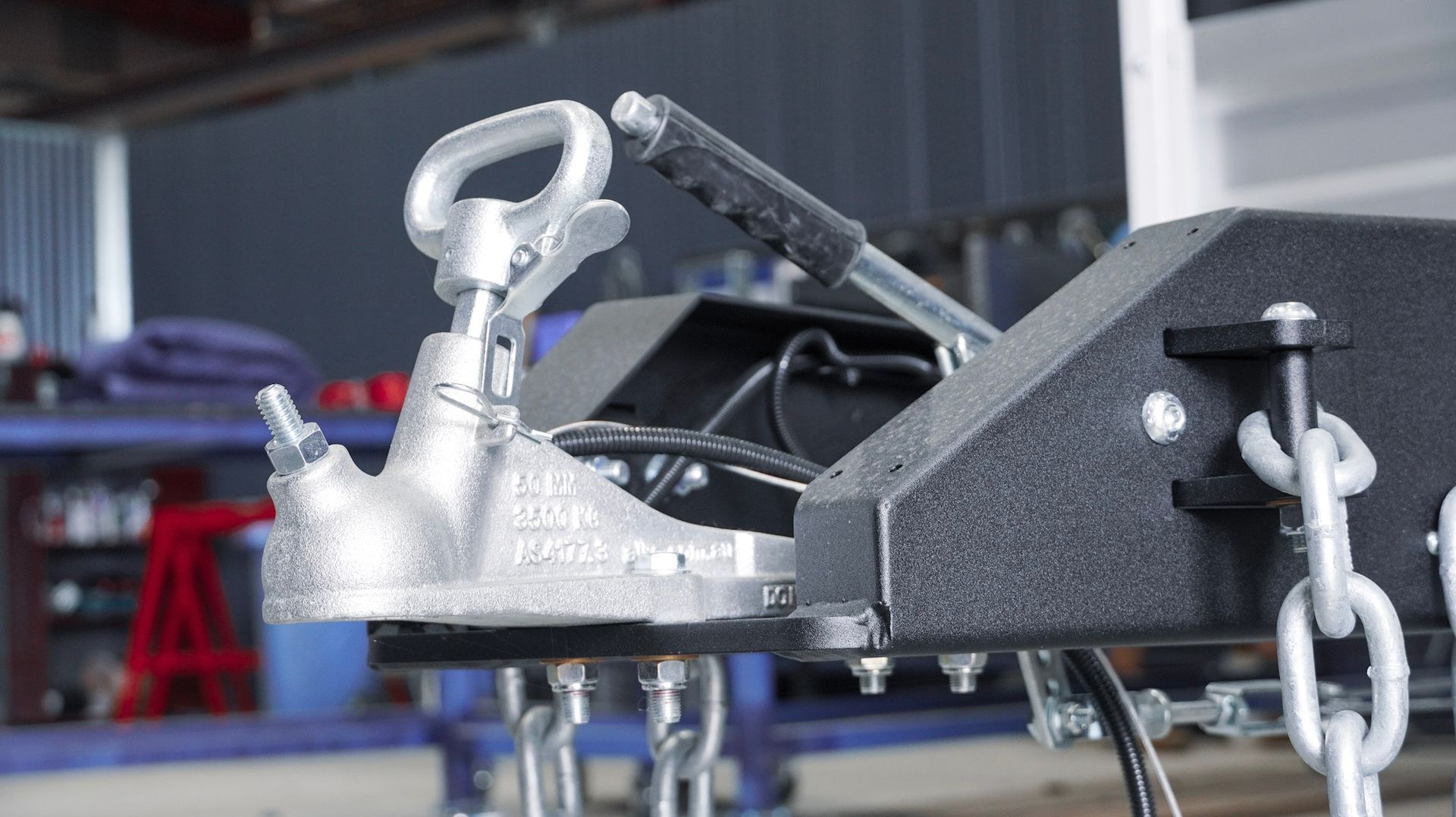

The 50mm Coupler and Ratchet Trailer Handbrake of the Trade Series Flat Top Trailer

Ratchet Trailer Handbrake and 50mm Coupling

The Trade Series Flat Top Trailer is fitted with a Ratchet Trailer Handbrake as standard.


The 50mm Coupler comes standard with all 3500 kgs ATM Trade Series Trailers.

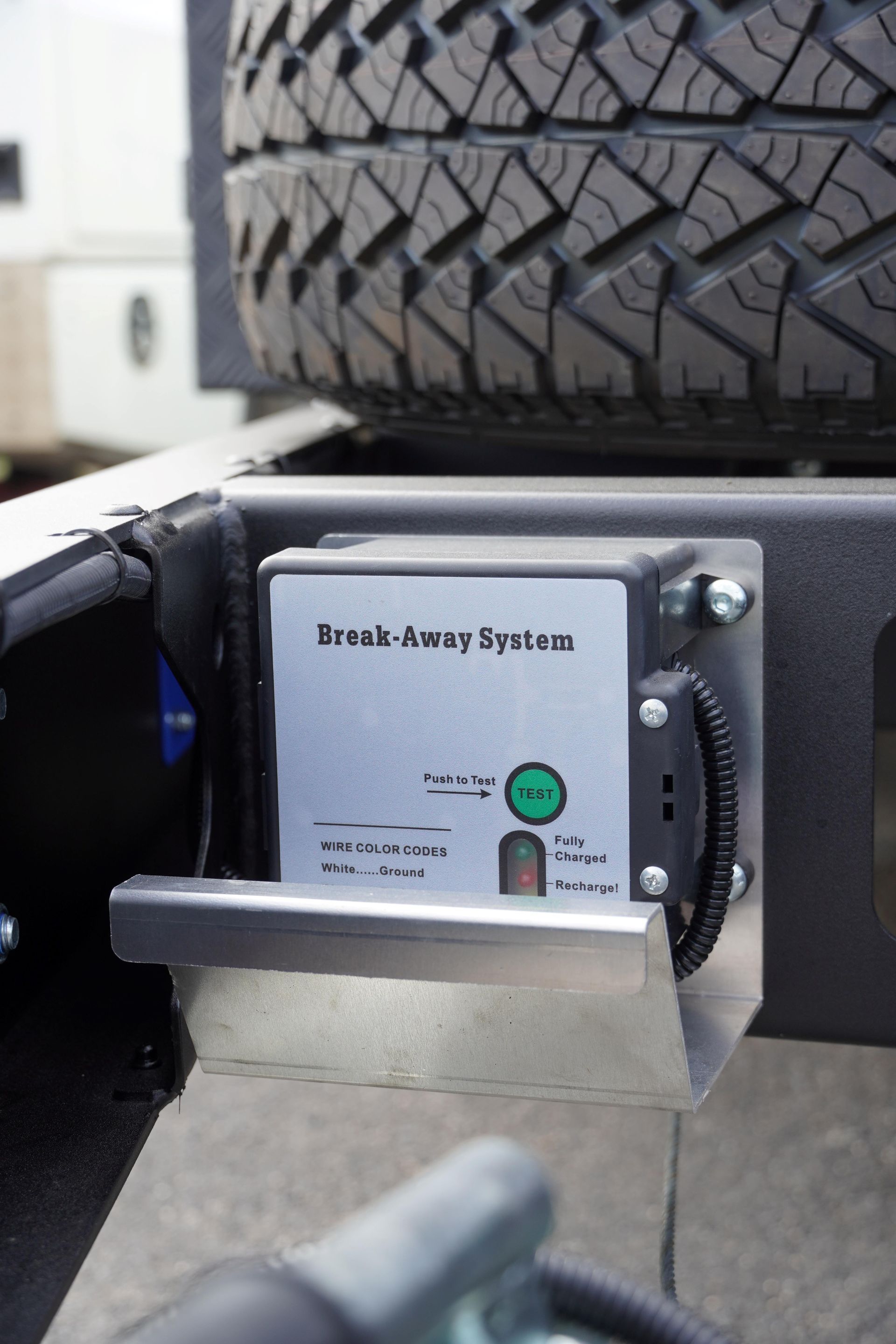

The break-away system installed on a flat top trailer.

Brake-Away System

The trailer Break-Away System is the ultimate emergency brake. It is designed to bring the trailer to a stop in the unlikely event it breaks away from the tow vehicle.

  • LOAD SHARING SUSPENSION

    Load Sharing Leaf Spring Suspension Set on an Ox Trailer

    The Load Sharing Leaf Spring Suspension Set ensures a safe and stable trailer on and off the road.


    The load-sharing system distributes weight evenly between the two wheels, ensuring the load remains level and the weight strain isn't put on one wheel.

  • DRUM BRAKES

    The 10-inch drum brake of an ox trailers

    Electric Drum Brakes provide a safe and reliable braking solution.


    The trade series is equipped with 10-inch drum brakes as these are heavy-duty and robust.

  • STEEL AXLES

    The 50mm square steel axles of an ox trailers.

    The 50mm Square Steel Axles result in a stronger, yet lighter suspension set-up. The steel size of 50mm ensures the trailer can safely carry over 3000kg.

  • BEARINGS

    Dual row taper roller bearings on an ox trailer

    Each trailer has 4 Dual Row Taper Roller Bearings.


    These are 3000kg each, with a triple lip marine seal with a secondary O-Ring seal incorporated into the dust cap.


    They come with a 3-year manufacturer's warranty.

  • TYRES + WHEELS

    The 14-inch rims and light truck tyres of an Ox Trade Series Flat Top Trailer

    Each trailer has 4 x 14-inch 195/75 Ford Rims and 4 x Light Truck Tyres.


    A spare wheel and undertray mount is an optional accessory.

  • HANDBRAKE + COUPLER

    50mm coupling and handbrake on a trade series flat top ox trailer

    The Trade Series Flat Top Trailer is fitted with a Ratchet Trailer Handbrake as standard.


    The 50mm Coupler comes standard with all 3500 kgs ATM Trade Series Trailers.

  • BRAKE-AWAY SYSTEM

    The break-away system of an ox trailer trade series flat top trailer.

    The trailer Break-Away System is the ultimate emergency brake. It is designed to bring the trailer to a stop in the unlikely event it breaks away from the tow vehicle.

TRAY FEATURES

Flat Deck Achievable

The Headboard, Dropsides, and Tie-Down Points are all easily removed, leaving you with a completely flat deck.

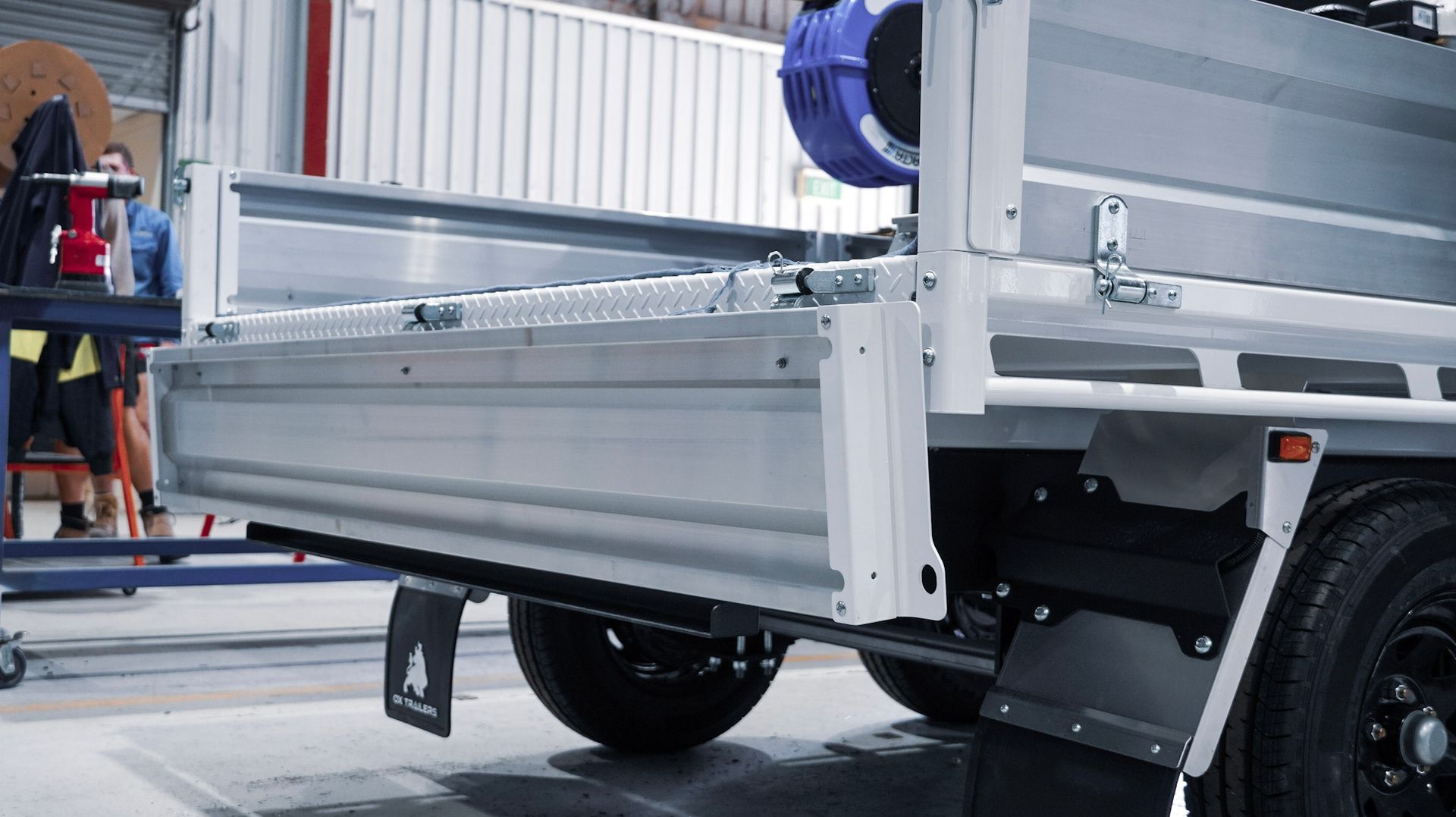

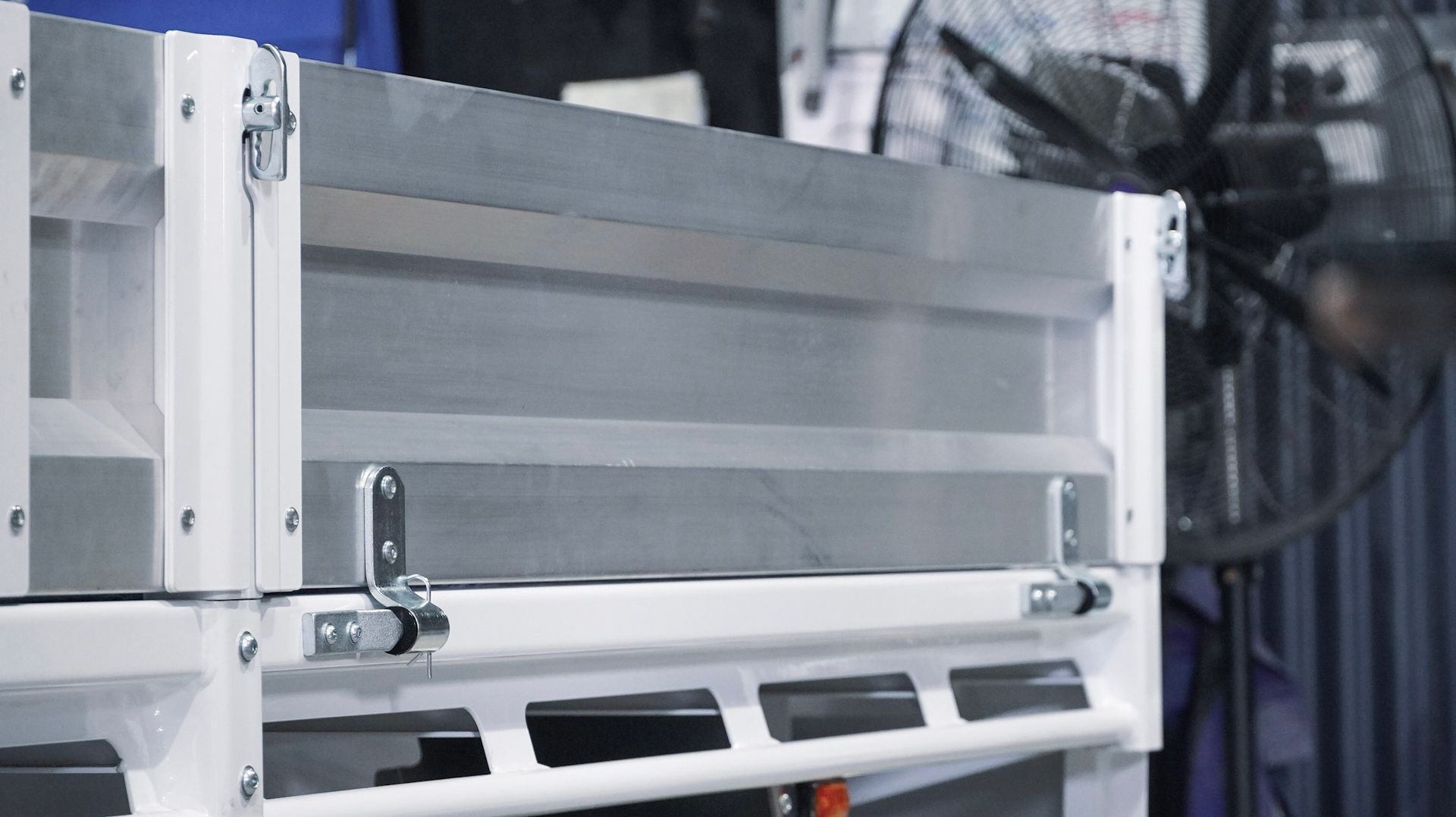

A trailer dropside, featuring the anti-luce latches and hinges.

Bolted Hinges and Quality Anti-Luce Latches

As standard, the trade series flat-top trailers come with aluminium drop sides.


All come fitted with quality hinges and anti-luce latches.


These keep the CNC folded dropsides + tailgate secure.

A rope railer of a flat top trailer.

Welded Rope Rails on tray sides.

The Trade Series Flat Top Trailers come with two rope rails, one on each side of the trailer.


These Rope Rails are welded onto the tray with multiple braces and are suitable for ratchet straps, chains, and hooks.

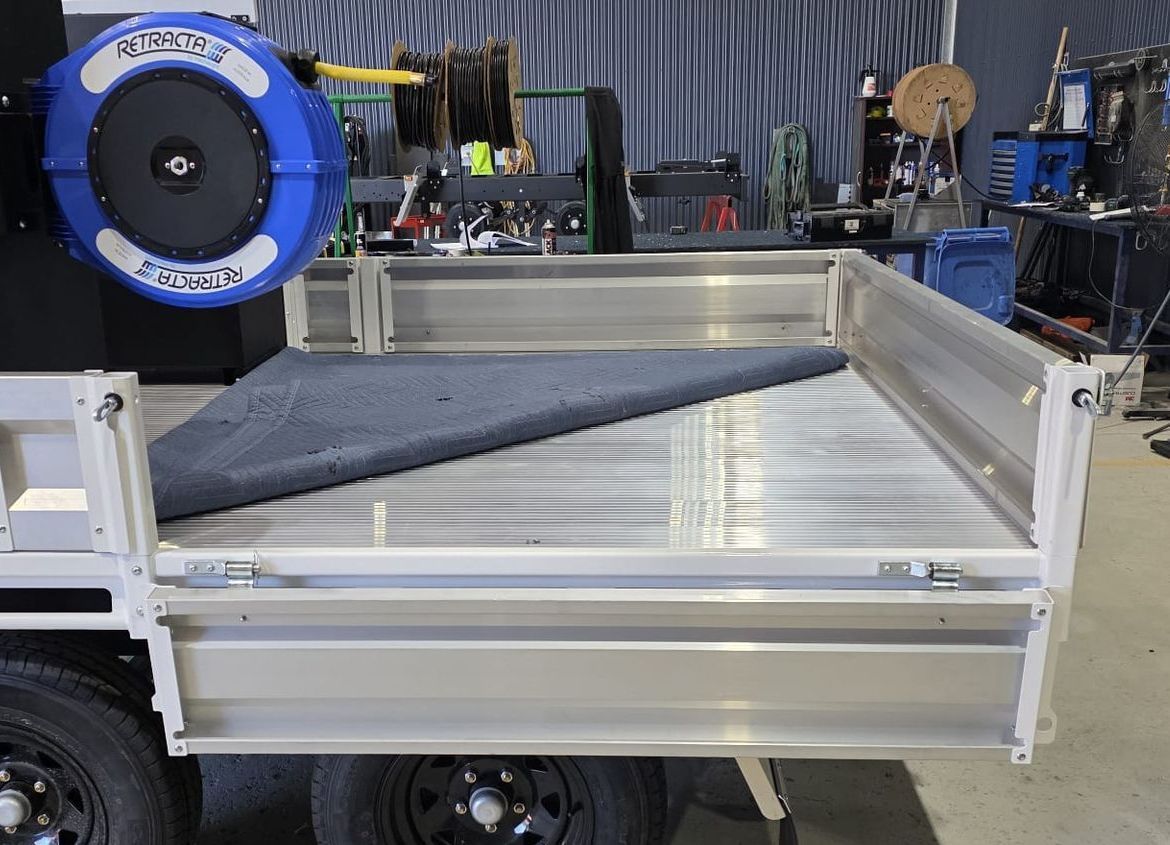

The aluminium extruded flooring of the trade series flat top trailer.

Aluminium Extruded Flooring

The decking plate of the trade series flat top trailer is built from aluminium extrusion.

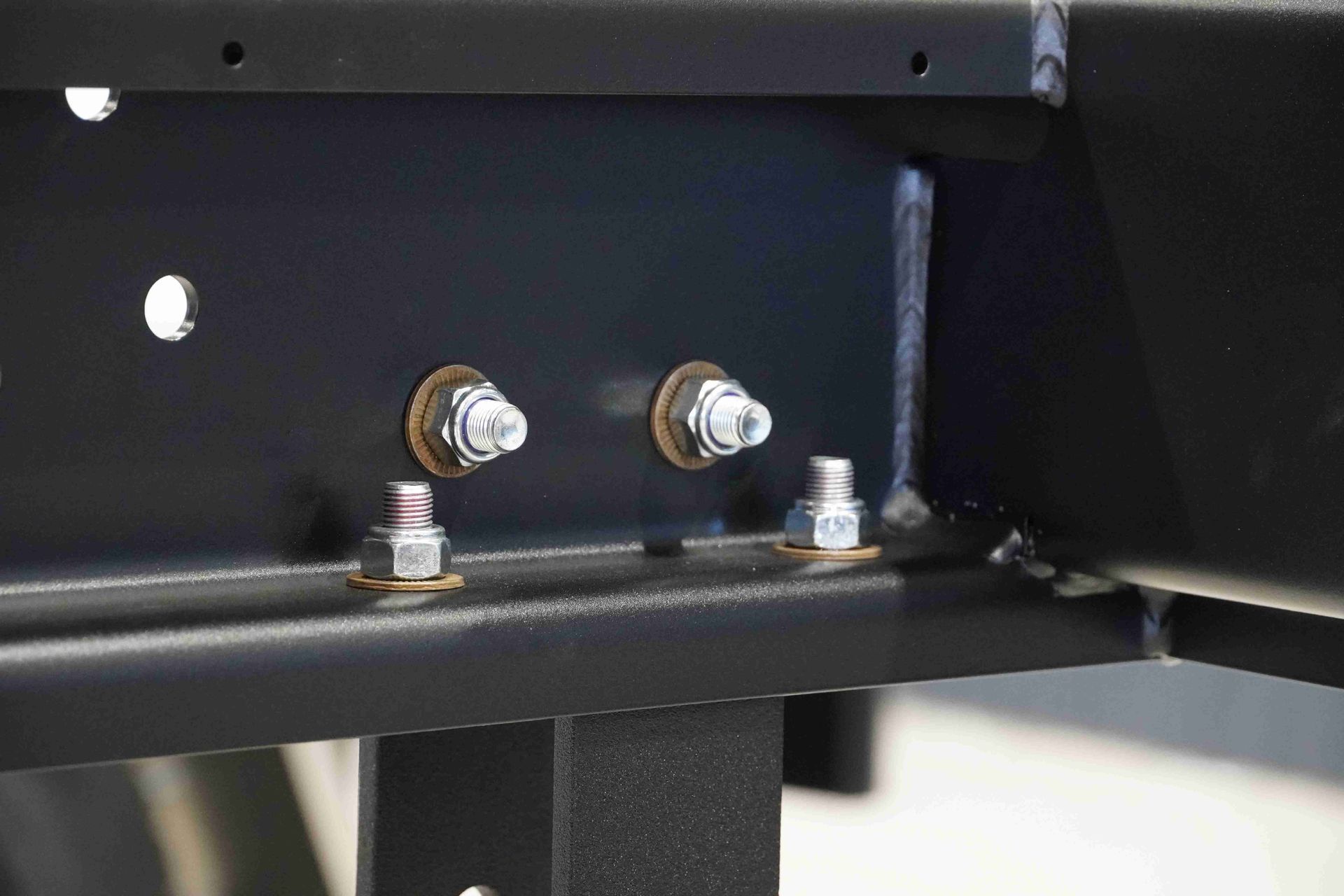

Heavy duty structural fasteners securing the tray to the chassis of a flat top trailer.

Structural Fasteners

The chassis is connected to the tray through a series of structural fasteners that provide strong, durable joints for peace of mind.

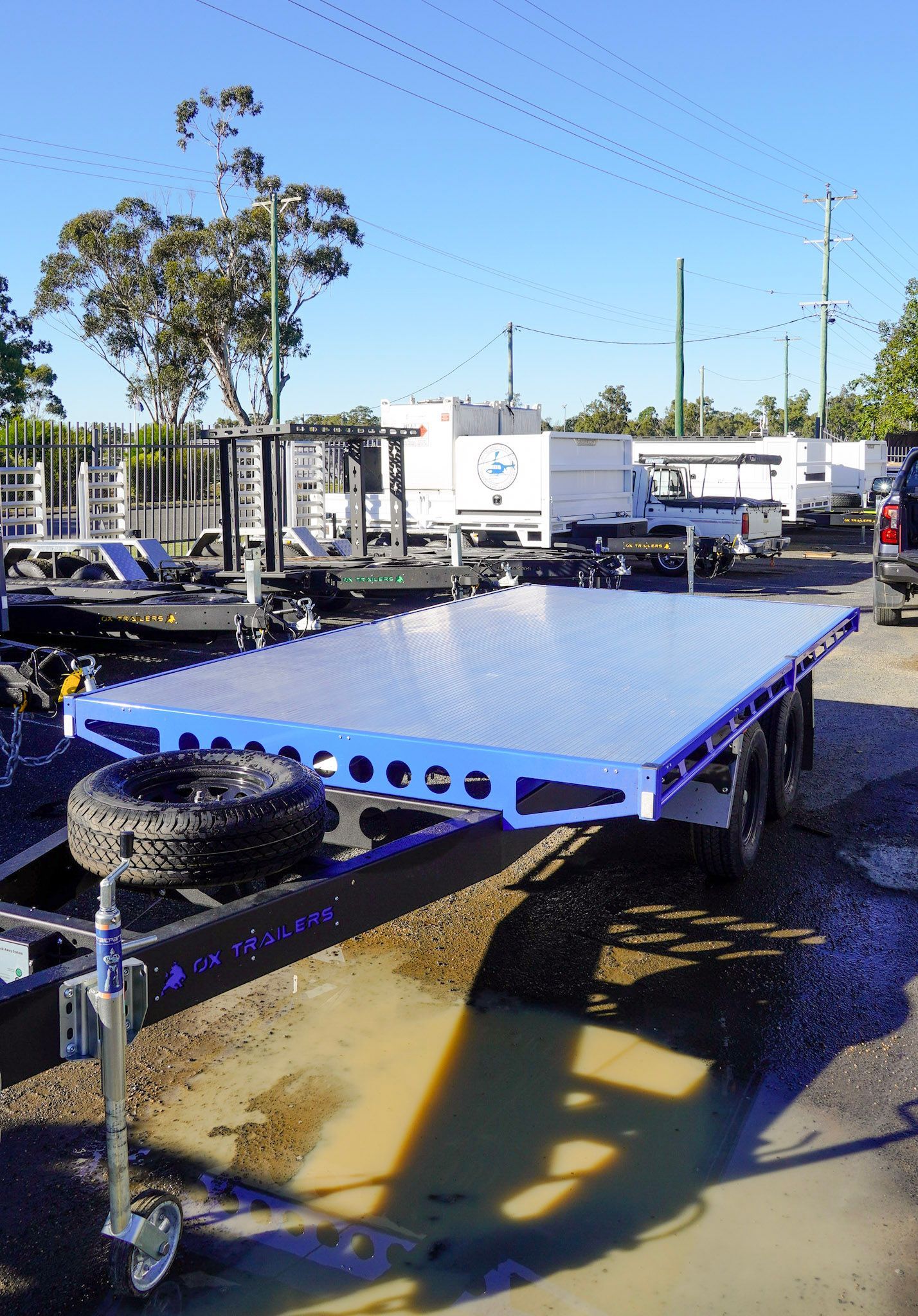

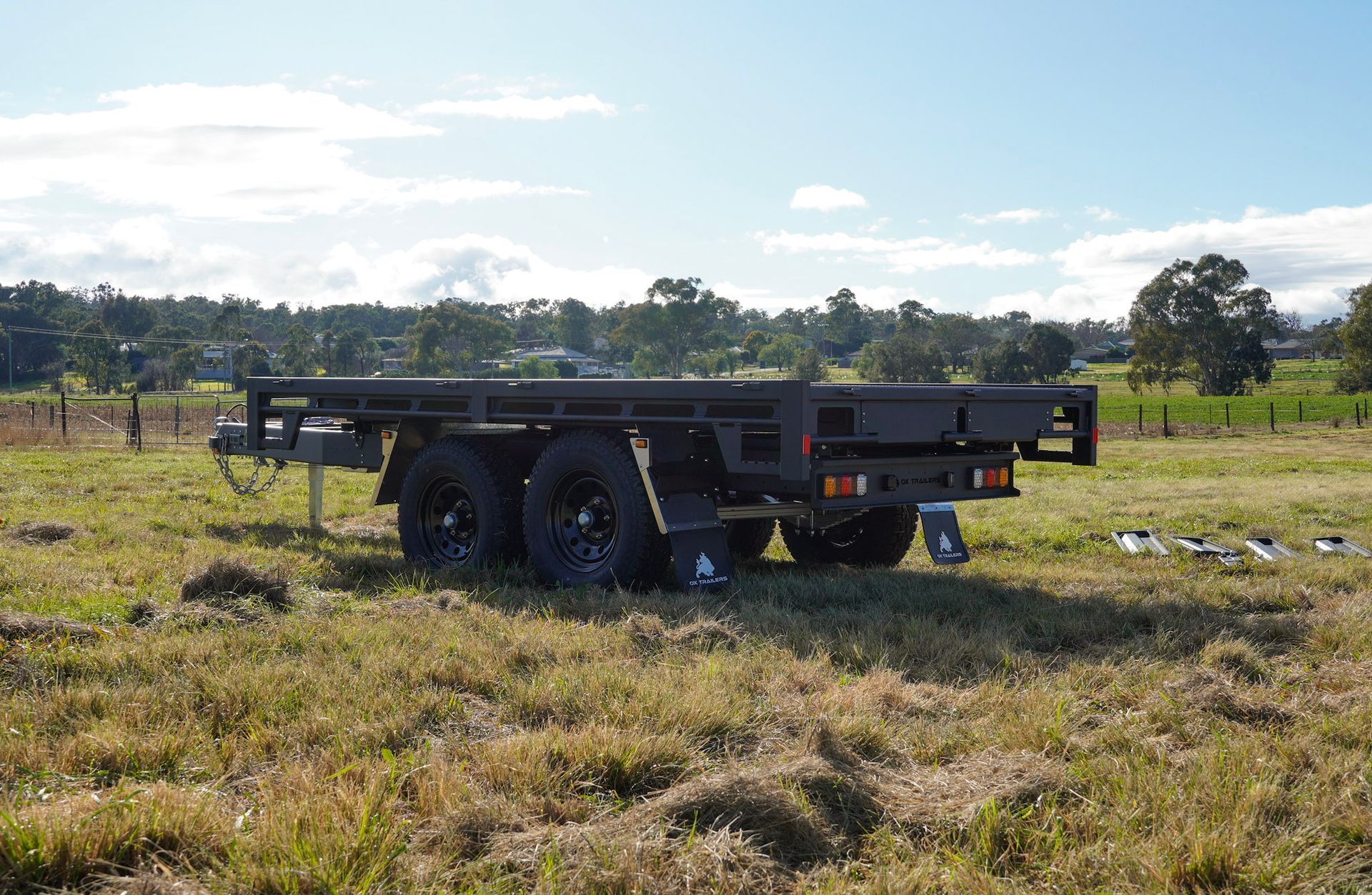

  • FLAT DECK

    The flat deck of an ox trailer trade series flat top trailer

    The Headboard, Dropsides, and Tie-Down Points are all easily removed, leaving you with a completely flat deck.

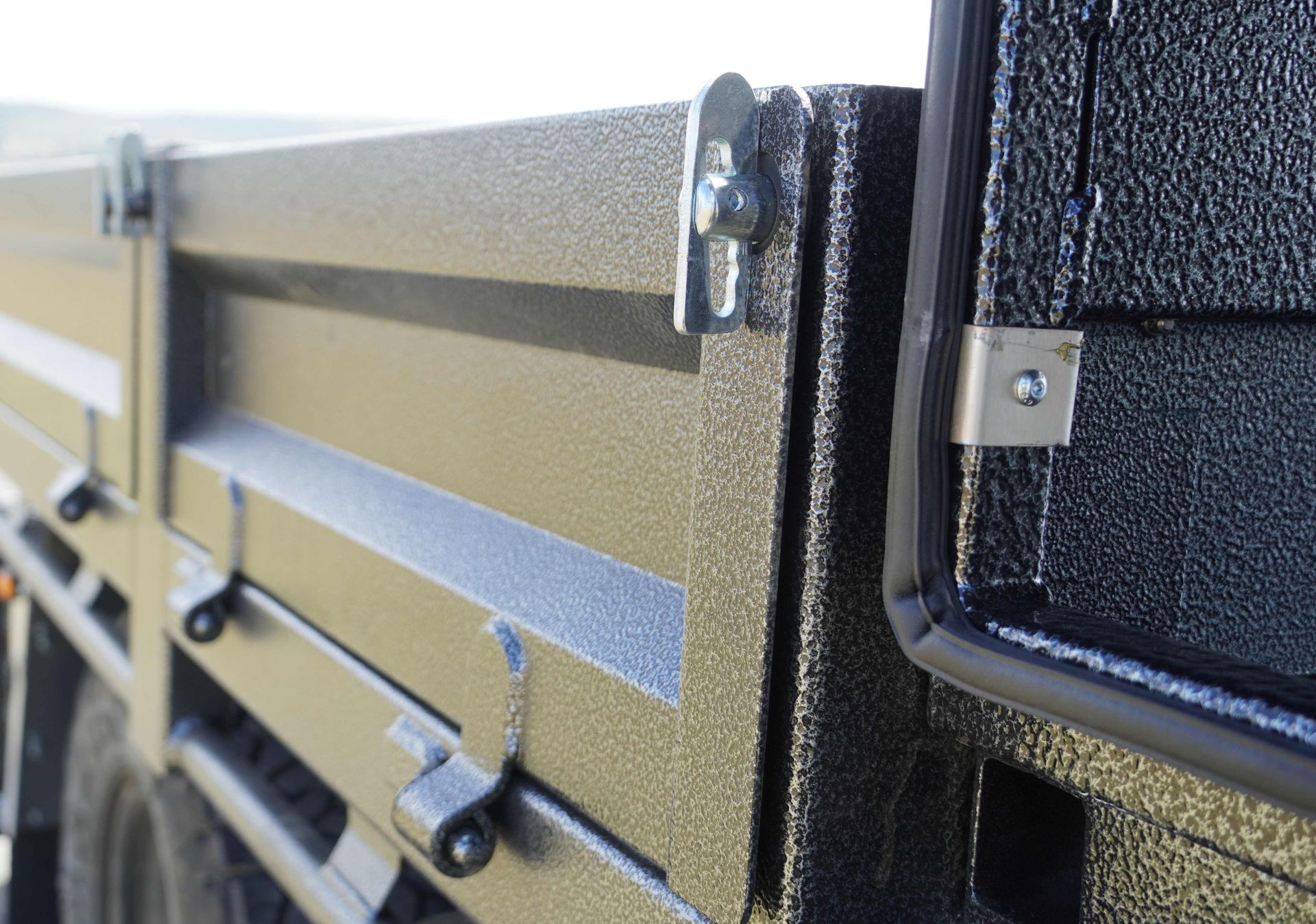

  • HINGES + LATCHES

    The bolted hinges and anti-buce latches of an ox trailer trade series flat top trailer.

    As standard, the trade series flat-top trailers come with aluminium drop sides.


    All come fitted with quality hinges and anti-luce latches.


    These keep the CNC folded dropsides + tailgate secure.

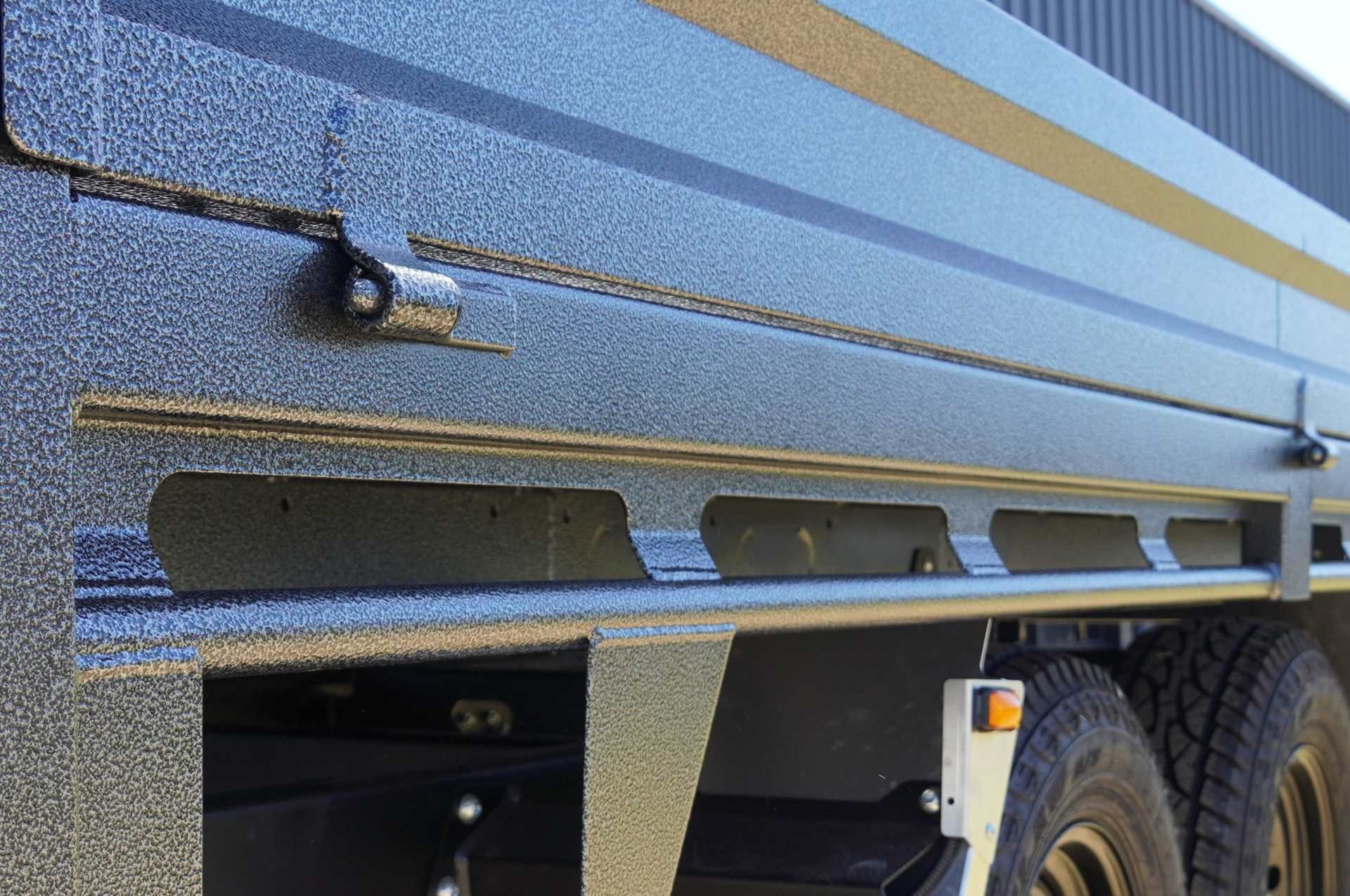

  • ROPE RAILS

    The rope rail of an ox trailer trade series flat top trailer.

    The Trade Series Flat Top Trailers come with two rope rails, one on each side of the trailer.


    These Rope Rails are welded onto the tray with multiple braces and are suitable for ratchet straps, chains, and hooks.

  • EXTRUDED FLOORING

    The extruded aluminium flooring of an ox trailer.

    The decking plate of the trade series flat top trailer is built from aluminium extrusion.

  • STRUCTURAL FASTENERS

    Structural fasteners being used in the chassis of an ox trailer

    The chassis is connected to the tray through a series of structural fasteners that provide strong, durable joints for peace of mind.

TRAILER SIZE

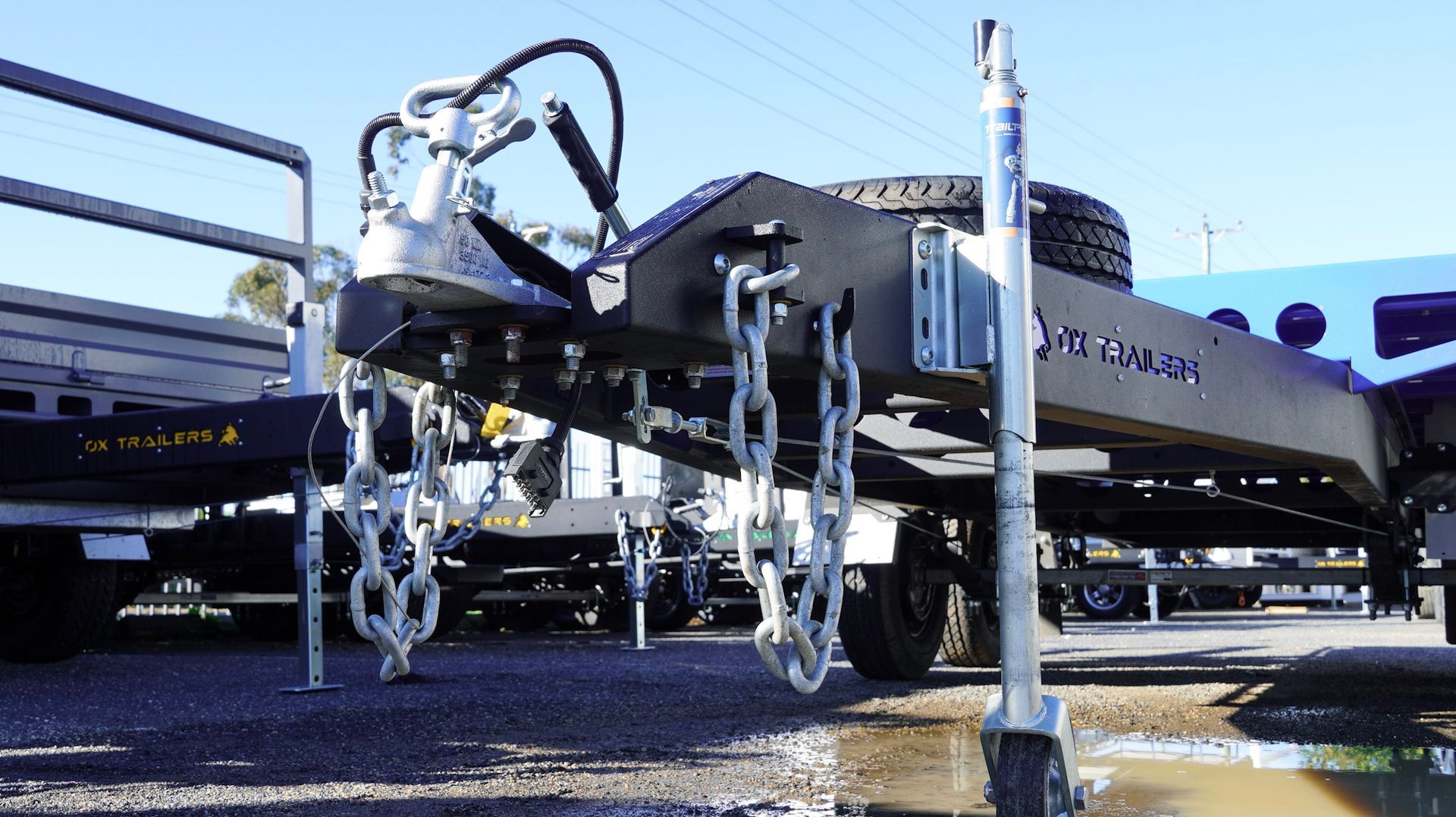

The front drawbar of an Ox Flat Top Trailer

Drawbar Length

As standard, the drawbar length of an Ox Trailer is 1.9m in length.

The drawbar is all part of the full-length chassis.

A standard 3.0m x 2.1m Flat Top Trailer

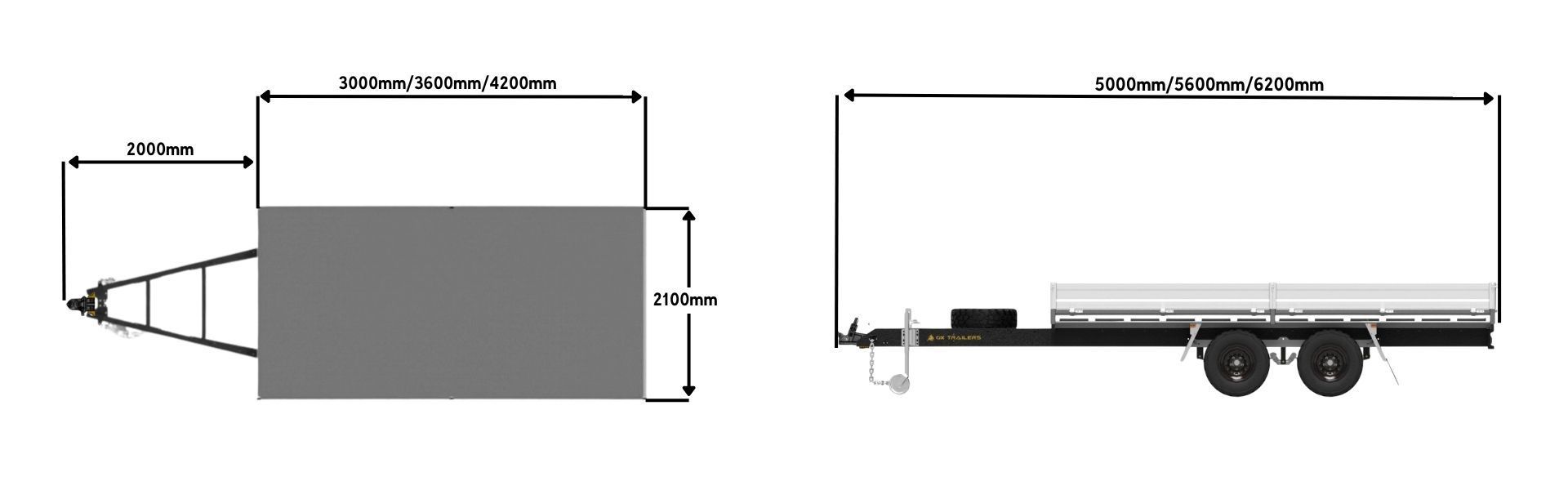

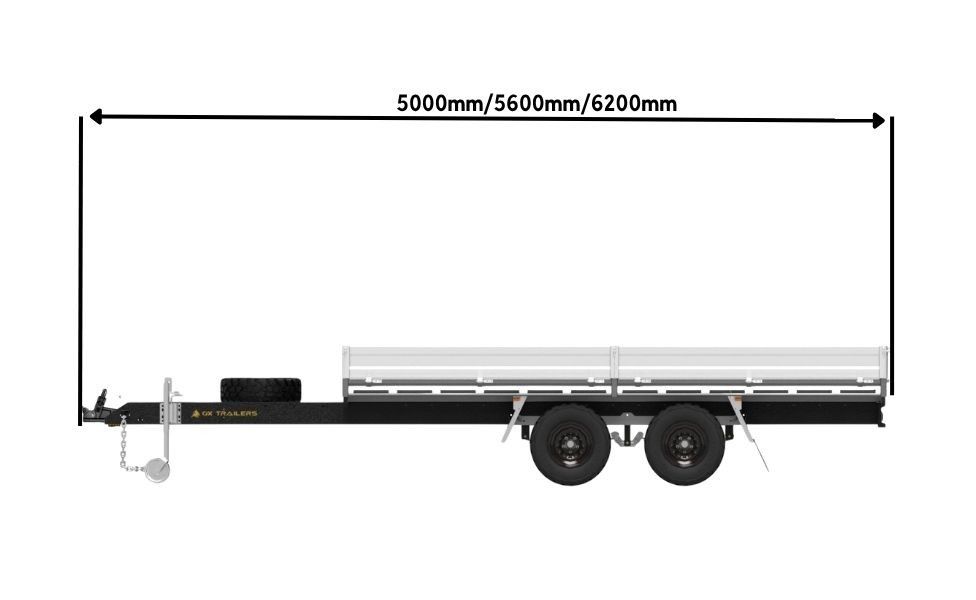

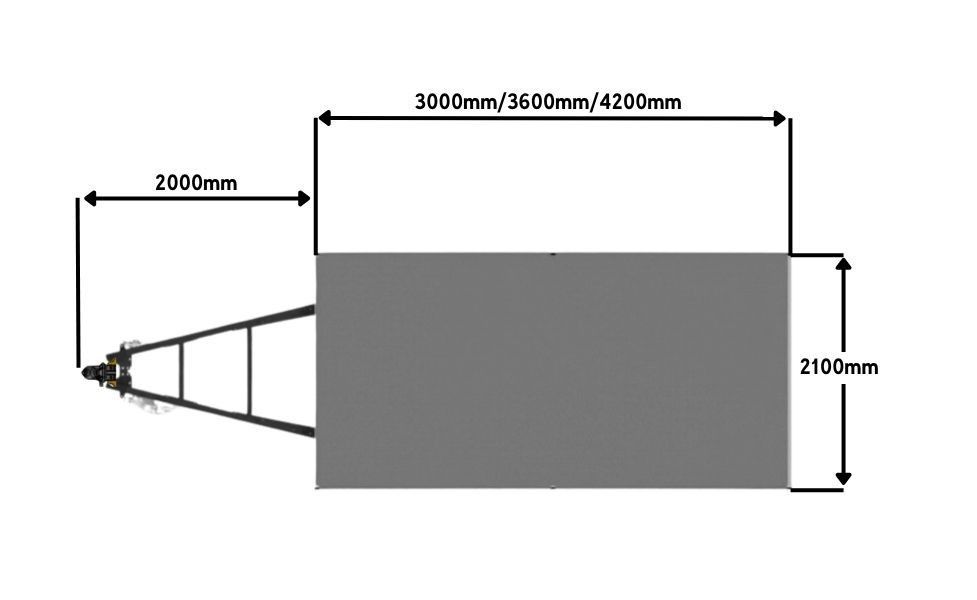

Widths + Lengths

The Trade Series Flat Top Trailers are 2.1m wide.


They have 3  possible tray lengths

- 3.0m

- 3.6m

- 4.2m

The side view of a trailer, depicting it's standard height.

Tray and Trailer Height

The height from the tray to the ground is 850mm


The height from the top of the tray sides to the ground is 1100mm


The above measurement is based on the dropsides being 250mm high as standard.

A standard 250mm high dropsides, tailgate and headgates..

250mm Dropside + Tailgate Height

The standard dropsides and tailgate/headgate are 250mm high.


They are split in the middle as standard.


The dropsides and dropside spigots are all fully removable, allowing a completely flat deck.

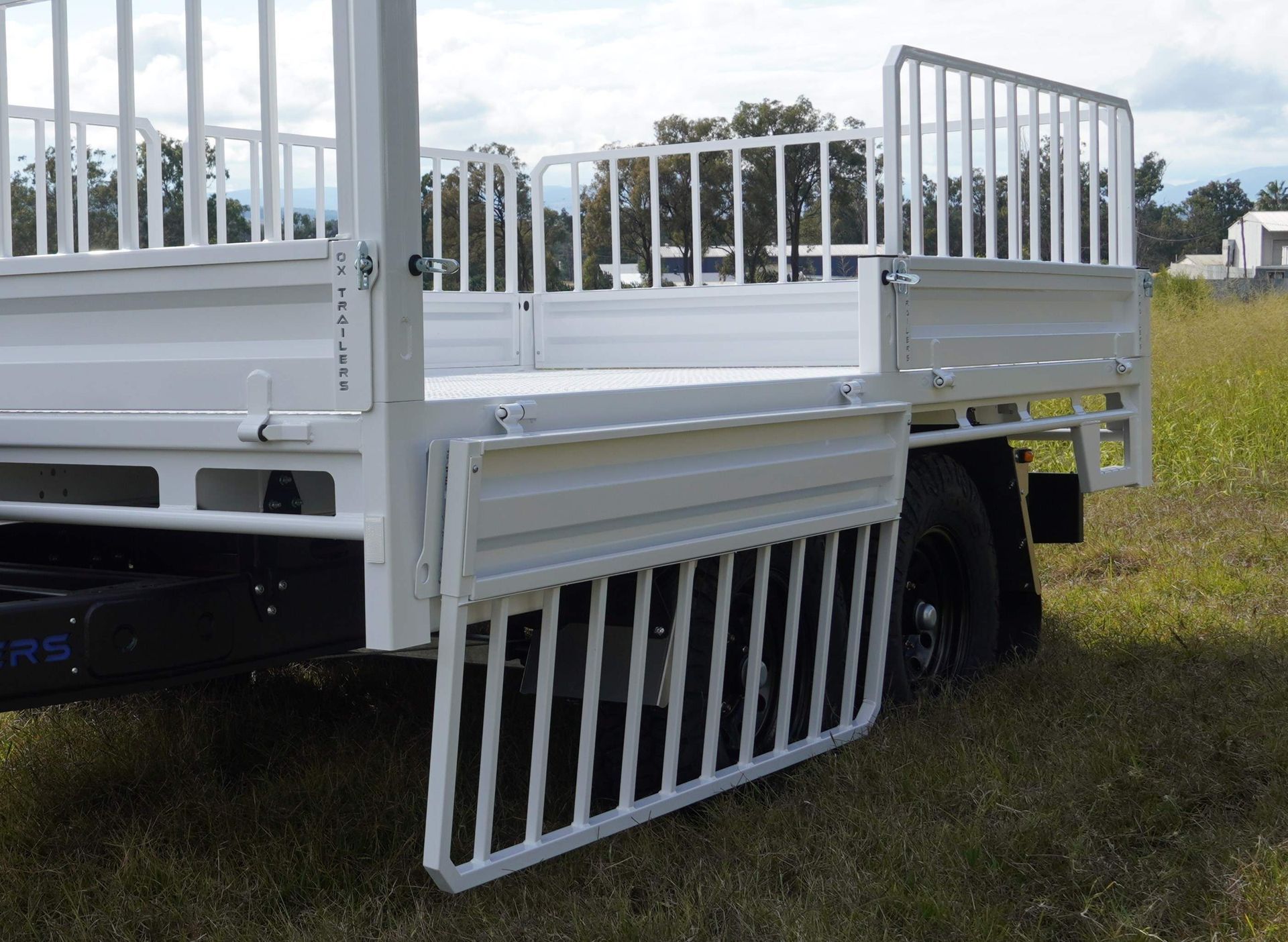

Visit our accessories page to view the dropside upgrades available.

Standard, 3.0m x 2.1m Flat Top Trailer on country road during middle of the day.

TARE Weight

The TARE weight of a standard 3.0m x 2.1m Trade Series Flat Top Trailer is 640kg.

  • DRAWBAR LENGTH

    front of the trade series flat top trailer depicting the length of the drawbar.

    As standard, the drawbar length of an Ox Trailer is 1.9m in length.


    The drawbar is all part of the full-length chassis.

  • WIDTHS + LENGTHS

    The Trade Series Flat Top Trailers are 2.1m wide.


    They have 3  possible tray lengths:


    - 3.0m

    - 3.6m

    - 4.2m

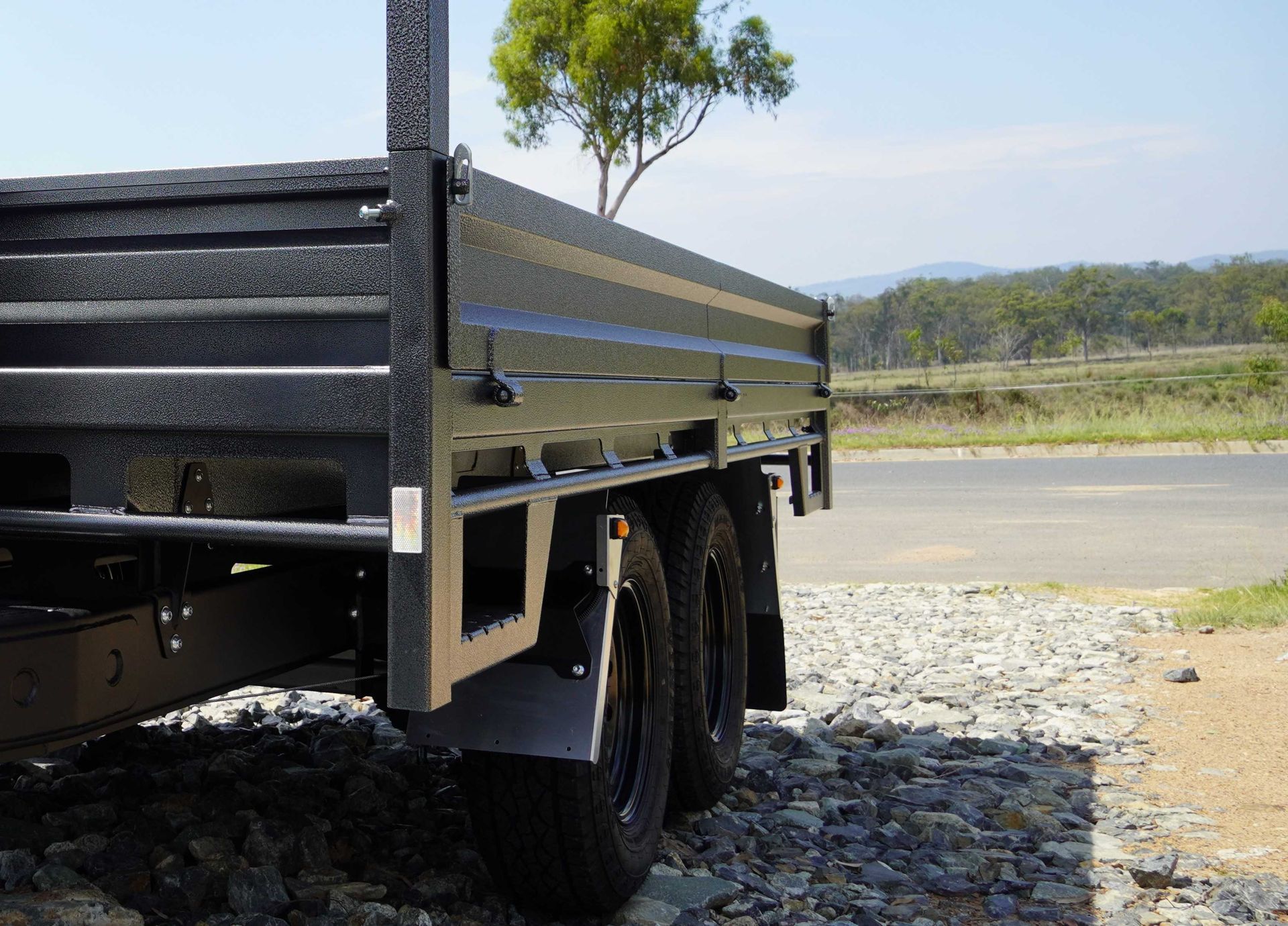

  • TRAILER HEIGHT

    The side of a trade series flat top trailer, depicting the height.

    The height from the tray to the ground is 850mm


    The height from the top of the tray sides to the ground is 1100mm


    The above measurement is based on the dropsides being 250mm high as standard.

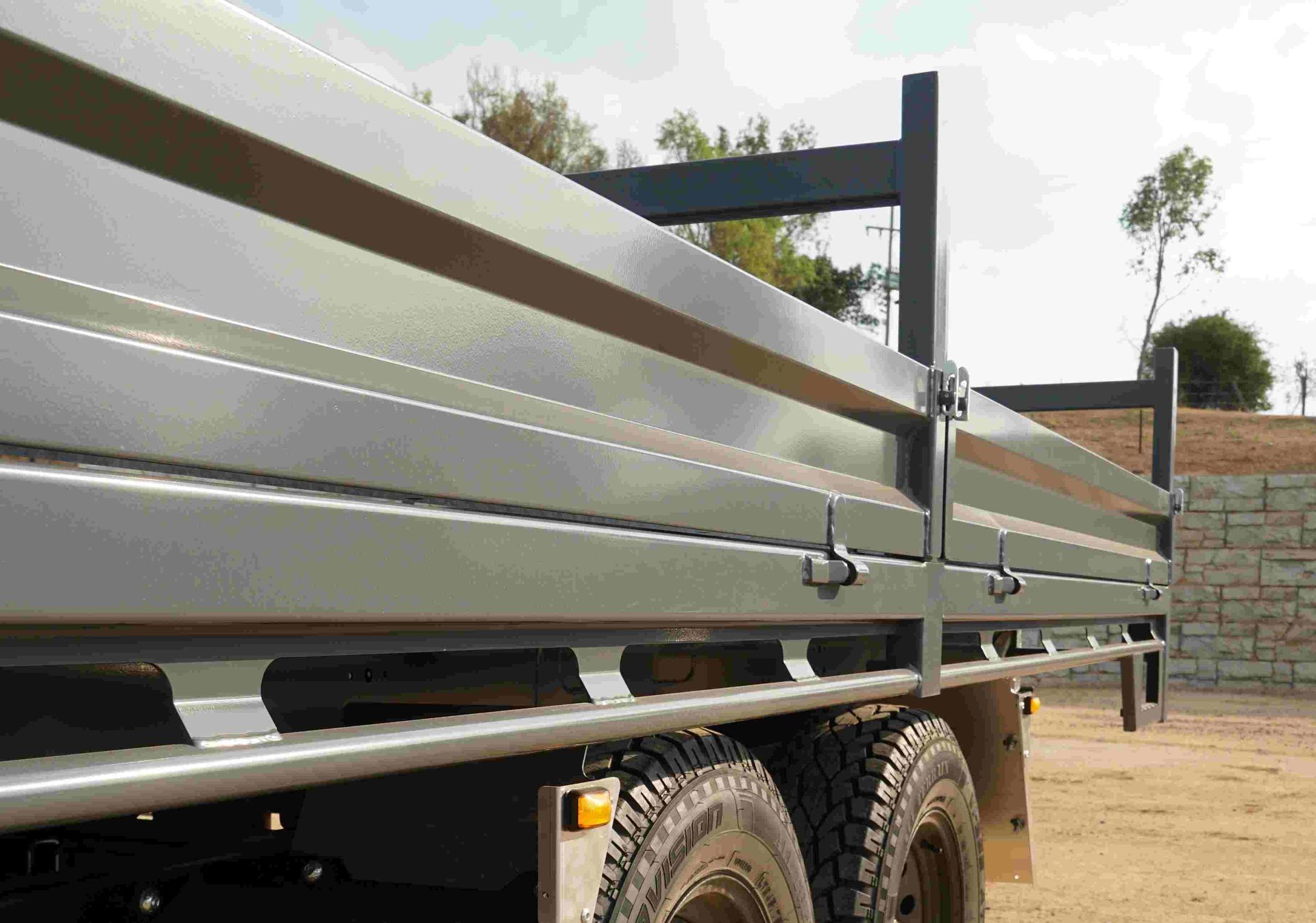

  • DROPSIDES + TAILGATE

    The 250mm high dropside of an Ox Trailer Trade Series Flat Top Trailer.

    The standard dropsides and tailgate/headgate are 250mm high.


    They are split in the middle as standard.


    The dropsides and dropside spigots are all fully removable, allowing a completely flat deck.


    Visit our accessories page to view the dropside upgrades available.

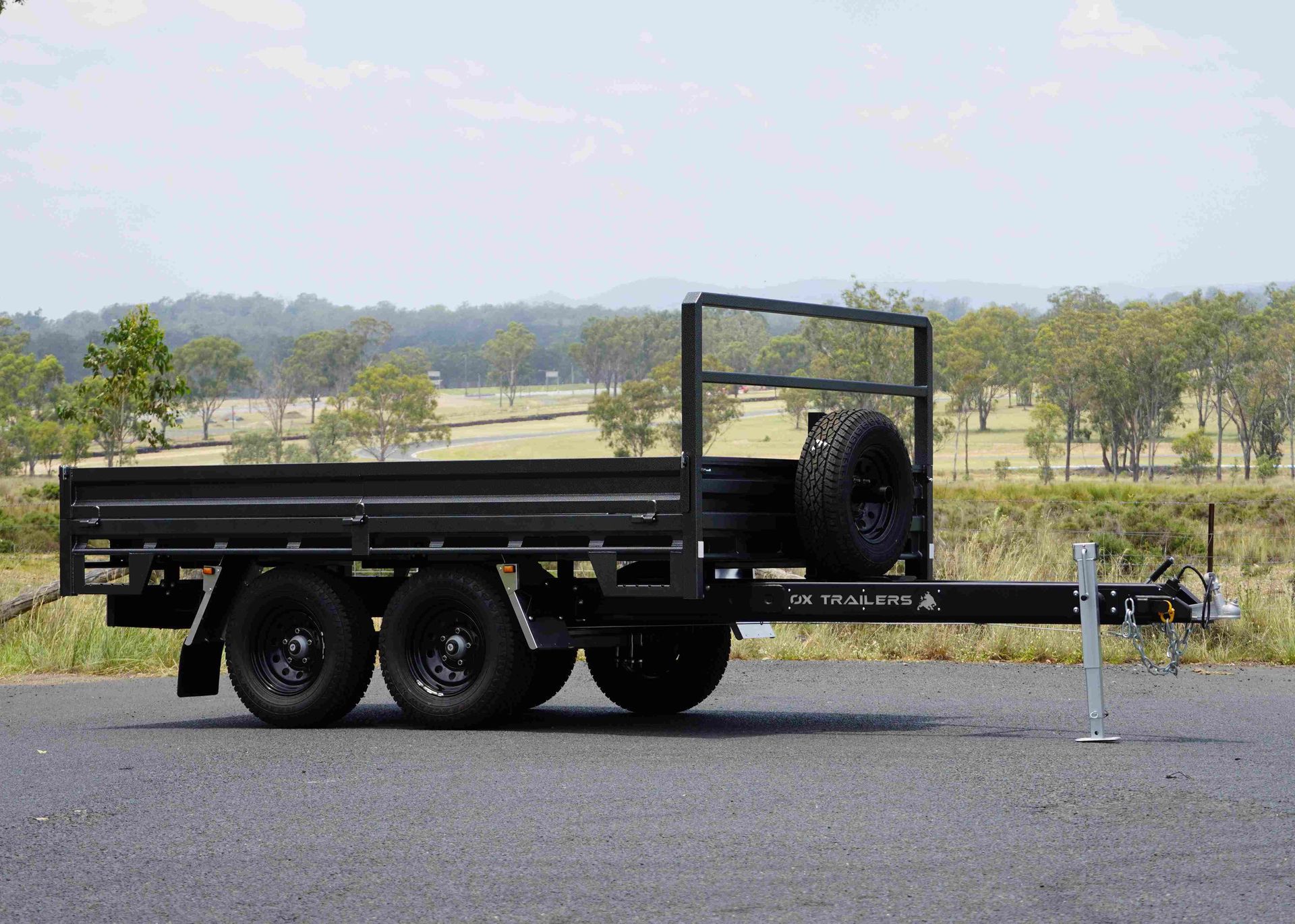

  • TARE WEIGHT

    A standard 3.0m x 2.1m ox trailer trade series flat top trailer at farm.

    The TARE weight of a standard 3.0m x 2.1m Trade Series Flat Top Trailer is 640kg.

COMPARE THE OX SERIES

Trade 35 vs Pro 45. Which Ox Trailer is for you?


Download out catalogue to compare the specifications of these trailers.
