4500 KG

AGGREGATE TRAILER MASS

940 KG

TARE WEIGHT

105 KG

BALL WEIGHT

5 YR

STRUCTURAL WARRANTY

PRO SERIES PLANT TRAILER

Custom Accessories + Storage

4.5T Towing Capacities

Delivery Australia Wide

PLANT TRAILER

Heavy Duty Plant Trailer; Purpose Built for Plant and Equipment

Delivery Australia Wide

The australian made logo for australian made plant trailers.
The full certification of an Ox Plant Trailer

3500/4500KG

AGGREGATE TRAILER MASS

940KG

ESTIMATED TARE WEIGHT

105KG

BALL WEIGHT

5YR

STRUCTURAL WARRANTY

THE

SPECS

The main design feature of the Plant Trailer fabricated chassis is the 180 x 65 x 5mm C-Section Channel that runs the full length of the Plant Trailer allowing the chassis to flex and move as it negotiates rough road terrain.


The C-Section fabricated chassis is made of laser cut, CNC folded, 350* grade, open chassis members allowing for easy wash down and cleaning, with no enclosed areas where mud, sand and salt can get trapped and cause corrosion.


Fitted with CNC folded Checker Plate Mudguards, secure Spare Tyre Storage, 65mm Square Steel 95mm Drop Axles, Tie Down Points, Chain Slot Provision, and Powder Coated with a durable finish; the Plant Trailer is ready to be your versatile hauling machine for all your plant and equipment.


*350 grade is higher tensile steel. Box section is 300 grade and most C-Sections are 300.


Plant Trailer carrying a  CFMOTO off road vehicle. 4.5-tonne ATM Plant Trailer for Equipment and Plant Transport.

TRAILER RUNNING GEAR

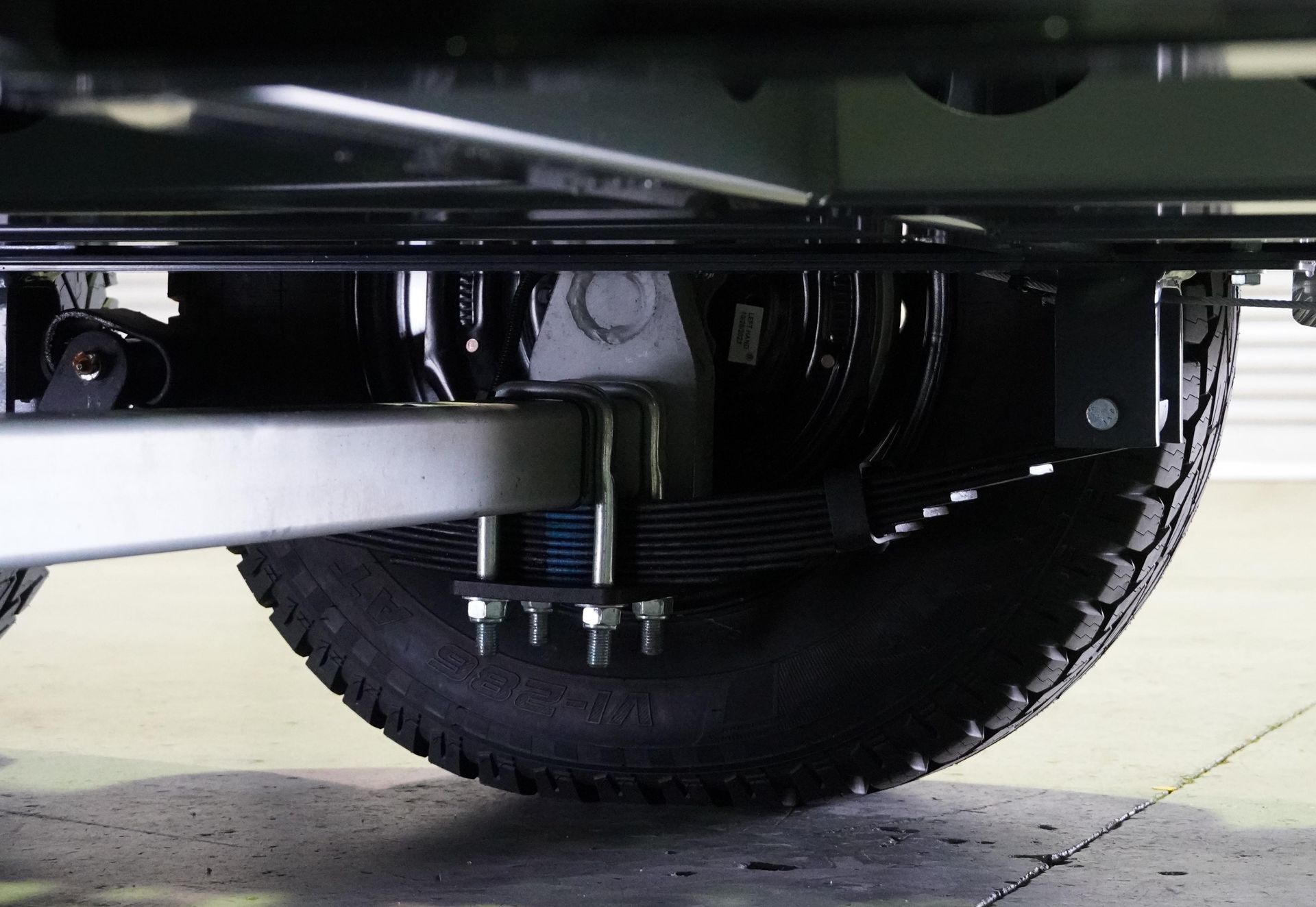

The underneath of a plant trailer, showing the load sharing suspension and drop axle attached to the wheel.

Load Sharing Leaf Spring Suspension Set with 95mm Square Steel Drop Axles

The Load Sharing Leaf Spring Suspension Set ensures a safe and stable trailer on and off the road.

The 95mm Square Steel Drop Axles enable the deck to be closer to the ground allowing easy loading and unloading

The 12-inch electric drum brake visible through the wheel rim of a tyre on a Plant Trailer

12-Inch Electric Drum Brakes

Electric Drum Brakes provide a safe and reliable braking solution.

We provide a 12-inch drum brake as these are heavy-duty and robust.

A close up of the Trail Parts Logo on the dust cap of the UNIHUB on an trailer tyre.

Dual Row Taper Roller Bearings

Each trailer has 4 Dual Row Taper Roller Bearings.

These come with a 3-year manufacturer's warranty.

The tandem tyres and wheels of the Plant Trailer

16 Inch Wheels, 5 Stud Landcruiser Pattern and 5 - All Terrain 235RI6/75 New Tyres

Each trailer is fitted with All Terrain 235RI6 / 75 New Tyres.

These tyres are fitted with 16-inch wheels with 5 Stud Landcruiser Pattern.

The 50mm Coupler and Ratchet Trailer Handbrake of the Plant Trailer.

Ratchet Trailer Handbrake and 50mm Coupling

The Plant Trailer is fitted with a Ratchet Trailer Handbrake as standard. This must be applied when the trailer is not in motion, to ensure that the trailer remains immobile when parked, especially on an incline.



The break-away system installed on a plant trailer

Brake-Away System

The trailer Break-Away System is the ultimate emergency brake. It is designed to bring the trailer to a stop in the unlikely event it breaks away from the tow vehicle.

  • SUSPENSION + AXLES

    The leaf spring suspension set of a pro series plant trailer.

    The Load Sharing Leaf Spring Suspension Set ensures a safe and stable trailer on and off the road.


    The 95mm Square Steel Drop Axles enable the deck to be closer to the ground allowing easy loading and unloading.

  • DRUM BRAKES

    The 12-inch drum brake of Ox Trailers pro series plant trailer.

    Electric Drum Brakes provide a safe and reliable braking solution.


    We provide a 12-inch drum brake as these are heavy-duty and robust.

  • BEARINGS

    The dual row taper bearings of the 4.5t plant trailer

    Each trailer has 4 Dual Row Taper Roller Bearings.


    These come with a 3-year manufacturer's warranty.

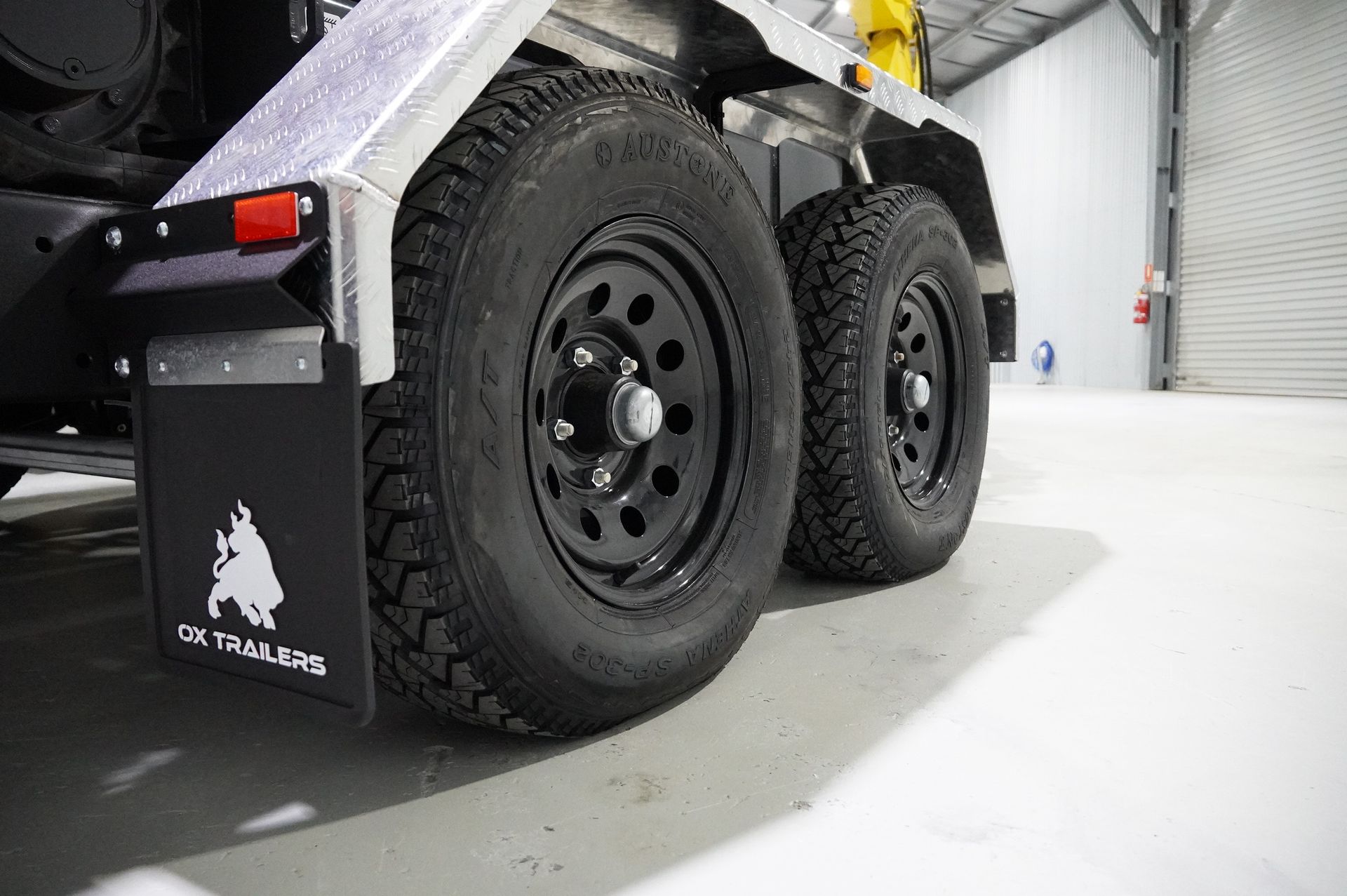

  • TYRES + WHEELS

    The 16-inch wheels and All Terrain tyres on a 4.5t plant trailer.

    Each trailer is fitted with All Terrain 235RI6 / 75 New Tyres.


    These tyres are fitted with 16-inch wheels with 5 Stud Landcruiser patterns.

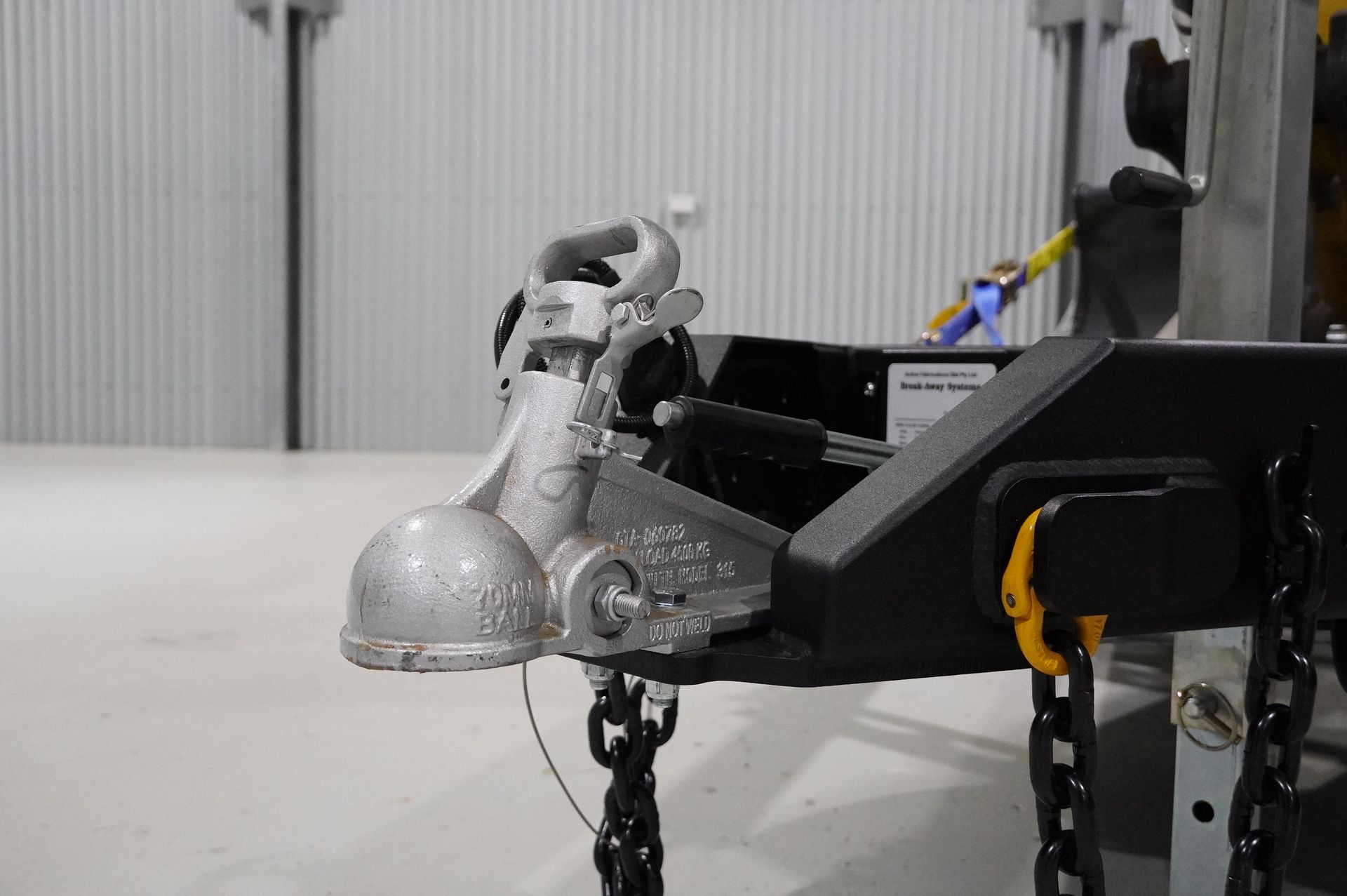

  • HANDBRAKE + COUPLING

    The handbrake and coupling on a  pro series plant trailer.

    The Plant Trailer is fitted with a Ratchet Trailer Handbrake as standard.


    Also standard is a 50mm Coupling.

  • BREAK-AWAY SYSTEM

    The emergency break-away system installed on a 4.5-ton plant trailer.

    The Plant Trailer is fitted with a Ratchet Trailer Handbrake as standard. This must be applied when the trailer is not in motion, to ensure that the trailer remains immobile when parked, especially on an incline.



TRAILER SIZE

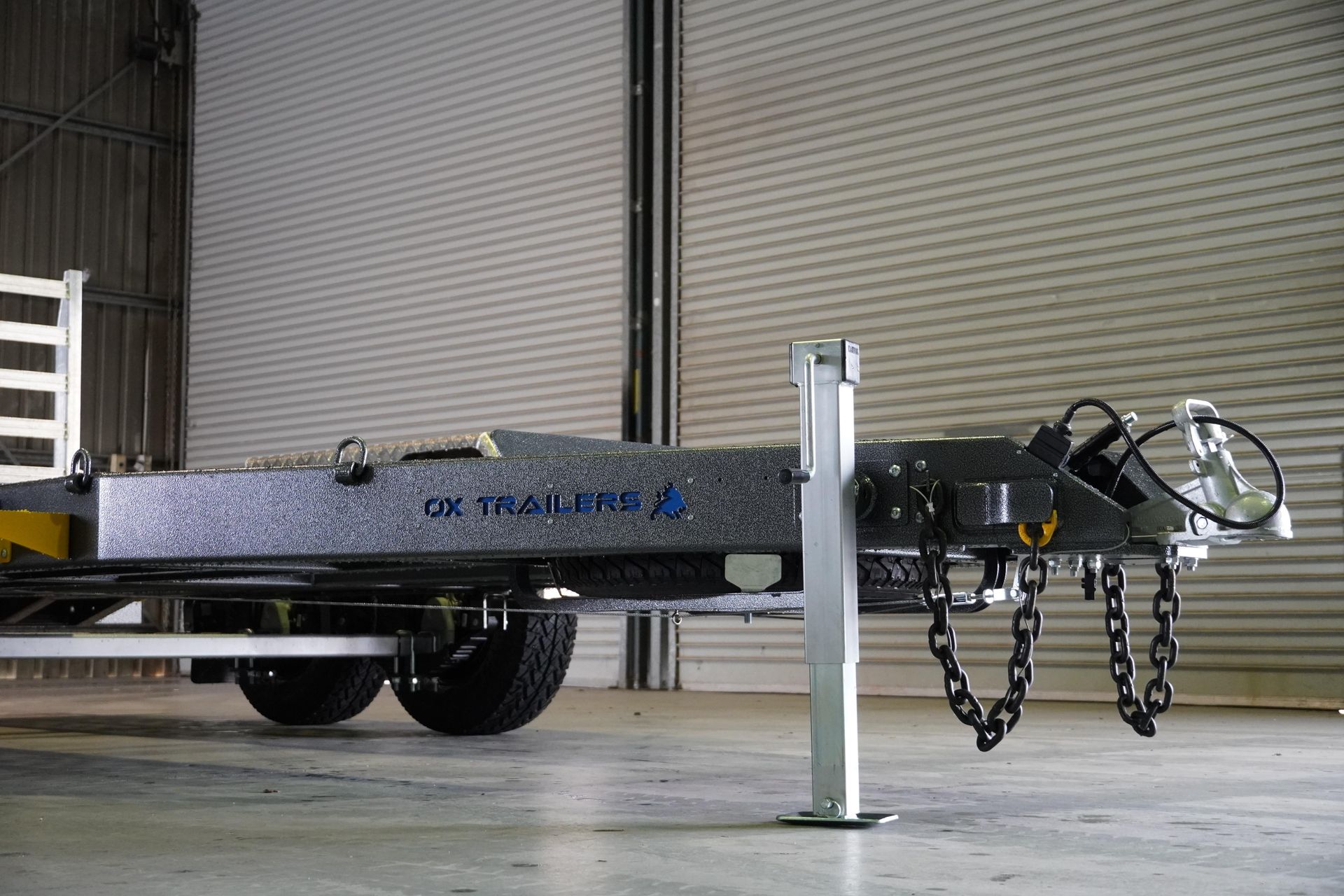

The front drawbar of an Ox Service Trailer

Drawbar Length

As standard, the drawbar length of an Ox Plant Trailer is 1.9m in length.

This allows room for a Bucket Rest or Attachment rest as accessories.

The drawbar is all part of the full-length chassis. It stores the jack-stand and has storage provision for the spare tyre.

A standard 3500kg atm plant trailer

Widths + Lengths

The Internal Measurements are as follows:


Internal Width: 1800

Max Internal Width (Between the guards): 1920mm


Internal Flat Length: 3000m

Max Internal Length (Including dovetail): 3800mm

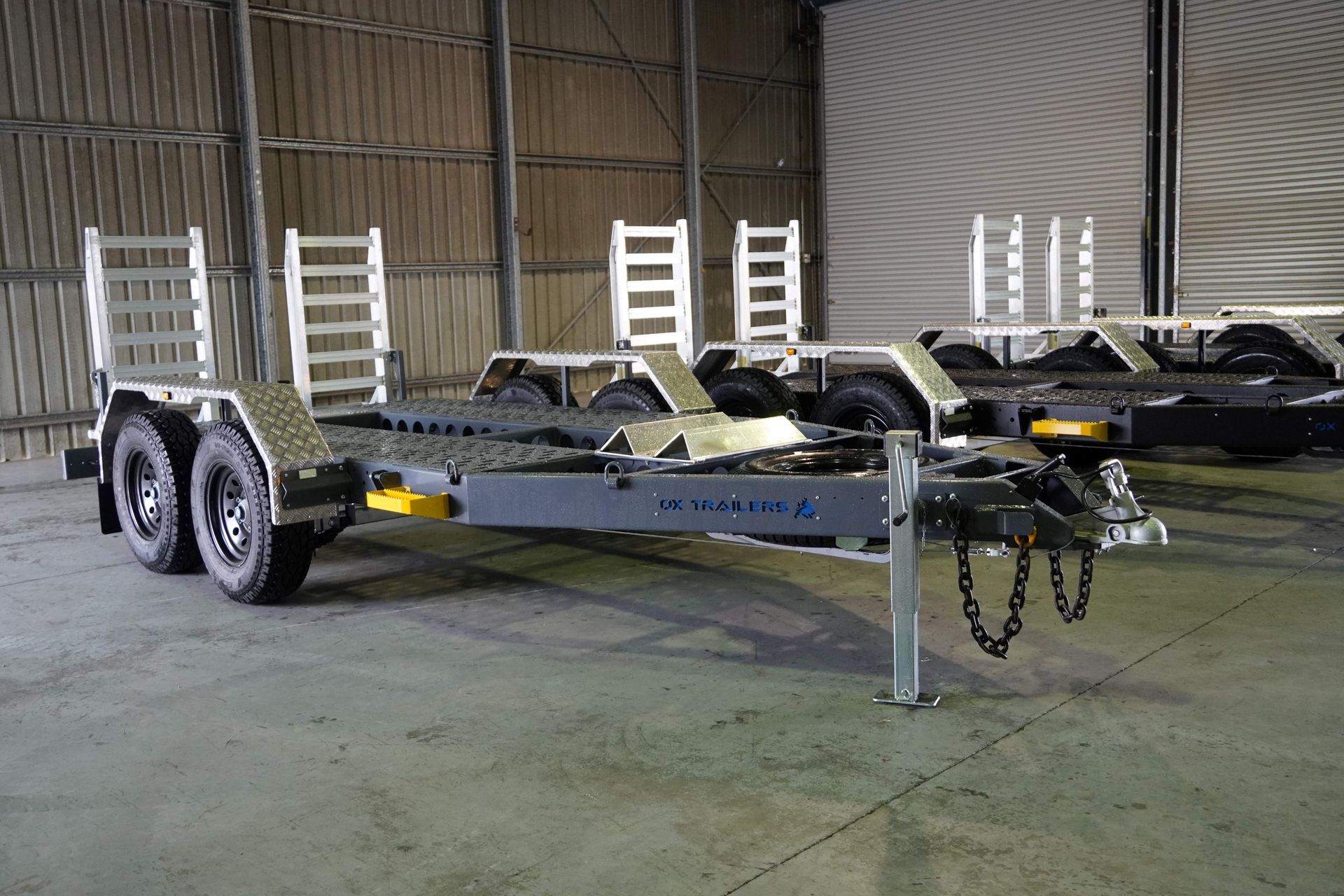

The side view of a trailer, depicting it's standard height.

Deck Height

The height from the tray to the ground is 600mm


This low measurement is ideal for the loading and unloading of plant and equipment.

Standard, 3500kg Plant Trailer with Excavator.

TARE Weight

The TARE weight of a standard Plant Trailer is 940kg.

  • DRAWBAR LENGTH

    The drawbar of a 4.5t pro series plan trailer.

    As standard, the drawbar length of an Ox Plant Trailer is 1.9m in length.


    This allows room for a Bucket Rest or Attachment rest as accessories.


    The drawbar is all part of the full-length chassis. It stores the Jack Stand and has storage provision for the spare tyre.

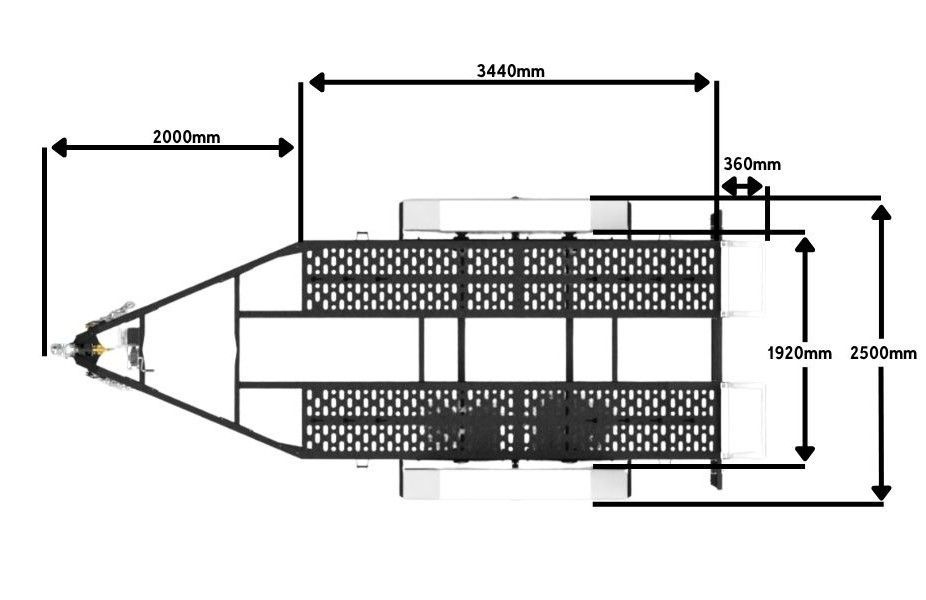

  • WIDTHS + LENGTHS

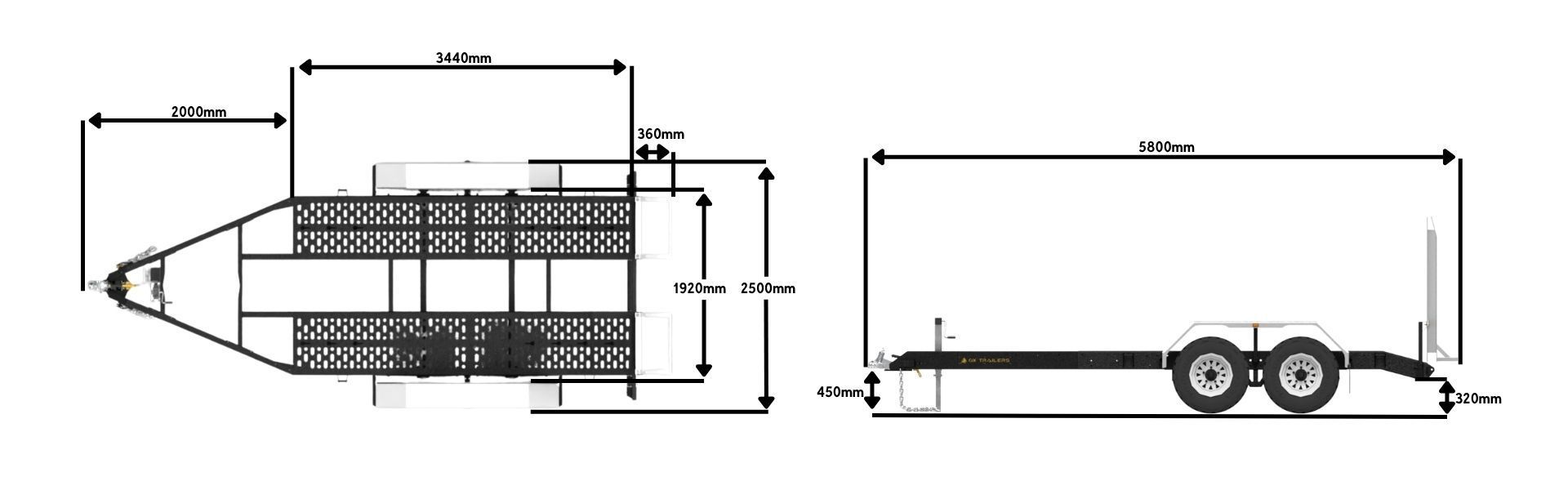

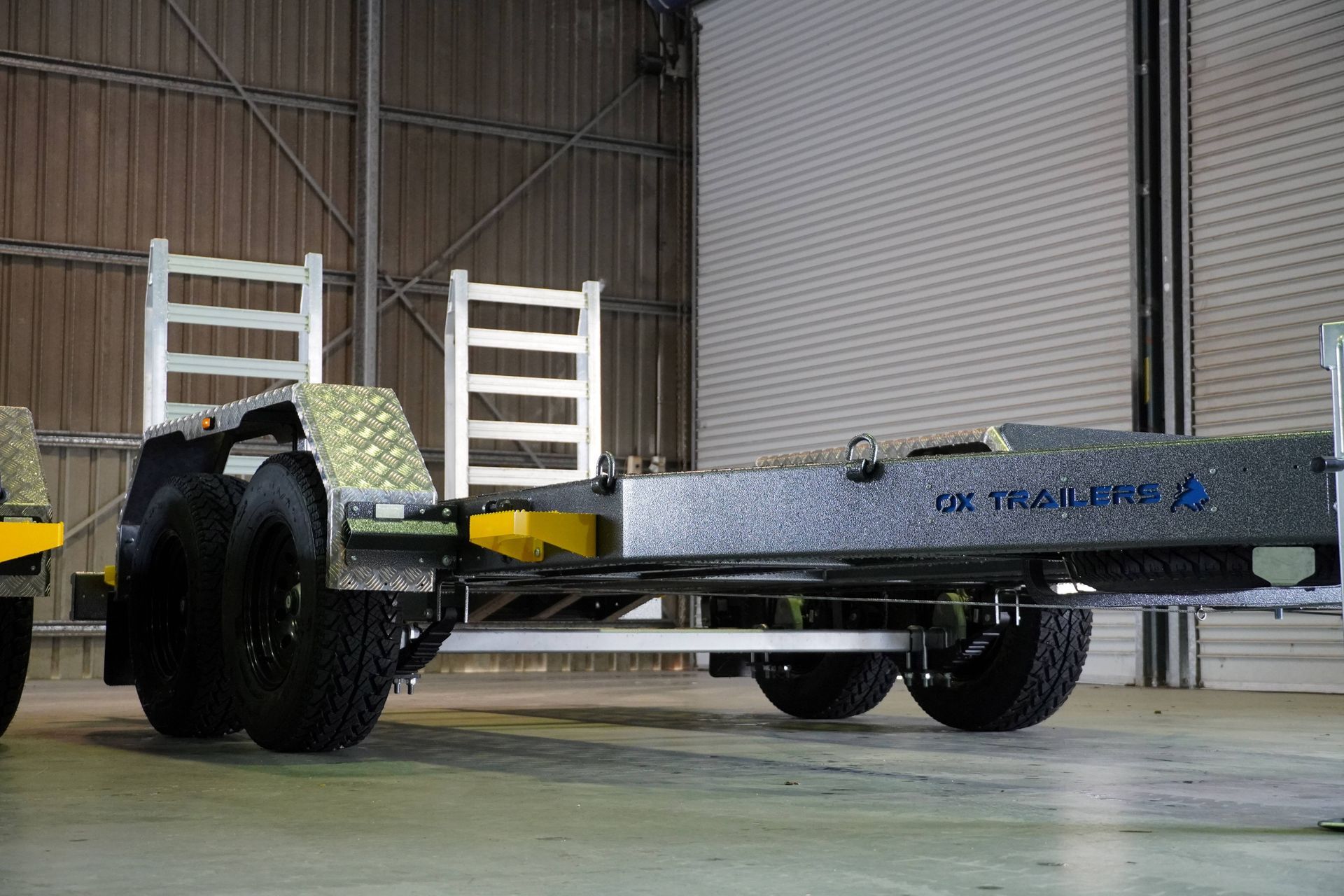

    The side of the pro series plant trailer, showing the width + length

    The Internal Measurements are as follows:


    Max Internal Load Length: 2840mm

    Max Internal Load Width: 1920mm


    External Measurements:


    External Length: 5250mm

    External Width: 2430mm

  • DECK HEIGHT

    Three pro series 4.5t plant trailers side by side in a shed.

    The height from the tray to the ground is 460mm


    This low measurement is ideal for the loading and unloading of plant and equipment.

  • TARE WEIGHT

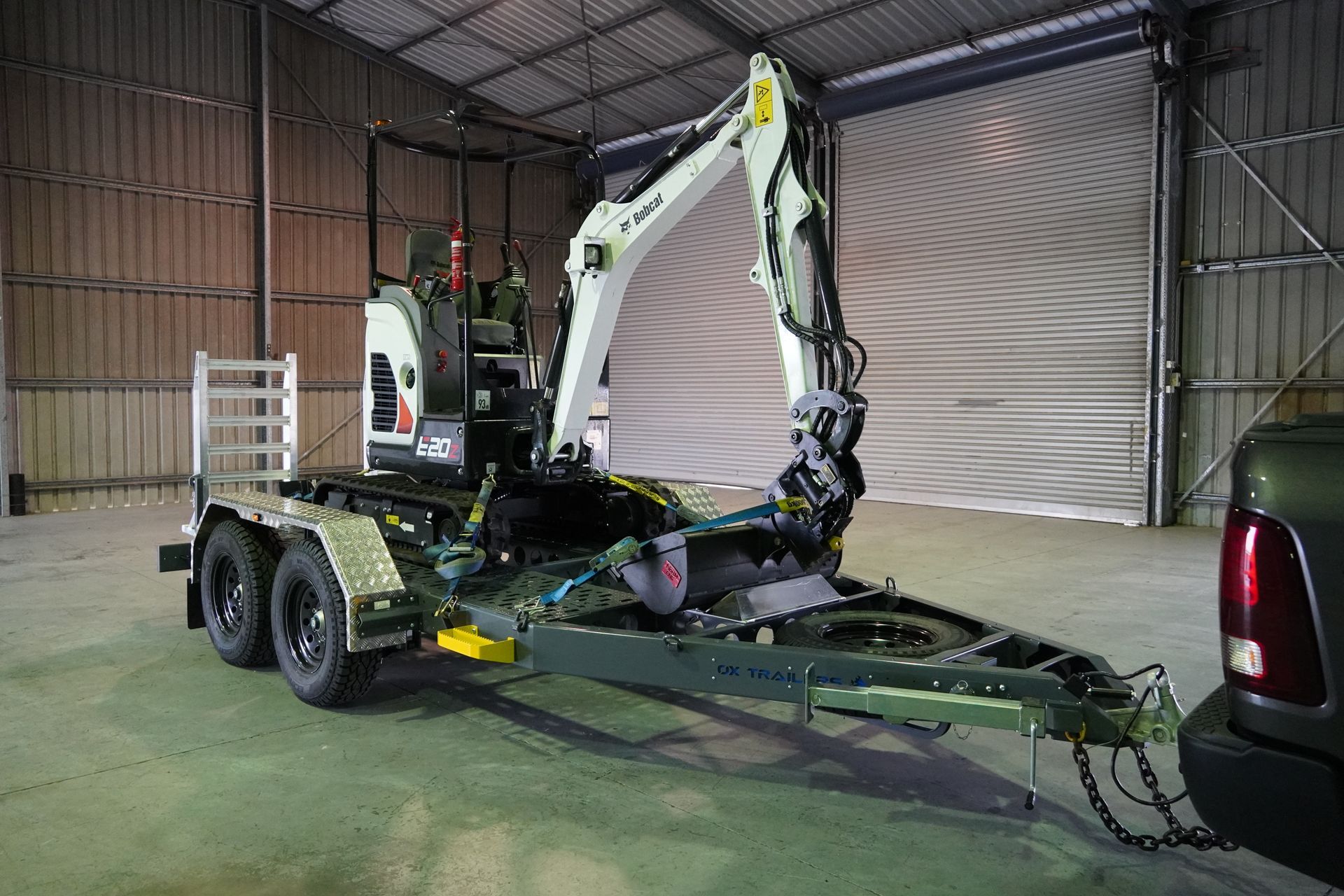

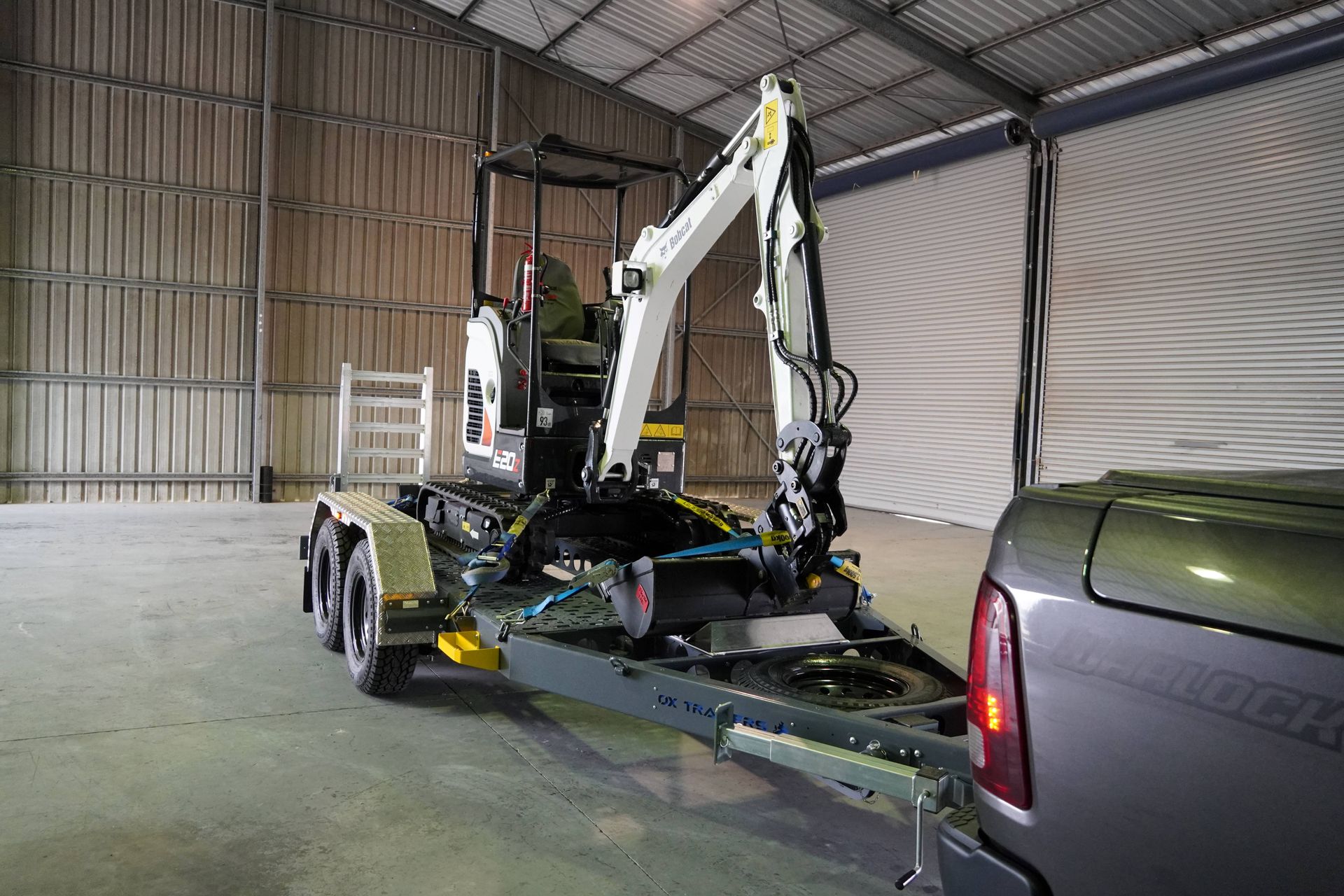

    A 4.5t plant trailer loaded with an excavator.

    The TARE weight of a standard Plant Trailer is 640kg.

DECK FEATURES

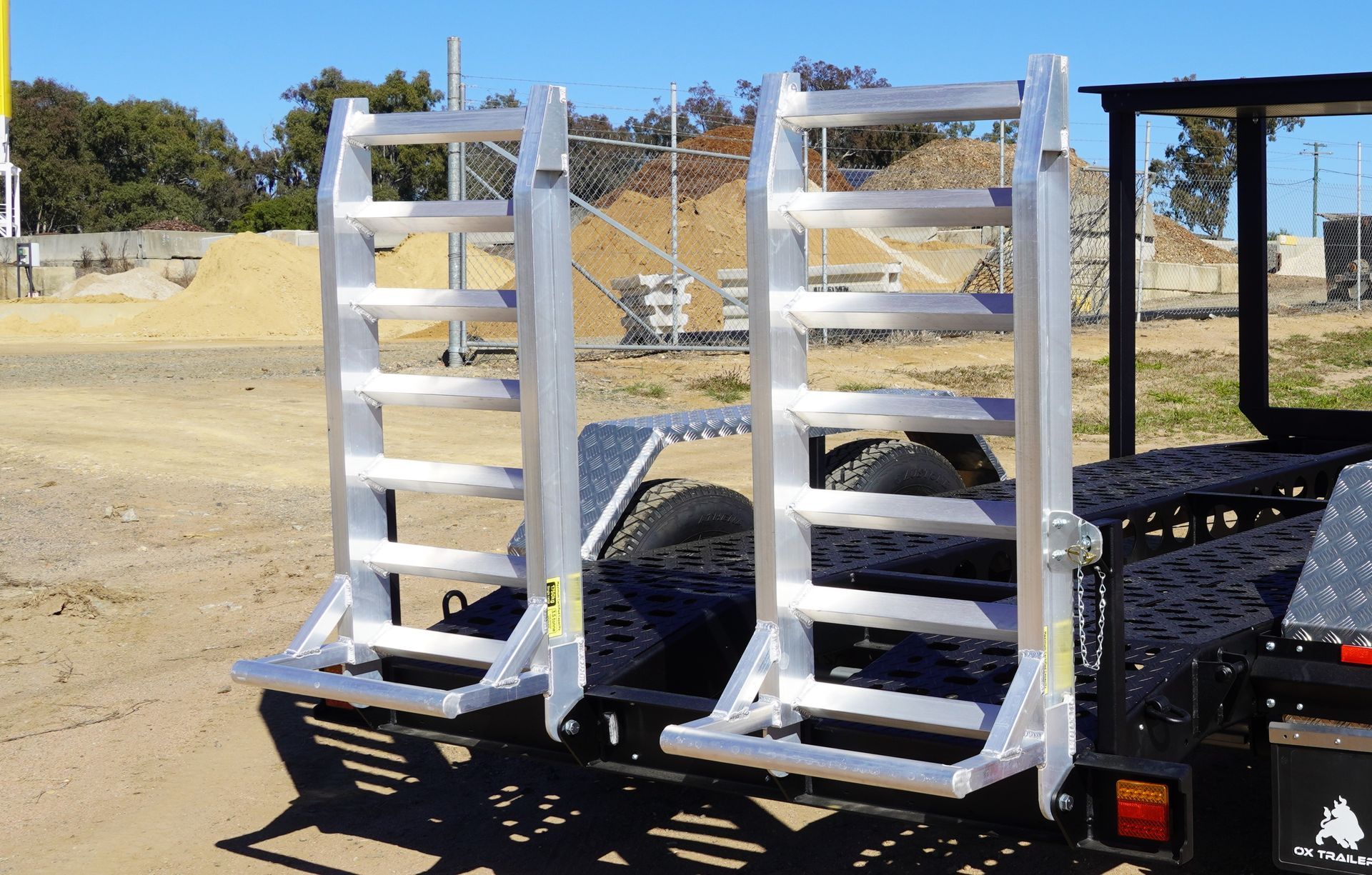

The Aluminium Ramps of an Ox Plant Trailer

Aluminium Ramps

Aluminium Construction for ease-of-use

3500kgs Rated Set.

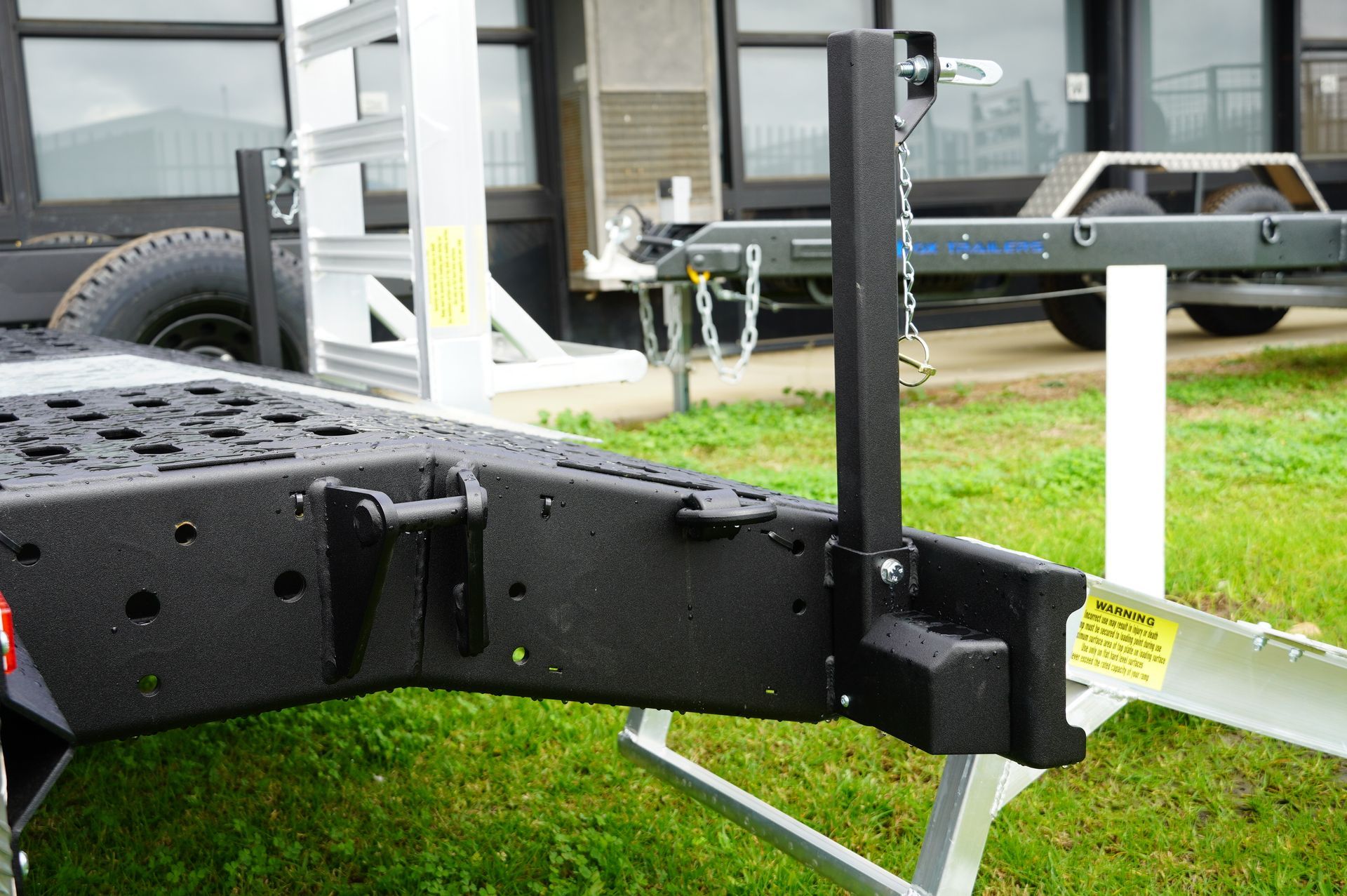

The rear end of a Plant Trailer, showing the dip of the beavertail.

Rear Beavertail

The rear Beavertail design of the Plant Trailer creates less of a departure angle for loading and unloading.

This enables the loading of machines and equipment to be lower to the ground.

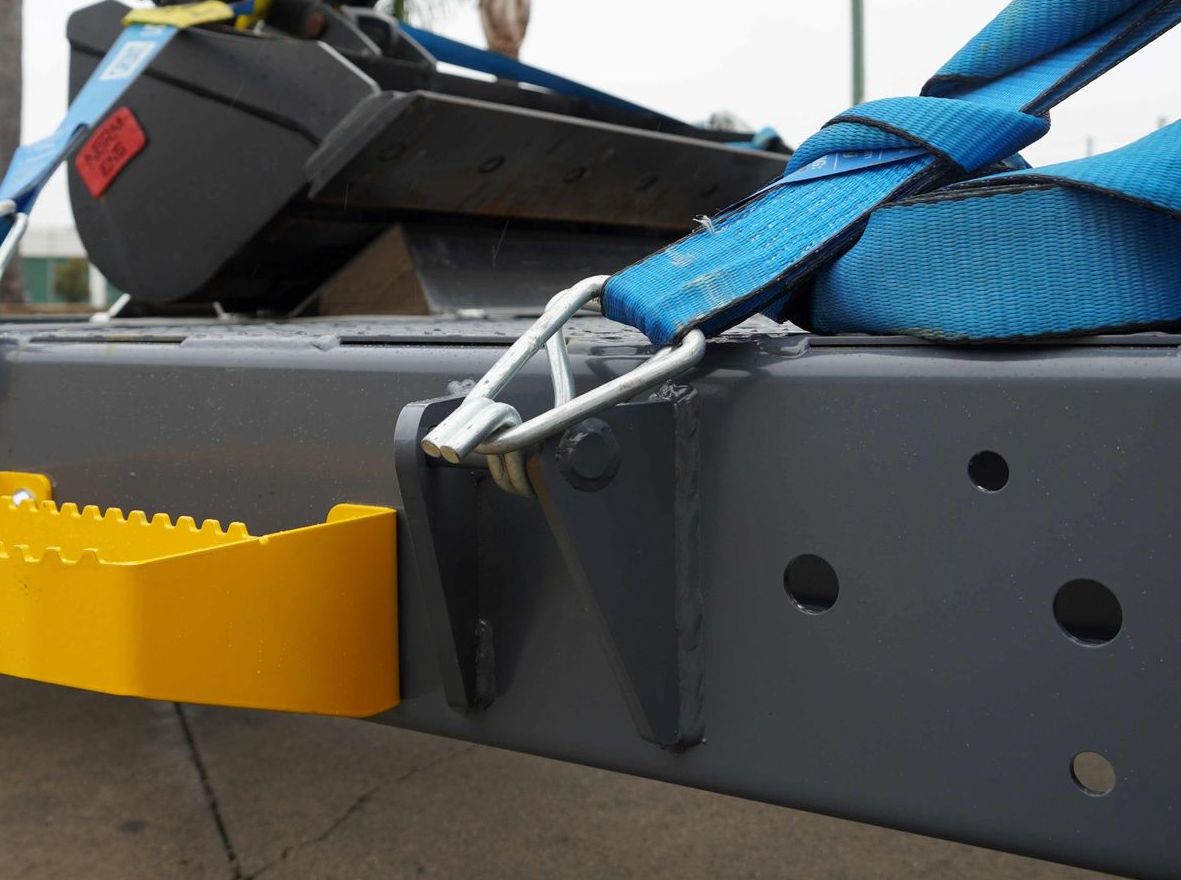

A close up view of one of the Plant Trailers many tie-down points

Tie-Down Points

As standard, the Plant Trailer comes with the following tie-down points:


6 x 1T Ratchet External Tie-Down Points

4 x External Chain Tie-Down Points

14 x In-Floor Chain Slots

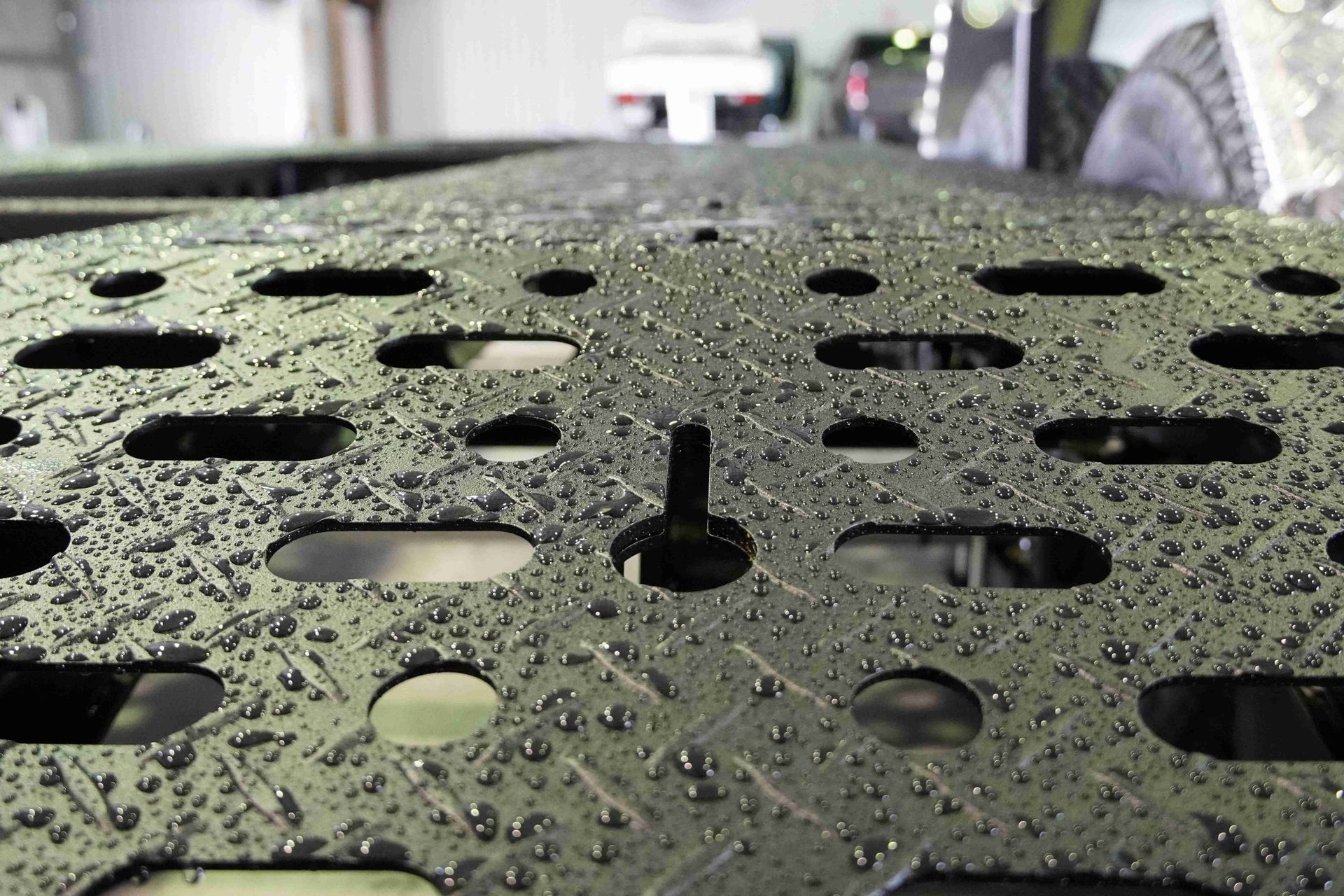

A close view of the 3mm 350 grade decking plate.

Decking Plate made from 3mm 350 grade Checker Plate

The decking plate of all Ox Trailers is made from a welded 3mm 350-grade Checker Plate.


This checker plate decking is welded onto internal bracing that ensures it can withstand heavy loads.

A close up of the wheel placement of the plant trailer, showing the ability to move the placement forward or backward.

Adaptable Design

Easy retrofit of accessories and adaptability as needed through the vast array of holes supplied.

  • ALUMINIUM RAMPS

    The aluminium ramp set of a 4.5t plant trailers.

    Aluminium Construction for ease-of-use


    3500kgs Rated Set.

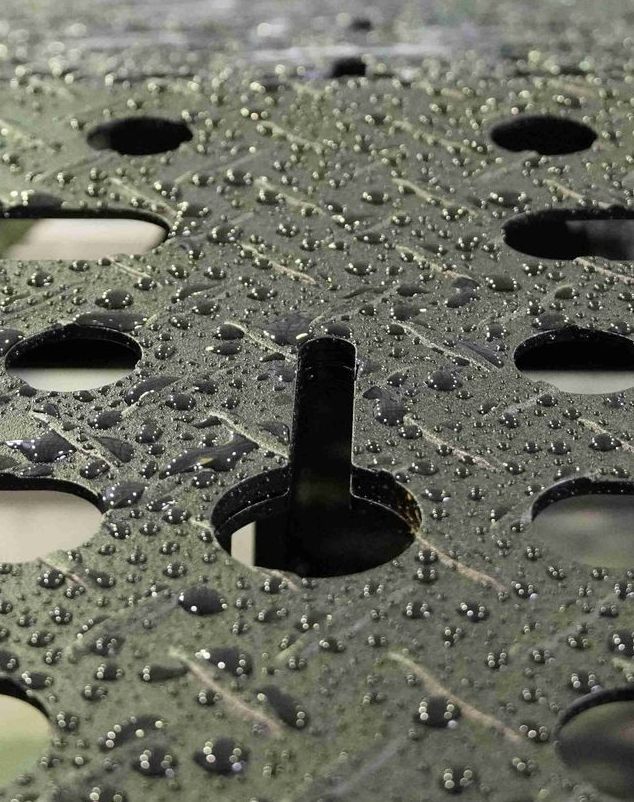

  • CHAIN SLOTS

    one of the 12 in-floor tie down points in an ox trailer pro series plant trailer

    As standard, the Trade Series Plant Trailer comes with 12 x In-Floor Chain Slots


    Bolt-on tie-down points are an optional add-on.

  • DECKING PLATE

    The 3mm steel decking plate of a pro series plant trailer.

    The decking plate of all Ox Trailers is made from a welded 3mm 350-grade Checker Plate.


    This checker plate decking is welded onto internal bracing that ensures it can withstand heavy loads.

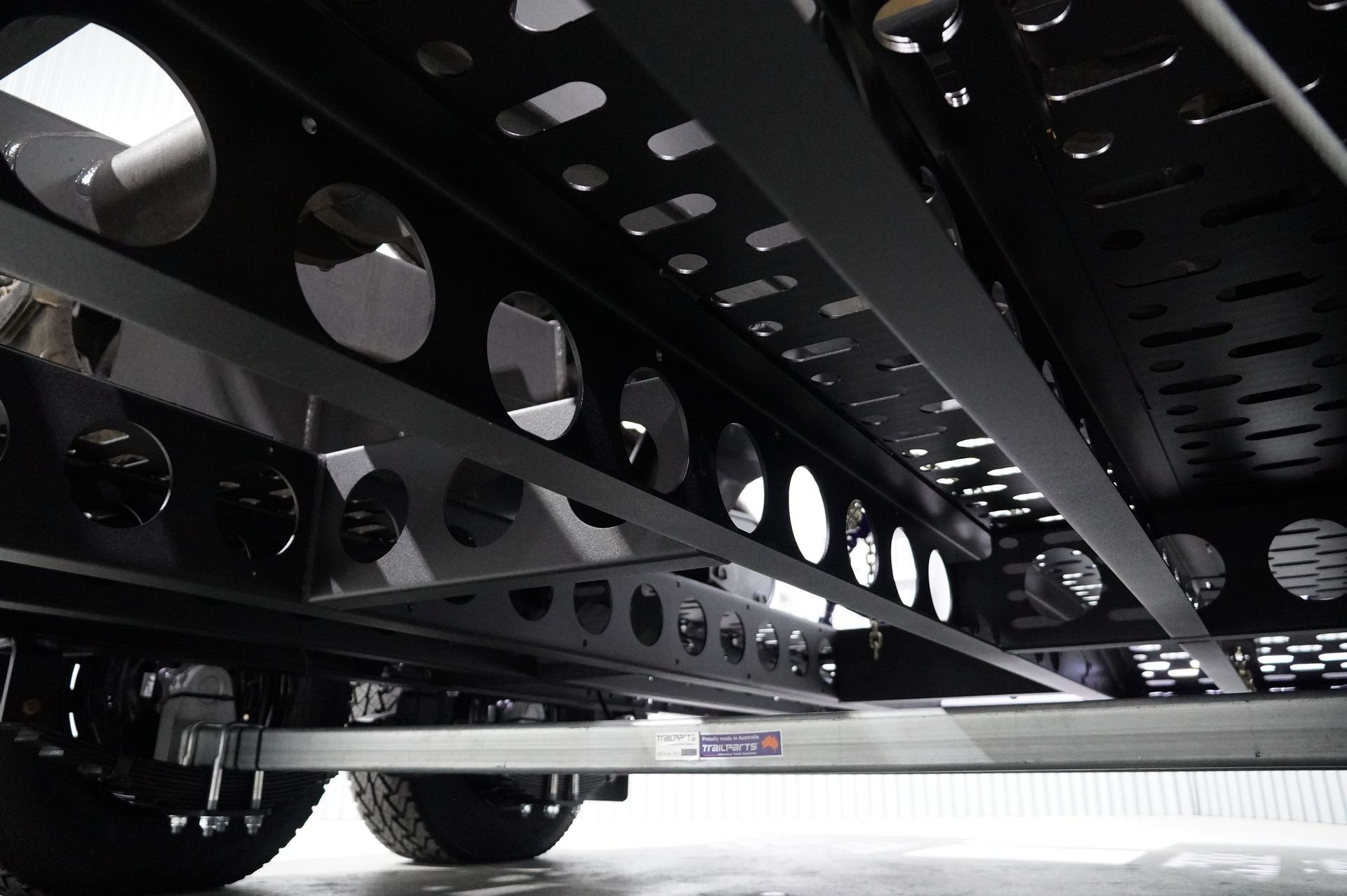

  • ADAPTABLE DESIGN

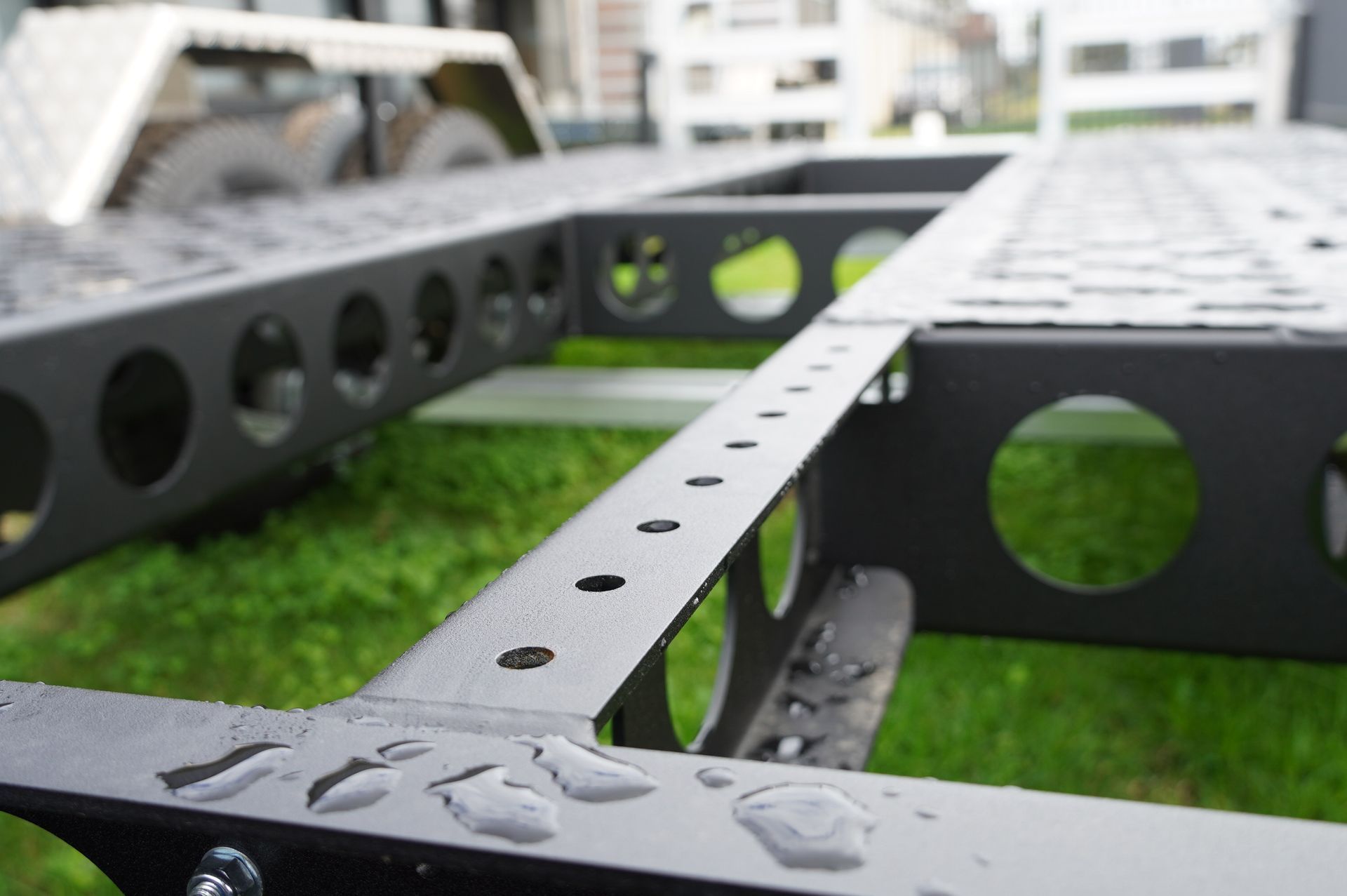

    The chassis of the pro series plant trailer with laser cut holes made for accessories.

    Easy retrofit of accessories and adaptability as needed through the vast array of holes supplied.

FLEXIBLE YET DURABLE

The Plant Trailer is designed to haul a large variety of equipment and attachments to your next maintenance, construction or industrial location.

With versatility at its core, this trailer is ready to become the transport solution your business needs.


View our brochure for more information.

View and understand the Plant trailer options and accessories to tailor make this trailer for your business.
