3500/4500 KG
AGGREGATE TRAILER MASS
1100 KG
TARE WEIGHT
(3000 x 2100 x 3.5T)
105 KG
BALL WEIGHT
5 YR
STRUCTURAL WARRANTY
MOBILE BOILERMAKERS TRAILER
Custom Design Options
Engineered for Strength
Delivery Australia Wide
MOBILE BOILERMAKERS TRAILER
The trailer your mobile welding business needs.
See our recommendations below.
Delivery Australia Wide
3500/4500 KG
AGGREGATE TRAILER MASS
1100 KG
TARE WEIGHT
(3000 x 2100 x 3.5T)
105 KG
BALL WEIGHT
5 YR
STRUCTURAL WARRANTY
THE SPECS
The Chassis is the main design feature that makes our trailers one of the strongest, safest trailers in Australia.
The fabricated chassis is a 350* grade steel,
C-Section Channel
that runs the full length of the trailer
allowing the chassis to flex and move as it negotiates rough road terrain.
The chassis is made of laser cut, CNC folded, 350 grade*, open chassis members allowing for easy wash down and cleaning, with no enclosed areas where mud, sand and salt can get trapped and cause corrosion.
Check out one of our latest trailers for a rural Mobile Boilermaker!
*350 grade is higher tensile steel. Box Section is 300 grade and most C sections are 300.
THE FLAT TOP ACCESORIES

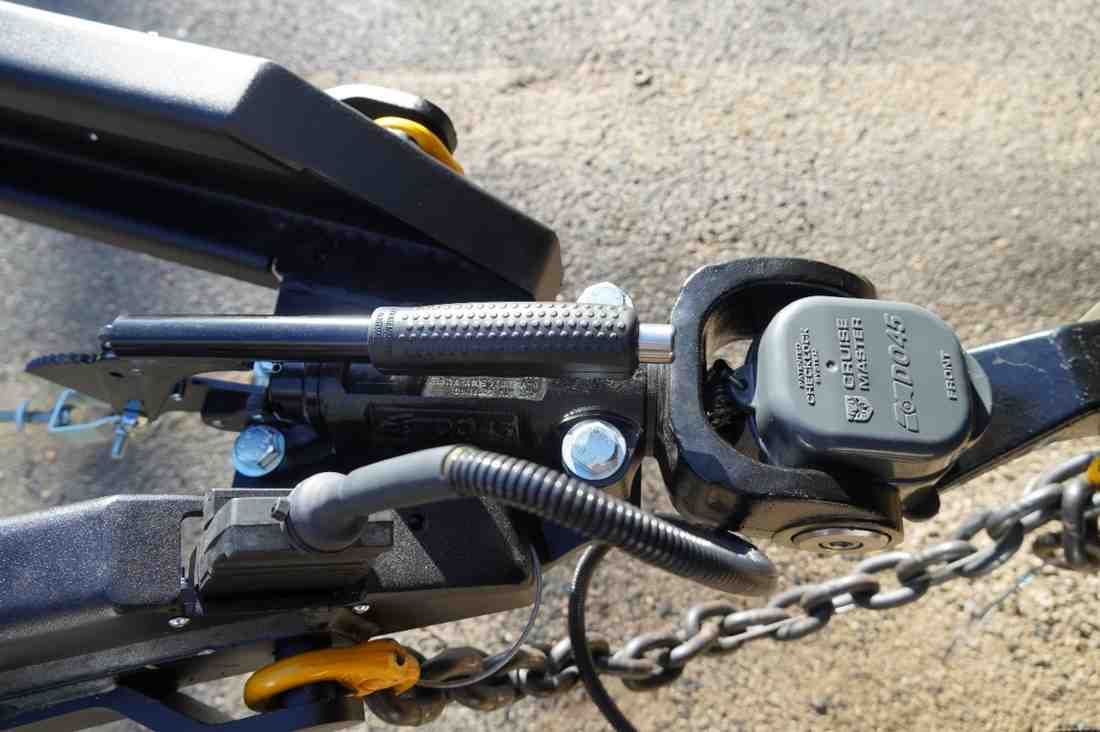

Cruise Master DO35/45 Coupling Upgrade
Suitable for 3500kg/4500kg ATM
Anti-roll technology
ADR Compliant
75mm Pintle Hitch Upgrade
4.5T Rated

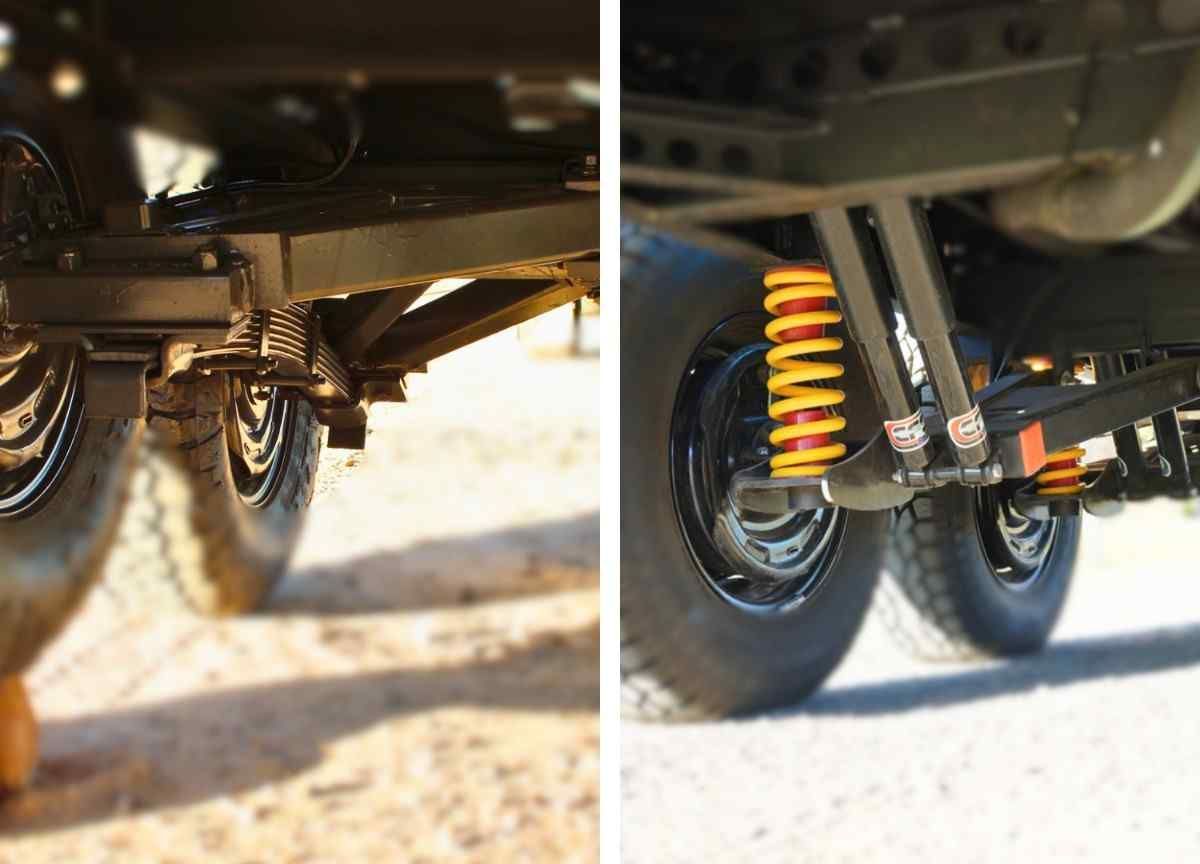

Independent Suspension Upgrade
Simplicity Axles Independent Load-sharing Leaf Suspension
Ideal for off-road or rough terrain work
Low-service/maintenance required
Tri-Axle Upgrade
3500kg or 4500kg
Improved towing and stability
Maxxis Razr All-Terrain Tyre Upgrade
265/75/R16 All Terrain Tread
Ideal for off-road or rough terrain work
Maxilamp C3XR Tail Light Upgrade
Fitted, wired, tested
ADR Approved
Colour Upgrade
Grey, Black and White are offered standard
Hydraulic Crane
HIAB, MAXILIFT, KEVREK
Mounted on Drawbar or rear of tray (max tray length 4.2m)
Quality crane solutions and reputable brands recommended.

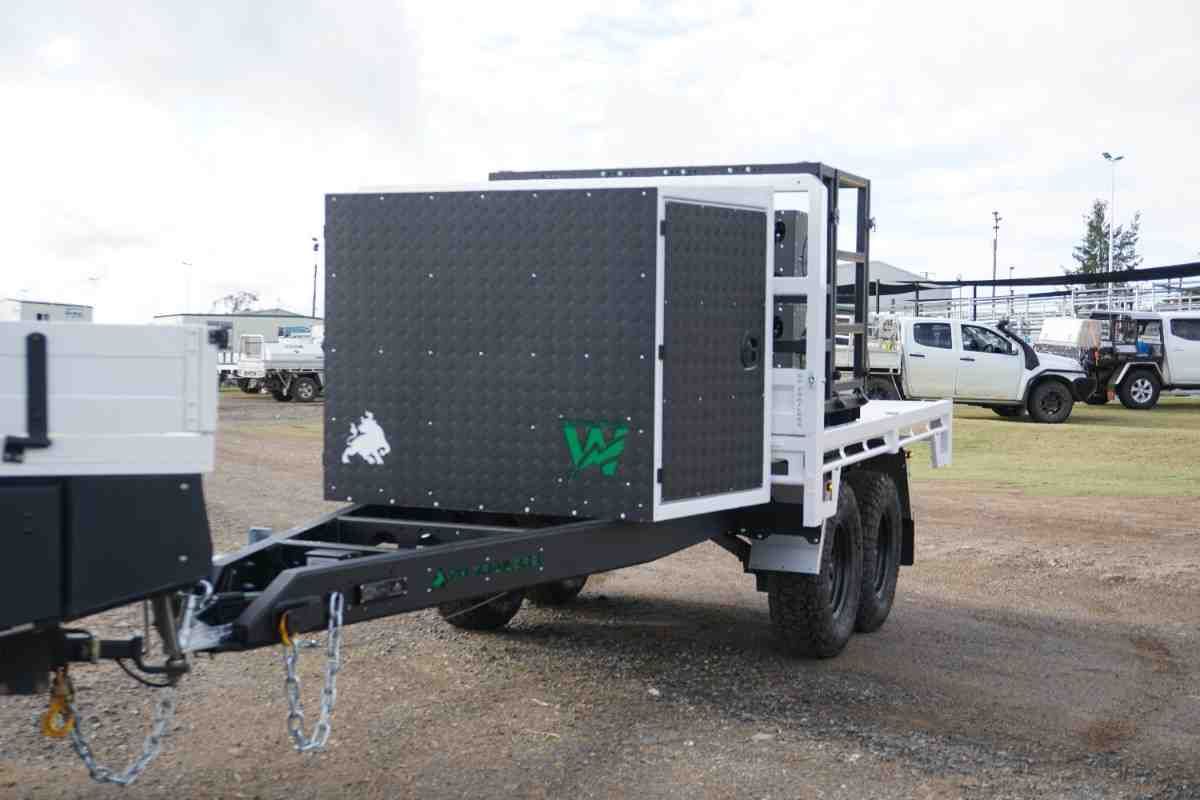

Drawbar Cabinet
Fridge Slide Options
Configurable Shelves

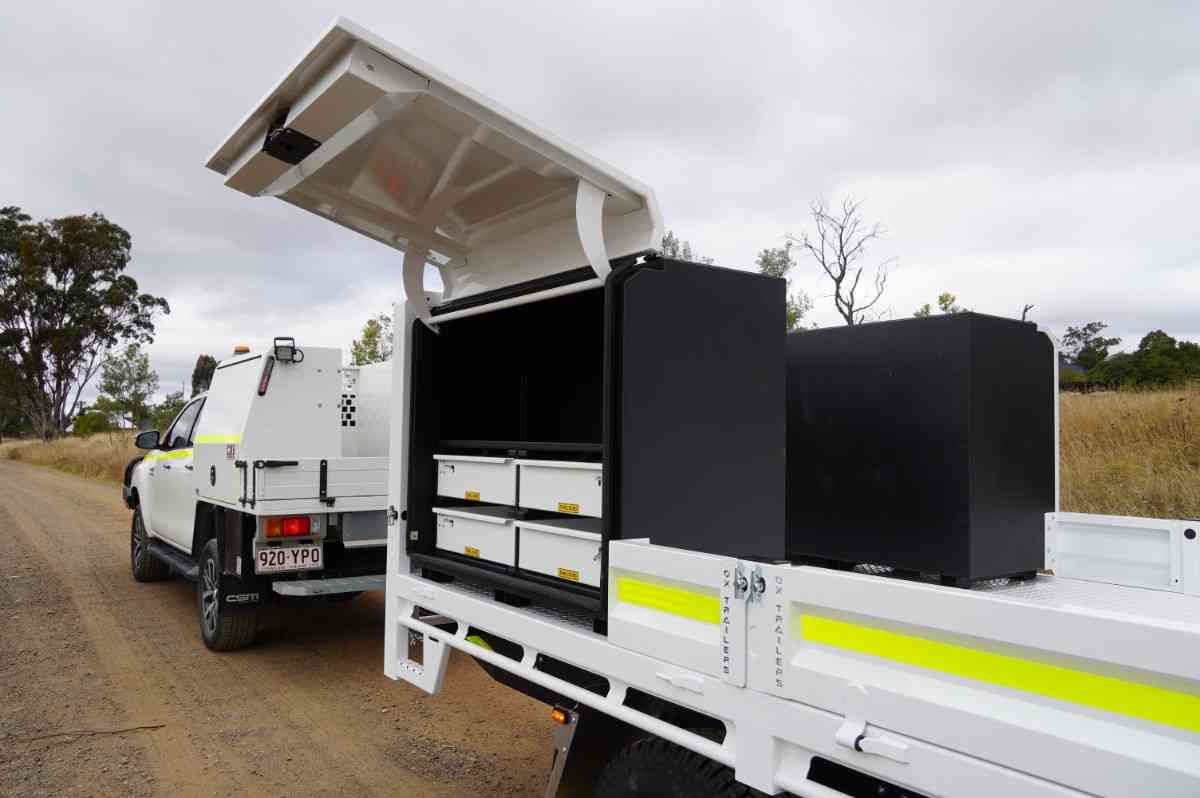

Field Service Toolboxes
1200, 1500, 1800mm long
600mm deep, 900mm high
Tapered to suit headboard
Dropsides cut to suit
Aluminium construction
Internal storage options available
Watertight & Dust Resistant

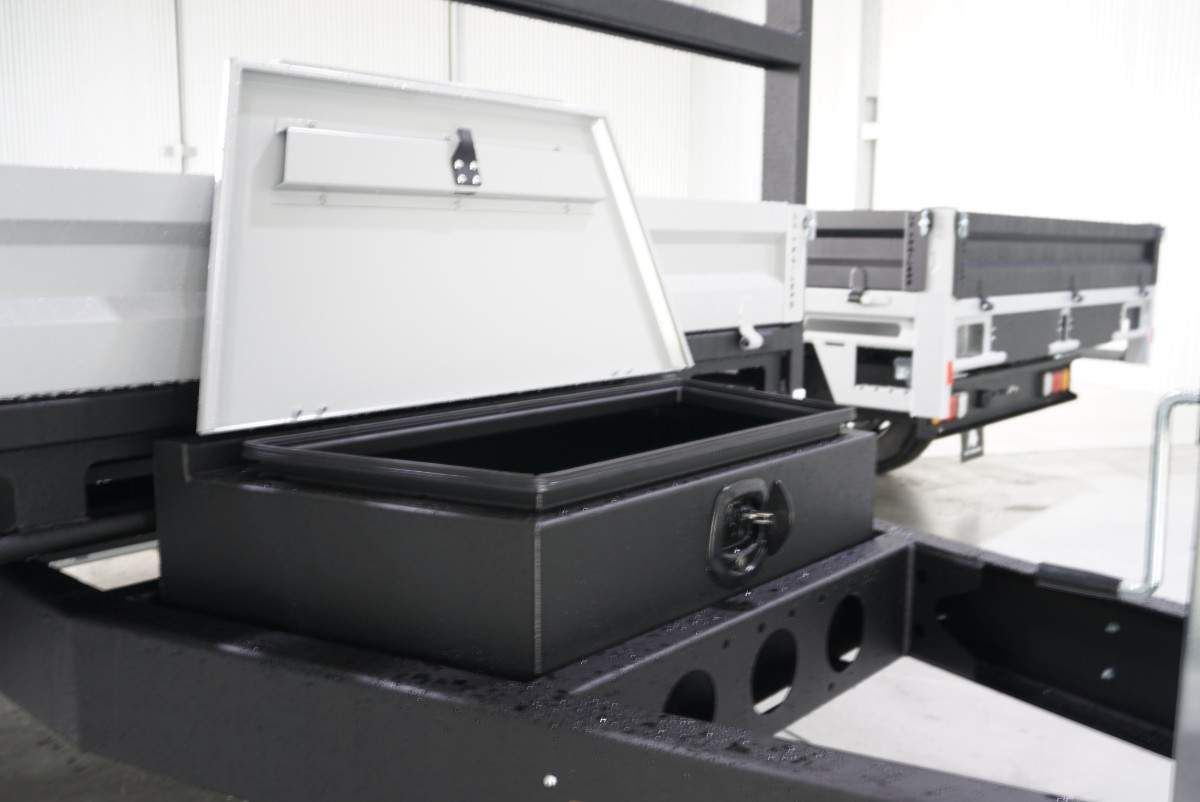

Drawbar Toolbox
Large storage capacity
Mounted in the A-frame
Aluminium welded construction
Watertight & dust resistant

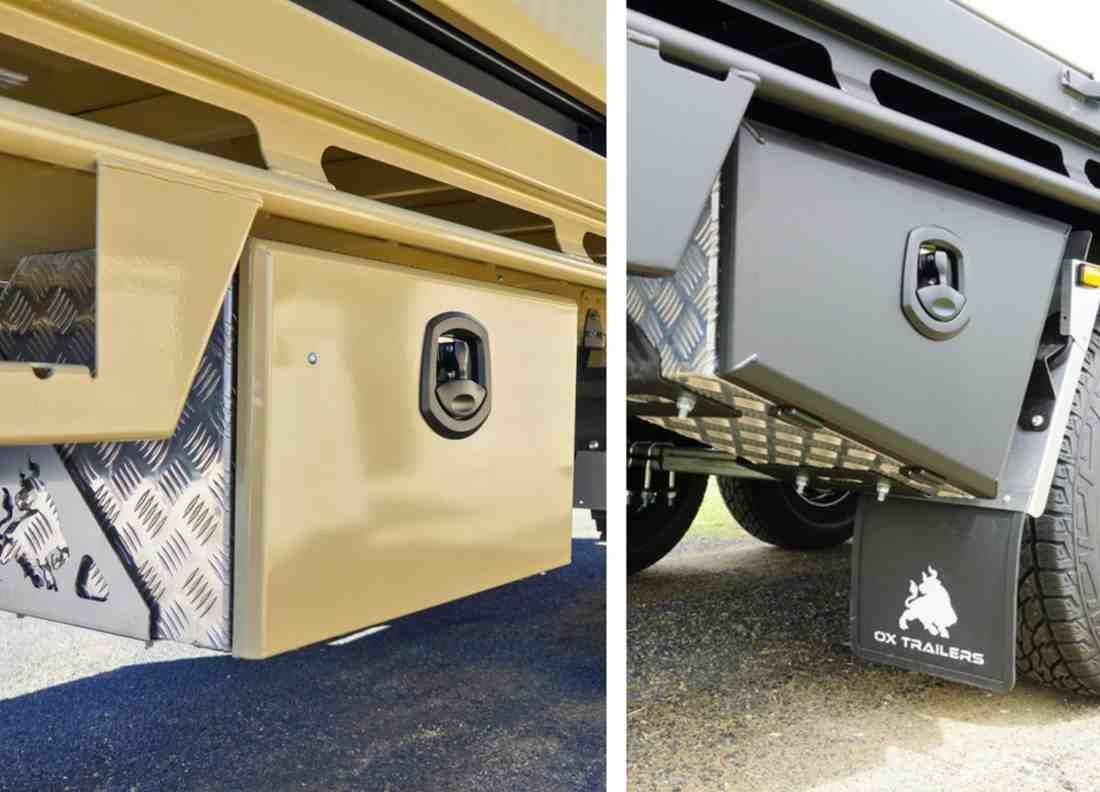

Undertray Toolbox/s
400, 500 and 600mm long
Aluminium welded construction
Mounted directly onto chassis
Convenient storage
Lid is colour matched to tray
Watertight and dust resistant
Lift-Off Canopy
Aluminium construction
Tapered to suit headboard
Dropsides cut to suit length
Steel Lifting Frame with 4 Lift-off leg receivers (Lift-off legs not supplied with canopy)
Internal storage options available
Watertight and Dust Resistant
Lift-Off Legs
4 Lift-off leg receivers

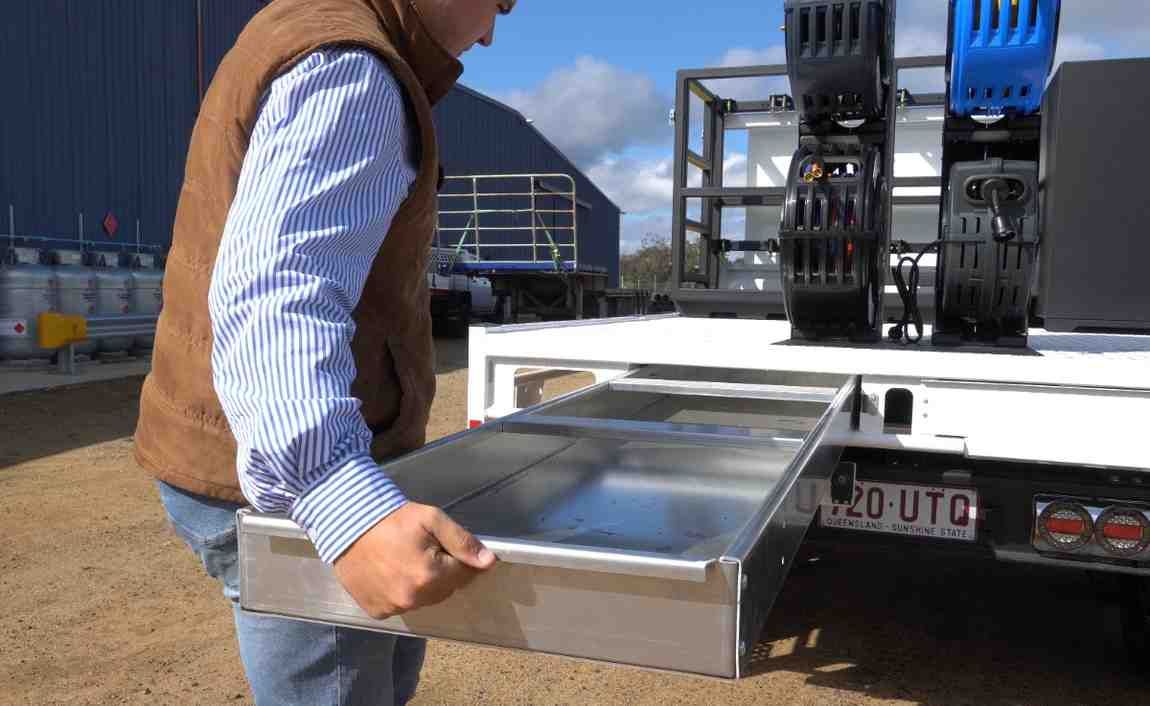

Rear Slide-out Drawer
200L x 530W x 100H

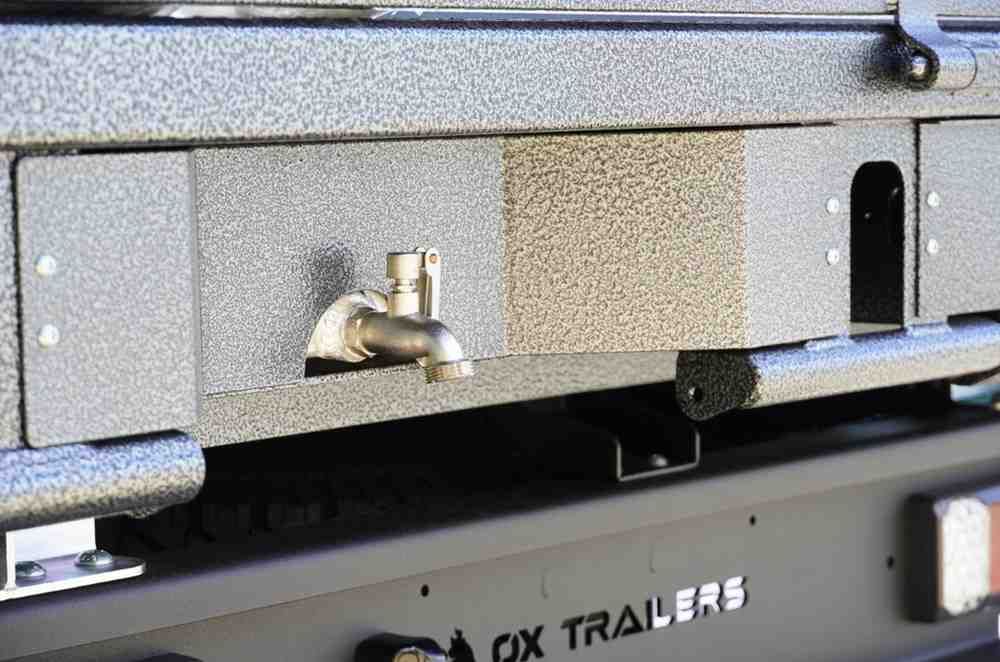

Under Tray Water/Diesel Tanks
150L Capacity
Mounted under tray in replacement of ramp storage
Aluminium Construction
Watertight and Corrosion Resistant
Gravity Fed Twist Tap
Removable Headboard
1000mm high
SWL: 200kg each
Centre rail for convenient tie down
Colour matched to your tray
Removable Ladder Racks
1000mm high
Ideal for carrying longer loads
SWL: 200kg each
Colour matched to your tray
450mm Dropside Upgrade
Removable
450mm High Dropside
More internal capacity
Dropside Deduction
No Dropsides supplied
Completely Flat Deck
Save around 20 - 40kgs in weight
Better access to Rope Rails

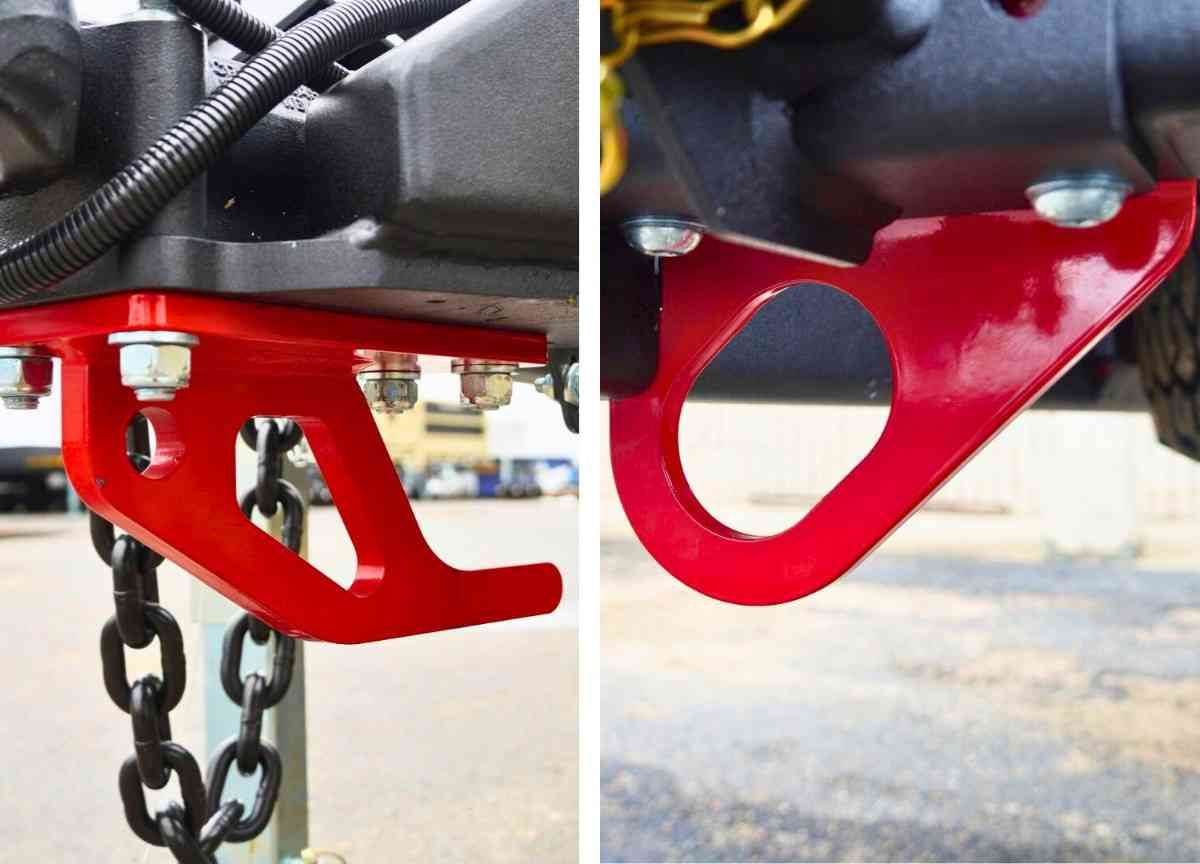

Front/Rear Recovery Points
1 x Front Recovery Point
2 x Rear Recovery Points
Weight rating of 4500kg
In Floor Tie-Down Points
1 Ton Rated Each
Bolt-on/Removable
Backing plate for strength

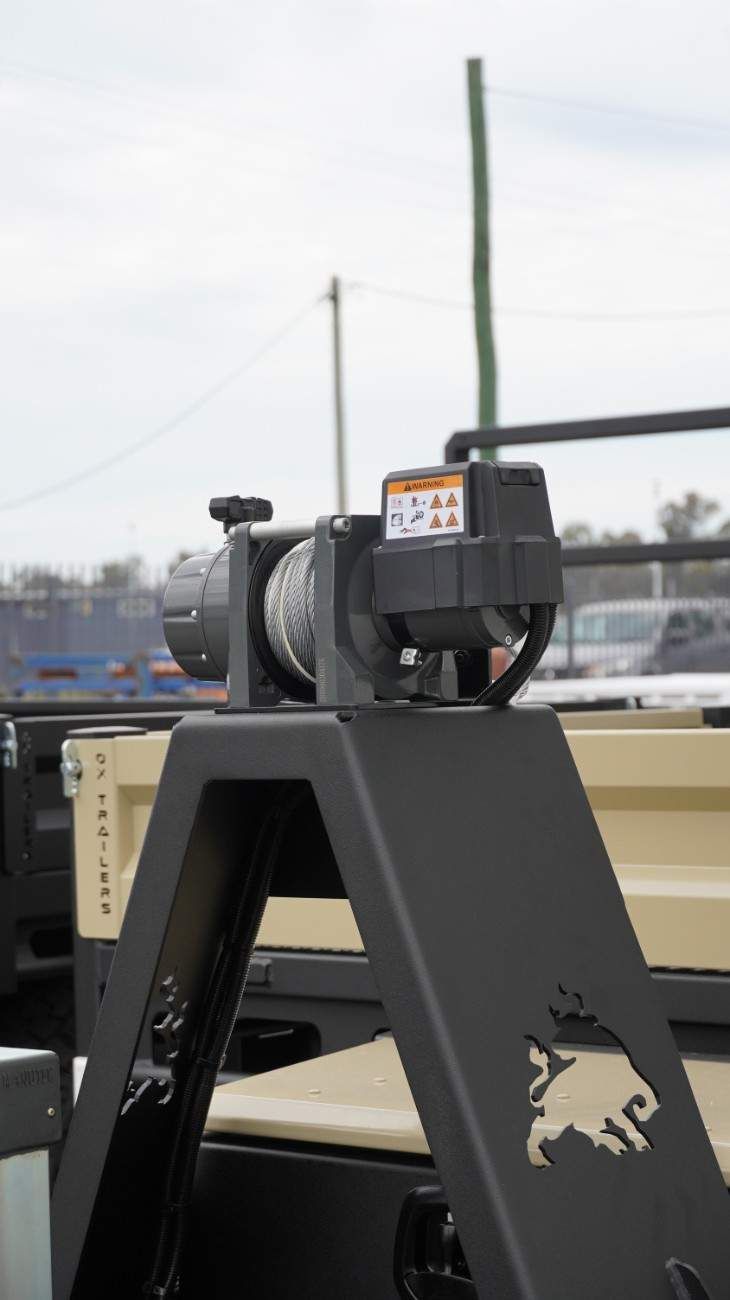

Winch & Winch Mount
WARN 5000lb (2268kg) capacity
Tow vehicle to supply power through Anderson plug
Bluetooth Brake Controller Kit
ElecBrakes
A trailer mounted solution that is compatible with any tow vehicle
Complete with custom presets and a smooth proportional brake control.

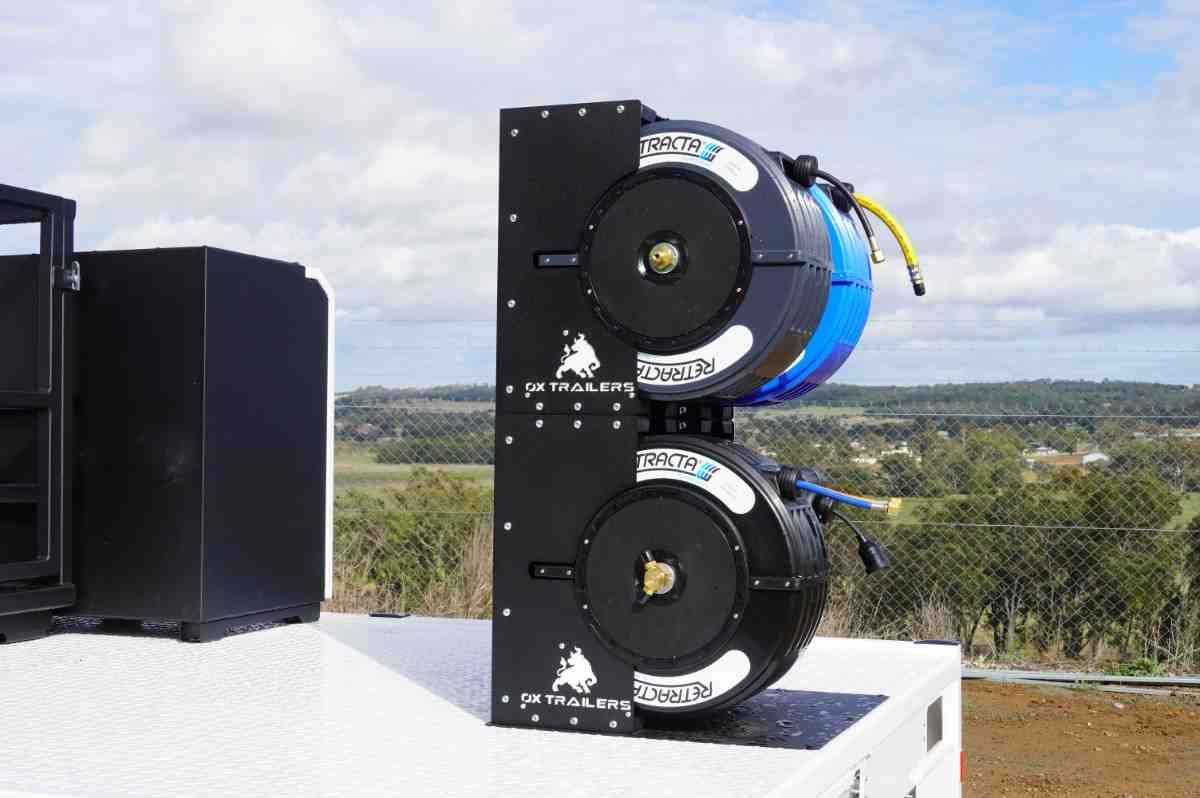

2-Reel Tower
Options:
Electrical
Air
LPG
Oxy-Acetylene
20L Jerry Can Holder
Safe and reliable storage of flammable liquid
Securely lock via padlock

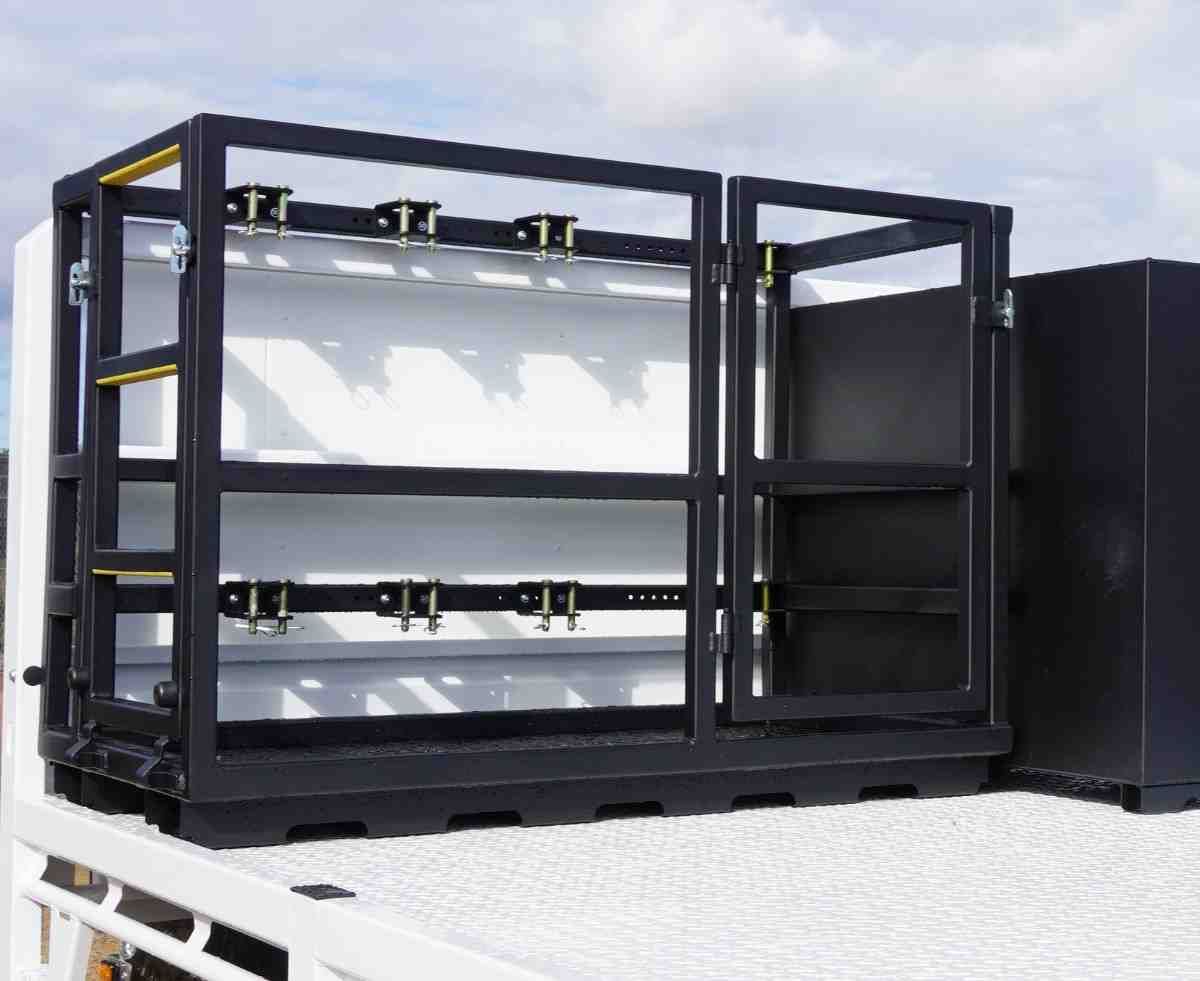

Tray Mounted Gas Cage
Easy Access to gear
Lift-off
Step access to tray

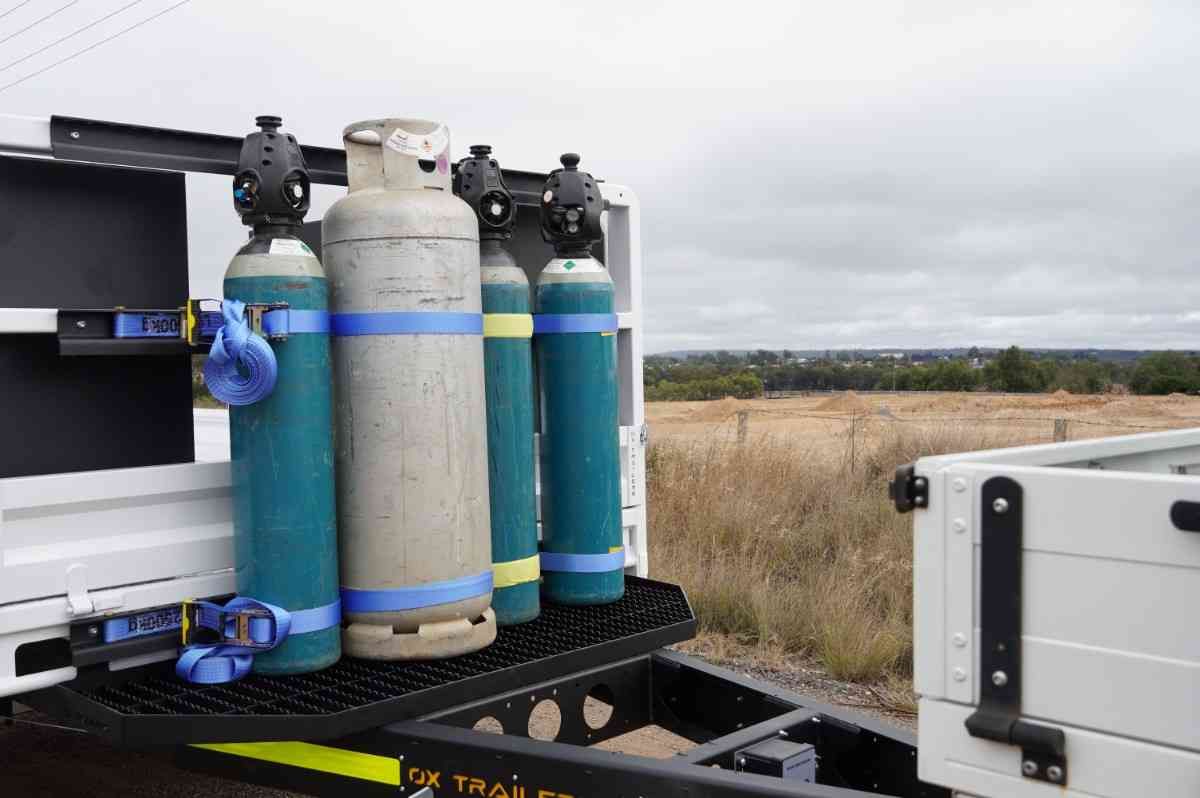

Drawbar Mounted Gas Bottle Frame
5 x G-sized gas bottles
4 x F-size Argon, Oxygen or Oxy Acetylene bottles with 1 x S-sized LPG
Saves Tray Space

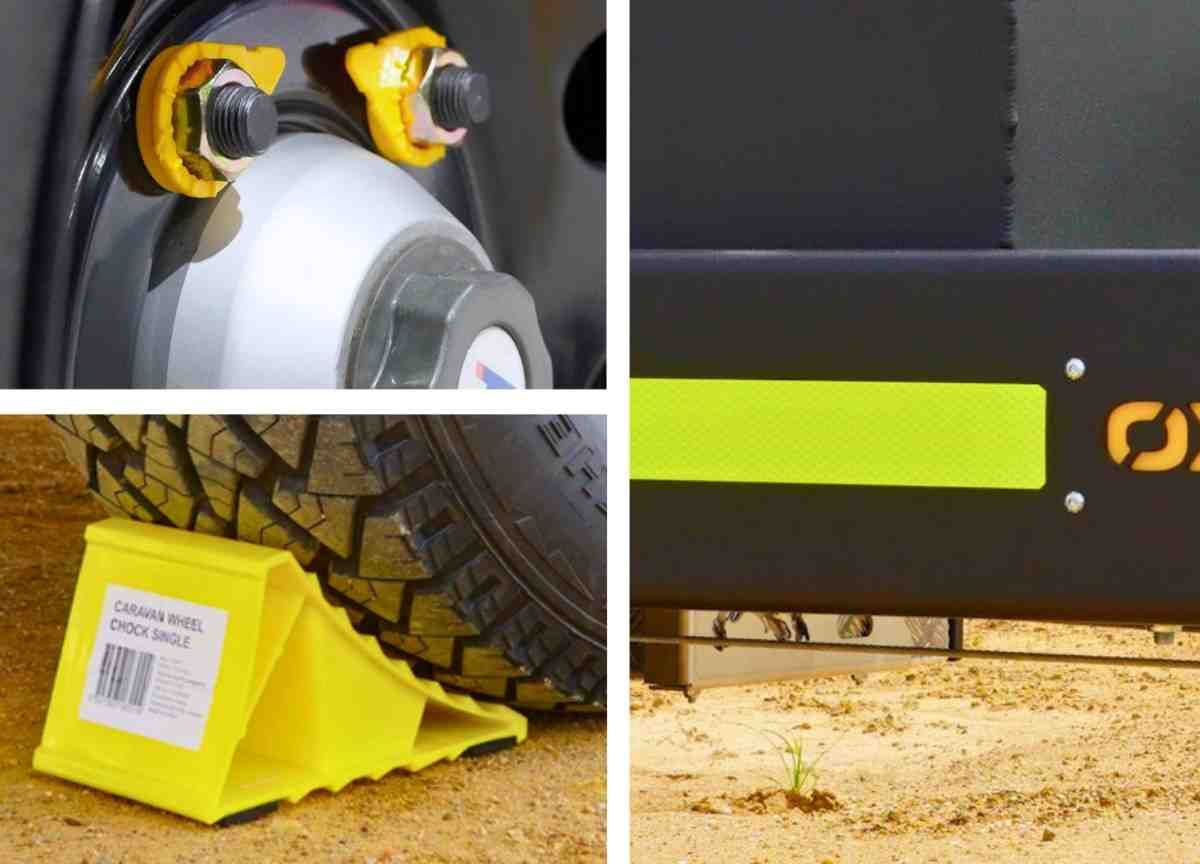

Wheel Nut Indicators
Set of 20
Important mine safety feature
Wheel Chocks & Holders
Two sets of 2 supplied
Purchased with holders for safe and secure storage
Reflective Body Tape
Tape Colour: Fluro Yellow
Tape Width: 50mm

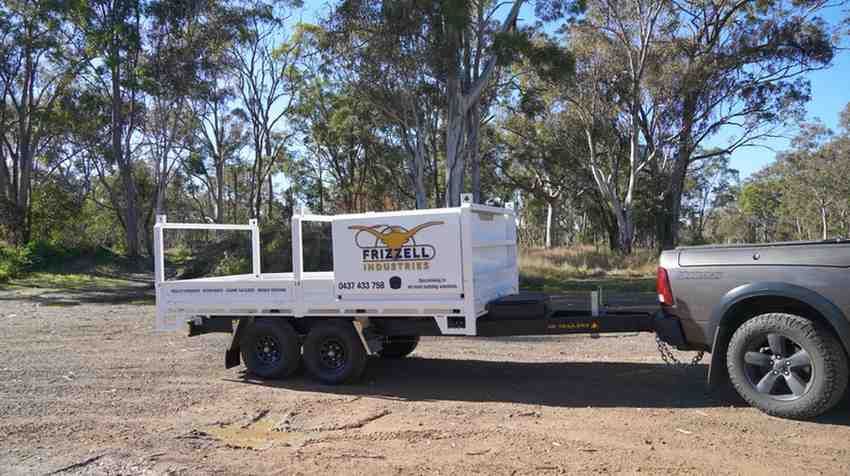

Custom Signwriting
Submit your designs to the team to add your brand to your Ox Trailer.
QLD 12 Month Registration
Valid for 12 Months
All Documents, Certificates & Reciepts supplied and registered in your name
DOWNLOAD OUR MOBILE BOILERMAKERS
CATALOGUE.
Heavy Duty Trailers for the Mechanical Industry.
These trailers can be your tailor made mobile workshop, check out our different range of accessories made for your everyday.
See our catalogue or
access our accessory page for a more detailed explanation of the options and accessories.
