3000 - 3500 KG

AGGREGATE TRAILER MASS

640 KG

TARE WEIGHT

85 KG

BALL WEIGHT

3 YR

STRUCTURAL WARRANTY

TRADE SERIES PLANT TRAILER

Accessories + Storage

3.0T to 3.5T Towing Capacity

Delivery Australia Wide

TRADE SERIES

The Carry All Plant Trailer; 3.0 Tonne to 3.5 Tonne

Delivery Australia Wide

The australian made logo for australian made plant trailers.
The full certification of an Ox Plant Trailer

3000KG to 3500KG

AGGREGATE TRAILER MASS

640KG

ESTIMATED TARE WEIGHT

85KG

BALL WEIGHT

5YR

STRUCTURAL WARRANTY

THE

SPECS

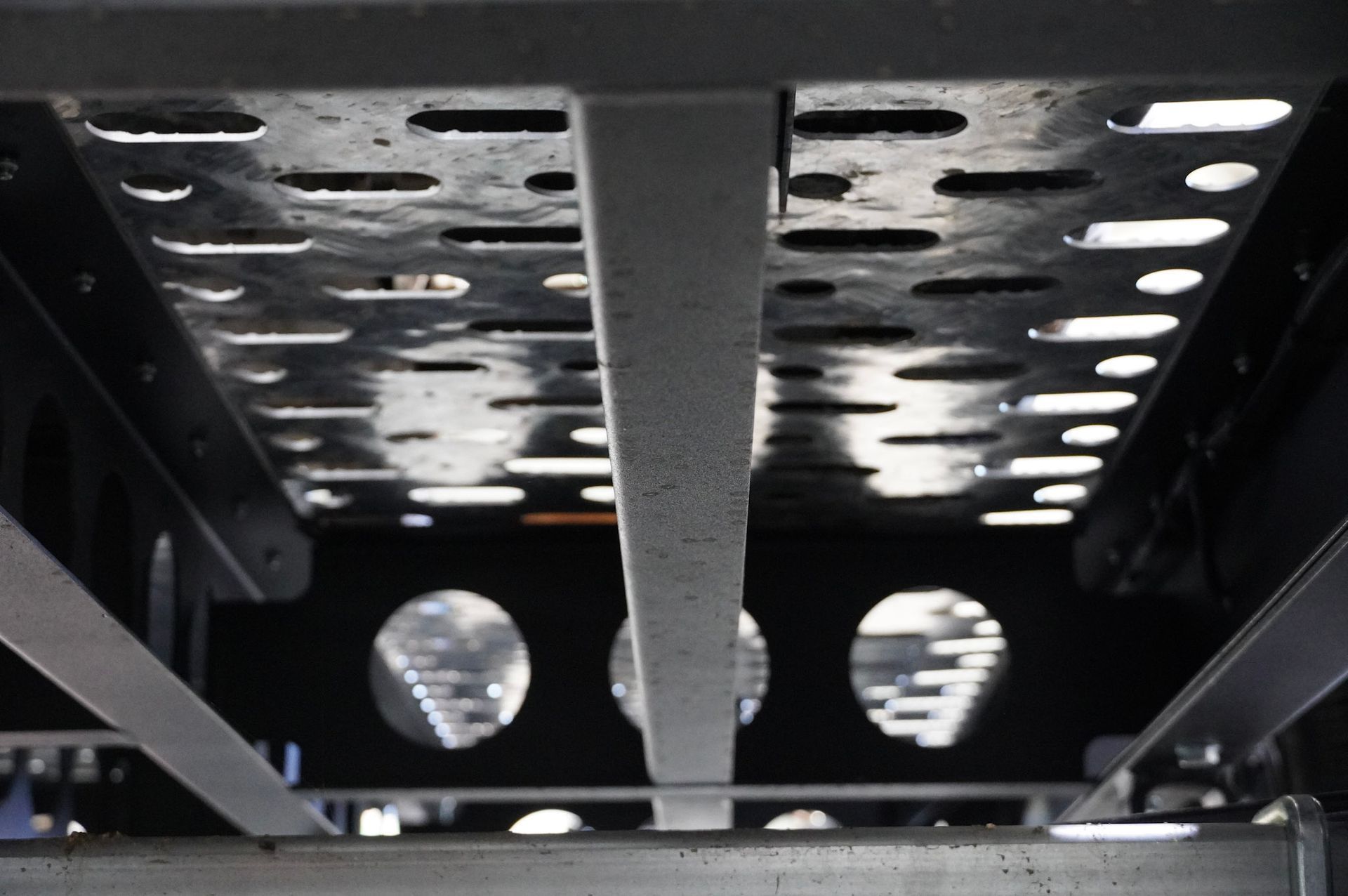

The main design feature of the Trade Series Plant Trailer is the C-Section Chassis that runs the full length of the Plant Trailer allowing the chassis to flex and move as it negotiates rough road terrain.


The C-Section fabricated chassis is made of laser cut, CNC folded, 350* grade, open chassis members allowing for easy wash down and cleaning, with no enclosed areas where mud, sand and salt can get trapped and cause corrosion.


Fitted with CNC folded Checker Plate Mudguards, secure Spare Tyre Storage, 65mm Square Steel 95mm Drop Axles, Chain Slot Provision, and Powder Coated with a durable finish; the Plant Trailer is ready to be your versatile hauling machine for all your plant and equipment.


*350 grade is higher tensile steel. Box section is 300 grade and most C-Sections are 300.

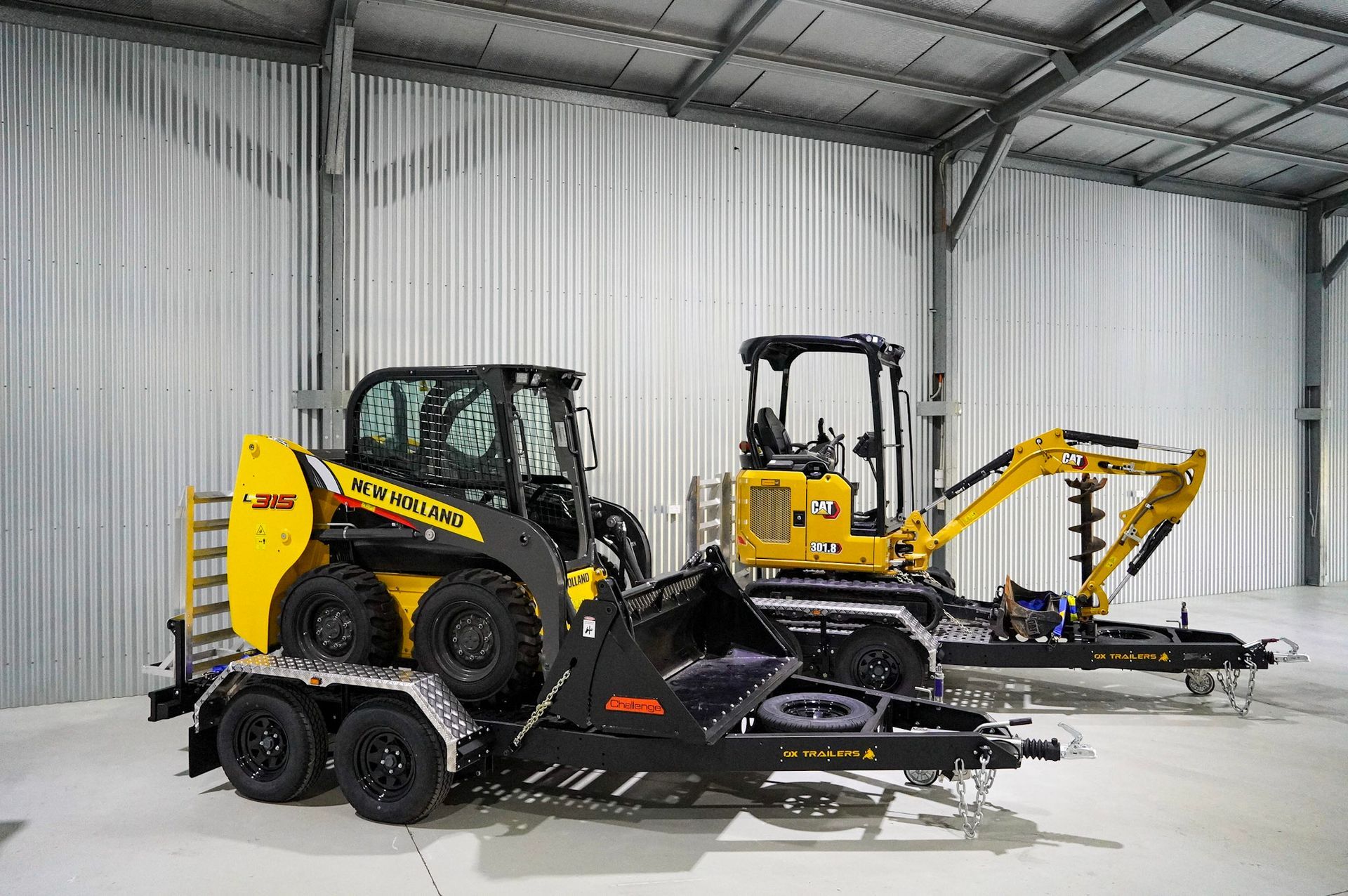

Plant Trailer for Excavator at Construction Site. 3.5T ATM Plant Trailer for Equipment and Plant Transport.

TRAILER RUNNING GEAR

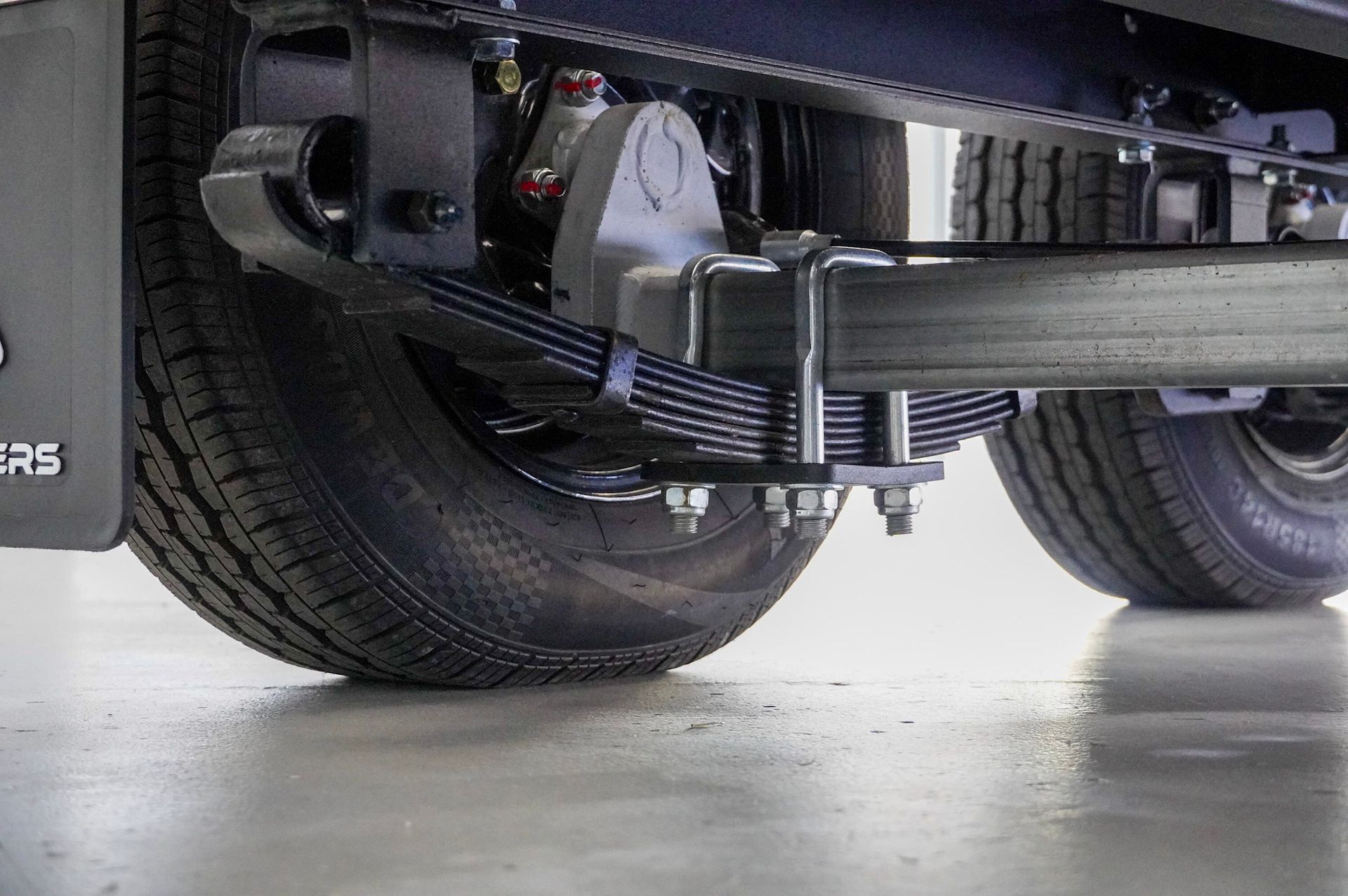

The underneath of a plant trailer, showing the load sharing suspension and drop axle attached to the wheel.

Load Sharing Leaf Spring Suspension Set with 95mm Square Steel Drop Axles

The Load Sharing Leaf Spring Suspension Set ensures a safe and stable trailer on and off the road.

The 95mm Square Steel Drop Axles enable the deck to be closer to the ground allowing easy loading and unloading

The 10-inch electric drum brake visible through the wheel rim of a tyre on a Plant Trailer

10-Inch Electric Drum Brakes

Electric Drum Brakes provide a safe and reliable braking solution.

We provide a 10-inch drum brake as these are heavy-duty and robust.

A close up of the Roller bearings of an Ox Trailer

Dual Row Taper Roller Bearings

Each trailer has 4 Dual Row Taper Roller Bearings.

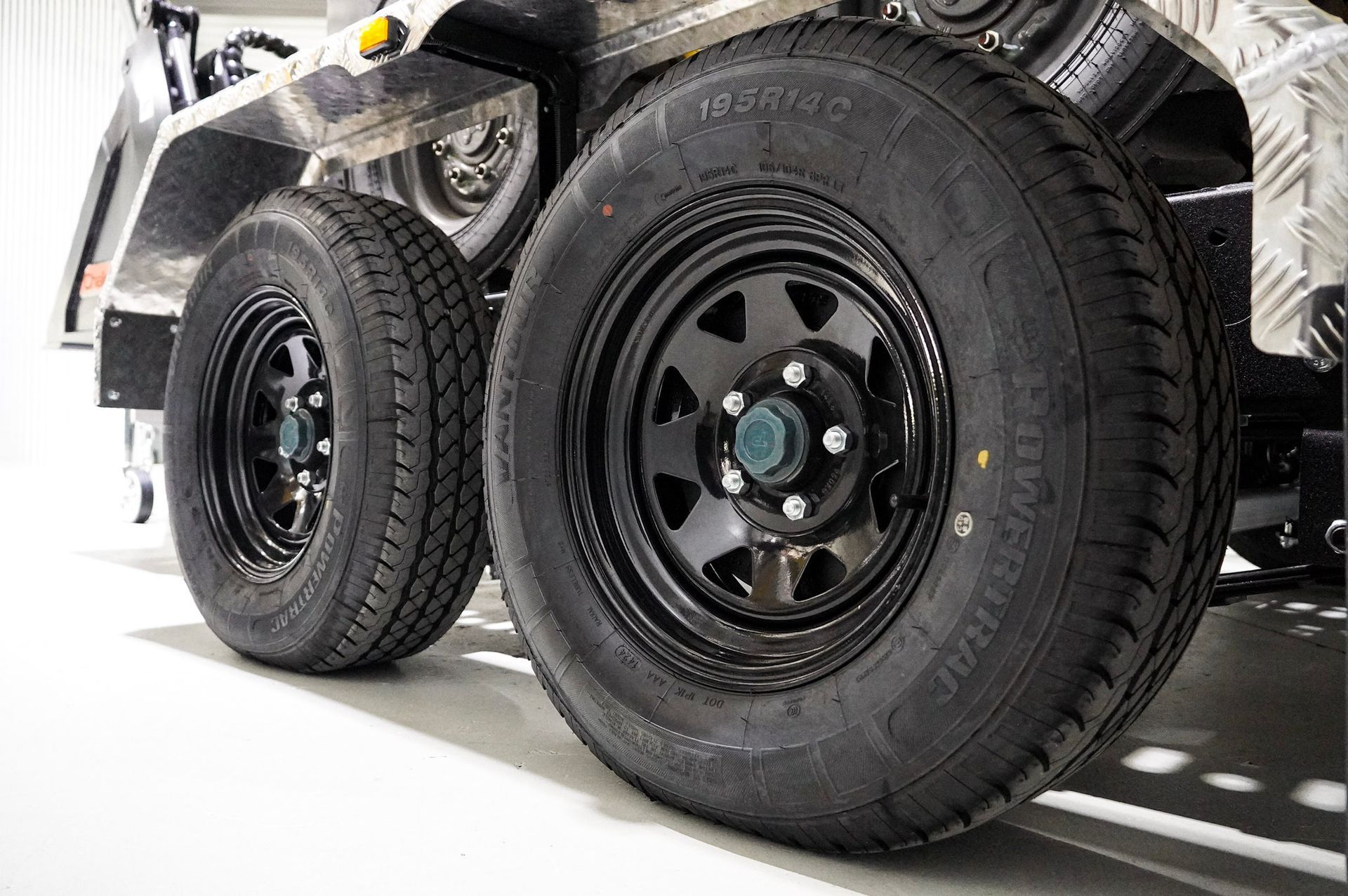

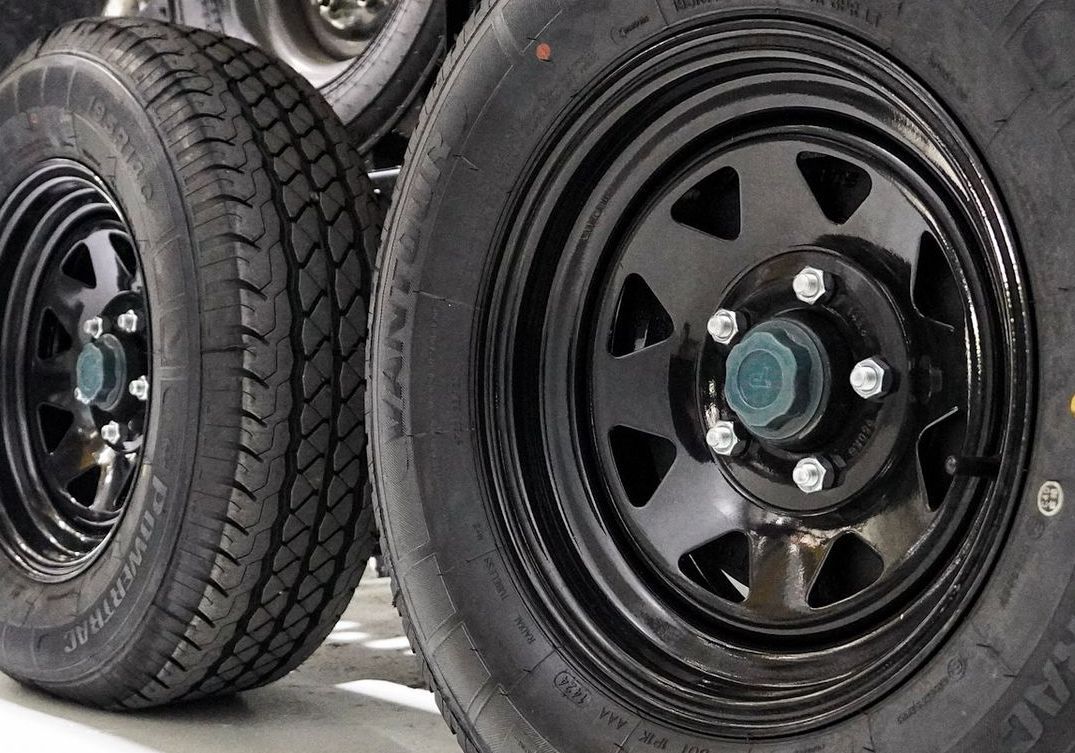

The tandem tyres and wheels of the Plant Trailer

14 Inch Ford Rims + LT Tyres

Each trailer is fitted with 4, 14-inch Ford Rims and 4 Light Truck Tyres.


A spare tyre is available upon request.

The 50mm Coupler and Ratchet Trailer Handbrake of the Plant Trailer.

Ratchet Trailer Handbrake and 50mm Coupling

The Plant Trailer is fitted with a Trailer Handbrake as standard.

Also standard is a 50mm Coupling.


The break-away system installed on a plant trailer

Brake-Away System

The trailer Break-Away System is the ultimate emergency brake. It is designed to bring the trailer to a stop in the unlikely event it breaks away from the tow vehicle.

  • SUSPENSION + AXLES

    The drop-axles of a trade series plant trailer

    The Load Sharing Leaf Spring Suspension Set ensures a safe and stable trailer on and off the road.


    The 95mm Square Steel Drop Axles enable the deck to be closer to the ground allowing easy loading and unloading.

  • DRUM BRAKES

    The 10-inch drum brakes of a a ox trade series plant trailer.

    Electric Drum Brakes provide a safe and reliable braking solution.


    We provide a 10-inch drum brake as these are heavy-duty and robust.

  • BEARINGS

    The dual row taper roller bearings of an ox trailer trade series plant trailer.

    Each trailer has 4 Dual Row Taper Roller Bearings.

  • TYRES + WHEELS

    The standard light truck tyres of a trade series plant trailer.

    Each trailer is fitted with 4, 14-inch Ford Rims and 4 Light Truck Tyres.


    A spare tyre is available upon request.

  • HANDBRAKE + COUPLING

    The 50mm coupling and handbrake of a trade series plant trailer.

    The Plant Trailer is fitted with a Trailer Handbrake as standard.


    Also standard is a 50mm Coupling.

  • BREAK-AWAY SYSTEM

    The break-away system of an ox trade series plant trailer.

    The trailer Break-Away System is the ultimate emergency brake. It is designed to bring the trailer to a stop in the unlikely event it breaks away from the tow vehicle.

TRAILER SIZE

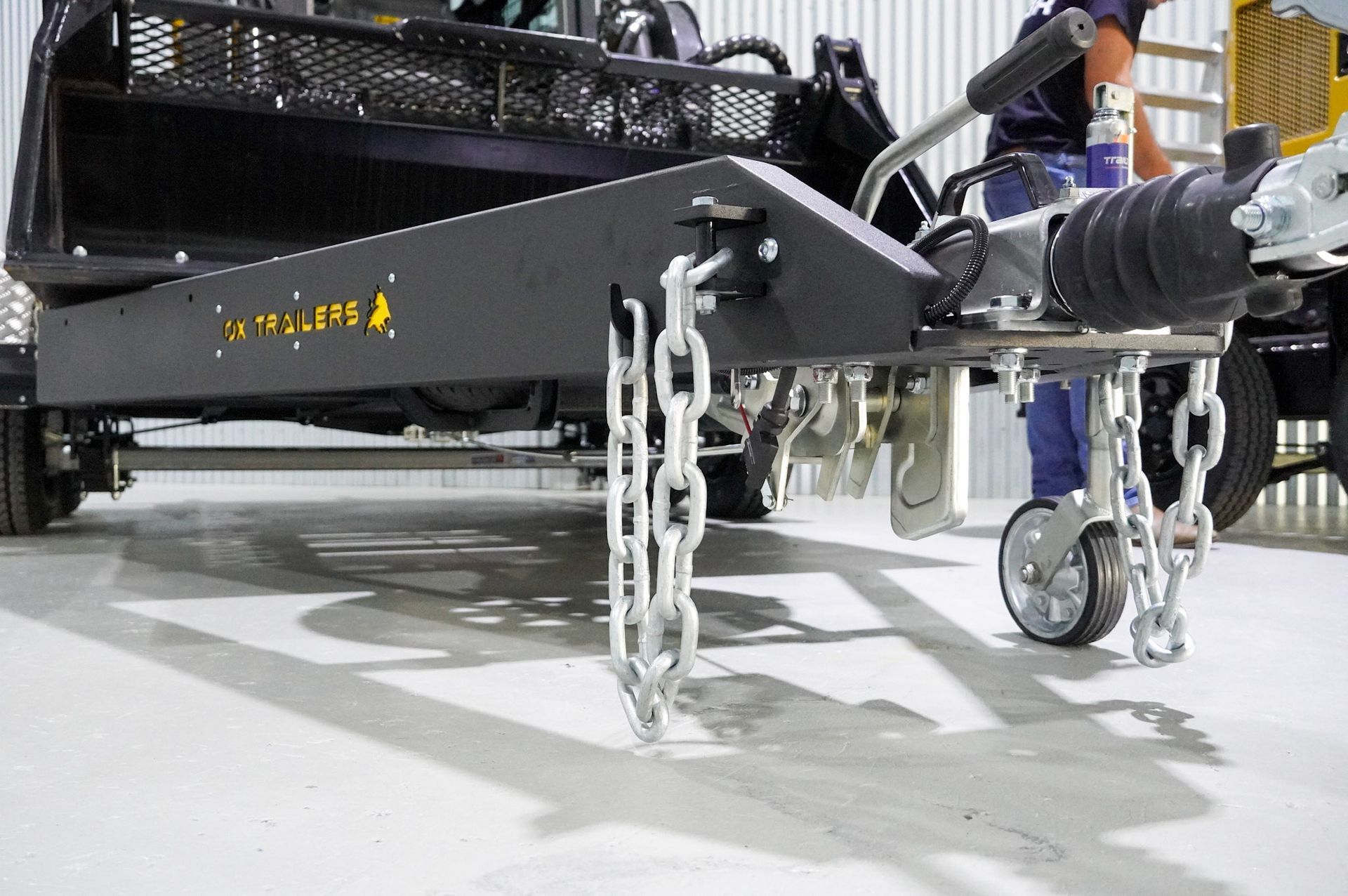

The front drawbar of an Ox Service Trailer

Drawbar Length

As standard, the drawbar length of an Ox Plant Trailer is 1.9m in length.

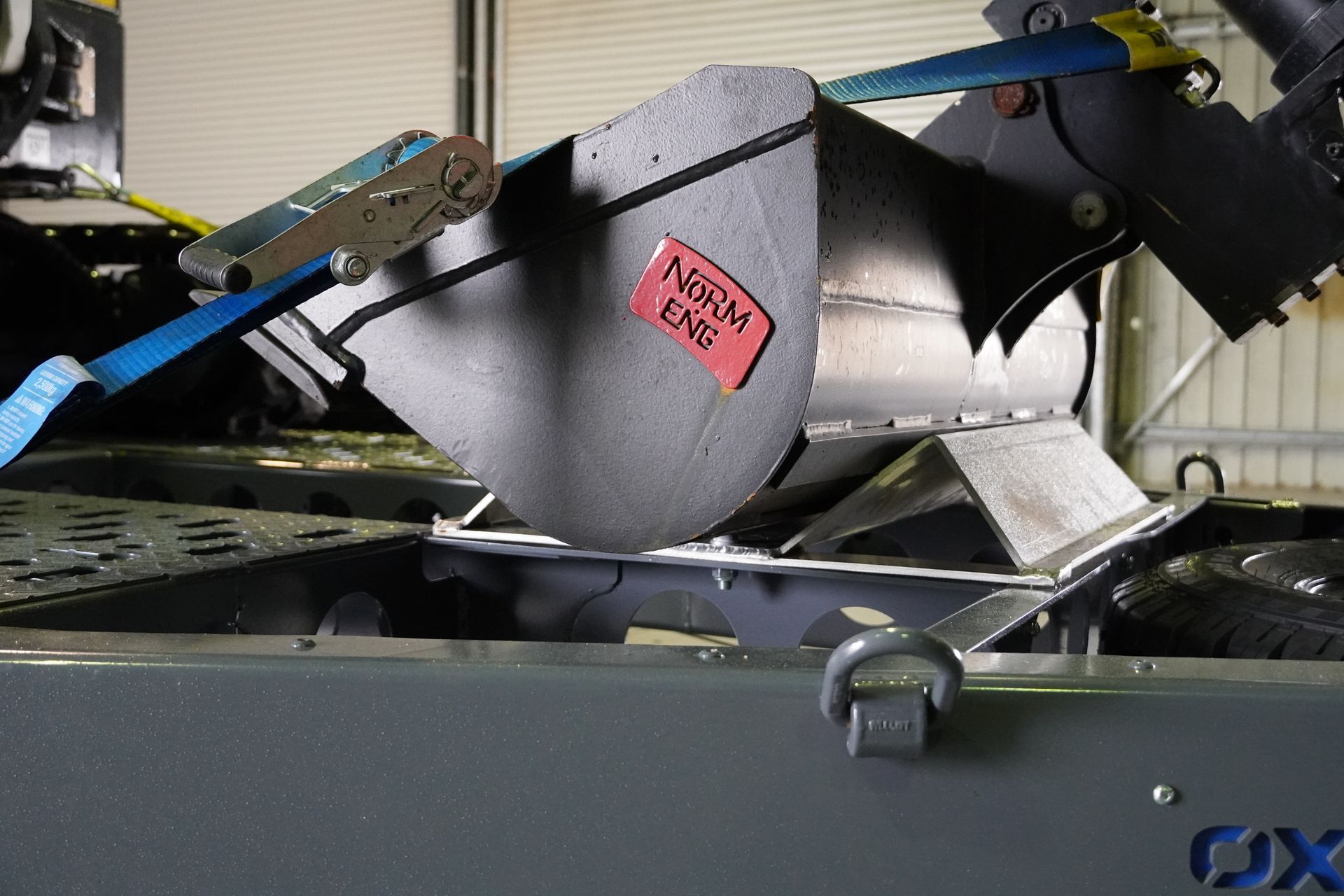

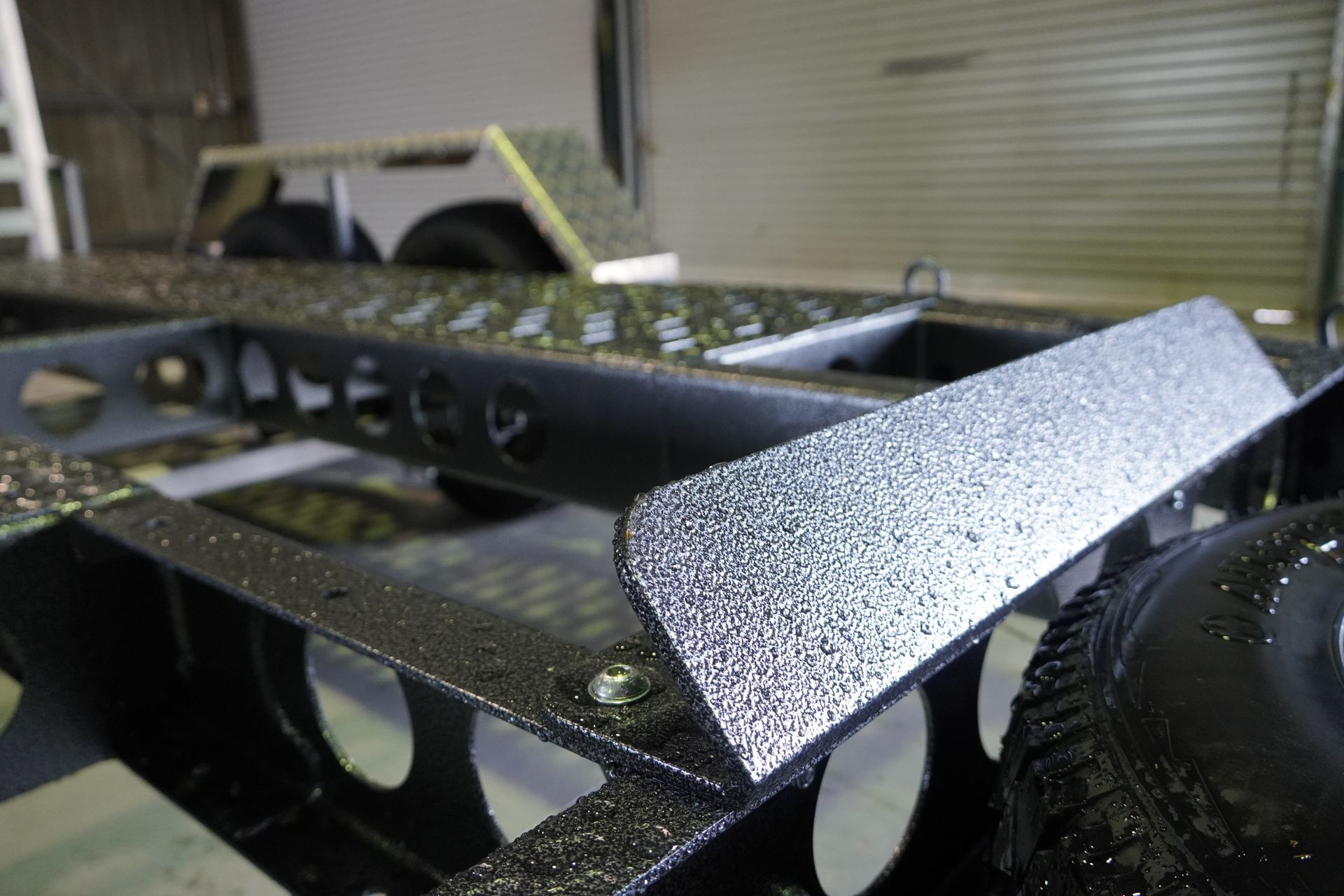

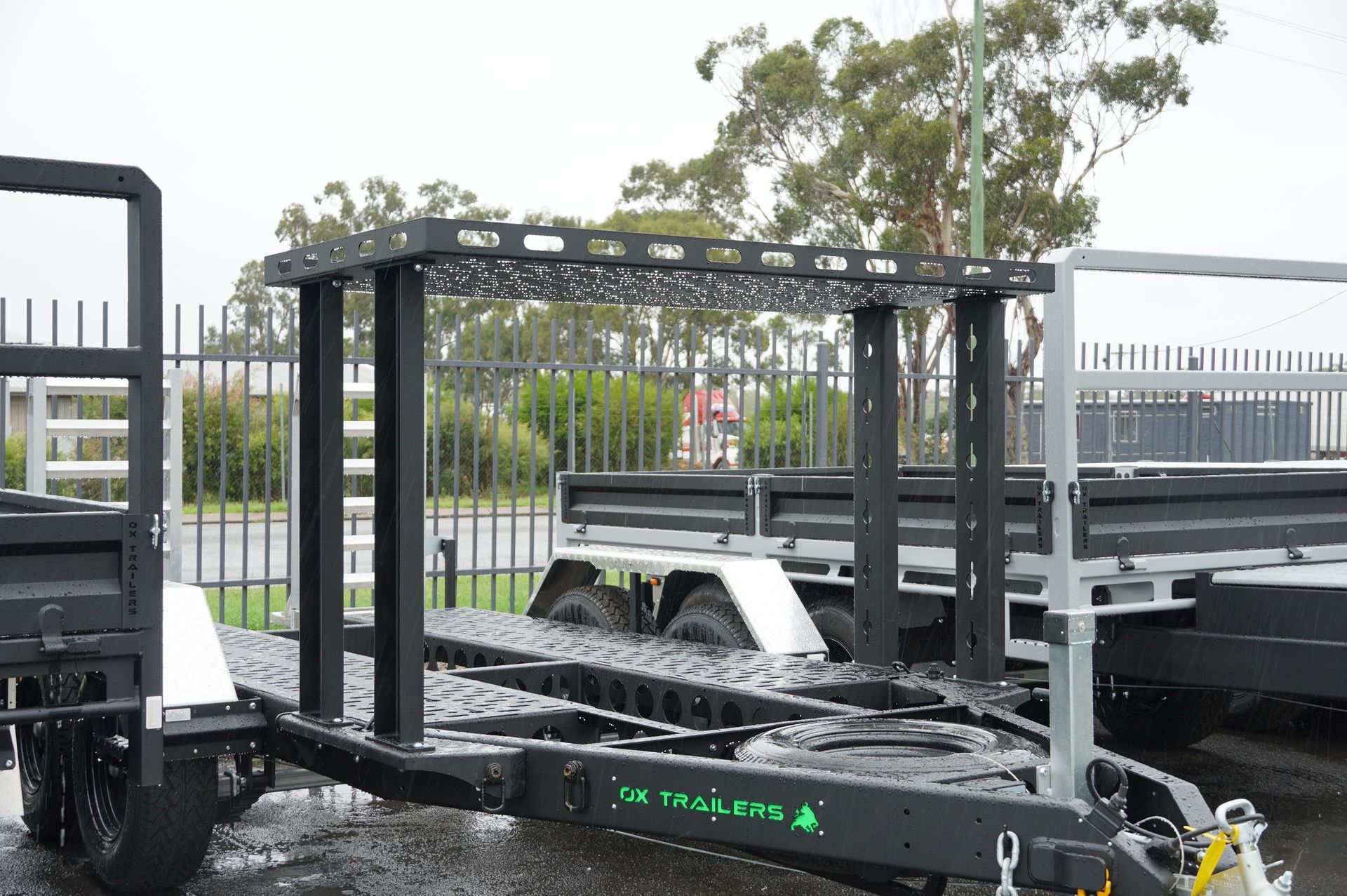

This allows room for a Bucket Rest or Attachment rest as accessories.

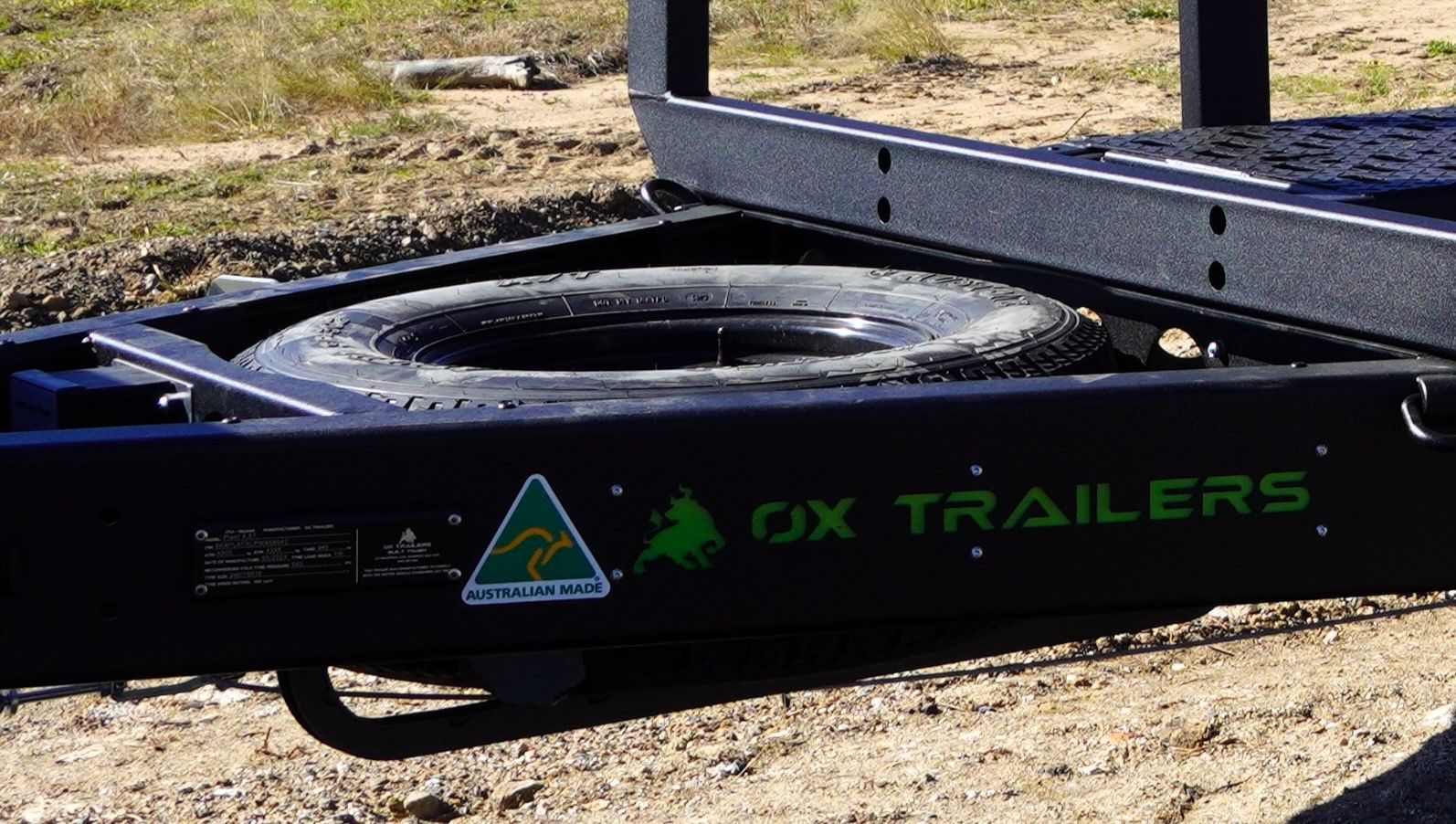

The drawbar is all part of the full-length chassis. It stores the spare tyre and has storage provision for the jack stand.

A standard 2500kg plant trailer

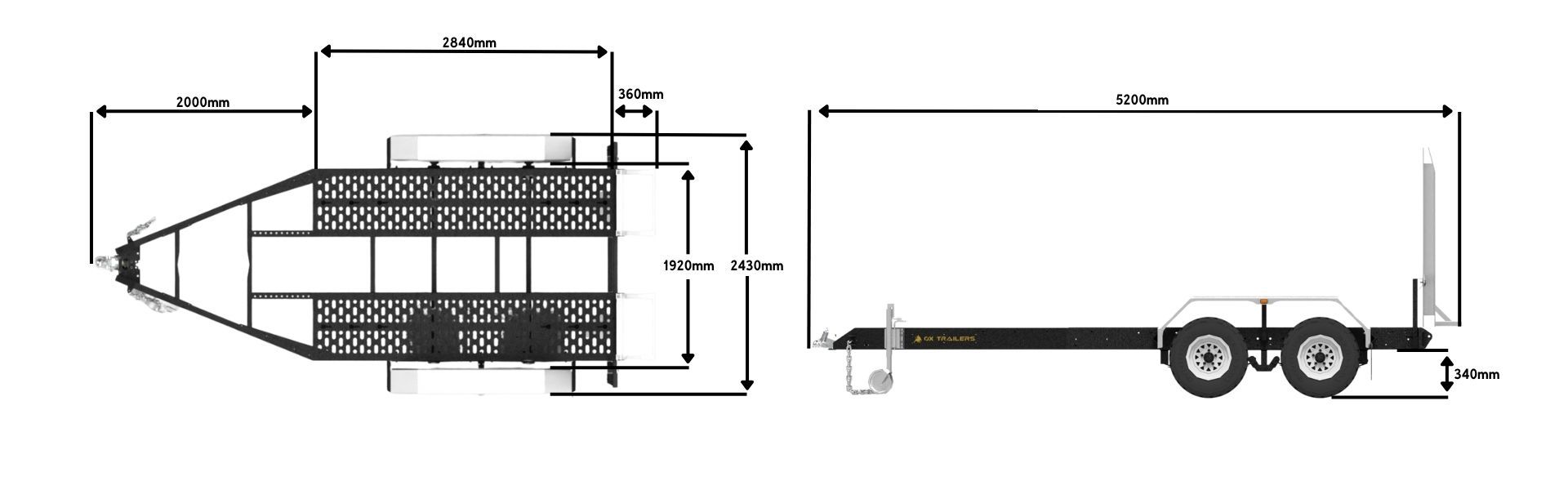

Widths + Lengths

The Internal Measurements are as follows


Max Internal Load Length: 2840mm

Max Internal Load Width: 1920mm


External Measurements


External Length: 5250mm

External Width: 2430mm

The side view of a trailer, depicting it's standard height.

Deck Height

The height from the tray to the ground is 460mm


This low measurement is ideal for the loading and unloading of plant and equipment.

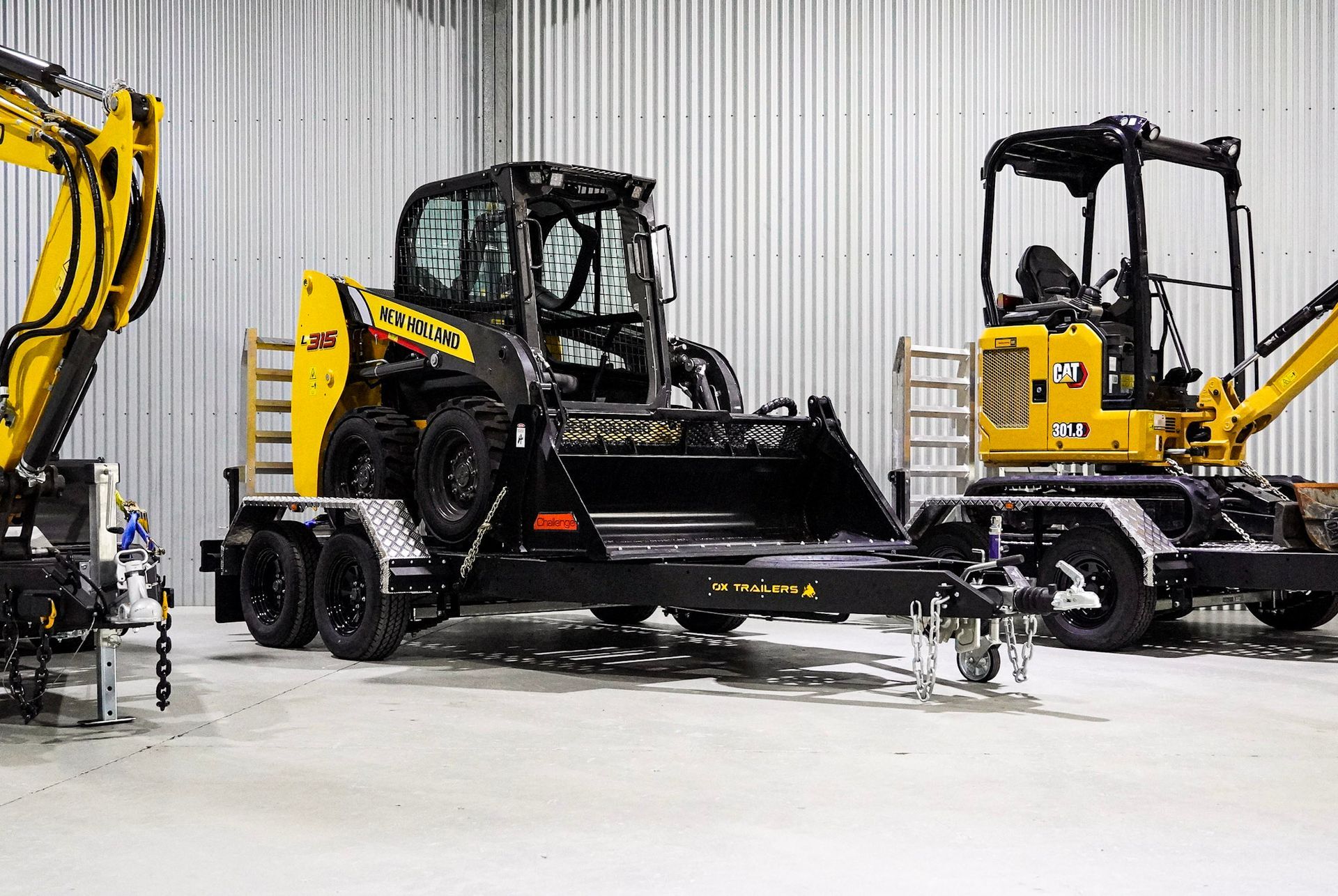

Standard Plant Trailer with Excavator.

TARE Weight

The TARE weight of a standard Plant Trailer is 640kg.

  • DRAWBAR LENGTH

    The drawbar of a trade series plant trailer

    As standard, the drawbar length of an Ox Plant Trailer is 1.9m in length.


    This allows room for a Bucket Rest or Attachment rest as accessories.


    The drawbar is all part of the full-length chassis. It stores the jack stand and has storage provision for the spare tyre.

  • WIDTHS + LENGTHS

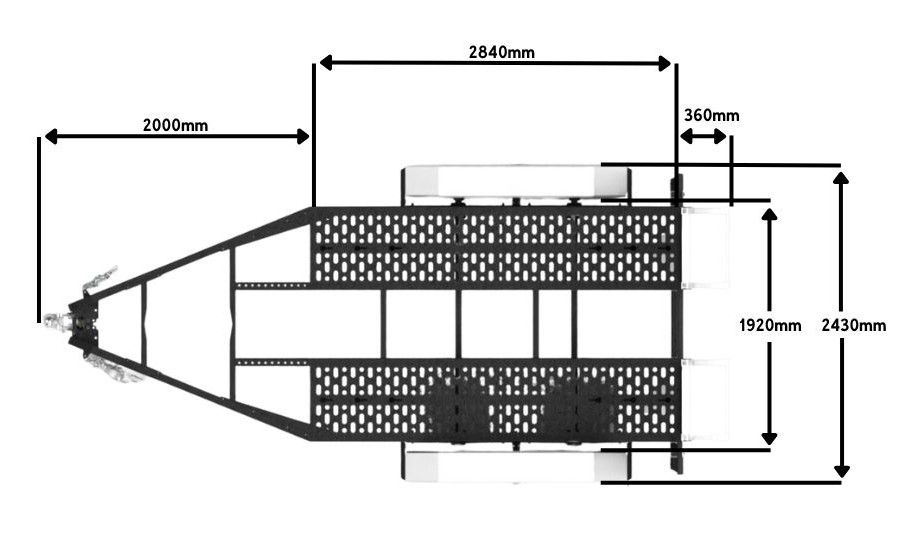

    an isometric view of a trade series plant trailer, showing the width and length.

    The Internal Measurements are as follows:


    Max Internal Load Length: 2840mm

    Max Internal Load Width: 1920mm


    External Measurements:


    External Length: 5250mm

    External Width: 2430mm

  • DECK HEIGHT

    A top view of the trade series plant trailer, showing the height.

    The height from the tray to the ground is 460mm.


    This low measurement is ideal for the loading and unloading of plant and equipment.

  • TARE WEIGHT

    The trade series plant trailer carrying an excavator.

    The TARE weight of a standard Plant Trailer is 640kg.

DECK FEATURES

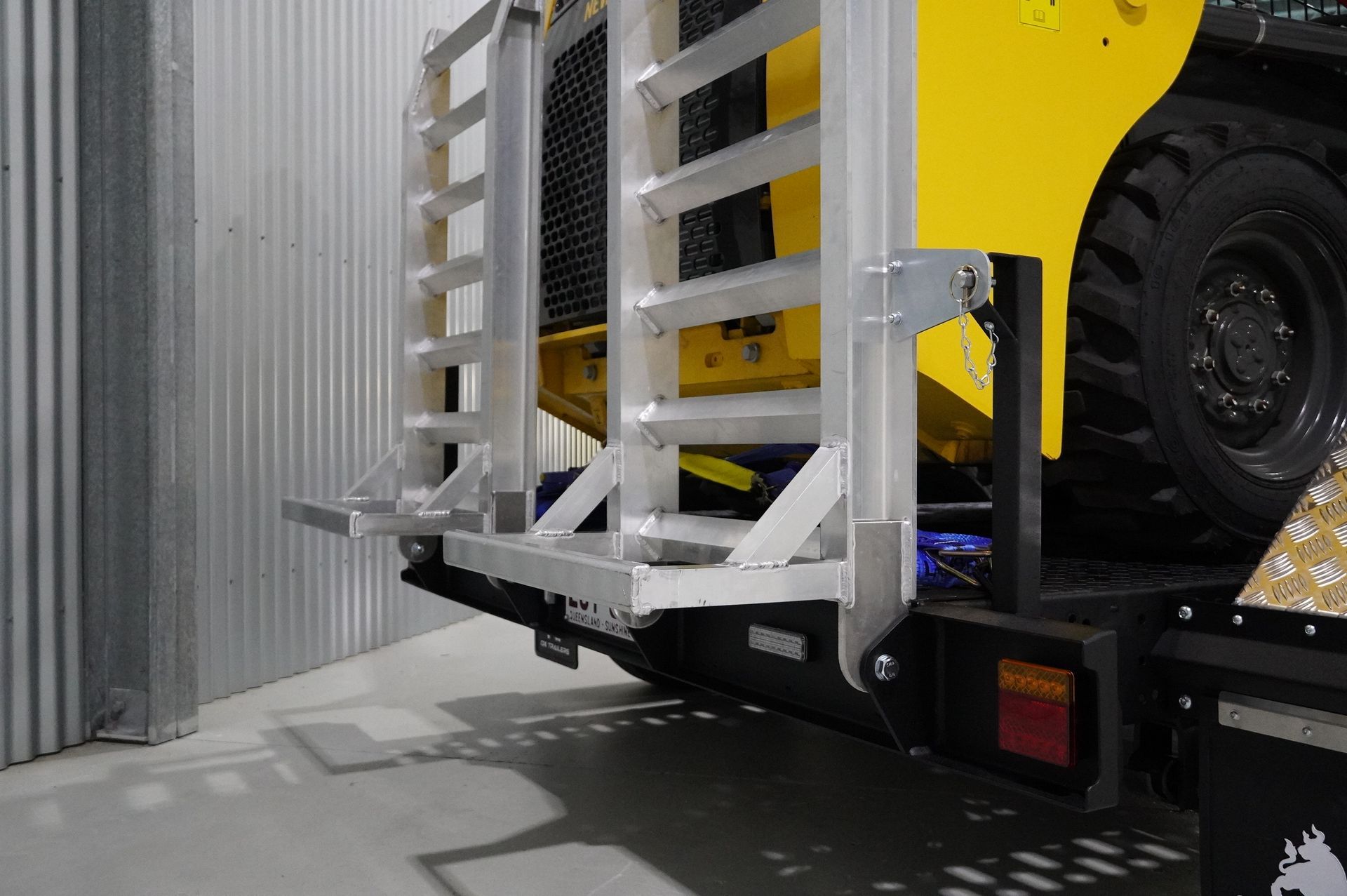

The Aluminium Ramps of an Ox Plant Trailer

Aluminium Ramps

Aluminium Construction for ease-of-use

3500kgs Rated Set.

A close up view of one of the Plant Trailers many tie-down points

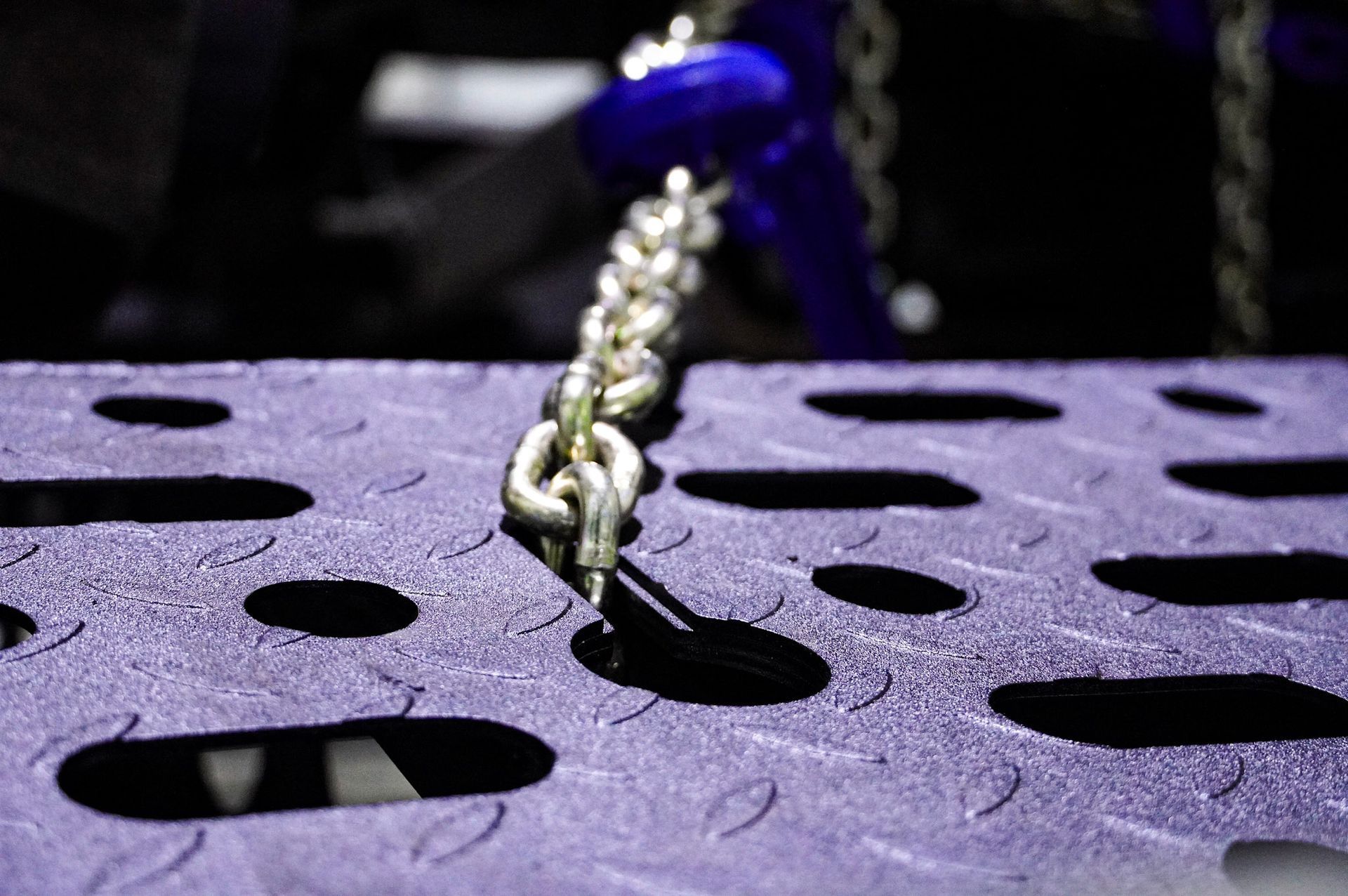

In-floor Chain Slots

As standard, the Trade Series Plant Trailer comes with 12 x In-Floor Chain Slots

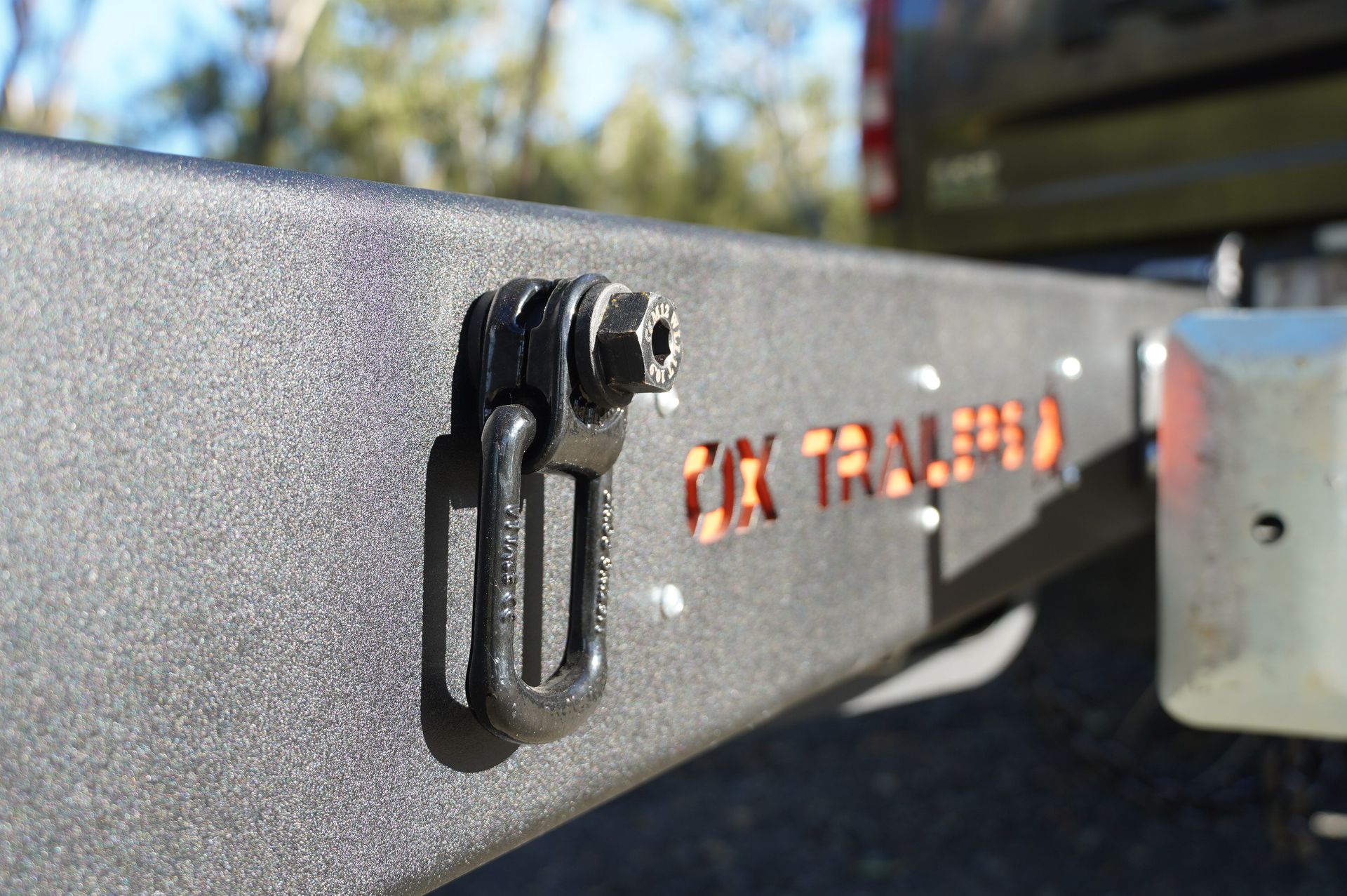

Bolt-on tie-down points are an optional add-on.

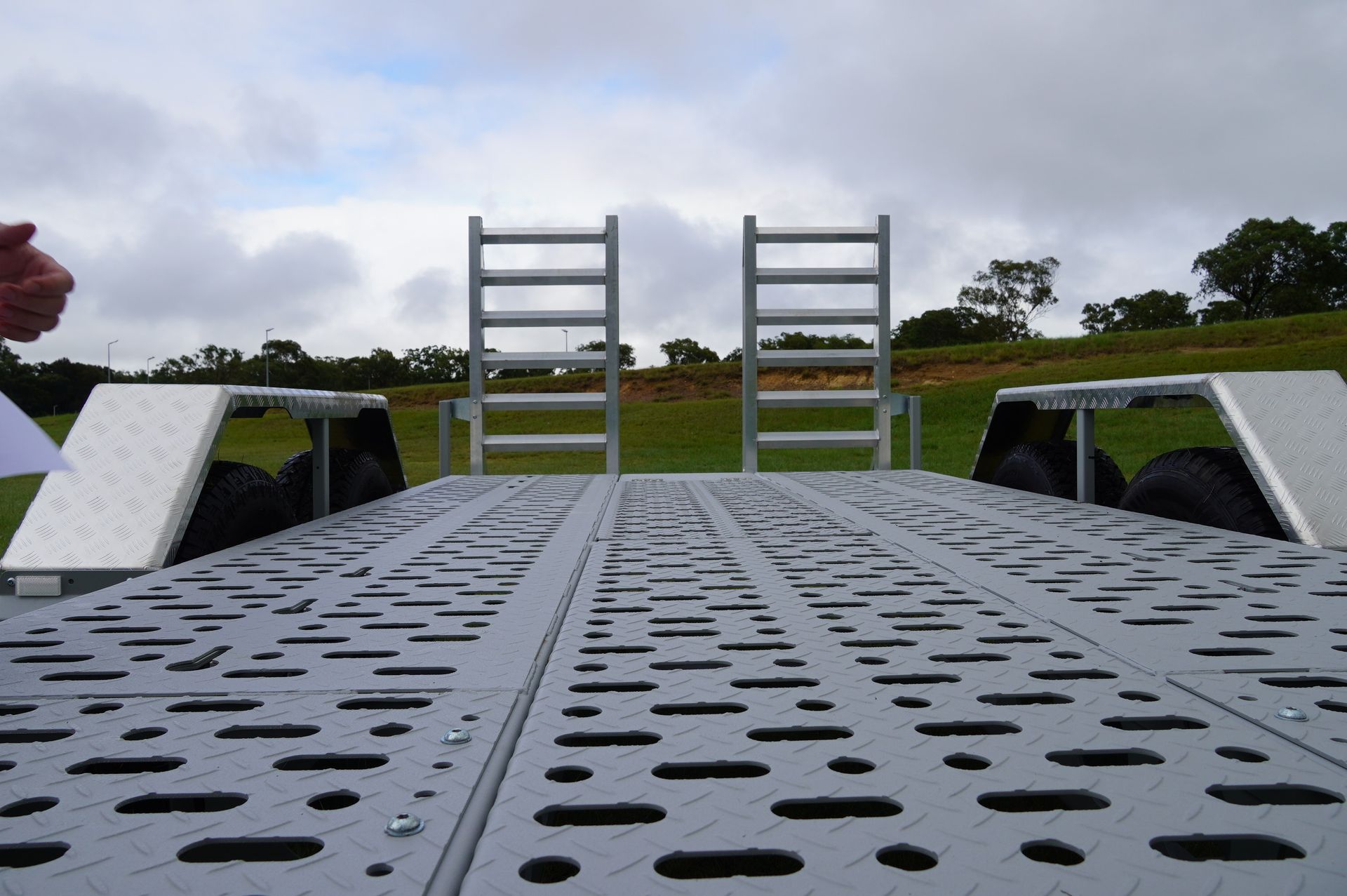

A close view of the 3mm 350 grade decking plate.

Decking Plate made from 3mm 350 grade Checker Plate

The decking plate of all Ox Trailers is made from a welded 3mm 350-grade Checker Plate.


This checker plate decking is welded onto internal bracing that ensures it can withstand heavy loads.

A close up of the wheel placement of the plant trailer, showing the ability to move the placement forward or backward.

Adaptable Design

Easy retrofit of accessories and adaptability as needed through the vast array of holes supplied.

  • RAMPS

    The aluminium ramp set of an ox trade series plant trailer.

    Aluminium Construction for ease-of-use


    3500kgs Rated Set.

  • CHAIN SLOTS

    An in-floor chain slot in the deck of a trade series flat top trailer.

    As standard, the Trade Series Plant Trailer comes with 12 x In-Floor Chain Slots


    Bolt-on tie-down points are an optional add-on.

  • DECKING PLATE

    The 3mm decking plate of the trade series plant trailer.

    The decking plate of all Ox Trailers is made from a welded 3mm 350-grade Checker Plate.


    This checker plate decking is welded onto internal bracing that ensures it can withstand heavy loads.

  • ADAPTABLE DESIGN

    Laser cut holes in the trade series chassis, allowing the retrofit of accessories.

    Easy retrofit of accessories and adaptability as needed through the vast array of holes supplied.

FLEXIBLE YET DURABLE

The Plant Trailer is designed to haul a large variety of equipment and attachments to your next maintenance, construction or industrial location.

With versatility at its core, this trailer is ready to become the transport solution your business needs.


View our brochure for more information.

View and understand the Plant trailer options and accessories to tailor make this trailer for your business.
